U813BSE-FP: DescriptionPrescaler, 1-Func, Bipolar, PDSO8, PLASTIC, SOT-96, SO-8; Categorylogic logic; File Size98KB，7 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

U813BSE-FP Overview

Prescaler, 1-Func, Bipolar, PDSO8, PLASTIC, SOT-96, SO-8

U813BSE-FP Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G8
length	4.9 mm
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.25 mm
Terminal location	DUAL
width	3.8 mm
minfmax	1100 MHz

U813BSE-FP Preview

U813BS/U813BSE

1.1-GHz Prescaler for PLLs in TV, CATV and SAT TV Tuners

Technology:

Bipolar

Features

D

U813BS ECL output stage

U813BSE emitter-follower output stage

3 scaling factors 64/128/256, programmable at Pin 5

High input sensitivity

D

Low output impedance

Low power consumption

Pin-compatible to the U6xxB-series except Pin 5

Electrostatic protection according to MIL-STD. 883

Case

8-pin dual-inline plastic

8-pin SO plastic

6-pin SIP plastic

(U813BS, U813BSE)

(U813BS-FP, U813BSE-FP)

(U813BS-SP, U813BSE-SP)

Block Diagram

Figure 1. Block diagram

TELEFUNKEN Semiconductors

Rev. A1, 05-Sep-96

1 (7)

U813BS/U813BSE

Absolute Maximum Ratings

Reference point pin 4 (1)

Parameters

Supply voltage

Input-voltage range

Junction temperature

Storage-temperature range

Ambient-temperature range

Pin 8 (4)

Pin 2, 3, 5 (2, 5, 6)

Symbol

V

S

V

i

T

i

T

stg

T

amb

Value

6

0 to V

S

125

–40 to +125

–25 to +70

Unit

V

°C

Thermal Resistance

Parameters

Junction ambient

DIP8

SIP6

SO8

Symbol

R

thJA

Value

100

175

Unit

K/W

Note:

The device is self-oscillating without input signal

Pin Description (Dip8, SO8)

1

2, 3

4

5

6, 7

8

Notes:

Function

Not connected

Input

Ground

Switch 64/128/256

Output

V

S

Pin Description (SIP6)

1

2

3

4

5,6

Function

Ground

Switch 64/128/256

Output

V

S

Input

Pin numbers without brackets apply to DIP8 and SO8 package,

Pin numbers with brackets to SIP6

RMS voltage calculated from the available power measured

2 (7)

TELEFUNKEN Semiconductors

Rev. A1, 05-Sep-96

U813BS/U813BSE

Electrical Characteristics

V

S

= 4.5 to 5.5 V, T

amb

= 0 to +70

_

C, referred to test circuit, unless otherwise specified

Parameters

Supply current

Test Conditions / Pin

V

S

= 5 V

U813BS

Pin 8 (4)

U813BSE

Pin 8 (4)

R

G

= 50

W

f

i

= 70 to 1000 MHz

Pin 2, 3 (5, 6)

f

i

= 1000 to 1100 MHz

Pin 2, 3 (5, 6)

R

G

= 50

W

Pin 2, 3 (5, 6)

Symbol

I

S

I

S

Min.

Typ.

35

38

Max.

45

50

Unit

mA

Input sensitivity

V

i

V

i

V

i

f

imin

f

imax

300

10

15

mV

Large-signal compatibility

Frequency range

q

y

g

Output stage

a. Balanced ECL output

Voltage swing each

output

Output impedance

b. Emitter follower

Voltage swing each

output

Output impedance

Switching voltage for

g

70

1100

MHz

R

L

= 10 k//13 pF

Pin 6, 7 (3)

R

L

= 10 k//13 pF

Pin 6, 7 (3)

./. 64

Pin 5 (2)

./. 128

Pin 5 (2)

./. 256

Pin 5 (2)

V

O

Z

O

0.8

500

V

pp

W

V

O

Z

O

V

SF

V

SF

V

SF

1

200

open

V

S

–0.5

0

0.5

V

pp

TELEFUNKEN Semiconductors

Rev. A1, 05-Sep-96

3 (7)

U813BS/U813BSE

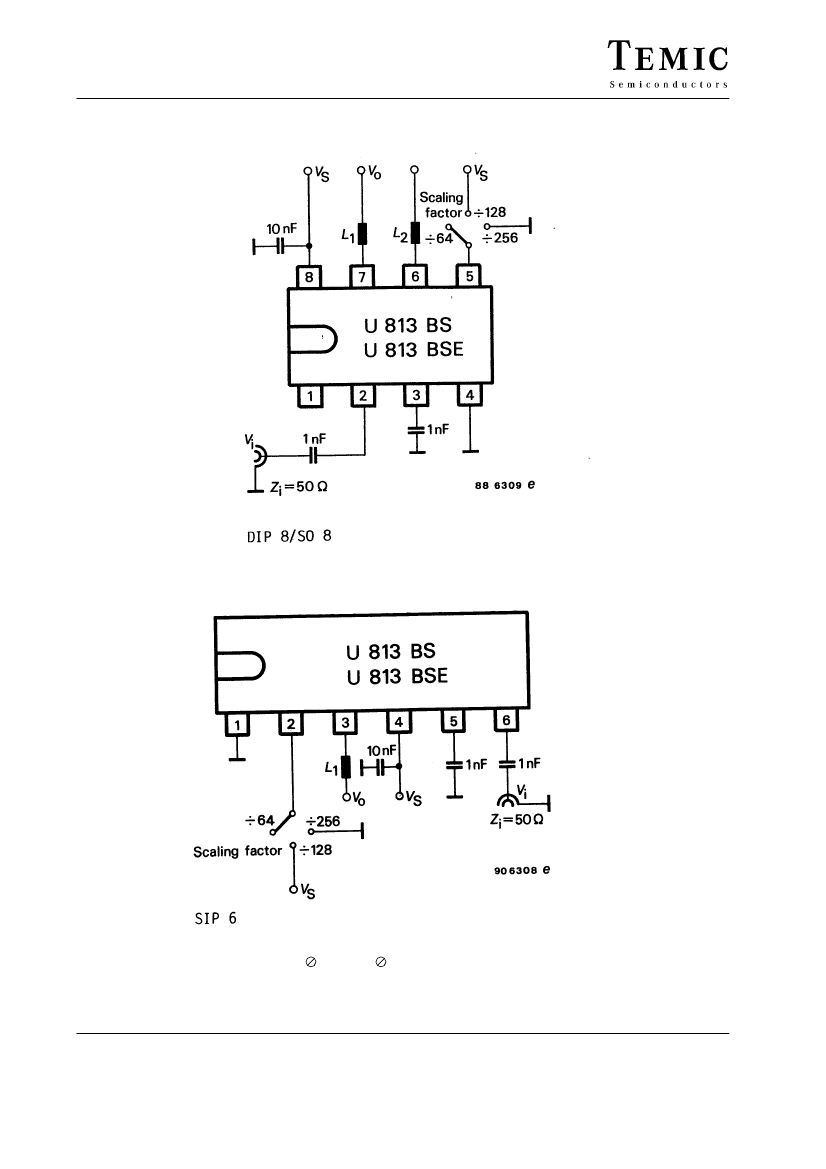

Test Circuits

Figure 2.

L

1

= L

2

= 150 nH (6 turns CuL 0.45 mm

on 4 mm

)

Figure 3.

4 (7)

TELEFUNKEN Semiconductors

Rev. A1, 05-Sep-96

U813BS/U813BSE

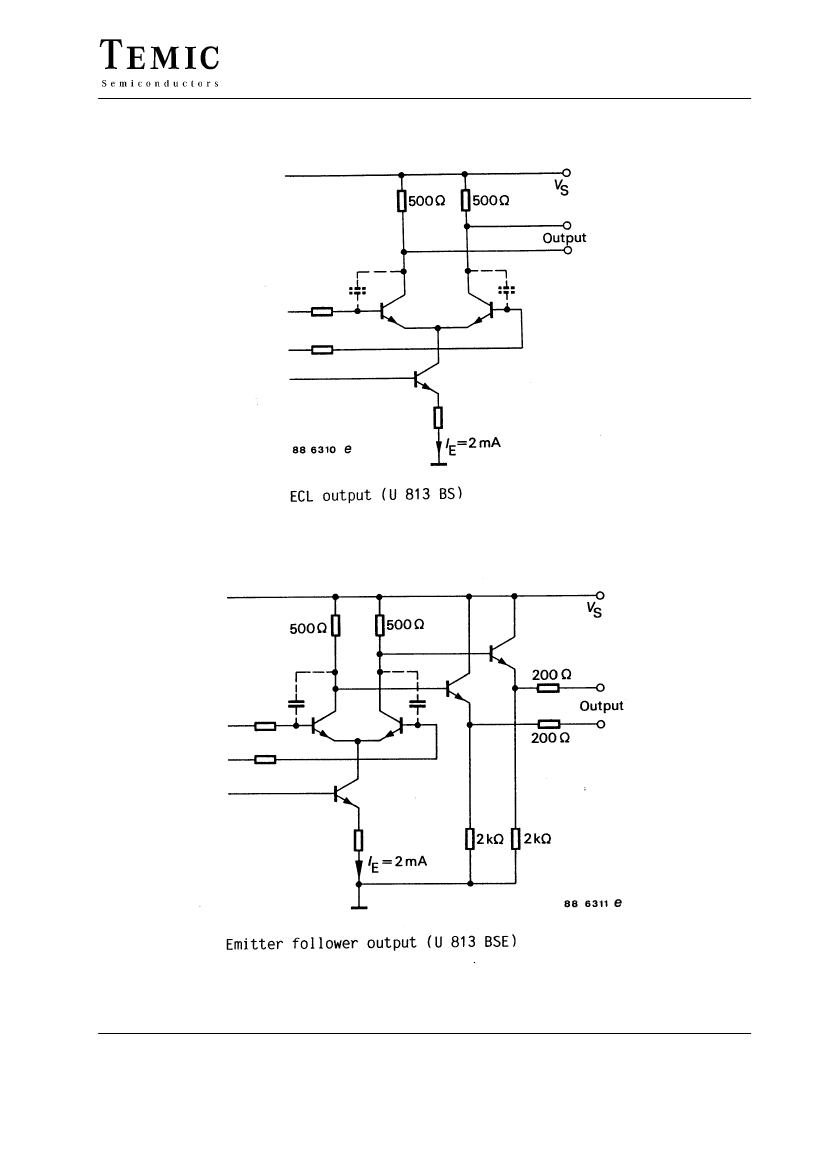

Output Circuits

Figure 4.

Figure 5.

TELEFUNKEN Semiconductors

Rev. A1, 05-Sep-96

5 (7)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
