FH26-71S-0.3SHW(05) datasheet, PDF

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> FH26-71S-0.3SHW(05)

Preview

FH26-71S-0.3SHW(05): Description71 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT; Categorysemiconductor Other integrated circuit (IC); File Size821KB，6 Pages; ManufacturerHirose Electric

Download Datasheet Compare View All

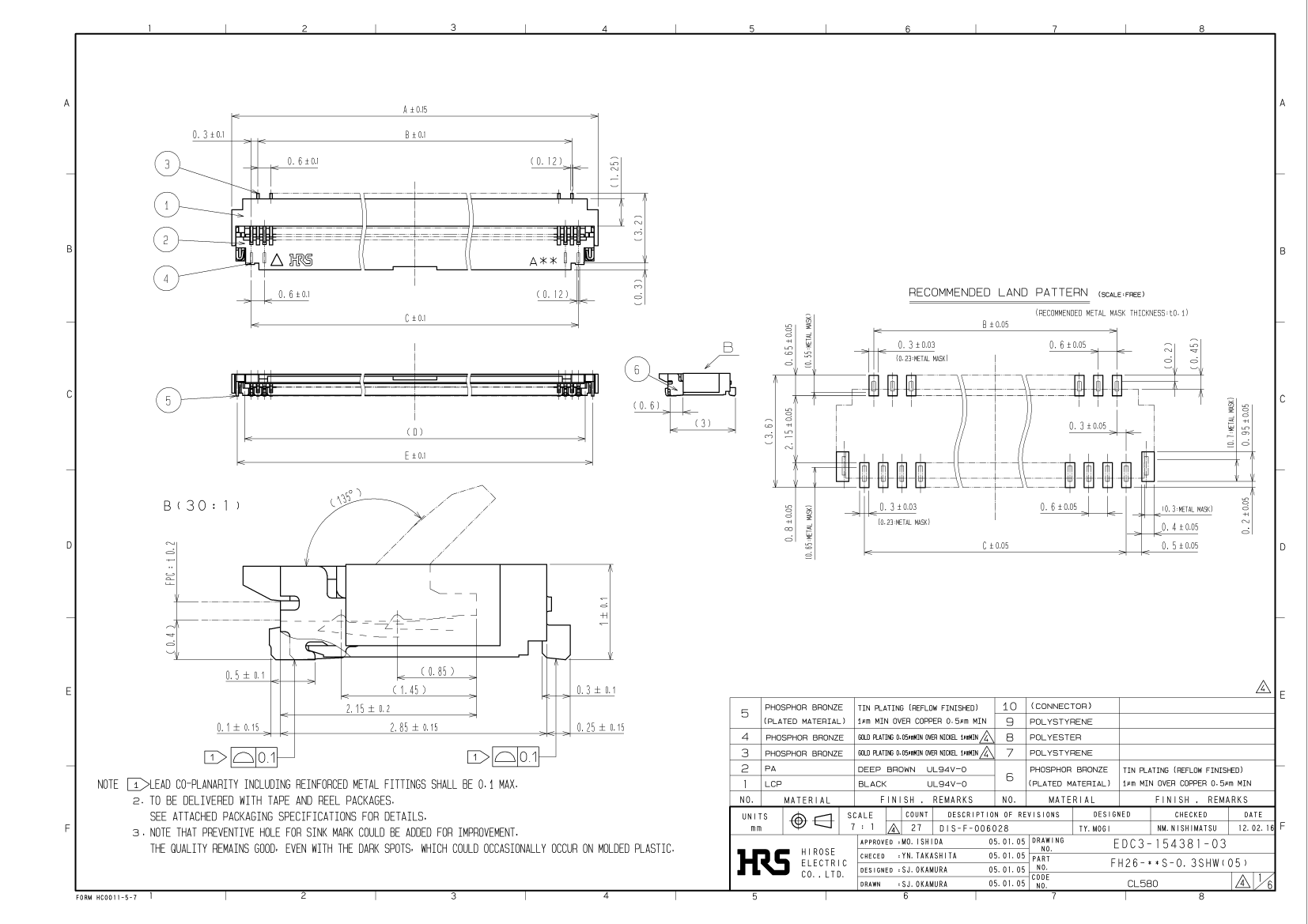

FH26-71S-0.3SHW(05) Overview

71 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT

Preview

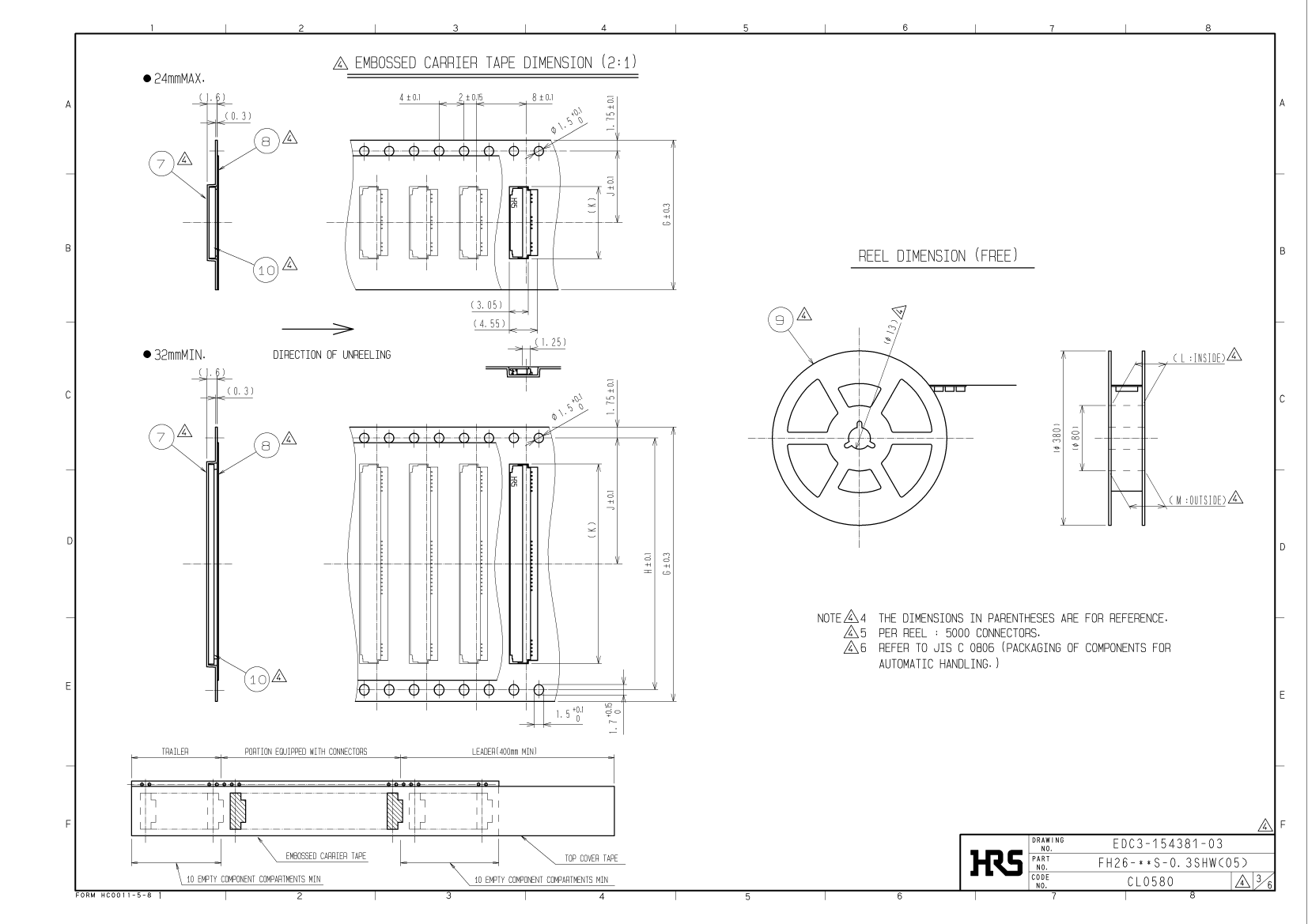

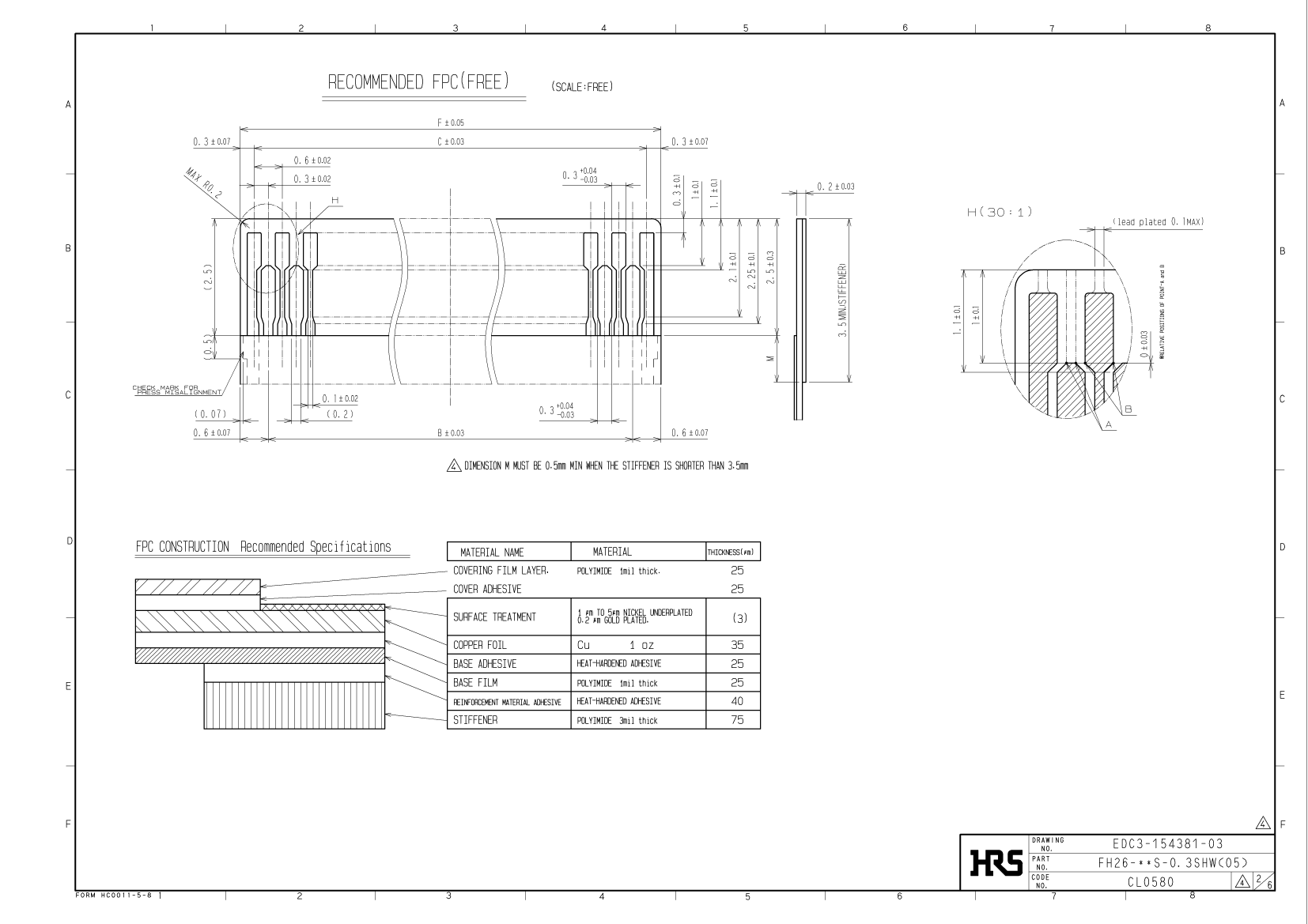

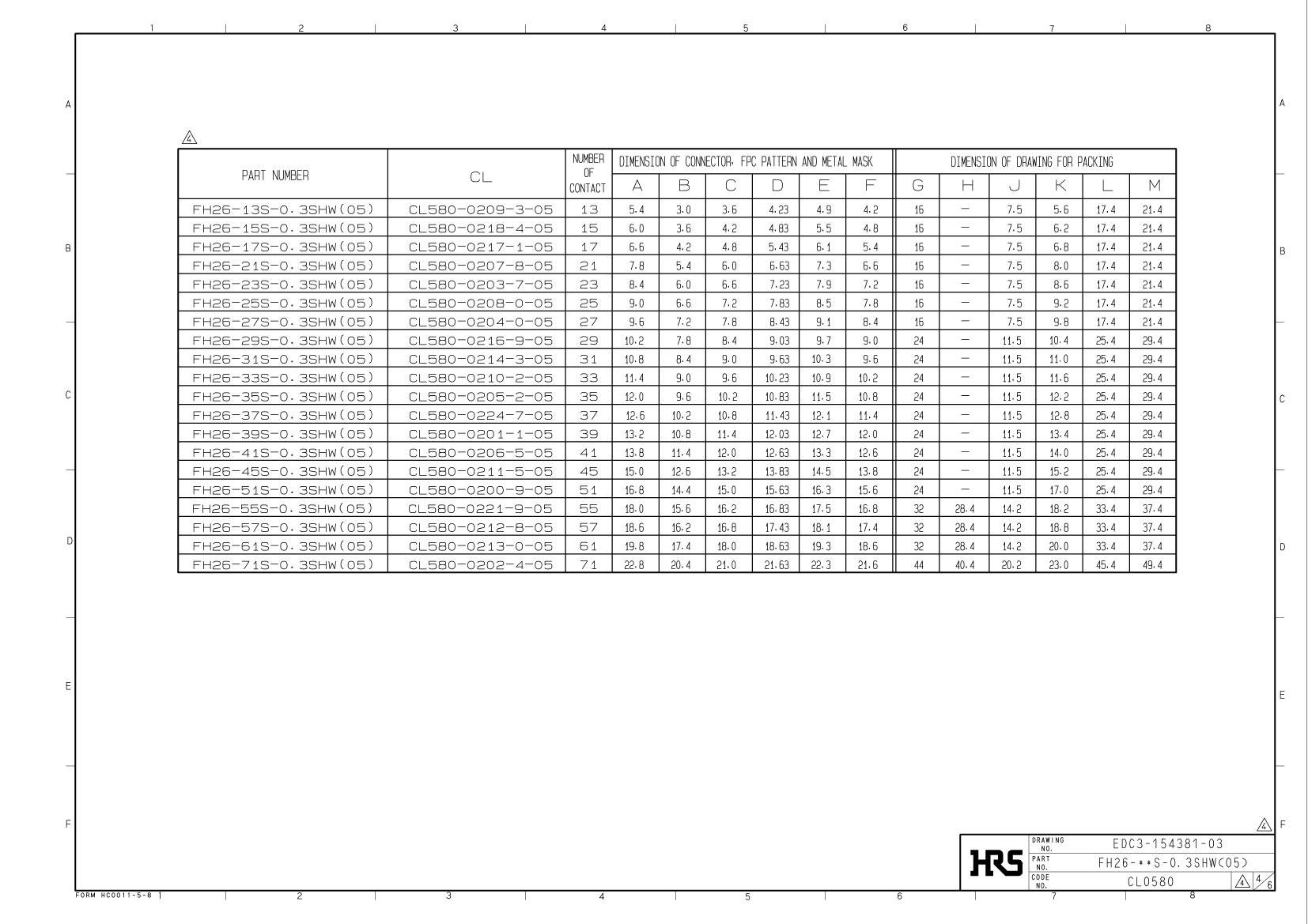

Download Datasheet

View All

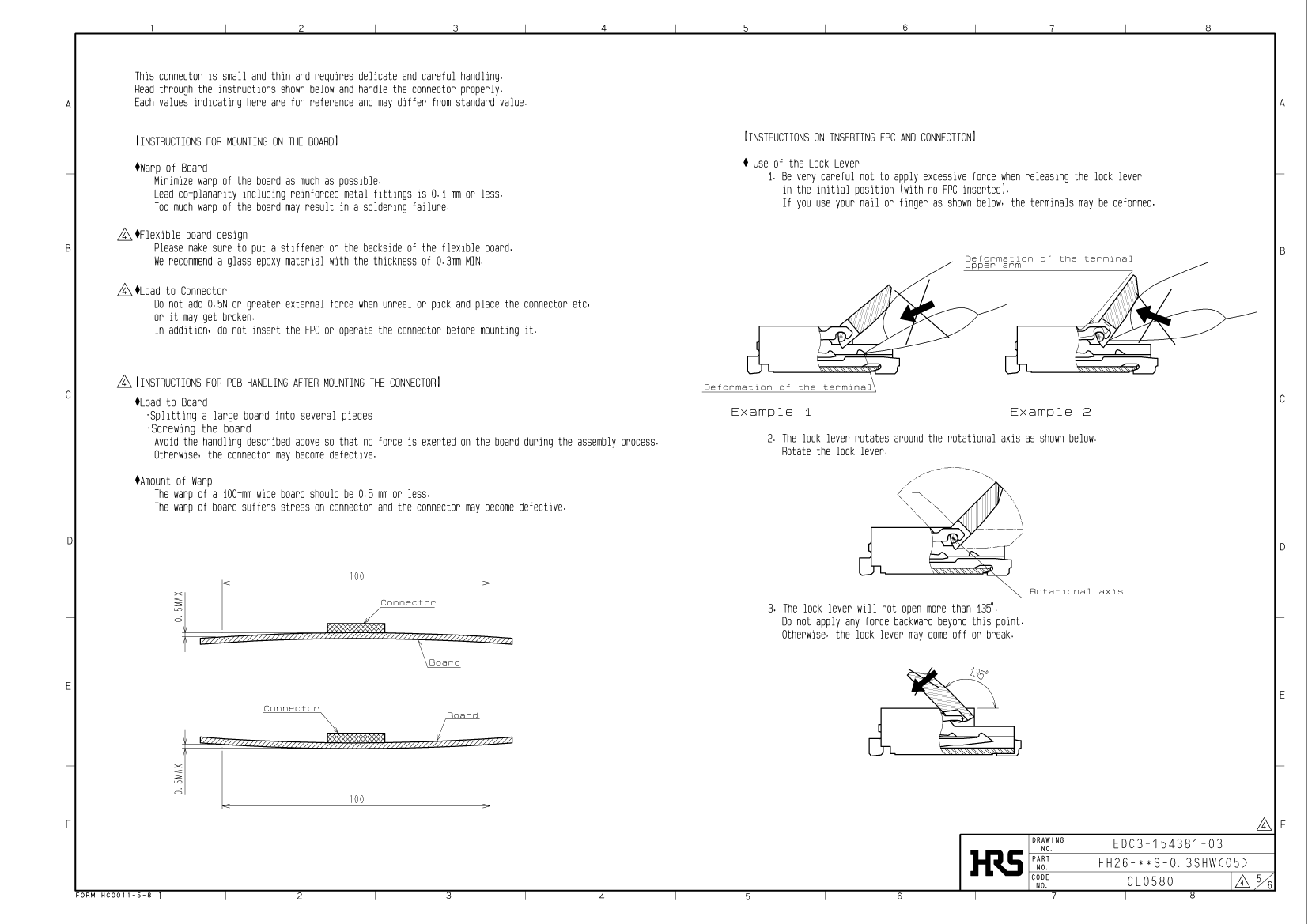

In case that the application demands a high level of reliability, such as automotive,

please contact a company representative for further information.

FH26-71S-0.3SHW(05) Related Products

	FH26-71S-0.3SHW(05)	FH26-39S-0.3SHW(05)	FH26-61S-0.3SHW(05)	FH26-23S-0.3SHW(05)	FH26-35S-0.3SHW(05)	FH26-41S-0.3SHW(05)	FH26-51S-0.3SHW(05)
Description	71 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	39 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	CONN FPC BOTTOM 61POS 0.30MM R/A	CONN FPC BOTTOM 23POS 0.30MM R/A	CONN FPC BOTTOM 35POS 0.30MM R/A	CONN FPC BOTTOM 41POS 0.30MM R/A	CONN FPC BOTTOM 51POS 0.30MM R/A
Installation type	-	BOARD	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Flat flexible type	-	-	FPC	FPC	FPC	FPC	FPC
Connector/contact type	-	-	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	-	-	61	23	35	41	51
spacing	-	-	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	-	-	welding	welding	welding	welding	welding
FFC, FCB thickness	-	-	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	-	-	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Lock function	-	-	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	-	-	tapered	tapered	tapered	tapered	tapered
Contact material	-	-	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact plating	-	-	gold	gold	gold	gold	gold
Shell material	-	-	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Actuator material	-	-	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
characteristic	-	-	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)	Zero insertion force (ZIF)
Rated voltage	-	-	30V	30V	30V	30V	30V
Operating temperature	-	-	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Material flammability rating	-	-	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	-	-	0.2A	0.2A	0.2A	0.2A	0.2A
Shell color	-	-	black	black	black	black	black
Actuator color	-	-	brown	brown	brown	brown	brown
Number of patches	-	-	10	10	10	10	10
