MCM72800SG70 datasheet, PDF - EEWORLD Datasheet

MCM72800SG70: DescriptionMEMORY MODULE,DRAM,FAST PAGE,8MX72,CMOS,SSIM,100PIN,PLASTIC; Categorystorage storage; File Size156KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

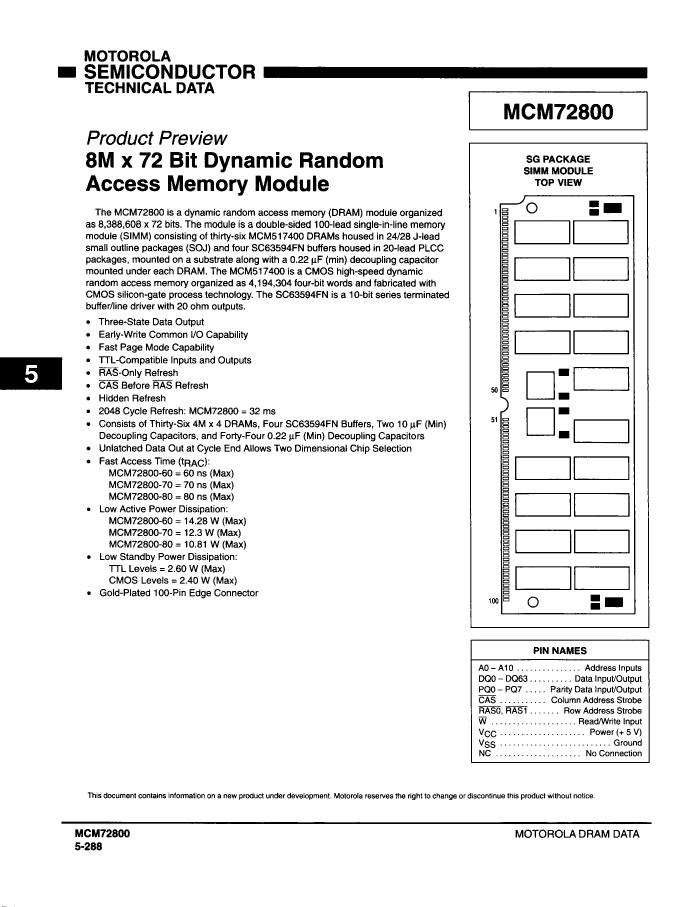

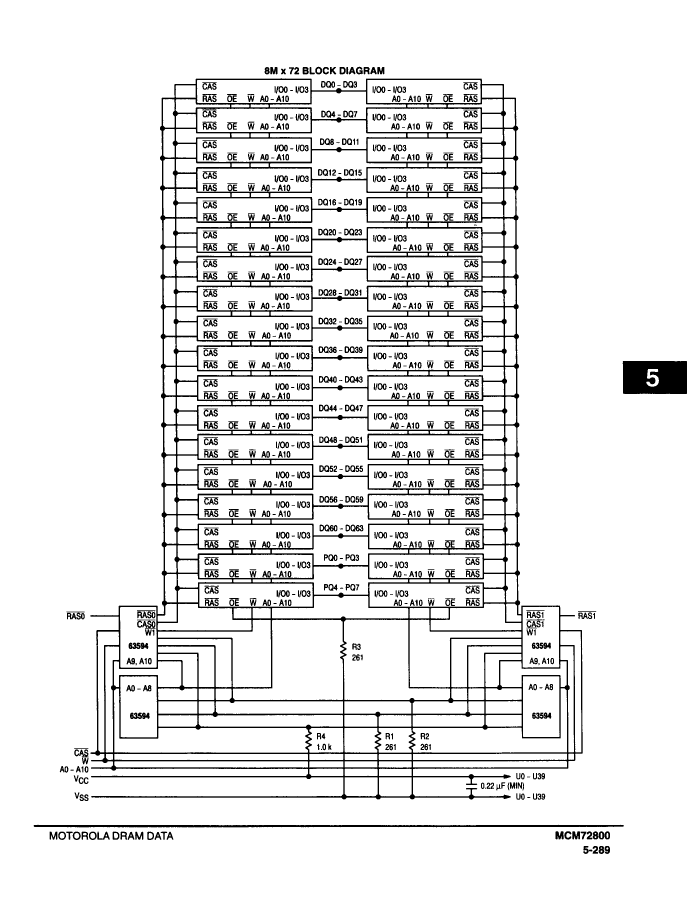

MCM72800SG70 Overview

MEMORY MODULE,DRAM,FAST PAGE,8MX72,CMOS,SSIM,100PIN,PLASTIC

Parameter Name	Attribute value
Maker	NXP
package instruction	SIMM, SSIM100
Reach Compliance Code	unknown
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N100
memory density	603979776 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	72
Number of terminals	100
word count	8388608 words
character code	8000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX72
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM100
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	2048
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

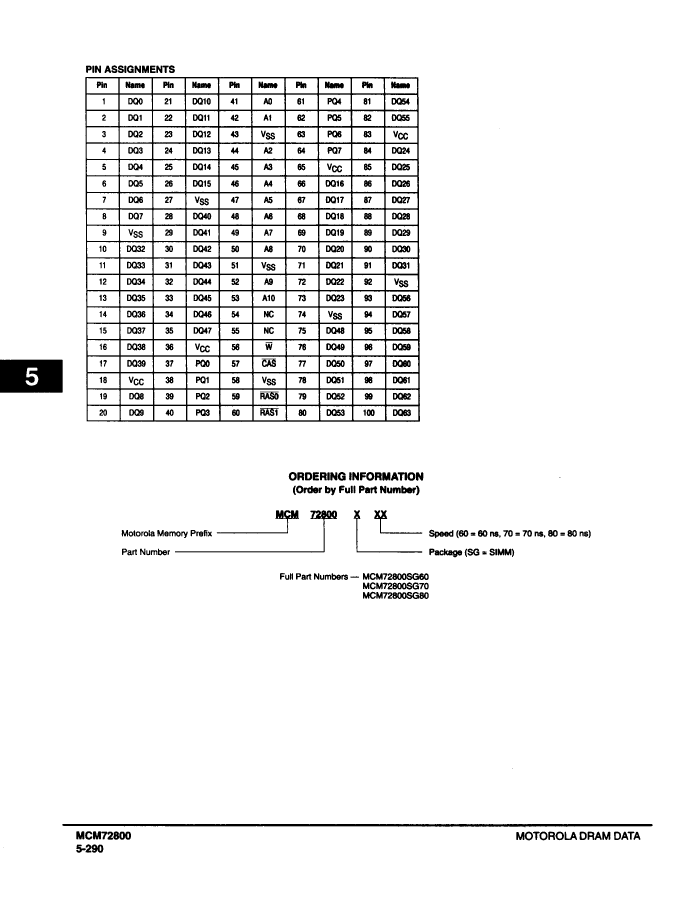

	MCM72800SG70	MCM72800SG80
Description	MEMORY MODULE,DRAM,FAST PAGE,8MX72,CMOS,SSIM,100PIN,PLASTIC	MEMORY MODULE,DRAM,FAST PAGE,8MX72,CMOS,SSIM,100PIN,PLASTIC
Maker	NXP	NXP
package instruction	SIMM, SSIM100	SIMM, SSIM100
Reach Compliance Code	unknown	unknow
Maximum access time	70 ns	80 ns
I/O type	COMMON	COMMON
JESD-30 code	R-PSMA-N100	R-PSMA-N100
memory density	603979776 bit	603979776 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	72	72
Number of terminals	100	100
word count	8388608 words	8388608 words
character code	8000000	8000000
Maximum operating temperature	70 °C	70 °C
organize	8MX72	8MX72
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM
Encapsulate equivalent code	SSIM100	SSIM100
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
refresh cycle	2048	2048
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE
