34.6622 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 34.6622

34.6622: DescriptionFuse; CategoryCircuit protection Circuit protection; File Size644KB，4 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

34.6622 Overview

Fuse

34.6622 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 10 A
Fusing characteristics	TIME LAG
body height	8.5 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	230 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BAG
physical size	8.5mm x 8.5mm
Pre-discharge rating	230 A2/s
Pre-discharge time - minutes	20 ms
Rated breaking capacity	35 A
Rated current	5 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Rated voltage (DC)	125 V
Guideline	CCC; CSA; IEC; KTL; UL; VDE
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Non resettable fuses

www.schurter.com/pg0_2

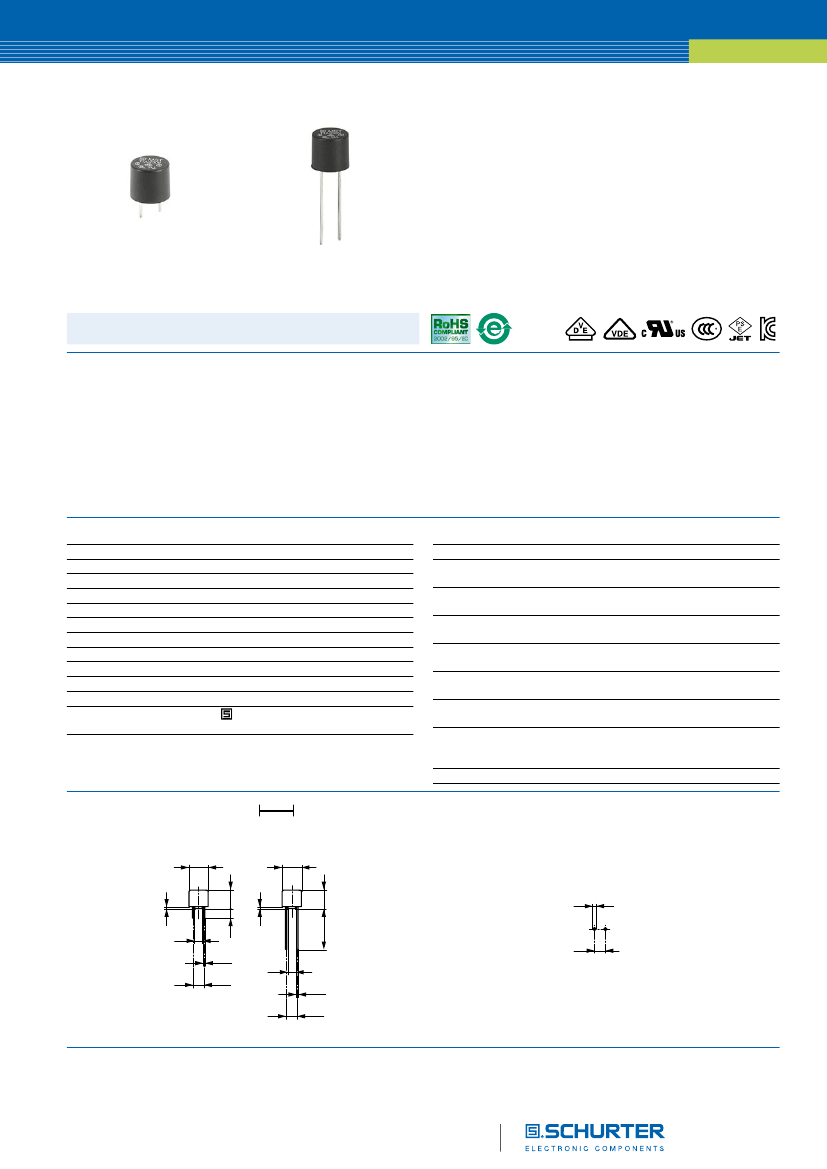

Subminiature Fuse, 8.5 mm, Time-Lag T, 250 VAC

MST 250

IEC 60127-3 · 250 VAC · Time-Lag T

Description

Standards

- Directly solderable on printed circuit boards

- Low Breaking Capacity

- IEC 60127-3/4

- UL 248-14

- CSA C22.2 no. 248.14

Applications

- Primary Protection on PCB

- Power Supply Adapter for e.g. laptops

- SMPS (Switching Mode Power Supply) for TV's and DVD's

Packaging Details

Corresponding Fuseholder FMS (250V)

Fuse Kit Fuse Kit Microfuse

References

Approvals

- VDE Certificate Number: 40002080

- UL File Number: E41599

- CSA File Number: 51172

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

e-Store, SCHURTER-Stock-Check, Distributor-Stock-Check

Technical Data

Rated Voltage

Rated Current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

250 VAC

0.05 - 6.3 A

35 A - 63 A

Time-Lag T

PCB,THT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Thermoplastic, UL 94V-0

Tin-Plated Copper

0.53 g

0 °C to 60 °C, max. 70% r.h.

, Type, Current, Voltage, Characteri-

stic, Approvals

Soldering Methods

Solderability

Resistance to Soldering Heat

Moisture Resistance Test

Terminal Strength

Case Resistance

Mechanical Shock

Vibration, High Frequency

Wave, Iron

235 °C / 2 sec acc. to IEC 60068-2-20,

Test Ta, method 1

260 °C / 5 sec acc. to IEC 60068-2-20,

Test Tb, method 1A

MIL-STD-202, Method 106E

(50 cycles in a temp./mister chamber)

MIL-STD-202, Method 211A

(Deflection of board 1 mm for 1 minute)

acc. to EIA/IS-722, Test 4.7

>100 MΩ (between leeds and body)

MIL-STD-202, Method 213B

(Shock 50gn, half sine wave, 11 ms)

MIL-STD-202, Method 204D

(Shock 20 gn, 20 min, 10-2 kHz, 12

cyc.)

MIL-STD-202, Method 215A

Resistance to Solvents

Dimensions

ø 8.5

8.5 mm

ø 8.5

8.5

0.5

+0.1

3.2

18.8

4.3

5.08

ø 0.64

5.08

3.2

ø 0.64

5.08

Drilling diagram

Fuses

34.6622 Related Products

	34.6622	34.6609	34.6611	34.6614	34.6615	34.6617	34.662	34.6616	34.6623	34.6608
Description	Fuse	Fuse	Fuse	Fuse	Fuse	Fuse	Fuse	Fuse	Fuse	Fuse
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown	unknown	compliant	unknown	compliant	-	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 10 A	RATED BREAKING CAPACITY AT 125 VDC: 50 A	RATED BREAKING CAPACITY AT 125 VDC: 50 A	RATED BREAKING CAPACITY AT 63 VDC: 50 A	-	RATED BREAKING CAPACITY AT 63 VDC: 50 A	-	-	RATED BREAKING CAPACITY AT 125 VDC: 10 A	RATED BREAKING CAPACITY AT 125 VDC: 50 A
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG	TIME LAG	-	TIME LAG	-	-	TIME LAG	TIME LAG
body height	8.5 mm	8.5 mm	8.5 mm	8.5 mm	-	8.5 mm	-	-	8.5 mm	8.5 mm
Body length or diameter	8.5 mm	8.5 mm	8.5 mm	8.5 mm	-	8.5 mm	-	-	8.5 mm	8.5 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	-	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3	e3	e3	-	e3	-	-	e3	e3
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	-	THROUGH HOLE	-	-	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	-	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-	-55 °C	-55 °C
method of packing	BAG	BAG	BAG	BAG	-	BAG	-	-	BAG	BAG
physical size	8.5mm x 8.5mm	8.5mm x 8.5mm	8.5mm x 8.5mm	8.5mm x 8.5mm	-	8.5mm x 8.5mm	-	-	8.5mm x 8.5mm	8.5mm x 8.5mm
Pre-discharge rating	230 A2/s	0.6 A2/s	1.1 A2/s	8 A2/s	-	30 A2/s	-	-	360 A2/s	0.35 A2/s
Pre-discharge time - minutes	20 ms	20 ms	20 ms	20 ms	-	20 ms	-	-	20 ms	20 ms
Rated breaking capacity	35 A	35 A	35 A	35 A	-	35 A	-	-	35 A	35 A
Rated current	5 A	0.25 A	0.4 A	0.8 A	-	1.6 A	-	-	6.3 A	0.2 A
Rated voltage	250 V	250 V	250 V	250 V	-	250 V	-	-	250 V	250 V
Rated voltage (AC)	250 V	250 V	250 V	250 V	-	250 V	-	-	250 V	250 V
Rated voltage (DC)	125 V	63 V	63 V	63 V	-	63 V	-	-	125 V	63 V
Guideline	CCC; CSA; IEC; KTL; UL; VDE	CCC; CSA; IEC; KTL; UL; VDE	CCC; CSA; IEC; KTL; UL; VDE	CCC; CSA; IEC; KTL; UL; VDE	-	CCC; CSA; IEC; KTL; PSE; UL; VDE	-	-	CCC; CSA; IEC; KTL; UL; VDE	CCC; CSA; IEC; KTL; UL; VDE
surface mount	NO	NO	NO	NO	-	NO	-	-	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)	-	-	Tin (Sn)	Tin (Sn)
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	-	PIN WIRE	-	-	PIN WIRE	PIN WIRE
Base Number Matches	1	1	1	1	1	1	1	-	1	1
Maker	-	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	-	-	SCHURTER
