W2465AK-12: Description8K X 8 High Speed CMOS Static RAM; Categorystorage storage; File Size135KB，9 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw

Download Datasheet Parametric Compare View All

W2465AK-12 Overview

8K X 8 High Speed CMOS Static RAM

W2465AK-12 Parametric

Parameter Name	Attribute value
Maker	Winbond Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP28,.3
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T28
JESD-609 code	e3
length	35.26 mm
memory density	65536 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum standby current	0.005 A
Minimum standby current	4.5 V
Maximum slew rate	0.18 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

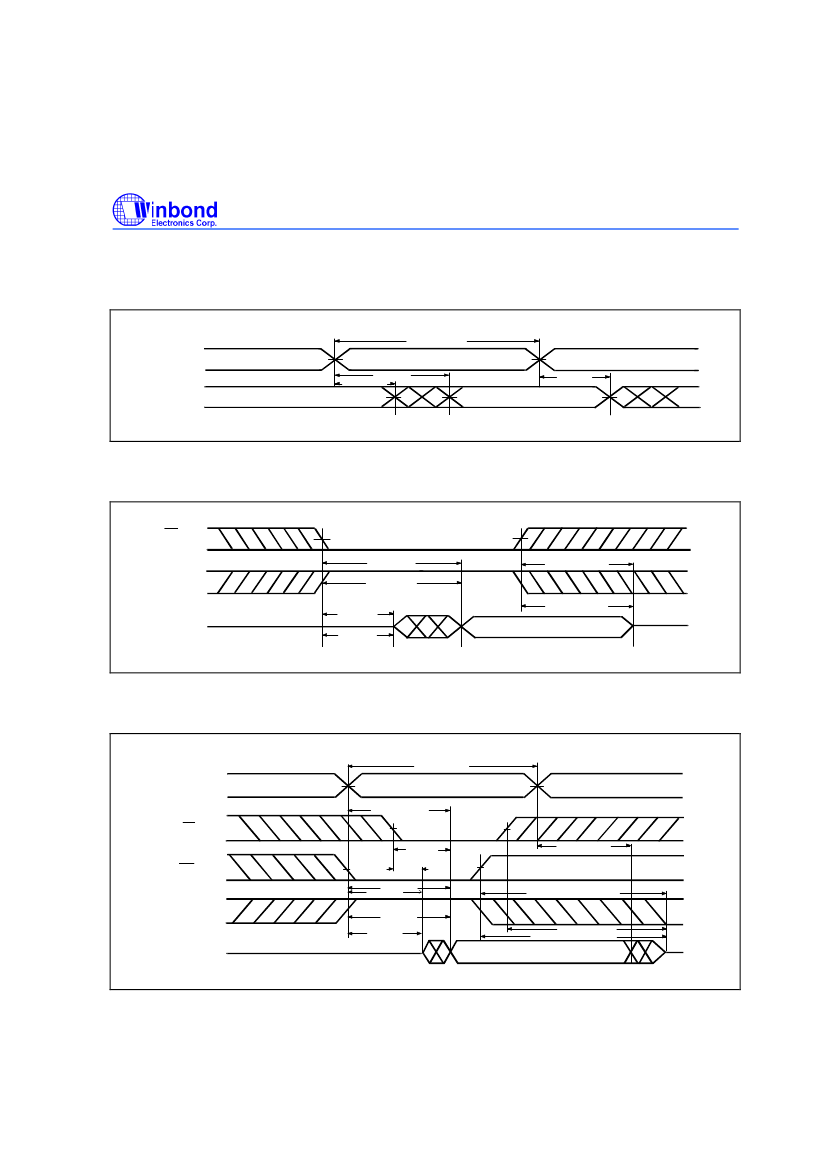

Preview

Download Datasheet

View All

W2465A

8 HIGH-SPEED CMOS STATIC RAM

GENERAL DESCRIPTION

The W2465A is a high-speed, low-power CMOS static RAM organized as 8192

8 bits that operates

on a single 5-volt power supply. This device is manufactured using Winbond's high performance

CMOS technology.

FEATURES

•

High-speed access time: 12/15/20 nS (max.)

Low-power consumption:

−

Active: 400mW (typ.)

Single +5V power supply

Fully static operation

•

All inputs and outputs directly TTL compatible

Three-state outputs

Available packages: 28-pin 300 mil SOJ and

skinny DIP

•

PIN CONFIGURATION

BLOCK DIAGRAM

A12

I/O1

I/O2

I/O3

CS2

DECODER

CORE

C O RE

ARRAY

CS2

A11

A10

CS1

I/O8

I/O7

I/O6

I/O5

I/O4

CS1

CONTROL

DATA I/O

I/O1

I/O8

PIN DESCRIPTION

SYMBOL

A0−A12

I/O1−I/O8

CS1, CS2

DESCRIPTION

Address Inputs

Data Inputs/Outputs

Chip Select Inputs

Write Enable Input

Output Enable Input

Power Supply

Ground

No Connection

-1-

Publication Release Date: October 1995

Revision A6
