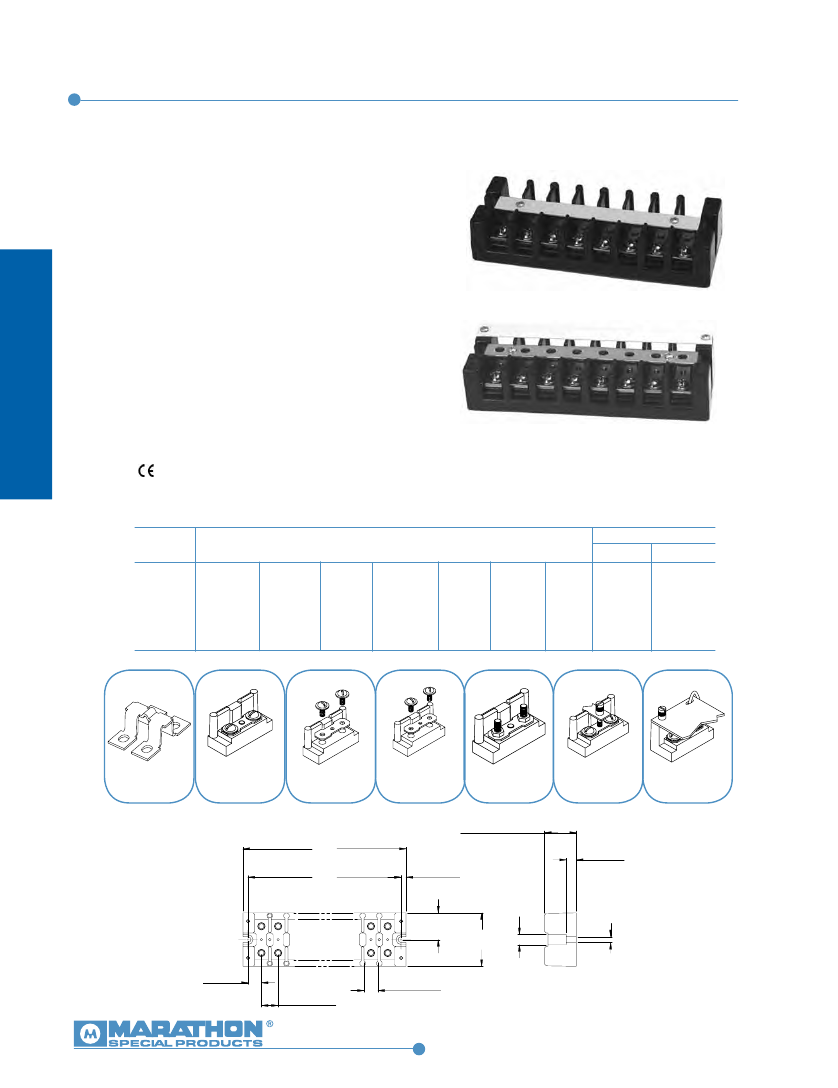

Heavy Duty Terminal Blocks
1500 Series
600 Volts AC/DC (UL/CSA)
Heavy Duty Terminal Blocks
Specifications:
•
•
•
•
•
•
•
•
•
•
Base, General Purpose Phenolic, 150
o
C (UL RTI)
Connector, Brass, Nickel Plated
Phil-Slot Screws standard (slotted screws also
available), Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared
wire, #10-22 AWG Copper
Current rated up to 75 Amps when wired with
crimp type ring, spade or fork terminal
5/8” (.625”) Line To Line Spacing
UL Recognized File No. XCFR2.E62806
CSA Certified File No. LR19766
-
1000 Volts
RoHS Compliant
1508 STD
1508 SC
Dimensions
# of Poles
2
4
6
8
12
1502 MCJ
1504 MCJ
1506 MCJ
1508 MCJ
1512 MCJ
1502 STD
1504 STD
1506 STD
1508 STD
1512 STD
1502 DJ
1504 DJ
1506 DJ
1508 DJ
1512 DJ
Catalog #
1502 DJSV
1504 DJSV
1506 DJSV
1508 DJSV
1512 DJSV
1502 ST
1504 ST
1506 ST
1508 ST
1512 ST
1502 SC
1504 SC
1506 SC
1508 SC
1512 SC
1502 H
1504 H
1506 H
1508 H
1512 H
A
2.00
3.25
4.50
5.75
8.25
B
1.62
2.88
4.12
5.38
7.88
mm = dim X 25.4
See page 35 for DIN Rail Adapter
15XX MCJ
15XX STD
15XX DJ
15XX DJSV
15XX ST*
15XX SC
15XX H
Multiple Circuit
Jumper
Standard
Connector with
Serrations for
Anti-Rotation
Removable
Connector with
Brass Insert
Removable
Connector with
Brass Insert,
Removable Cover
10-32 Stud,
Removable
Connector
Short Circuiting
Bar with Brass
Insert, 4 Shorting
Pins per Block
Standard
Connector with
Hinge Cover
For electronic drawings or 2D/3D CAD data, submit
request at www.marathonsp.com/drawings.html
"A"
.19
[4.8]
* STRC: 10-32 Stud with Riveted Connector
1.19
[30.2]
.38
[9.5]
"B"
.375
[9.53]
1.00
[25.4]
2.00
[50.8]
.22
[5.6]
.50
[12.7]
.625
[15.88]
.50
[12.7]
74
Datasheets available at marathonsp.com
