5-534974-5: Description96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT; File Size85KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-534974-5 Overview

96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

5-534974-5 Parametric

Parameter Name	Attribute value
Objectid	2059276716
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

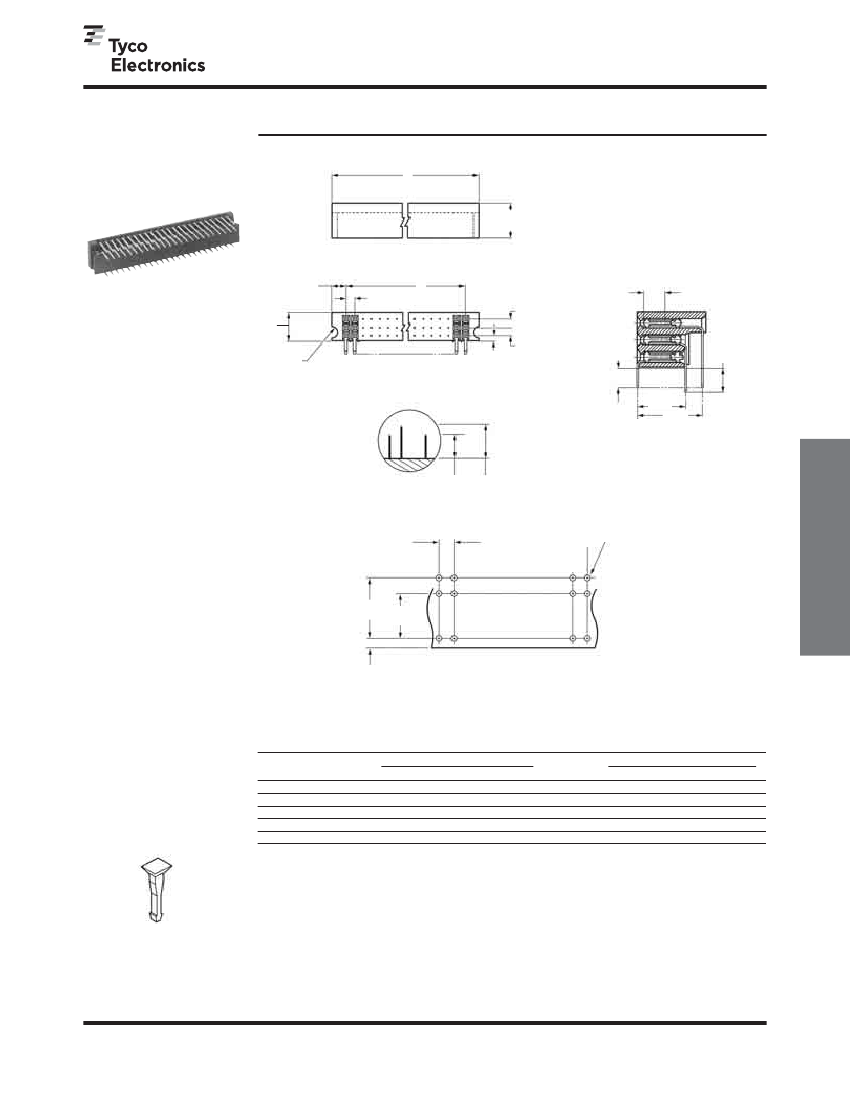

AMPMODU Interconnection System

Receptacle Assemblies, Board Mount, Triple-Row,

Closed Entry, .100 x .100 [2.54 x 2.54] Centerline

Horizontal Mount

(with Guide Pin Slots and

Standoffs)

A

.410

[10.41]

.179

Typ.

[4.55]

Material and Finish

Housing

— Glass-filled thermoplastic,

black, 94V-0 rated

Contacts

— Phosphor bronze, plated

.000030 [0.00076] gold in mating area,

.000050-.000100 [0.00127-0.00254]

matte tin on solder area, with entire

contact underplated .000050 [0.00127]

nickel

.338

[8.59]

.144

[3.66]

Dia.

Typ.

.100

Typ.

[2.54]

B

.100

[2.54]

.100

[2.54]

.125

[3.18]

(Localized

Gold Plate Area)

.069

[1.75]

.115

[2.92]

.145

[3.68]

.300

[7.62]

.400

[10.16]

5-534974-5 Related Products

	5-534974-5	15-534974-4
Description	96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	93 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT
Objectid	2059276716	2058919547
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
Other features	AMPMODU	AMPMODU
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN (100) OVER NICKEL	MATTE TIN (100) OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	96	93
UL Flammability Code	94V-0	94V-0
