31.2308 Overview

FUSE HOLDER 5 X 20MM PANEL MOUNT; Volt

Preview

Download Datasheet

View All

Fuseholders

www.schurter.com/pg02

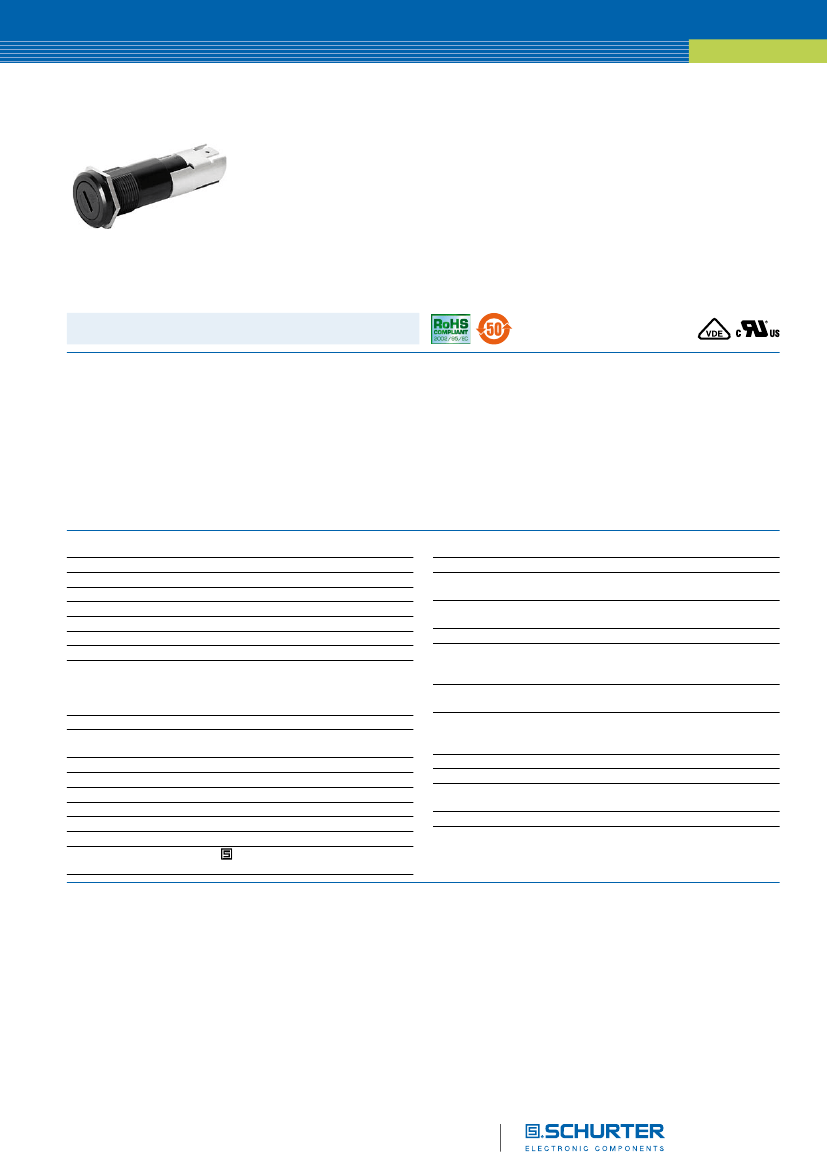

Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slot Knob

FUL

500 VAC · 4 W / 16 A (VDE) · 600 VAC/DC · 30 A (UL/CSA)

Description

- Fuseholder for 500 VAC applications

- Fuseholder with high rated power acceptance

- Screw type fuse carrier

Applications

- Equipment with three-phase supply (400 VAC)

- Applications with rated current up to 16 A (VDE)

- Industrial electronic

Standards

- IEC 60127-6

- UL 4248-1 / UL 512

- CSA 4248-1 / no. 39

References

Weblinks

Approvals

pdf, General Product Information, Approvals, RoHS, CHINA-RoHS, e-

Store, SCHURTER-Stock-Check, Distributor-Stock-Check, Accessories

- VDE Certificate Number: 127214

- UL File Number: E39328

- CSA File Number: 38456

Technical Data

Shocksafe Category

Fuse-Link

Mounting

Terminal

Rated Voltage

Rated Current

Rated Power Acceptance IEC

PC2

5 x 20 or 6.3 x 32 mm

Panel Mount, Front-Side

Fixing Nut

Solder or Quick-Connect 6.3 x 0.8 mm

500 VAC (VDE), 600 VAC/DC (UL/CSA)

16 A (VDE), 30 A (UL/CSA)

4 W / 16 A @ Ta 23 °C

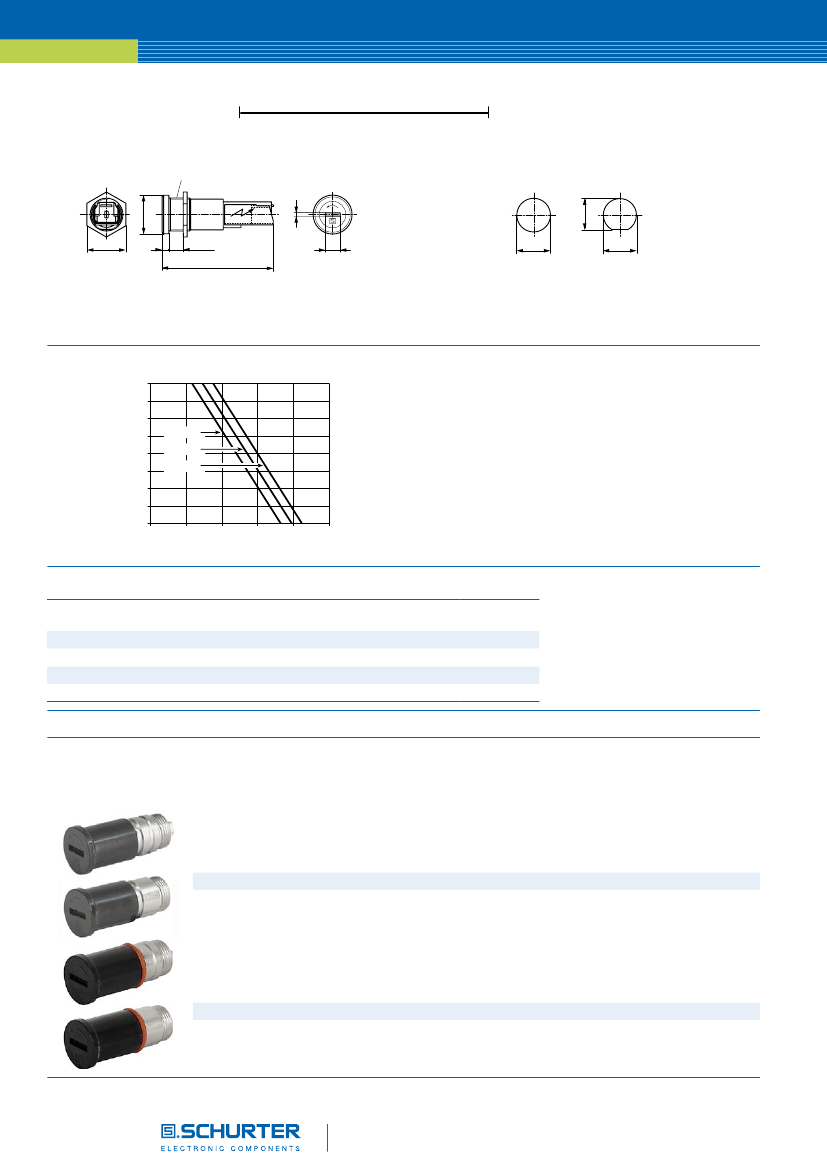

Admissible power acceptance at hig-

her ambient temperature see derating

curves

Degree of Protection

IP 40 / IP 67

Protection Class

Suitable for appliances with protection

class 1 or 2 acc. to IEC 61140

Admissible Ambient Air Temp. -40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Socket

Thermoset, black, UL 94V-0

Material: Terminals

Tin-Plated Copper

Unit Weight (Socket/Cap)

20.4 g / 15.2 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

, Type, Voltage, Power Acc./Current

Rating, Approvals

Soldering Methods

Solderability

Resistance to Soldering Heat

Contact Resistance

Dielectric Strength

Iron

350 °C / 2 sec acc. to IEC 60068-2-20,

Test Ta, method 2

350 °C / 10 sec acc. to IEC 60068-2-20,

Test Tb, method 2

< 3.5 mΩ at 20 mV

> 3 kV between L-N

> 4 kV between L/N-PE

(50 Hz; 1 min)

> 4 kV between L-N

> 6 kV between L/N-PE

> 10 MΩ between L-N

> 100 MΩ between L/N-PE

(500 VDC; 1 min)

I - III acc. to IEC 60664-1

2 acc. to IEC 60664-1

max 1.2 Nm

max 10 mm

Impulse Withstand Voltage

Insulation Resistance

Overvoltage Category

Pollution Degree

Admissible Torque on Fixing

Nut

Panel Thickness s

Fuses
