LTC1198CS8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> LTC1198CS8

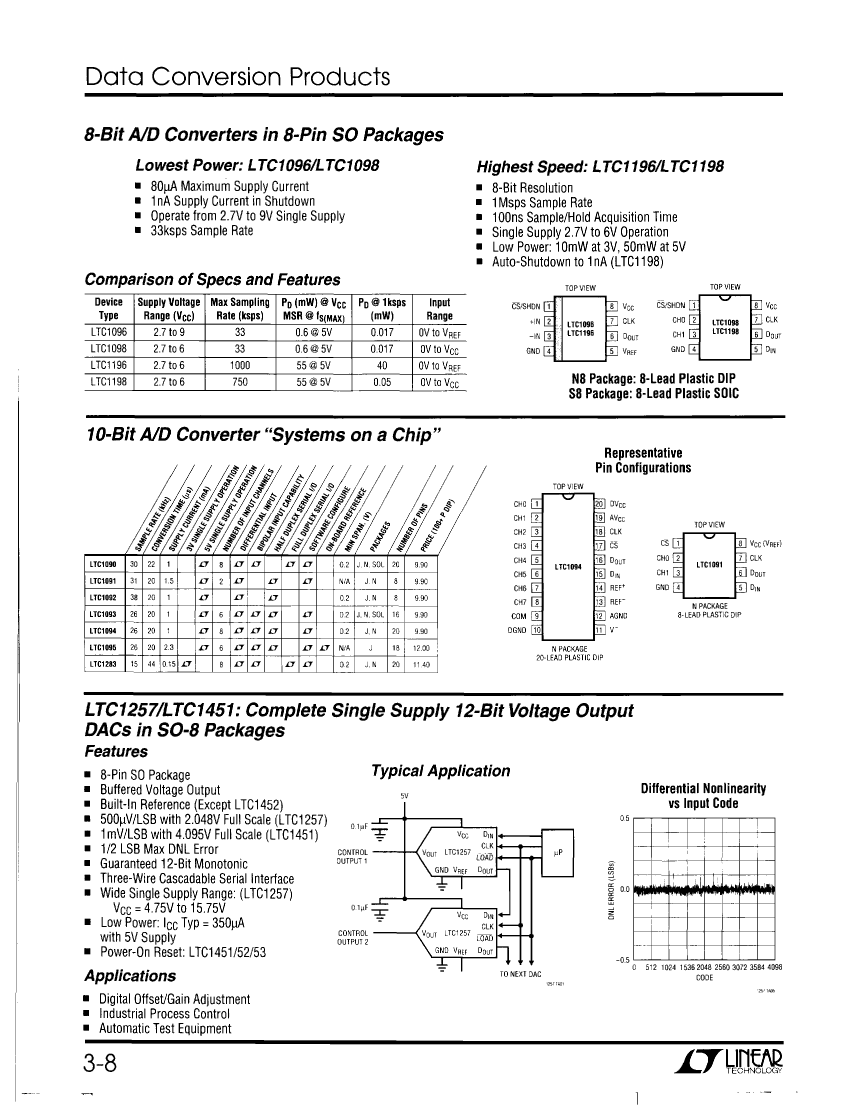

LTC1198CS8: DescriptionIC 2-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, PLASTIC, SOIC-8, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size58KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1198CS8 Overview

IC 2-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, PLASTIC, SOIC-8, Analog to Digital Converter

LTC1198CS8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Minimum analog input voltage
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of analog input channels	2
Number of digits	8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	SERIAL
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Sampling rate	1 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	1.75 mm
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

LTC1198CS8 Related Products

	LTC1198CS8	LTC1196CN8	LTC1196CS8	LTC1283CJ	LTC1198CN8
Description	IC 2-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, PLASTIC, SOIC-8, Analog to Digital Converter	IC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDIP8, PLASTIC, DIP-8, Analog to Digital Converter	IC 1-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO8, PLASTIC, SOIC-8, Analog to Digital Converter	IC 8-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, CDIP20, CERAMIC, DIP-20, Analog to Digital Converter	IC 2-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDIP8, PLASTIC, DIP-8, Analog to Digital Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SOIC	DIP	SOIC	DIP	DIP
package instruction	SOP,	DIP,	SOP,	DIP, DIP20,.3	DIP,
Contacts	8	8	8	20	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-GDIP-T20	R-PDIP-T8
Number of analog input channels	2	1	1	8	2
Number of digits	8	8	8	10	8
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	20	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	1 MHz	1 MHz	1 MHz	0.015 MHz	1 MHz
Maximum seat height	1.75 mm	3.937 mm	1.75 mm	5.08 mm	3.937 mm
surface mount	YES	NO	YES	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	3.9 mm	7.62 mm	7.62 mm
JESD-609 code	e0	-	e0	e0	-
Humidity sensitivity level	1	1	1	-	1
Output format	SERIAL	SERIAL	SERIAL	-	SERIAL
Sample and hold/Track and hold	SAMPLE	SAMPLE	SAMPLE	-	SAMPLE
Terminal surface	TIN LEAD	-	TIN LEAD	Tin/Lead (Sn/Pb)	-
Peak Reflow Temperature (Celsius)	-	225	-	NOT SPECIFIED	225
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
