2SC3233
TOSHIBA Transistor Silicon NPN Triple Diffused Type
2SC3233
Switching Regulator and High Voltage Switching
Applications
High Speed DC-DC Converter Applications
·
·
Excellent switching times: t
r
= 1.0 µs (max)
t
f
= 1.0 µs (max), (I
C
= 0.8 A)
High collector breakdown voltage: V
CEO
= 400 V

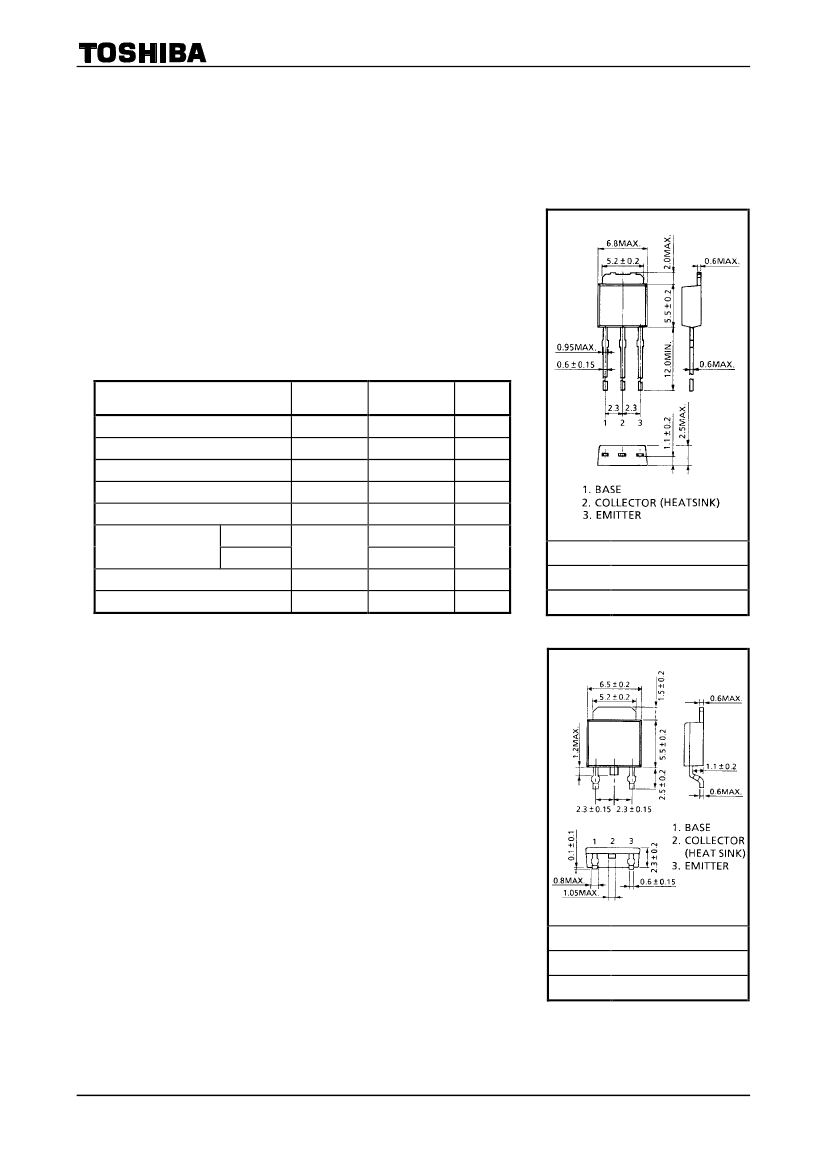

Unit: mm
Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power
dissipation
Junction temperature
Storage temperature range
Ta = 25°C
Tc = 25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
500
400
7
2
0.5
1.0
20
150
−55
to 150
Unit
V
V
V
A
A
W
°C
°C
JEDEC
JEITA
TOSHIBA
―
―
2-7B1A
Weight: 0.36 g (typ.)
JEDEC
JEITA
TOSHIBA
―
―
2-7J1A
Weight: 0.36 g (typ.)
1
2002-07-23
2SC3233
Electrical Characteristics
(Ta = 25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-base breakdown voltage
Collector-emitter breakdown voltage
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Rise time
Symbol
I
CBO
I
EBO
V
(BR) CBO
V
(BR) CEO
h
FE
V
CE (sat)
V
BE (sat)
t
r
Test Condition
V
CB
= 400 V, I
E
= 0
V
EB
= 7 V, I
C
= 0
I
C
= 1 mA, I
E
= 0
I
C
= 10 mA, I
B
= 0
V
CE
= 5 V, I
C
= 0.1 A
V
CE
= 5 V, I
C
= 1 A
I
C
= 1 A, I
B
= 0.2 A
I
C
= 1 A, I
B
= 0.2 A
OUTPUT
250
Ω
Min
―
―
500
400
20
8
―
―
―
Typ.
―
―
―
―
―
―
―
―
―
Max
100
1
―
―
―
―
1.0
1.5
1.0
V
V
Unit
µA
mA
V
V
20 µs
INPUT
I
B1
I
B1
I
B2
Switching time
Storage time
t
stg
I
B2
V
CC
≈
200 V
―
―
2.5
µs
Fall time
t
f
I
B1
=
−I
B2
= 0.08 A
DUTY CYCLE
≤
1%
―
―
1.0
Marking
C3233
Product No.
Lot No.
Explanation of Lot No.
Month of manufacture: January to December are denoted by letters A to L respectively.
Year of manufacture: last decimal digit of the year of manufacture
2
2002-07-23

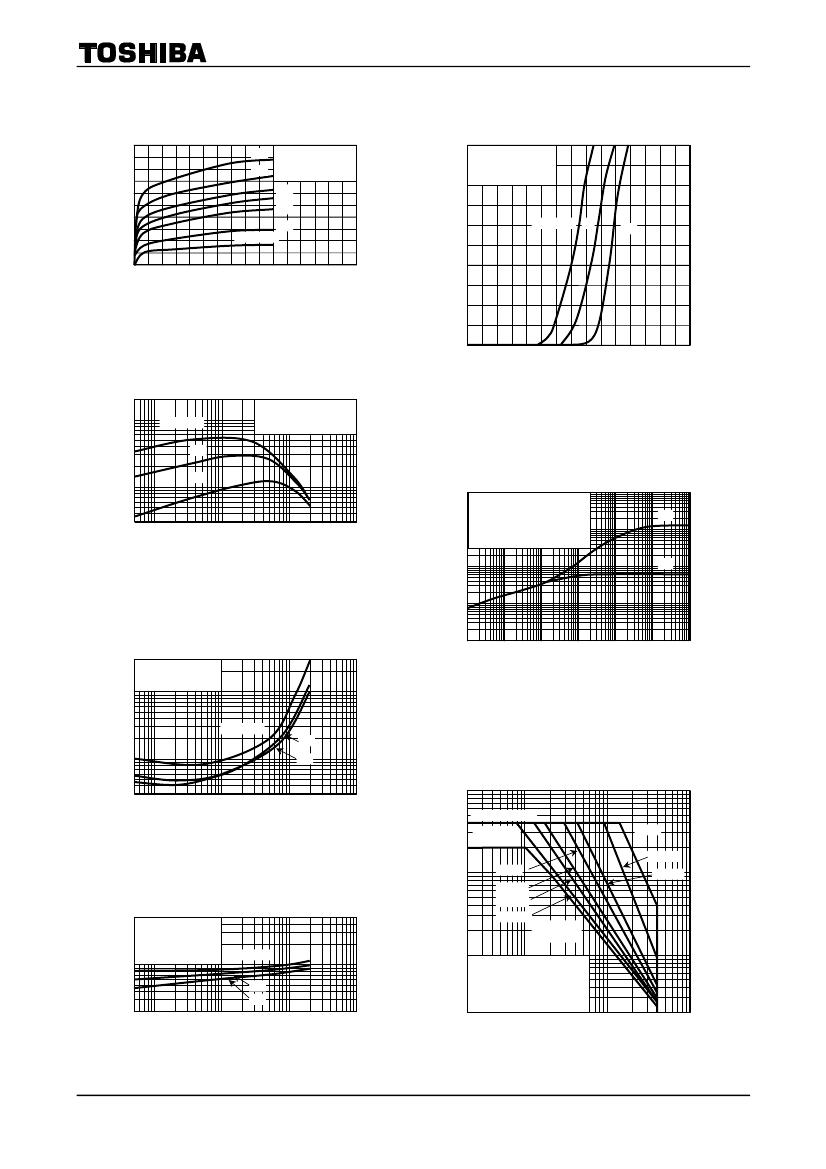

2SC3233
I
C
– V
CE
(A)
2.0
1.6
1.2
0.8
0.4
0
0
IB = 10 mA
180
120
2.0
Common emitter
Tc = 25°C
80
60
40
20
1.6
Common emitter
VCE = 5 V
I
C
– V
BE
I
C
Collector current
I
C
(A)
1.2
Tc = 100°C
25
Collector current
−55
2
4
6
8
10
12
14
16
0.8
Collector-emitter voltage
V
CE
(V)
0.4
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
h
FE
– I
C
200
Common emitter
Base-emitter voltage V
BE
(V)
h
FE
100
50
30
Tc = 100°C
25
−55
VCE = 5 V
DC current gain
10
r
th
– t
w
1000
Transient thermal resistance
r
th
(°C/W)
5
3
0.001
0.003
0.1
0.3
1
3
10
100
Collector current
I
C
(A)
Curves should be applied in
thermal limited area. (single
nonrepetitive pulse)
(1) Infinite heat sink
(2) No heat sink
(2)
10
(1)
1
0.1
0.001
0.01
0.1
1
10
100
1000
Collector-emitter saturation voltage
V
CE (sat)
(V)
V
CE (sat)
– I
C
3
Common emitter
1
0.5
0.3
Tc =
−55°C
100
0.1
0.05
0.03
0.005 0.01
25
IC/IB = 5
Pulse width
tw
(s)
Safe Operating Area
10
0.03
0.1
0.3
1
3
10
5 IC max (pulsed)*
3 IC max
(continuous)
1
0.5
0.3
1 ms*
3 ms*
10 ms*
100 ms*
DC operation
Tc = 25°C
10 µs*
100 µs*
500 µs*
Collector current
I
C
(A)
(A)
Base-emitter saturation voltage
V
BE (sat)
(V)
V
BE (sat)
– I
C
5
3
Common emitter
IC/IB = 5
1
0.5
0.3
0.005 0.01
0.03
0.1
25
100
0.3
1
3
10
Tc =
−55°C
Collector current
I
C
0.1
*: Single nonrepetitive pulse
Tc = 25°C
Curves must be derated
linearly with increase in
temperature.
3
10
30
100
300
1000
Collector current
I
C
(A)
Collector-emitter voltage
V
CE
(V)
3
2002-07-23
2SC3233
