BL-R113P: DescriptionSingle Color LED, Red, Diffused, 6.3mm, L-107, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size246KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-R113P Overview

Single Color LED, Red, Diffused, 6.3mm, L-107, 2 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-107, 2 PIN
Reach Compliance Code	unknown
color	RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	DIFFUSED
Nominal luminous intensity	1.2 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.8 mm
method of packing	BULK
peak wavelength	655 nm
shape	RECTANGULAR
size	6.3 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg

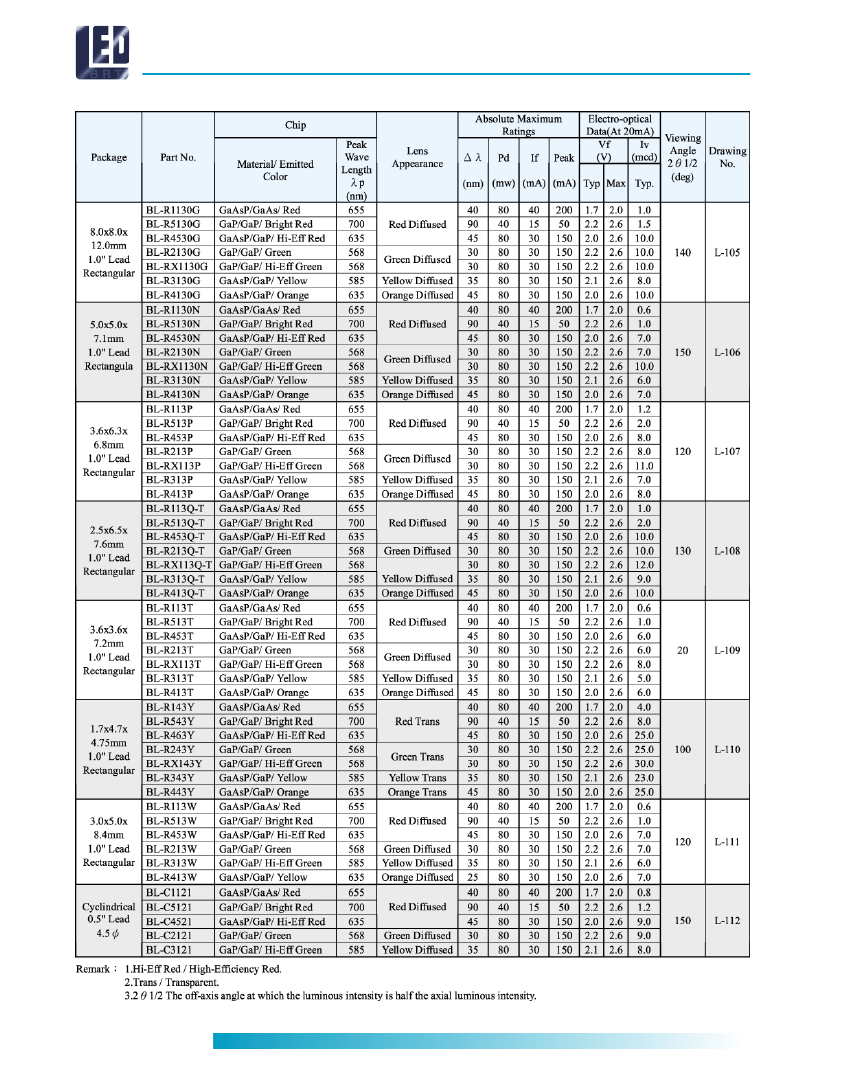

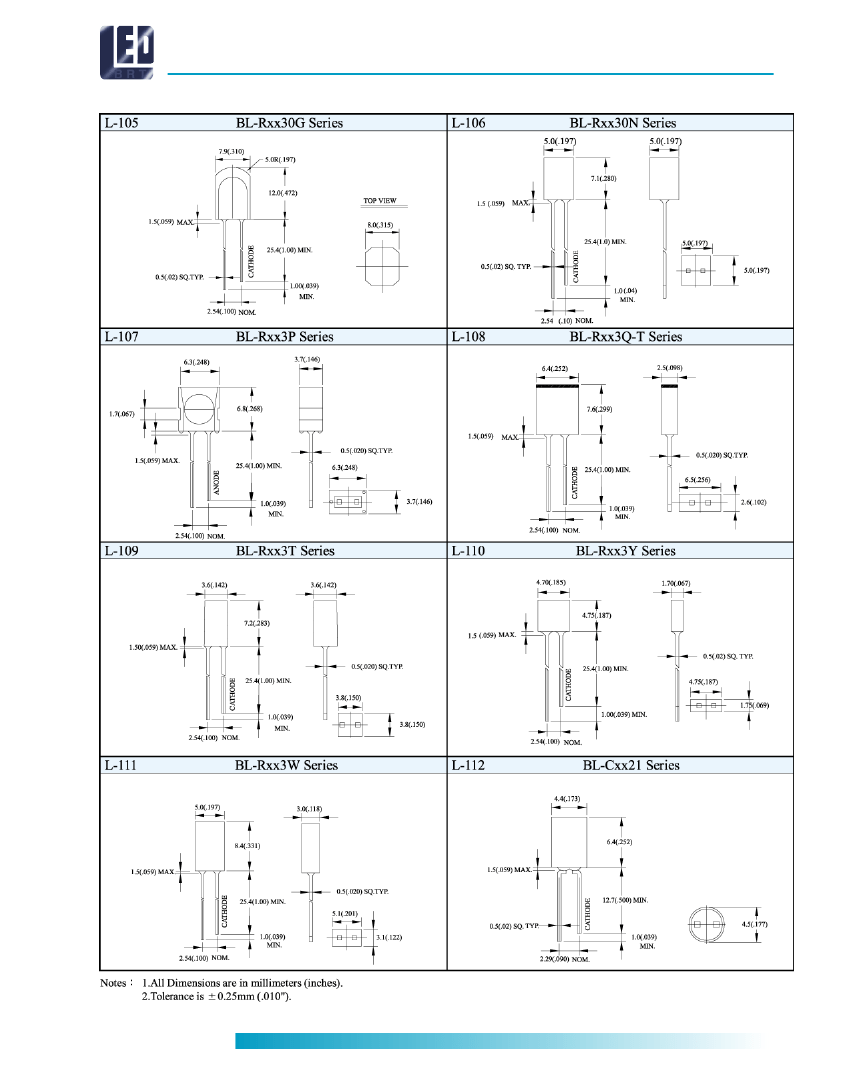

Standard LED Lamps

BL-R, BL-C Series

Rectangular & Cylindrical Types

AMERICAN BRIGHT

68

w w w. a m e r i c a n b r i g h t l e d . c o m

.

	BL-R113P	BL-R113W	BL-C4521	BL-C3121
Description	Single Color LED, Red, Diffused, 6.3mm, L-107, 2 PIN	Single Color LED, Red, Diffused, 5mm, L-111, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, T1-1/2, 4.5mm, L-112, 2 PIN	Single Color LED, Yellow, Diffused, T1-1/2, 4.5mm, ROHS COMPLIANT PACKAGE-2
package instruction	L-107, 2 PIN	L-111, 2 PIN	L-112, 2 PIN	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown
color	RED	RED	HIGH EFFICIENCY RED	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED
Nominal luminous intensity	1.2 mcd	0.6 mcd	9.0 mcd	4.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	6.8 mm	8.4 mm	6.4 mm	6.4 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	655 nm	655 nm	635 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	CYLINDRICAL	CYLINDRICAL
size	6.3 mm	5 mm	4.5 mm	4.5 mm
surface mount	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.29 mm	2.29 mm
perspective	120 deg	120 deg	150 deg	150 deg
