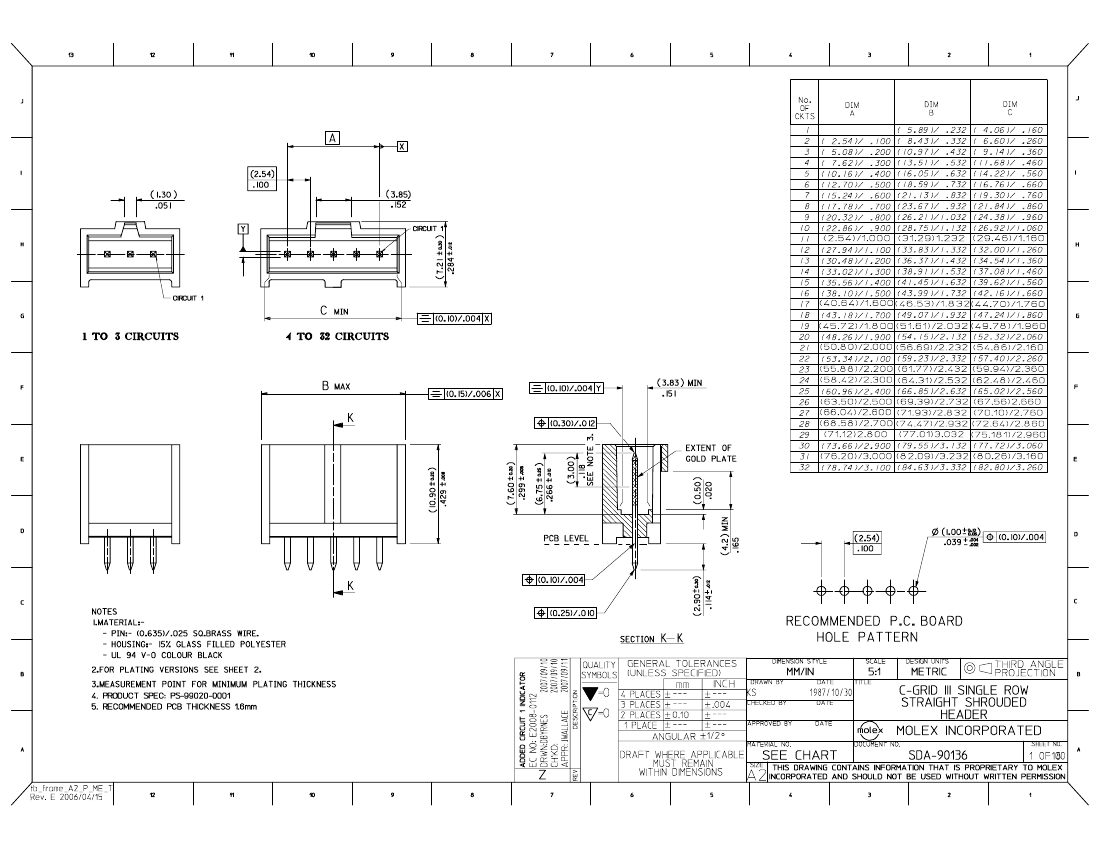

Board Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| body width | 0.284 inch |
| subject depth | 0.429 inch |
| body length | 2.832 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |

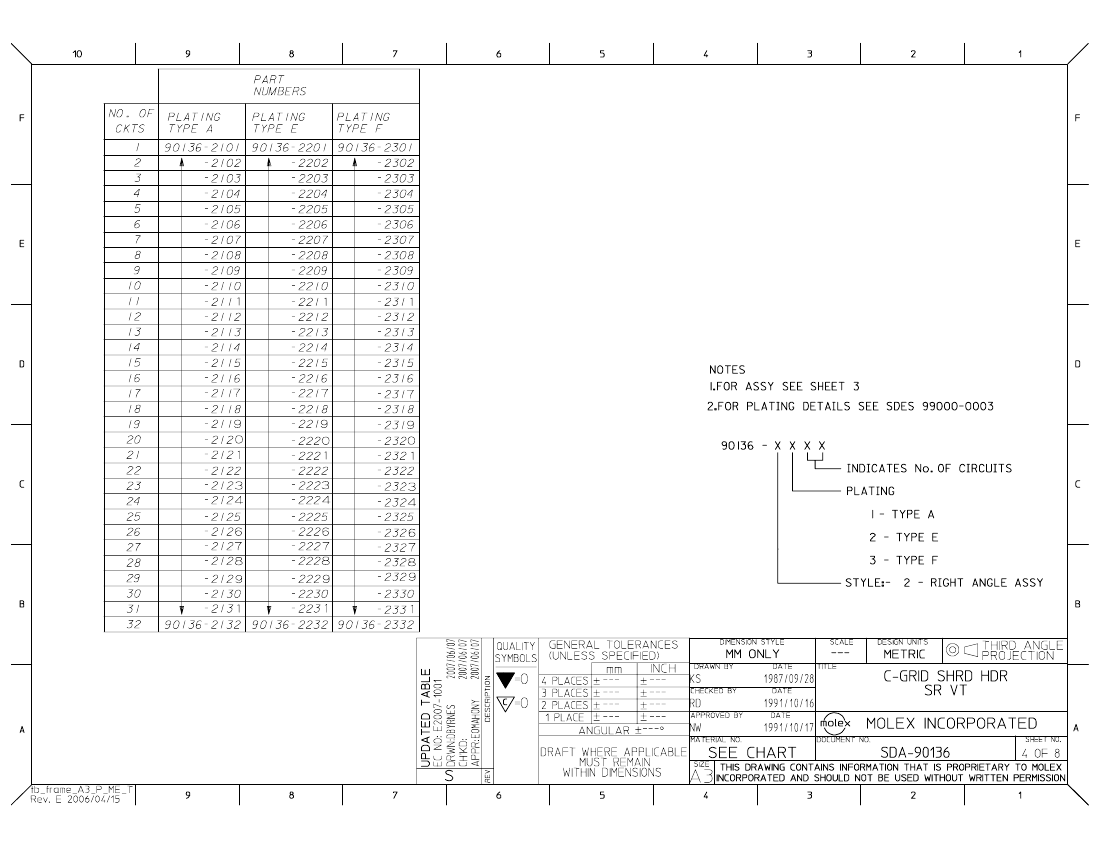

| Manufacturer's serial number | 90136 |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |

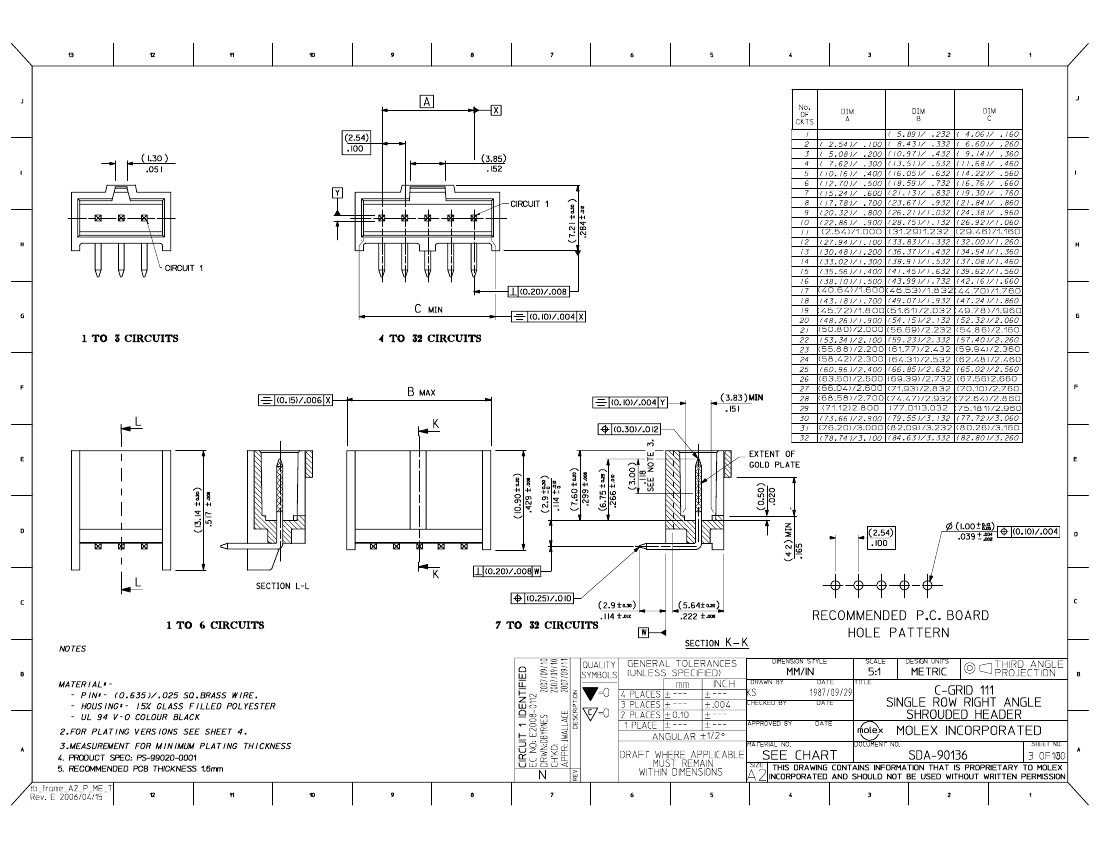

| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 118u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 27 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .199882 N |
