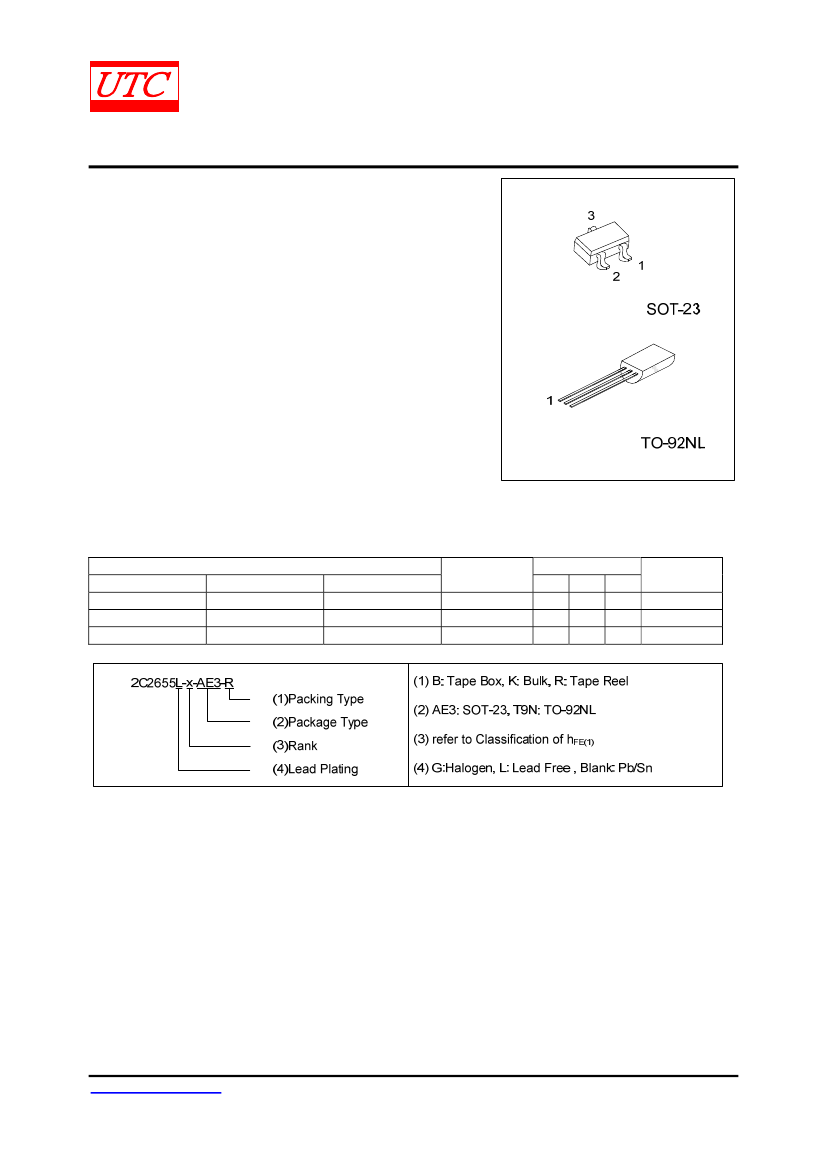

UNISONIC TECHNOLOGIES CO., LTD
2SC2655
POWER AMPLIFIER
APPLICATIONS POWER
SWITCHING APPLICATIONS
FEATURES
* Low saturation voltage:
V
CE(SAT)
= 0.5V (Max.)
* High speed switching time: tstg=1.0μs (Typ.)
NPN SILICON TRANSISTOR
Lead-free:
2SC2655L
Halogen-free: 2SC2655G
ORDERING INFORMATION
Ordering Number
Normal
Lead Free
Halogen Free
2SC2655-x-AE3-R 2SC2655L-x-AE3-R 2SC2655Gx-AE3-R
2SC2655-x-T9N-B 2SC2655L-x-T9N-B 2SC2655Gx-T9N-B
2SC2655-x-T9N-K 2SC2655L-x-T9N-K 2SC2655Gx-T9N-K
Package
SOT-23
TO-92NL
TO-92NL
Pin Assignment
1
2
3
E
B
C
E
C
B
E
C
B
Packing
Tape Reel
Tape Box
Bulk
www.unisonic.com.tw
Copyright © 2009Unisonic Technologies Co., Ltd
1 of 4
QW-R211-013.E
2SC2655
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Current(Pulse)
Base Current
Collector Power Dissipation
SOT-23
TO-92NL
SYMBOL
V
CBO
V
CEO
V
EBO
Ic
Icp(Note 1)
I
B
Pc
NPN SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
( Ta=25°C ,unless otherwise specified )
RATING
50
50
5
2
3
0.5
350
900
150
-55 ~ +150
UNIT
V
V
V
A
A
A
mW
Junction Temperature
T
J
°C
Storage Temperature
T
STG
°C
Note: 1. PW≦16ms, Duty Cycle≦50%.
2. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(Ta=25°C, unless otherwise specified)
PARAMETER
Collector Emitter Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Base- Emitter Saturation Voltage
Transition Frequency
Collector Output Capacitance
SYMBOL
BV
CEO
I
CBO
I
EBO
h
FE(1)
h
FE(2)
V
CE(SAT)
V
BE(SAT)
f
T
Cob
TEST CONDITIONS
I
C
= 10mA, I
B
= 0
V
CB
=50V, I
E
= 0
V
EB
= 5V, I
C
=0
V
CE
=2V, Ic=0.5A
V
CE
=2V, Ic=1.5A
I
C
=1A, I
B
=0.05A
I
C
=1A, I
B
=0.05A
V
CE
=2V, I
C
=0.5A
V
CB
= 10V, I
E
= 0, f=1MHz
10Ω
MIN
50
TYP
MAX
1.0
1.0
240
0.5
1.2
UNIT
V
μA
μA
70
40
100
30
V
V
MHz
pF
Switching Time(Turn-on Time)
t
ON
I
B1
= -I
B2
=0.05A
DUTY CYCLE≦1%
0.1
μS
CLASSIFICATION OF h
FE(1)
RANK
RANGE
O
70-140
Y
120-240
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R211-013,E
2SC2655

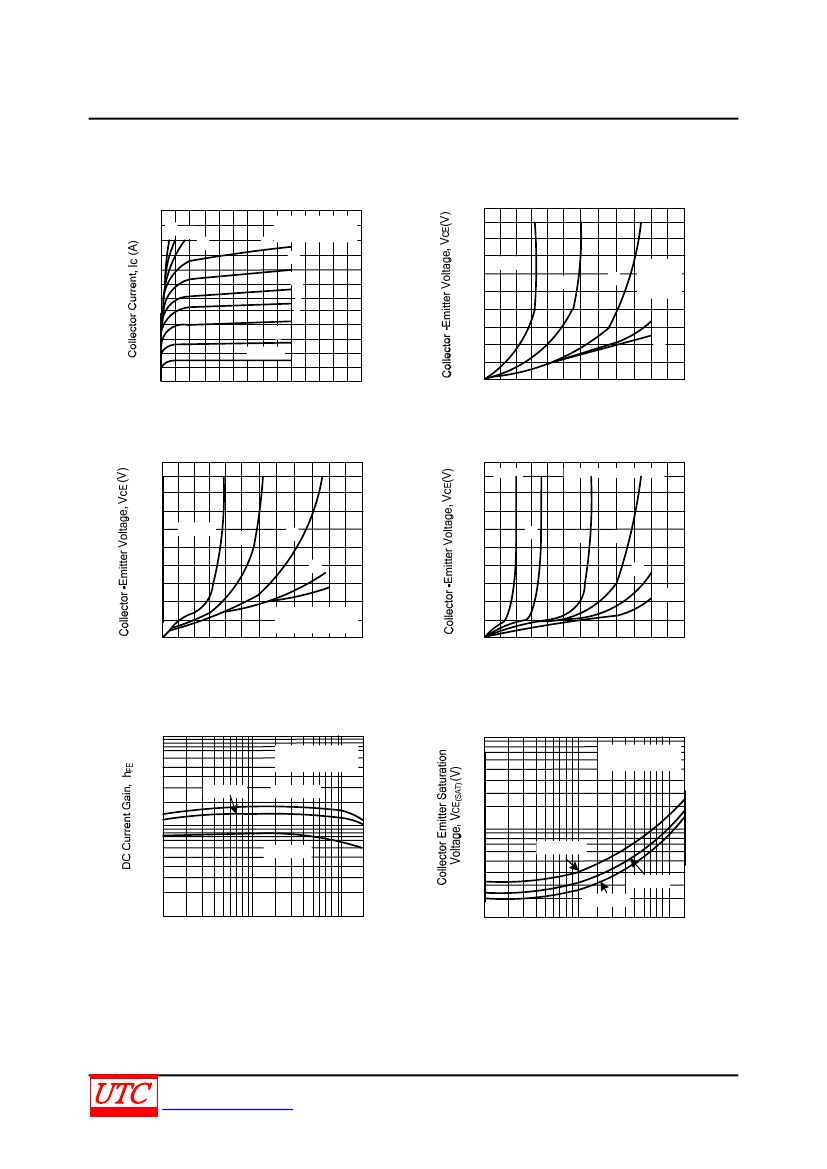

TYPICAL CHARACTERISTICS
NPN SILICON TRANSISTOR
Ic-V
CE
2.4
2.0
1.6
1.2
0.8
0.4
0
0
2
4
4
I
B
=2mA
10
8
12 14
Collector -Emitter Voltage, Vc
E
(V)
6
25 20
18
15
Common Emitter
Ta=25°С
12
10
8
6
0.6
0.4
0.2
0
1
0.8
I
B
=5mA
10
V
CE
-Ic
20
Common
Emitter
Ta=25°С
30
40
0
0.4
0.8
1.2
1.6
2.0
2.4
Collector Current, Ic (A)
V
CE
-Ic
1
0.8
0.6
0.4
0.2
0
I
B
=5mA
1
0.8
0.6
30
40
Common Emitter
Ta=100°С
0.4
0.8
1.2
1.6
2.0
2.4
0.4
0.2
0
10
IB=5mA
V
CE
-Ic
Common EmitterTa= -55°С
10
20
20
30
40
50
0
0
0.4
0.8
1.2
1.6
2.0
2.4
Collector Current, Ic (A)
Collector Current, Ic (A)
h
FE
-Ic
1000
500
300
100
50
30
10
0.01
Ta=-55°С
0.05
Ta=25°С
Common Emitter
V
CE
=2V
Ta=100°С
1
0.5
0.3
0.1
V
CE(SAT)
-Ic
Common Emitter
Ic/I
B
=20
Ta=100°С
Ta=25°С
Ta=-55°С
0.03
0.1
0.3
1
0.02
0.01
0.03 0.05 0.1
0.3 0.5
1
Collector Current, Ic (A)
Collector Current, Ic (A)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R211-013,E
2SC2655
TYPICAL CHARACTERISTICS(Cont.)
V
BE(SAT)
-Ic
5
Base Emitter Saturation
Voltage, V
BE(SAT)
Collector Current, Ic (A)
3
Common Emitter
Ic/I
B
=20
Ta=-55°С
1
0.5
0.3
0.1
0.01
Ta=25°С
NPN SILICON TRANSISTOR
Ic-V
BE
2.0
Common Emitter
V
CE
=2 V
1.5
Ta=100°С
1.0
Ta=25°С
0.5
Ta=-55°С
Ta=100°С
0.03 0.05 0.1
0.3
1
0
0
0.4
0.8
1.2
1.6
2.0
Collector Current, Ic (A)
Safe Operating Area
Collector Power Dissipation, Pc (mW)
Ic MAX.(PULSED)*
Base -Emitter Voltage, V
BE
(V)
Pc-Ta
1ms*
10ms*
1000
800
600
400
200
0
5
3
Collector Current, Ic(A)
1
PT=1s
0.5
0.3 DC Operation
Ta=25°С
0.1
Ta=25°С
1s*
Single Nonrepetitive Pulse
0.05
0.0
Curves Must Be Derated Linearly With
Increase In Temperature
3
0.0
V
CEO
MAX.
1
0.2
0.5
1
3
10 30
100
Collector-Emitter Voltage, V
CE
(V)
Collector Current-Ic(mA)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
.
AX
M
(C
S)
U
O
Ic INU
N
O
100ms*
0
40
80
120
160
200
240
Ambient Temperature,Ta (°С)
4 of 4
QW-R211-013,E
