LH52256AST datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> LH52256AST

Preview

LH52256AST: DescriptionStandard SRAM, 32KX8, 500ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28; Categorystorage storage; File Size138KB，10 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH52256AST Overview

Standard SRAM, 32KX8, 500ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28

LH52256AST Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	8 X 13 MM, PLASTIC, TSOP1-28
Reach Compliance Code	unknown
Maximum access time	500 ns
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	11.8 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.2 mm
Minimum standby current	2 V
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.55 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

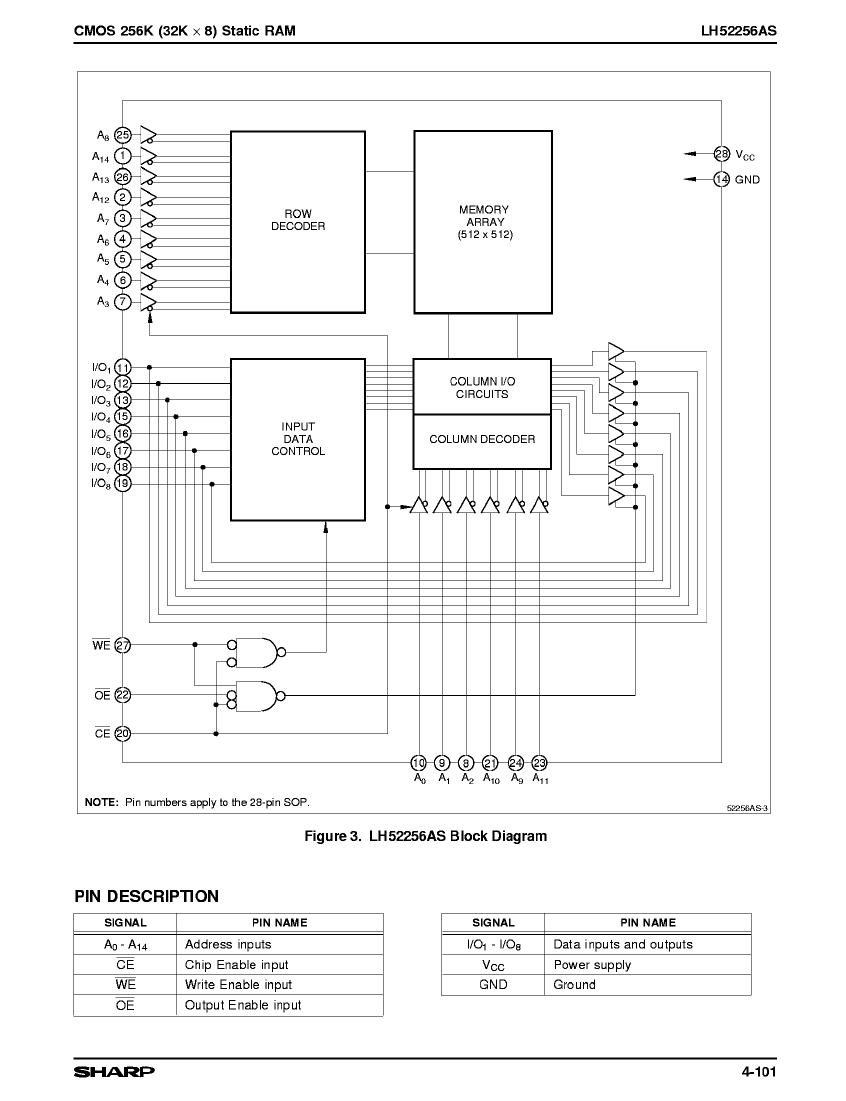

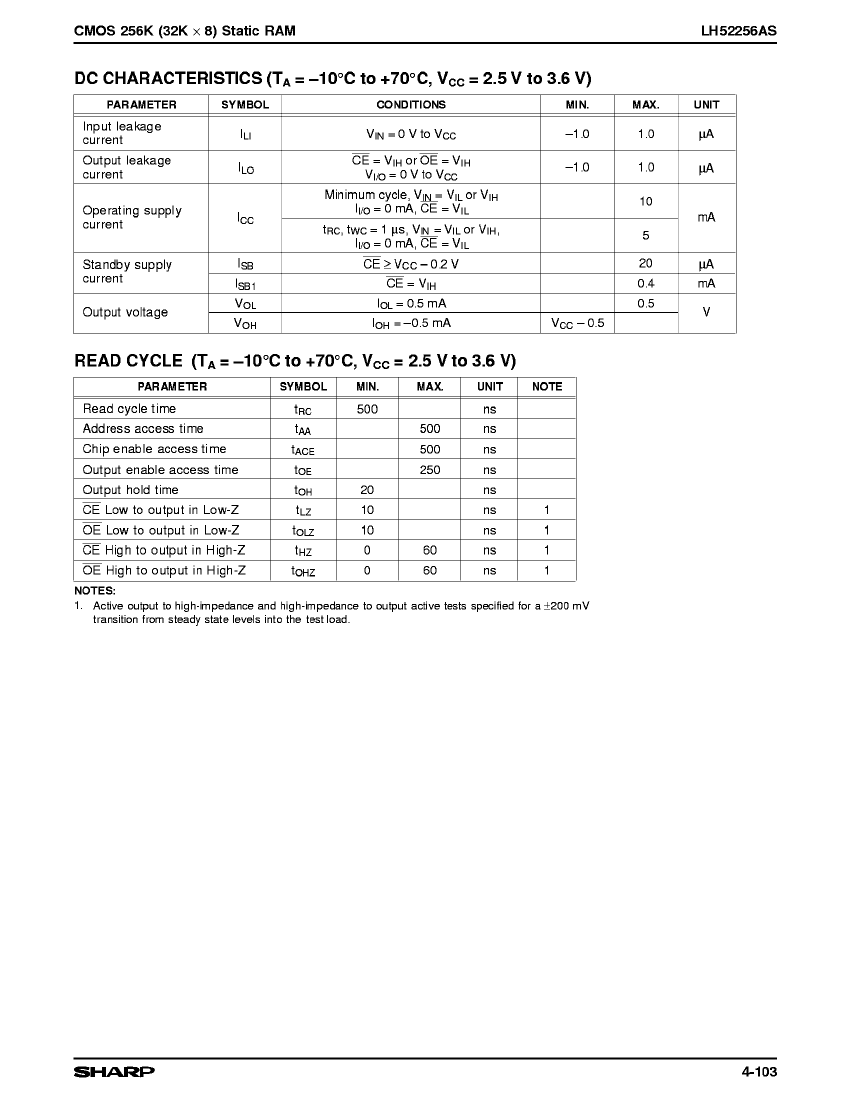

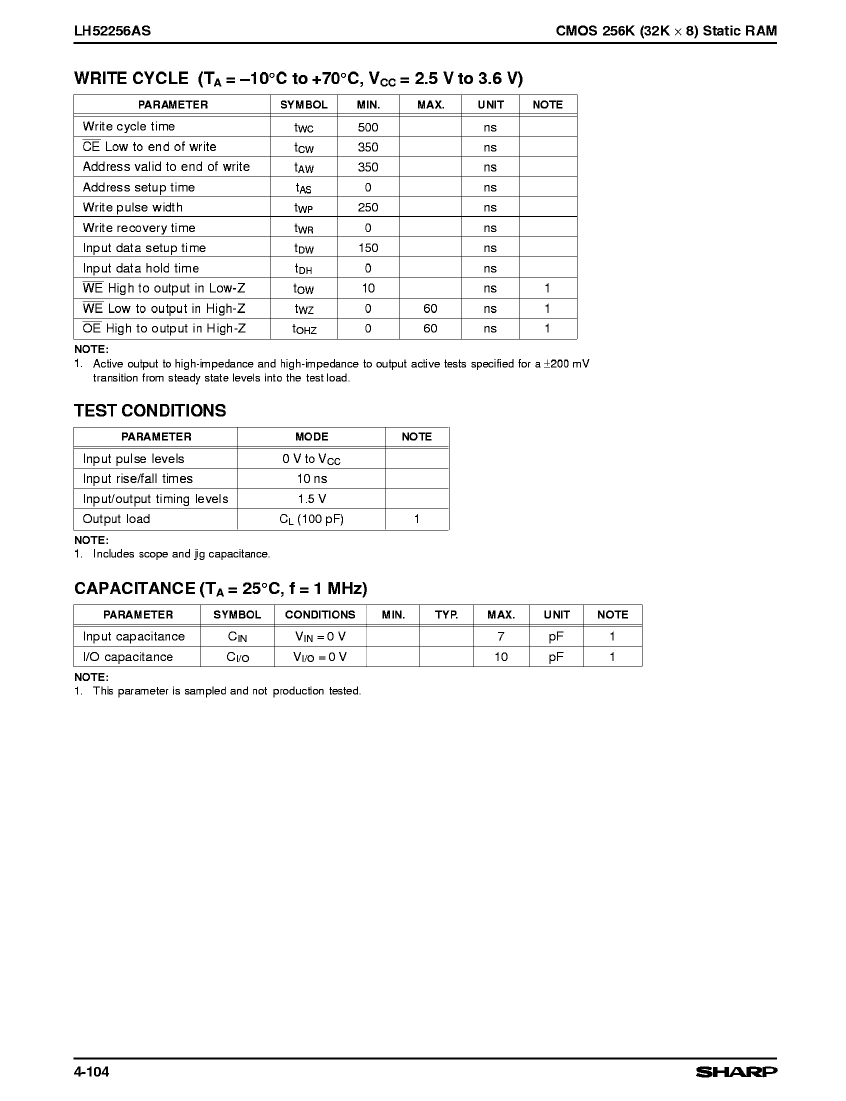

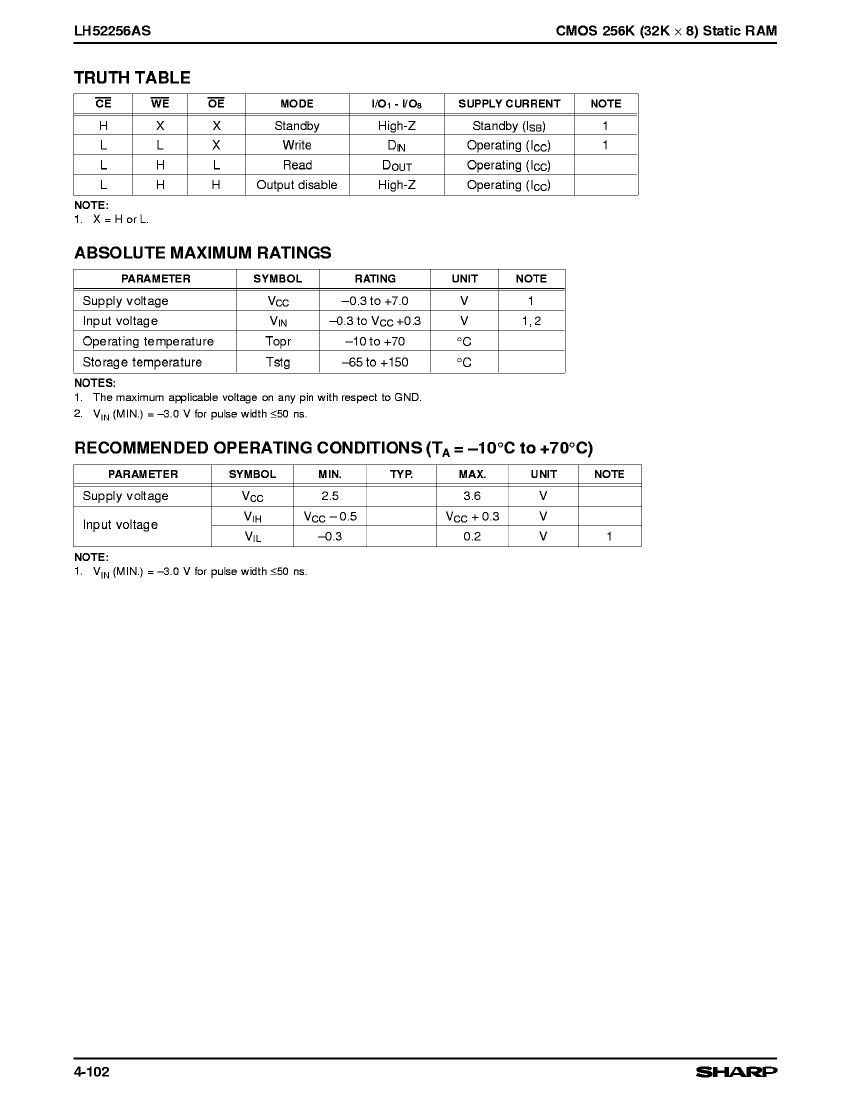

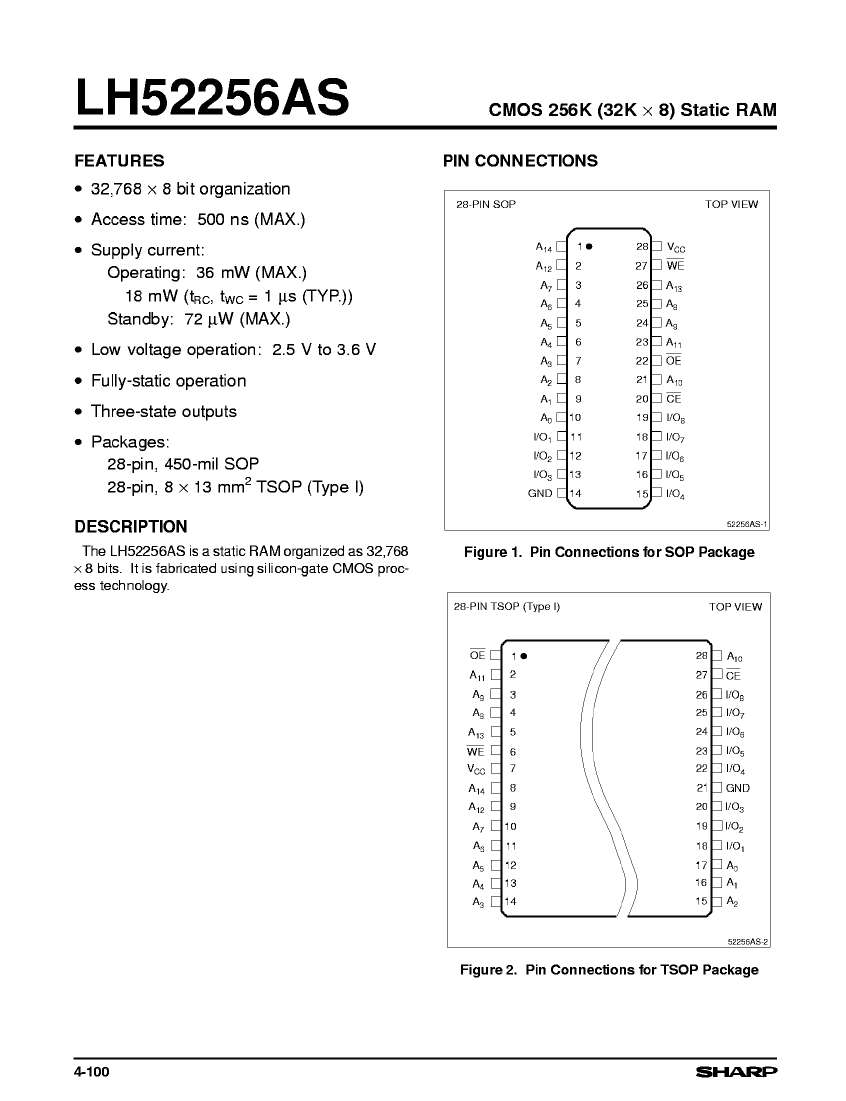

LH52256AST Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LH52256AST Related Products

	LH52256AST	LH52256ASN
Description	Standard SRAM, 32KX8, 500ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28	Standard SRAM, 32KX8, 500ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28
Is it Rohs certified?	incompatible	incompatible
Maker	SHARP	SHARP
package instruction	8 X 13 MM, PLASTIC, TSOP1-28	0.450 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown	unknown
Maximum access time	500 ns	500 ns
JESD-30 code	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0
length	11.8 mm	18 mm
memory density	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	28	28
word count	32768 words	32768 words
character code	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
organize	32KX8	32KX8
Output characteristics	3-STATE	3-STATE
Exportable	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.6 mm
Minimum standby current	2 V	2 V
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.55 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	8 mm	8.6 mm
