7694-7888 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7694-7888

7694-7888: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

7694-7888 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

7694-7888 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.505 inch
subject depth	0.61 inch
body length	0.624 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7694
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

7694-7888 Preview

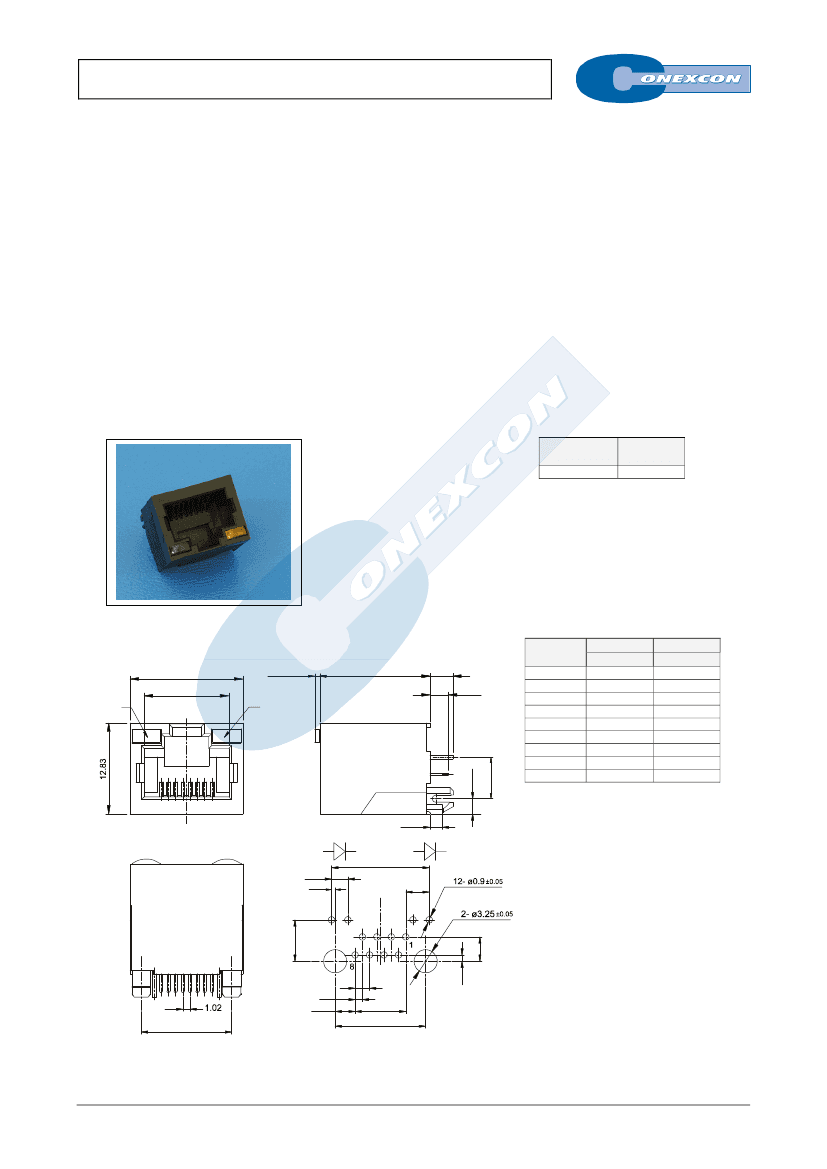

TOP ENTRY PCB JACK FCC-68 WIHT LEDS

7694 SERIES.

Vertical PCB jack.

General Features

Electrical Features



Available in 8/8 circuits

Standard telephone jack FCC-68

15.50 mm. height

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated plastic foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Circuit Size

8/8

Part Number

7694 –

T88C

T = Plating Options



T =

10µ” gold over nickel

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

50µ” gold over nickel

OPTION C

LED 1

RIGHT

W/O LED

GREEN

YELLOW

GREEN

YELLOW

YELL/GREEN

GRREN/RED

YELLOW

LED 2

LEFT

W/O LED

YELLOW

W/O LED

GREEN

YELLOW

YELL/GREEN

GREEN/RED

YELL/GREEN

15.85

11.86

Led 2

0.7±0.15

15.50

3.20

2.54

Led 1

5.84

±0.2

1.70

2.29

0.51

5.84

13.72

3.3

10 9

1.02

2.80

12.70

2.04

7.14

12.70

RECOMMENDED HOLE PATTERN

E-XX

0.89

3.43

2.16

FULL LINE CATALOGUE

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
