WR-12 Instrumentation Grade Straight Waveguide Section 3 Inch

Length with UG-387/U Flange Operating from 60 GHz to 90 GHz

TECHNICAL DATA SHEET

PE-W12S001-3

Pasternack’s instrumentation grade waveguide sections are constructed of a high quality oxygen free hard copper with high

precision mechanical tolerances as tight as ±0.001” that ensures repeatable and consistent RF performance. Our commercial

and instrumentation grade waveguide sections range in size from WR-12 to WR-137 and include grooved and non-grooved

flanged designs. Standard lengths of Pasternack waveguide sections are offered from 3” to 12” in 3” increments and each

waveguide section is labeled for easy identification. Custom lengths are available upon request. Our commercial grade wave-

guide sections are painted blue and our instrumentation grade versions are hard gold plated over a copper flash.

WR-12 to WR-137 Waveguide Sections

Grooved and Non-Grooved Flange Designs

Available for frequency ranges between 5.8 GHz to 90 GHz

Comprehensive waveguide offering also includes E-Bends, H-Bends, Waveguide to Coax Adapters, Filters, Termina-

tions, and more.

•

High Precision Tolerance as Tight as ±0.001”

•

Electrical Specifications

Description

Frequency Range

VSWR

Insertion Loss

Minimum

Typical

Maximum

1.06:1

0.25 [0.82]

Units

GHz

dB/ft [dB/m]

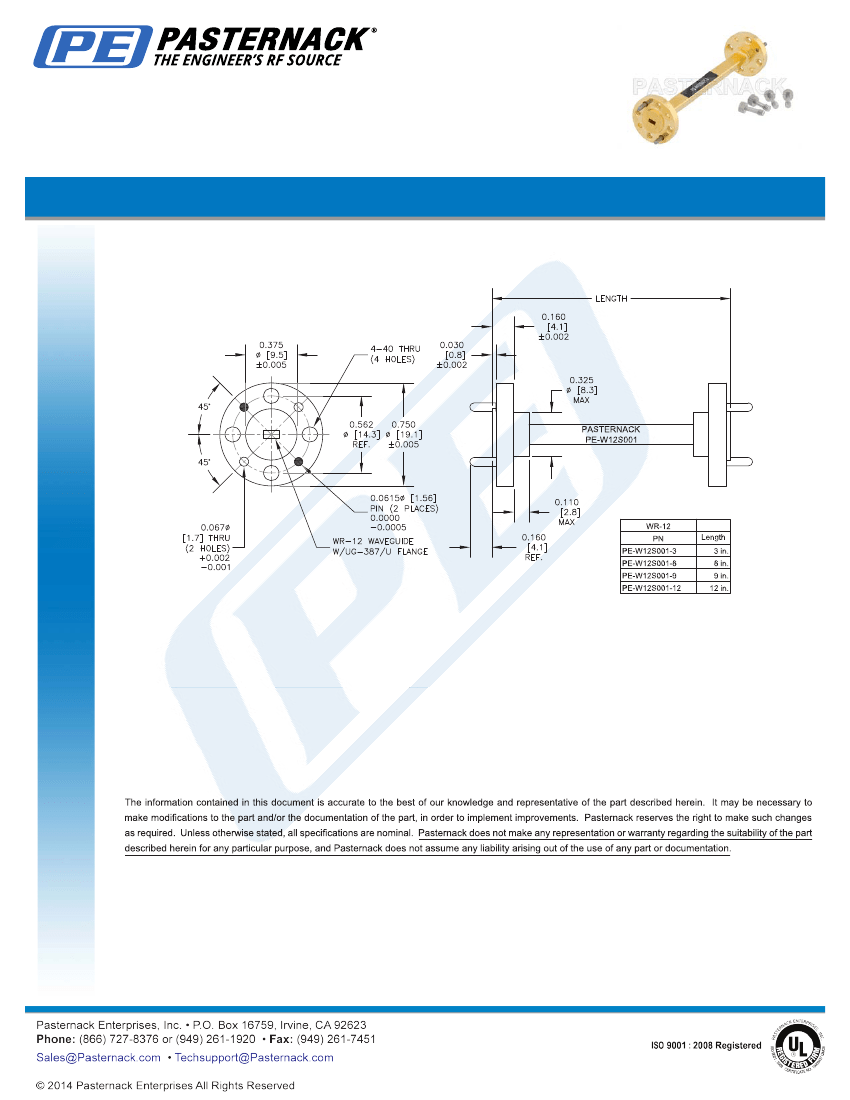

Mechanical Specifications

Waveguide Size

Waveguide Design

Section Length

Description

Interface

Material

Plating

Color

...

WR-12

Instrumentation Grade

3 in [76.2 mm]

Flange 1

UG-387/U

Oxygen Free Hard Copper

Hard Gold over Copper Flash

Gold

Waveguide

WR-12

Oxygen Free Hard Copper

Hard Gold over Copper Flash

Gold

Flange 2

UG-387/U

Oxygen Free Hard Copper

Hard Gold over Copper Flash

Gold

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Notes:

•

Values at +25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications: WR-12 Instrumentation Grade Straight Waveguide Section 3 Inch Length with UG-387/U

Flange Operating from 60 GHz to 90 GHz

PE-W12S001-3

PE-W12S001-3 REV 1
