2SA807 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA807

2SA807: DescriptionSOT-23 BIPOLAR TRANSISTORS TRANSISTOR(PNP); CategoryDiscrete semiconductor The transistor; File Size64KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric View All

2SA807 Overview

SOT-23 BIPOLAR TRANSISTORS TRANSISTOR(PNP)

2SA807 Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	unknow
Maximum collector current (IC)	6 A
Collector-emitter maximum voltage	60 V
JESD-30 code	O-MBFM-P2
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

JEIIEU ^E-mi-L-onaactoi i-Pioaueki, One.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

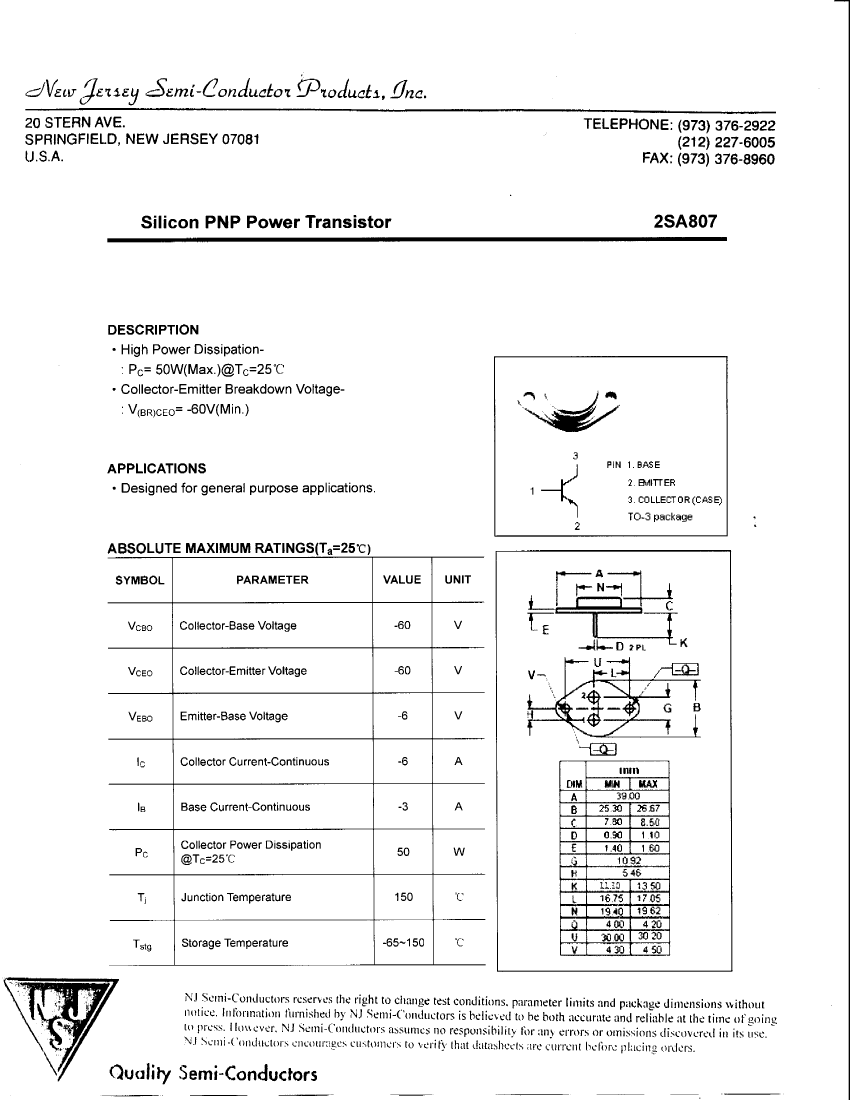

Silicon PNP Power Transistor

2SA807

DESCRIPTION

• High Power Dissipation-

: P

= 50W(Max.)@T

=25°C

• Collector-Emitter Breakdown Voltage-

= -60V(Min.)

APPLICATIONS

• Designed for general purpose applications.

PIN 1.BASE

2. HwllTTER

3. COLLECT OR (CASE)

TO-3 package

ABSOLUTE MAXIMUM RATINGS(T

=25'C)

SYMBOL

PARAMETER

VALUE

UNIT

VCBO

Collector-Base Voltage

-60

VCEO

Collector-Emitter Voltage

-60

VEBO

Emitter-Base Voltage

-6

Collector Current-Continuous

-6

DIM

win

MAX

33.00

2S&7

25,30

7,30

E.50

0.90

1.10

1.40

1.60

1092

54$

ll.iO

1350

Base Current-Continuous

Collector Power Dissipation

=25'C

Junction Temperature

-3

_Ji_

150

16.75

19.40

400

30,00

1705

1962

420

Storage Temperature

-65-150

•c

3020

450

430

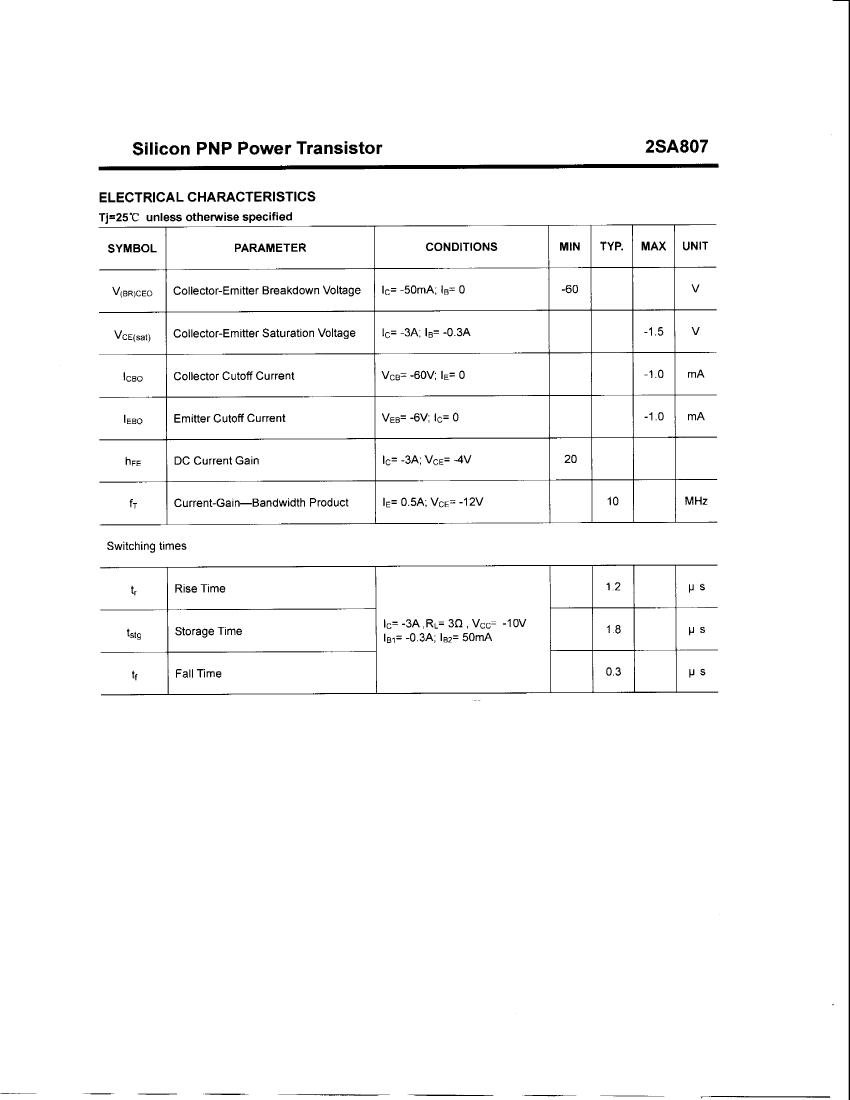

NJ Somi-CoiKluctors reserves the right to change test conditions, parameter limits and package dimensions without

nonce. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going

to press. I louever. N.I Semi-Conductors assumes no responsibility tor any errors or omissions discovered in its use. "

NJ Semi-Conductors encourages customers to verify that datasheets are current before plucina orders.

Quality Semi-Conductors
