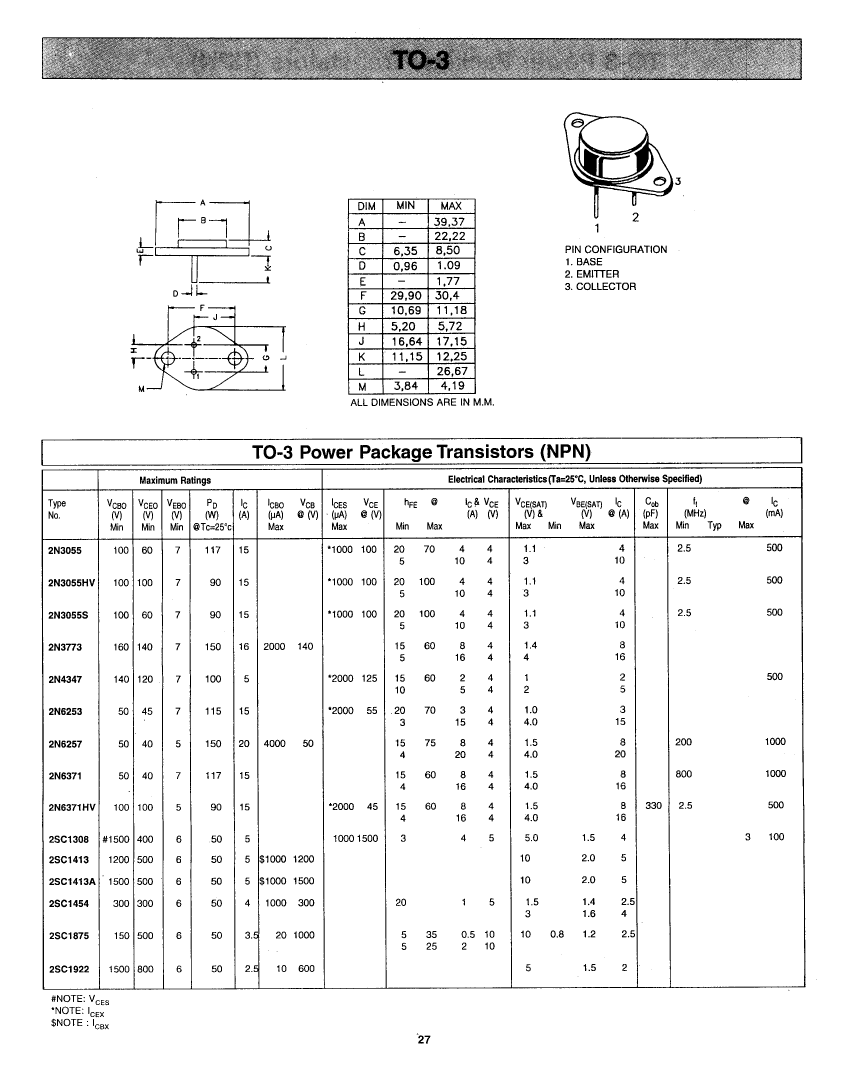

Power Bipolar Transistor, 3.5A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| package instruction | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | compli |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 3.5 A |
| Collector-emitter maximum voltage | 500 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 5 |
| JEDEC-95 code | TO-3 |
| JESD-30 code | O-MBFM-P2 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 140 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 50 W |
| Maximum power dissipation(Abs) | 50 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 0.016 MHz |
| VCEsat-Max | 10 V |
| Base Number Matches | 1 |
| 2SC1875 | 2N4347 | 2N6253 | 2N6371 | 2SC1922 | |
|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 3.5A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 5A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 15A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 12A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin | Power Bipolar Transistor, 2.5A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | conform to | conform to | conform to | incompatible |
| package instruction | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | compli | compli | compli | compli | compli |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 3.5 A | 5 A | 15 A | 12 A | 2.5 A |
| Collector-emitter maximum voltage | 500 V | 120 V | 45 V | 40 V | 800 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| JEDEC-95 code | TO-3 | TO-3 | TO-3 | TO-3 | TO-3 |
| JESD-30 code | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 140 °C | 200 °C | 200 °C | 200 °C | 140 °C |
| Package body material | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 50 W | 100 W | 115 W | 60 W | 50 W |
| Maximum power dissipation(Abs) | 50 W | 100 W | 115 W | 67 W | 50 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Minimum DC current gain (hFE) | 5 | 10 | 20 | 15 | - |
| Nominal transition frequency (fT) | 0.016 MHz | 0.2 MHz | 0.8 MHz | 0.8 MHz | - |
| VCEsat-Max | 10 V | 2 V | - | - | 5 V |
| ECCN code | - | EAR99 | EAR99 | EAR99 | - |
