220W ~ 400W AC-DC Active PFC SWITCHING POWER SUPPLY
PRL0602N SINGLE OUTPUT SERIES

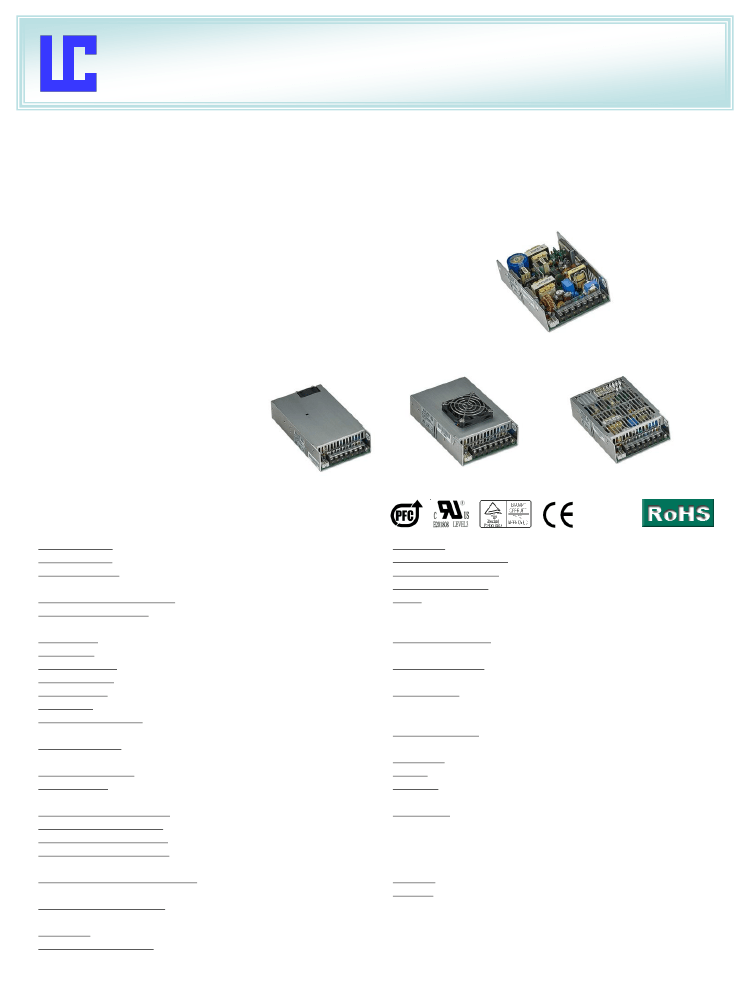

FEATURES:
◆
Compact 400W with 1U height Power Density: 11.11 watts/cu in
◆
Active Power Factor Corrected to EN61000-3-2 Class D
◆
Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆
Peak Power 700W within 500uS Duty Duration
◆
Variable Fan Speed & Low Acoustical Noise
◆
High Quality & Reliable Component Usage
◆
Output Voltage ranging from 12 ~ 60Vdc
◆
4 - Mechanical Options
◆
Full Range AC Input
U Type:
6(L) x 4(W) x 1.5(H)”
E Type:
7(L) x 4(W) x 1.6(H)”
F Type:
6(L) x 4(W) x 2(H)”
C Type:
6(L) x 4(W) x 1.57(H)”
PRODUCT SPECIFICATIONS:
Input Voltage:
90 ~ 264Vac full range, 47 ~ 63Hz.
Input Current:
8A at 90Vac full load.
Inrush Current:
Max. 70A@230Vac & 35A@115Vac; both under
cold start conditions.
Power Factor Correction: >0.9
@ Vin: 230Vac full load.
Transient Response:
Returns to within 1% in less than 2.5mS for a
50% load change and the peak transient does not excess 5%.
Overshoot:
Turn-on & off overshoot < 5% over nominal voltage.
Efficiency:
75minimum (Measuring at 230V and full load).
Turn On Delay:
1.5 second maximum at 120 Vac.
Hold Up Time:
16mS min. at 75% of full load at 120Vac.
Adjustability:
Output user adjustable +/-5% minimum.
Fan Drive:
12VDC/300mA offering to drive an external fan.
Fan Fail (FF) Alarm:
Designated as
FF
on pin 3 of CN1, two types
of logical signal provided, contact manufacturer.
Remote On-Off:
Designated as
INH
on pin4 of CN1, requires a low
signal to inhibit output.
Power Supply On:
Green LED designated as
LED1
on the PCB.
Power Good:
Designated as
PG
on CN1 and TTL high 100-500mS
after DC regulation. It goes low at least 1mS before loss of regulation.
Input Fusing Protection:
One T8A/250V fuse inserted in primary.
Over-Power Protection:
110~140% of I-Max; Auto-recovery.
Short Circuit Protection:
Trip without damage and auto-recovery.
Over Voltage Protection:
Unit latching down when output exceed
130% and recycle AC input to reset.
Over-Temperature Protection:
Unit protected of excessive
operating ambient 110
℃±5 ℃,
and automatic recovery.
Operating Temperature:
0℃ to 70℃ ambient, de-rating at 2.5% per
degree from 50℃ to 70℃.
Warranty:
2 years.
Switching Frequency:
68kHz PFC, 55 kHz PWM
CB
Vibration:
5 ~ 50 Hz, acceleration
±7.35
m/s*s on X,Y and Z Axis.
Storage Temperature:
-20℃ to 85℃.
Operating Humidity:
5% to 90% RH, Non-condensing.
Storage Humidity:
5% to 95% RH, Non-condensing.
EMC:
EN55022 class B conducted / radiated, EN61000-3-2,
EN61000-3-3; EN55024 (IEC61000-4-2, IEC61000-4-3, IEC61000-
4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11).
Safety Regulation:
UL1950, CSA C22.2 No. 950-95, EN60950
and CB certificate
Leakage Current:
< 3.5mA @ 264Vac.
(optional for 500uA max. at 240Vac / 300uA max. at 120Vac input)
HI-POT Test:
1500 VAC input line to chassis (10mA AC cut off
current); Isolating 3000VAC primary to secondary windings;
Primary to core 1500VAC. All for 3 sec.
Grounding Test:
Apply 25 A from ground pin of the three prong
plug to the far most earth. Max allowable resistance 0.1 ohm.
Warranty:
2 years.
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30
℃
.
Cooling:
Internal fan is provided.
Enclosure:
U Type: 6(L) x 4(W) x 1.5(H) inches.
C Type: 6(L) x 4(W) x 1.57(H) inches.
E Type: 7(L) x 4(W) x 1.6(H) inches.
F Type: 6(L) x 4(W) x 2(H)inches.
Burn in:
45 +/- 5 degree C for 1 hour @230Vac with full load.
Weight:
Maximum weight is 800g.
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
ULTRA LEVEL TECH CO., LTD.
www.ultralevel.com.tw
Tel:+886-2-29180118
Fax:+886-2-29181465
We Supply the Power Customers Need
ISO9001
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Model
PRL0602Nx-12
PRL0602Nx-15
PRL0602Nx-18
PRL0602Nx-24
PRL0602Nx-28
PRL0602Nx-36
PRL0602Nx-48
PRL0602Nx-54
Output
Range
10 ~ 13.8V
14 ~ 15.5V
16 ~ 20V
21 ~ 26V
27 ~ 34V
35 ~ 42V
43 ~ 50V
51 ~ 60V
Preset
Voltage
12 V
15 V
18V
24V
28V
36V
48V
54V
Max. Output Current
Regulation
Type U & E & F (forced air)
33.33A
26.67A
22.22A
16.67A
14.29A
11.11A
8.33A
7.41A
Type U & C (Convection)
18.33A
14.67A
12.22A
9.17A
7.86A
6.11A
4.58A
4.07A
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
Ripple &
Noise
1%
1%
1%
1%
1%
1%
1%
1%
Note:
* PRL0602N series are designated as PRL0602Nx-y where x can be
U
(U-Chassis),
C
(U-chassis with top vented cover),E (Enclosed Type
with end side built-in fan) or
F
(Enclosed Type with top cover built-in fan) or ,y can be
12, 15, 18, 24, 28, 36, 48 or 54.
•PRL0602NU
Series:
U-Chassis @400W max. with min. 26.84CFM forced airflow or 220W convection cooled output.
•PRL0602NC
Series:
U-chassis with vented cover@220W max. convection cooling.
*
PRL0602NE Series:
Enclosed with rear side built-in fan @400W max.
*
PRL0602NF Series:
Enclosed with top built-in fan @400W max.
* All output ranges are covered in agency certifications and the preset voltage will be set as standard model if any request is not preset
output please contact us in advance.
* Ripple and noise are measured from 10KHZ to 20MHz bandwidth at output with parallel 0.1µF ceramic and 22µF electrolytic capacitors.
* Providing peak power to 700W within 500uS for all models, longer duty duration need contact manufacture.
•1% minimum load is required to maintain the ripple and regulation.
* Output is fully isolated.

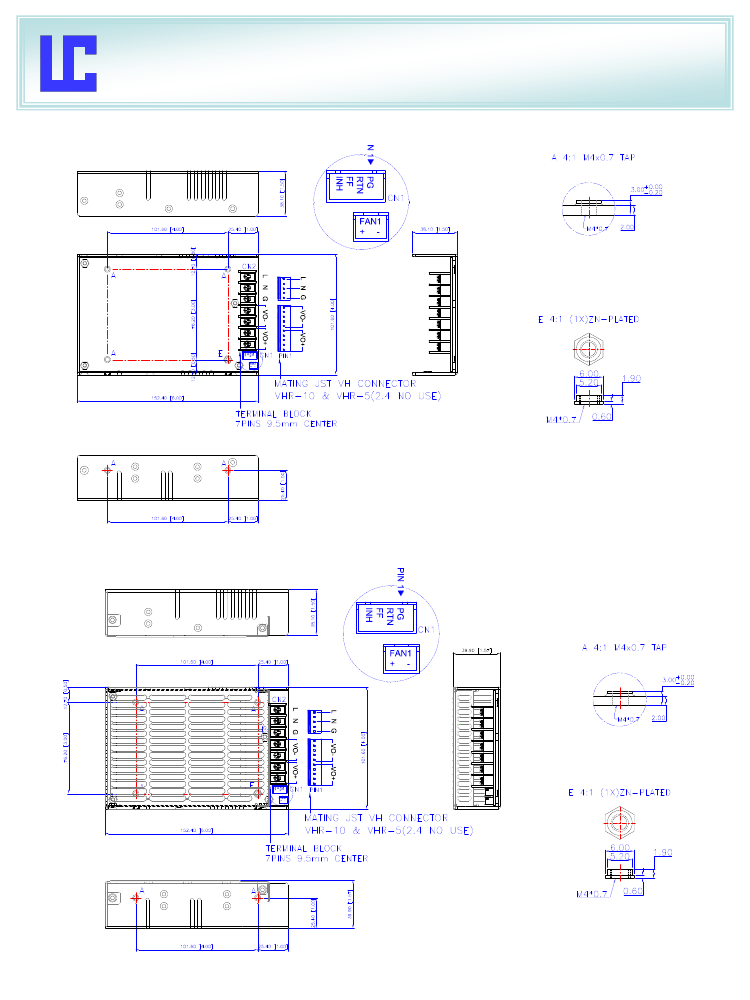

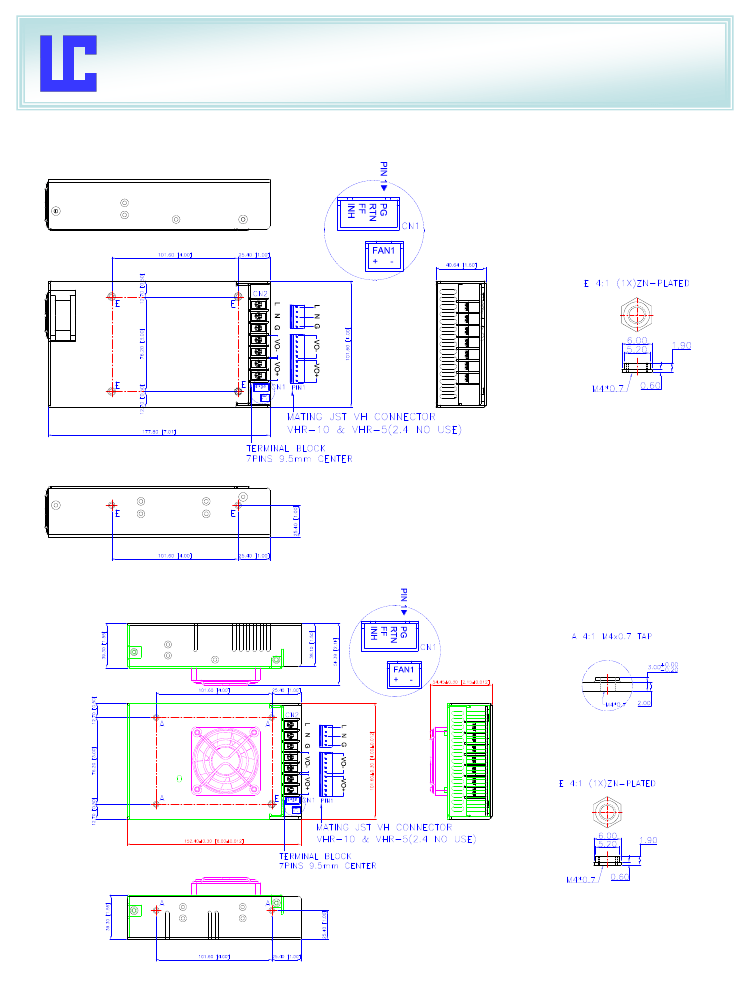

OUTLINE DRAWING:
Input and Output Connector (CN2):
Terminal block - Howder Part No. HD-121-7P or Molex - Mating JST VH series.
Input 5 pin connector (3 pin used, pin 2 & pin 4 removed), PCB labeling: L = Line; N = Neutral;
G = Chassis Ground. Output 10 pin connector.
Output Pin Assignment:
(See table in right).
Mounting Inserts:
6 Places M4X0.7. Maximum Penetration 2mm.
Logic signal connector (CN1):
Mating JST XHP-4 or equivalent (CHYAO SHIUNN JS-2001-04);
Mating Pins: JST SXH-002T-P0.6 FOR AWG 30 to 26.
Pin 1: PG, Pin 2: RTN, PIN3: FF, Pin4: INH
Fan driver connector (FAN1):
12VDC/300mA is available to drive an external fan, Mating connector JST P/N XHP-2 (2 pins
0.98 pitch), equivalent (CHYAO SHIUNN JS-2001-02).
Howder
Pins 1 ~ 2: V+
Pins 3 ~ 4: V-
Pin 5: GND
Pin 6: Neutral
Pin 7: Line
Molex
Pins 1 ~ 5: V+
Pins 6 ~ 10: V-
Pin 12: GND
Pin 14: Neutral
Pin 16: Line
