2SC5066TE85R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC5066TE85R

2SC5066TE85R: DescriptionTRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size447KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

2SC5066TE85R Overview

TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal

2SC5066TE85R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.015 A
Collector-based maximum capacity	0.9 pF
Collector-emitter maximum voltage	12 V
Configuration	SINGLE
Minimum DC current gain (hFE)	80
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	7000 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

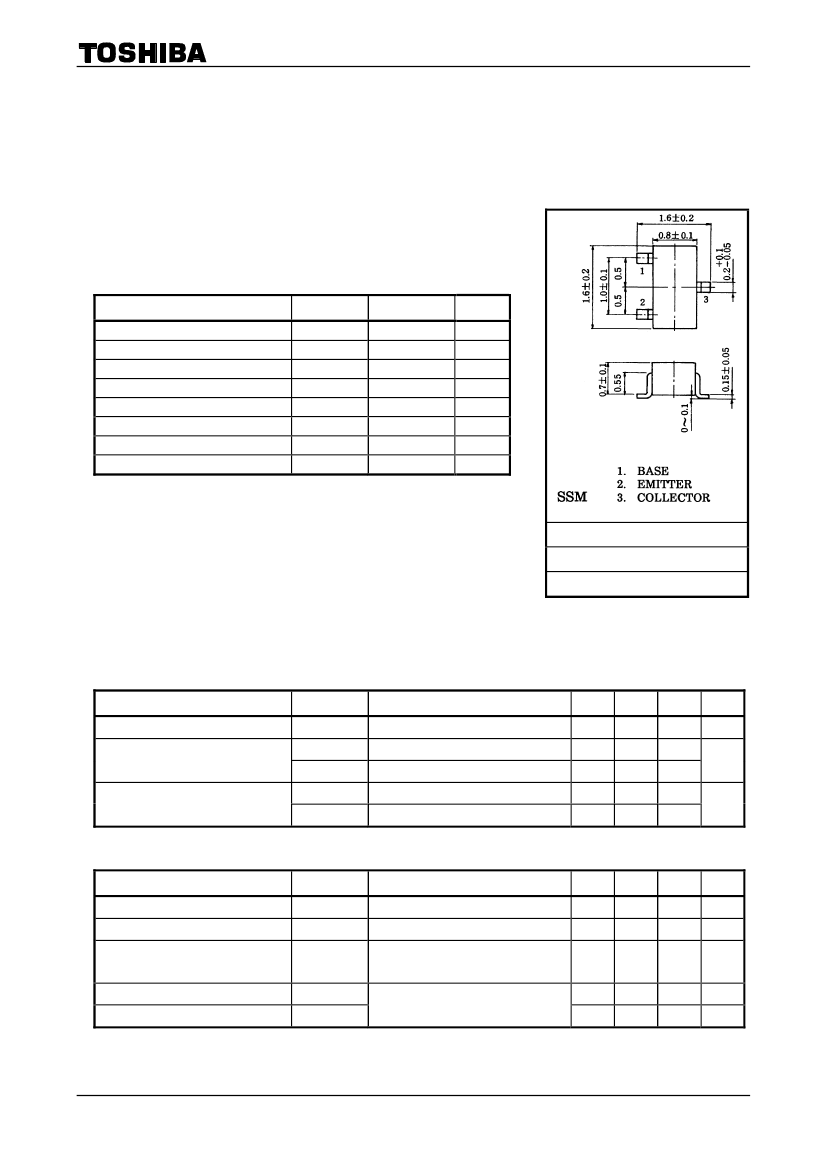

2SC5066

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type

2SC5066

VHF~UHF Band Low Noise Amplifier Applications

•

Low noise figure, high gain.

NF = 1.1dB, |S

21e

= 12dB (f = 1 GHz)

Unit: mm

Absolute Maximum Ratings

(Ta

25°C)

Characteristics

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Base current

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

Symbol

CBO

CEO

EBO

stg

Rating

100

125

−55~125

Unit

°C

Note: Using continuously under heavy loads (e.g. the application of high

temperature/current/voltage and the significant change in

temperature, etc.) may cause this product to decrease in the

reliability significantly even if the operating conditions (i.e.

operating temperature/current/voltage, etc.) are within the

absolute maximum ratings.

Please design the appropriate reliability upon reviewing the

Toshiba Semiconductor Reliability Handbook (“Handling

Precautions”/“Derating Concept and Methods”) and individual

reliability data (i.e. reliability test report and estimated failure rate,

etc).

JEDEC

JEITA

TOSHIBA

―

SC-70

2-2H1A

Weight: 2.4 mg (typ.)

Microwave Characteristics

(Ta

25°C)

Characteristics

Transition frequency

Insertion gain

Symbol

⎪S

21e

⎪

(1)

⎪S

21e

⎪

(2)

NF (1)

NF (2)

Test Condition

5 V, I

10 mA

5 V, I

10 mA, f

500 MHz

5 V, I

10 mA, f

1 GHz

5 V, I

3 mA, f

500 MHz

5 V, I

3 mA, f

1 GHz

Min

⎯

8.5

⎯

Typ.

1.1

Max

⎯

2.0

Unit

GHz

Noise figure

Electrical Characteristics

(Ta

25°C)

Characteristics

Collector cut-off current

Emitter cut-off current

DC current gain

Output capacitance

Reverse transfer capacitance

Symbol

CBO

EBO

(Note 1)

Test Condition

10 V, I

1 V, I

5 V, I

10 mA

5 V, I

0, f

1 MHz

Min

⎯

Typ.

⎯

0.7

0.45

Max

240

⎯

0.9

Unit

μA

(Note 2)

Note 1: h

classification O: 80~160, Y: 120~240

Note 2: C

is measured by 3 terminal method with capacitance bridge.

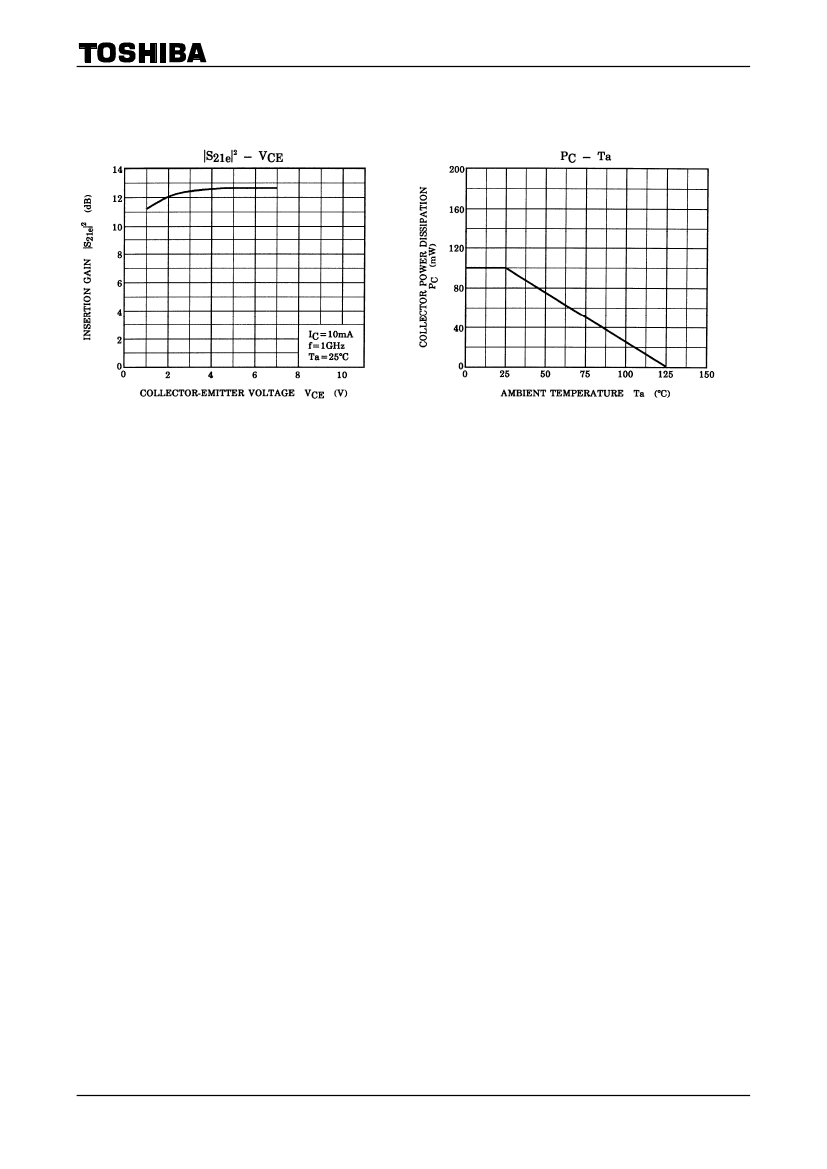

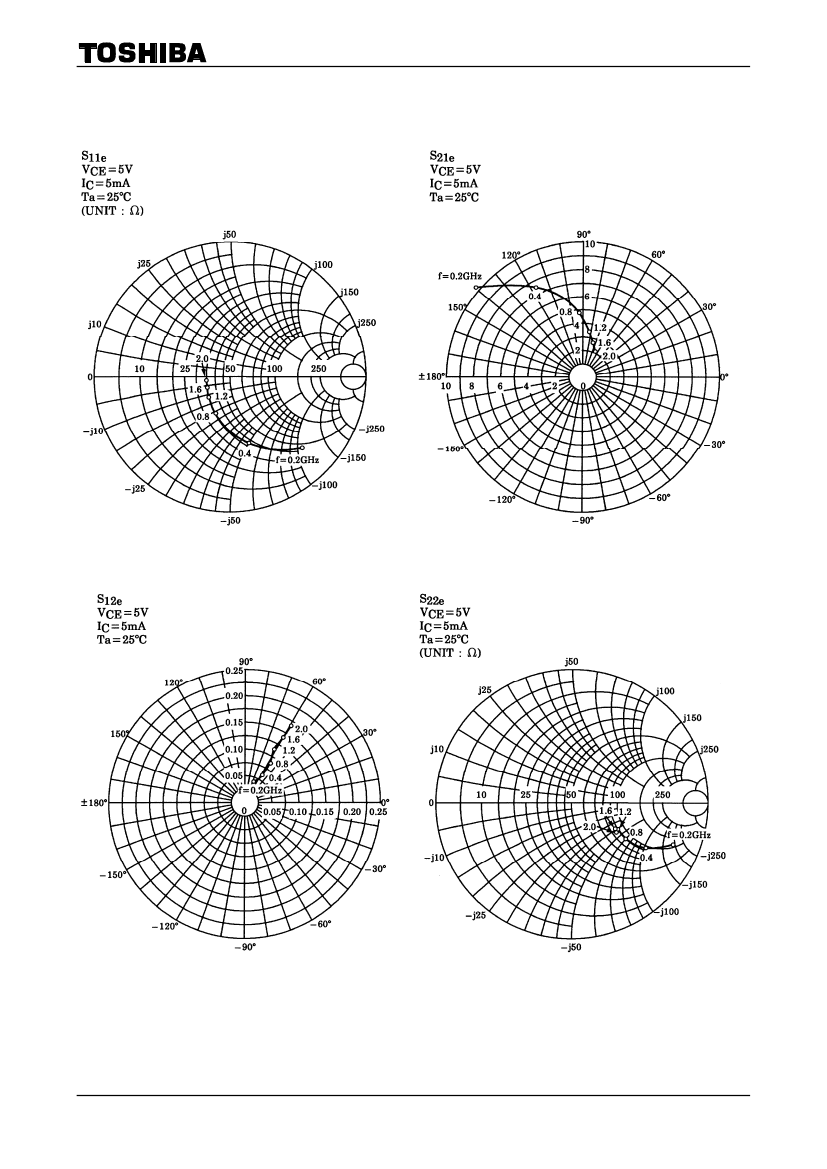

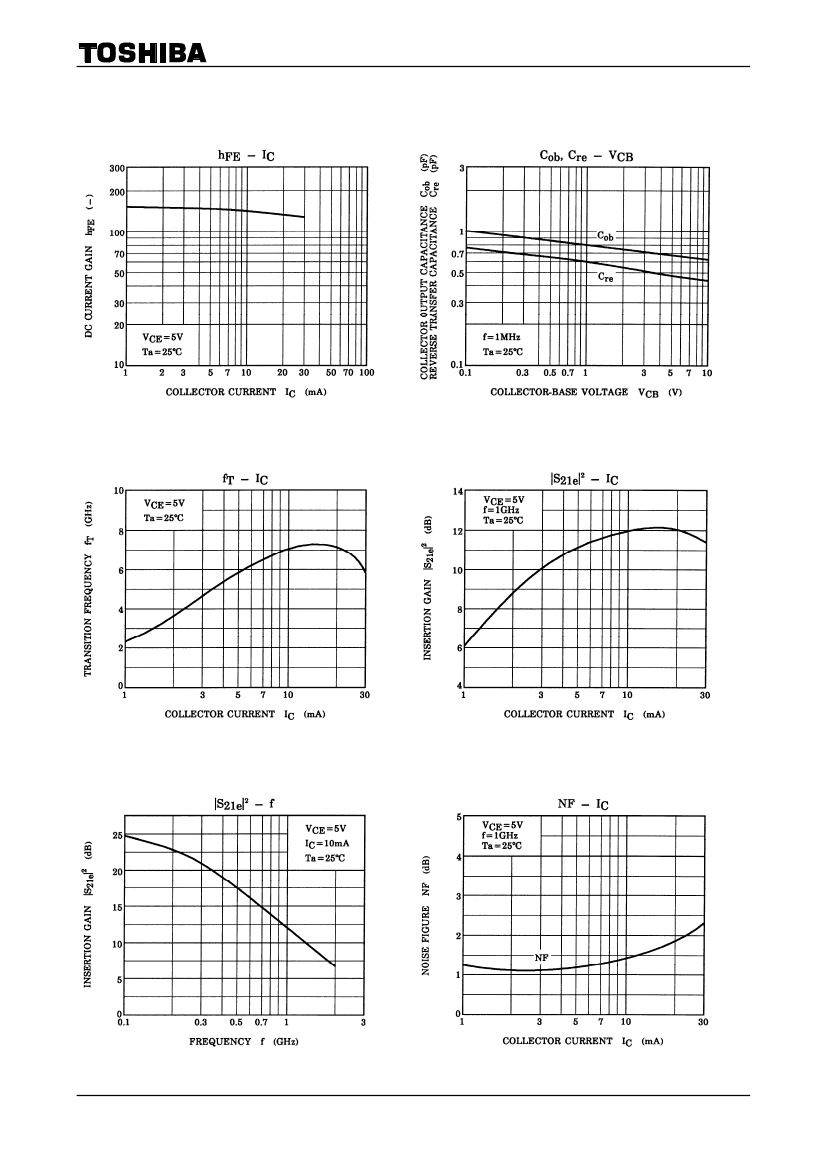

2007-11-01
