Colring cable ties for equipment
Cat. Nos: 318 00 to 318 18 / 318 20 to 318 38 / 318 40 to 318 45
/ 318 47 to 318 49 / 320 12 to 320 15 / 320 18 to 320 20 / 320 22 to
320 32 / 320 37 to 320 40 / 320 42 to 320 51
CONTENTS
1.
2.
3.
4.
5.
Page
Definition . . . . . . . . . . . . . . . . . . 1
Range. . . . . . . . . . . . . . . . . . . . . 1
General characteristics . . . . . 2/3
Compliance with standards . . . . 3
Accessories . . . . . . . . . . . . . . 3/4
1. DEFINITION
The Colring cable tie is designed for electrical and electronic
cabling, for grouping and attaching low and extra low voltage cables.
It is perfectly suited for applications such as automobiles, aeronautics,
the pharmaceutical industry, telephony, transport, etc.

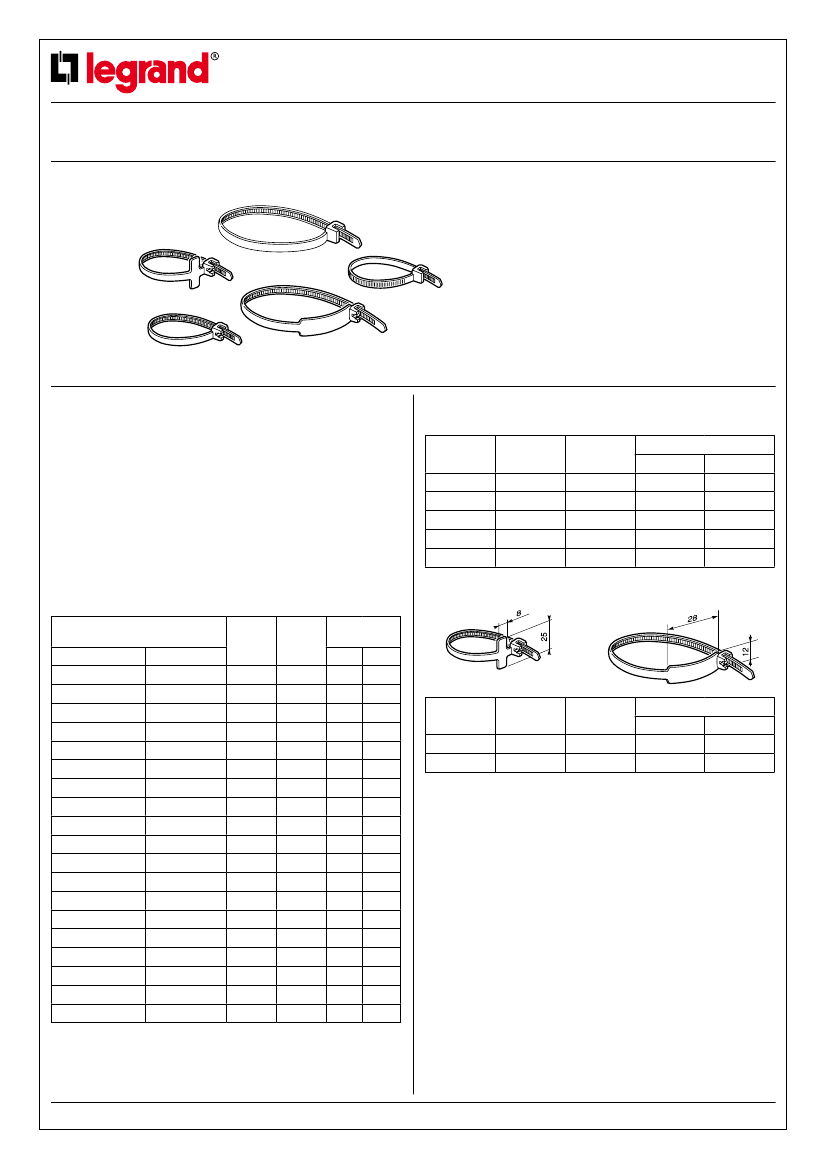

2. RANGE
(cont.)
• Ties with interior teeth (Colourless)
Cat. Nos
320 52
320 54
320 55
320 57
320 58
Width
(mm)
2.4
3.5
4.6
4.6
7.6
Length flat
(mm)
105
140
180
360
360
Tightening diameter
Min.
1.6
1.6
1.6
1.6
4.8
Max.
22
33
46
102
98
2. RANGE
- Cable ties with interior teeth (black and colourless)
- Identification ties and cable ties with exterior teeth (colourless)
- Plastic material without halogens, sulphur, chlorine, silicone and
asbestos.
- Self-locking head
- Delivered in sealed packaging
• Ties with interior teeth
Cat. Nos
Colourless
318 40/20 - 320 30
318 41/21 - 320 31
318 42/22 - 320 32
318 43/23 - 320 37
318 44/24 - 320 38
318 45/25 - 320 39
318 26 - 320 40
318 47/27 - 320 42
318 48/28 - 320 43
318 49/29 - 320 44
318 33
318 30 - 320 47
318 34
318 31 - 320 49
318 35 - 320 45
318 32 - 320 50
318 36 - 320 46
318 37 - 320 48
318 38 - 320 51
Black
318 00 - 320 12
318 01 - 320 13
318 02 - 320 14
318 03 - 320 15
318 04 - 320 18
318 05 - 320 19
318 06 - 320 20
318 07 - 320 22
318 08 - 320 23
318 09 - 320 24
318 13
318 10
318 14
318 11 - 320 29
318 15 - 320 25
318 12
318 16 - 320 26
318 17 - 320 27
318 18 - 320 28
Width
(mm)
2.4
2.4
2.4
3.5
3.5
3.5
3.5
4.6
4.6
4.6
4.6
7.6
7.6
7.6
7.6
7.6
9
9
12.6
Length
flat (mm)
95
140
180
140
180
280
360
180
280
360
430
180
290
360
550
720
710
810
1030
Tightening
diameter
Min.
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
4.8
4.8
4.8
4.8
4.8
14
14
20
Max.
18
33
46
33
46
77
102
46
77
102
125
42
78
98
166
218
218
246
317
• Identification ties (Colourless)
320 61
Width
(mm)
2.4
4.6
320 63
Length flat
(mm)
95
180
Tightening diameter
Min.
4
9.5
Max.
18
46
Cat. Nos
320 61
320 63
Technical data sheet: F00280EN/06
CONTENTS
Updated:
Created: 03/05/2010
1/4
Colring cable ties for equipment

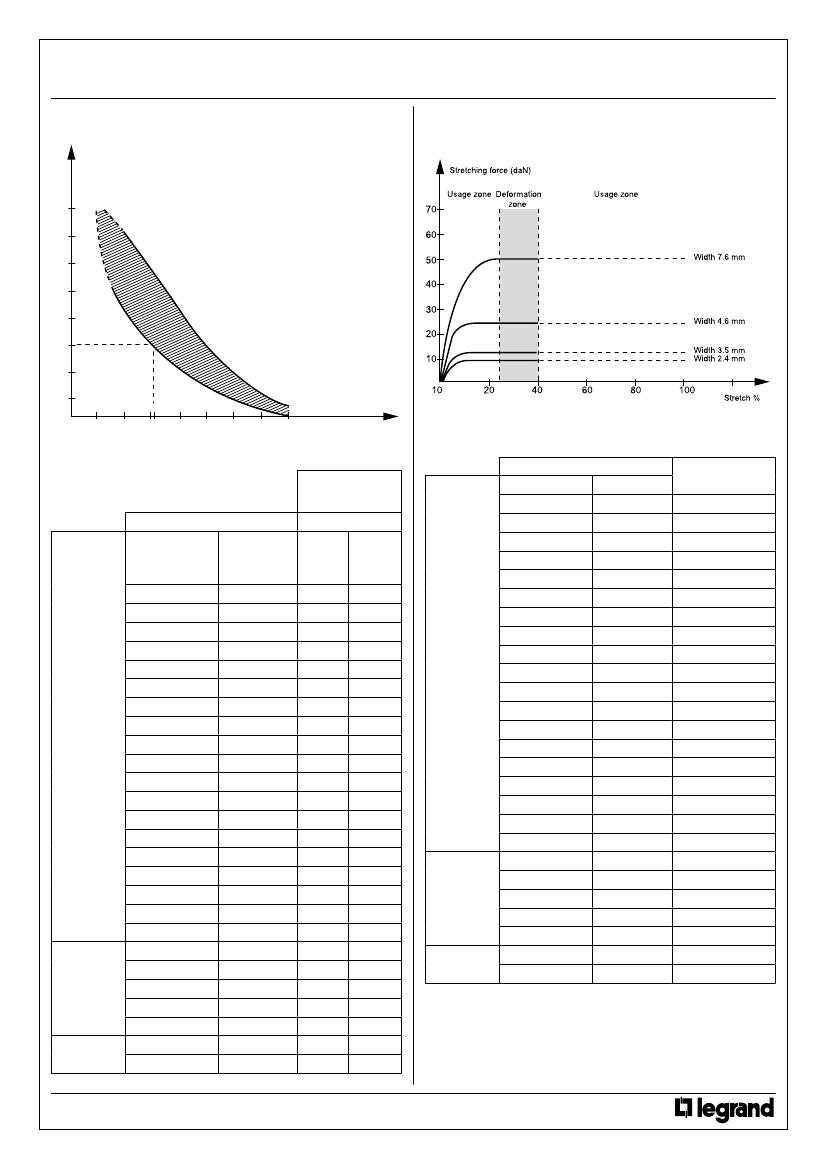

3. GENERAL CHARACTERISTICS
3.1 Tear-off resistance
Ratings
Cat. Nos: 318 00 to 318 18 / 318 20 to 318 38 / 318 40 to 318 45
/ 318 47 to 318 49 / 320 12 to 320 15 / 320 18 to 320 20 / 320 22 to
320 32 / 320 37 to 320 40 / 320 42 to 320 51
3. GENERAL CHARACTERISTICS
(cont.)
3.2 Detent force
200
180
160
140
120
Rating 100 = test conditions according to EN50 148
½
Dry condition
½
Humidity in equilibrium at 23°C and 50% RH
½
½
100
80
60
23
-20
0
20
40
60
80
100
120
temperature °C
Stretch resistance
Tear-off resistance according to EN 50146
Tear-off resistance
according to EN
50146
Cat. Nos
Tightening diameter
Test
diameter
(mm)
18
20
20
20
20
20
20
20
20
20
20
20
20
20
38
20
38
38
38
20
20
20
20
20
20
20
Guaran-
teed min.
resistance
(daN)
8
8
8
13
13
13
13
22
22
22
22
53
53
53
53
53
77
77
111
8
13
22
22
53
8
22
Identification
ties
Ties with
exterior teeth
Ties with
interior teeth
Cat. Nos
Colourless
318 40/20 - 320 30
318 41/21 - 320 31
318 42/22 - 320 32
318 43/23 - 320 37
318 44/24 - 320 38
318 45/25 - 320 39
318 26 - 320 40
318 47/27 - 320 42
318 48/28 - 320 43
318 49/29 - 320 44
318 33
318 30 - 320 47
318 34
318 31 - 320 49
318 35 - 320 45
318 32 - 320 50
318 36 - 320 46
318 37 - 320 48
318 38 - 320 51
320 52
320 54
320 55
320 57
320 58
320 61
320 63
Black
318 00 - 320 12
318 01 - 320 13
318 02 - 320 14
318 03 - 320 15
318 04 - 320 18
318 05 - 320 19
318 06 - 320 20
318 07 - 320 22
318 08 - 320 23
318 09 - 320 24
318 13
318 10
318 14
318 11 - 320 29
318 15 - 320 25
318 12
318 16 - 320 26
318 17 - 320 27
318 18 - 320 28
Max detent force
(daN)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1
1.5
1
2
1
1.5
1
2
2
2
0.46
0.6
0.9
0.9
1.5
0.5
0.5
Colourless
Black
318 40/20 - 320 30
318 41/21 - 320 31
318 42/22 - 320 32
318 43/23 - 320 37
318 44/24 - 320 38
318 45/25 - 320 39
318 26 - 320 40
Ties with
interior teeth
318 47/27 - 320 42
318 48/28 - 320 43
318 49/29 - 320 44
318 33
318 30 - 320 47
318 34
318 31 - 320 49
318 35 - 320 45
318 32 - 320 50
318 36 - 320 46
318 37 - 320 48
318 38 - 320 51
320 52
320 54
Ties with
exterior teeth
320 55
320 57
320 58
Identification
ties
320 61
320 63
318 00 - 320 12
318 01 - 320 13
318 02 - 320 14
318 03 - 320 15
318 04 - 320 18
318 05 - 320 19
318 06 - 320 20
318 07 - 320 22
318 08 - 320 23
318 09 - 320 24
318 13
318 10
318 14
318 11 - 320 29
318 15 - 320 25
318 12
318 16 - 320 26
318 17 - 320 27
318 18 - 320 28
Technical data sheet: F00280EN/06
CONTENTS
Updated:
Created: 03/05/2010
2/4
Colring cable ties for equipment
3. GENERAL CHARACTERISTICS
(cont.)
3.3 Strength at temperature in °C
Tightening diameter
Colourless
In permanent use: > 20,000h
In continuous use: > 1,000h
Permissible peak:
Cold resistance:
in use
at mounting
85%
100%
130%
- 15°C
- 10°C
Black
105%
120%
150%
- 15°C
0°C
Cat. Nos: 318 00 to 318 18 / 318 20 to 318 38 / 318 40 to 318 45
/ 318 47 to 318 49 / 320 12 to 320 15 / 320 18 to 320 20 / 320 22 to
320 32 / 320 37 to 320 40 / 320 42 to 320 51
4. COMPLIANCE WITH STANDARDS
- EN 50 146
- Standard UL 1565 and IEC 62275 type 1
- Standard SAE -AS 33671
5. ACCESSORIES

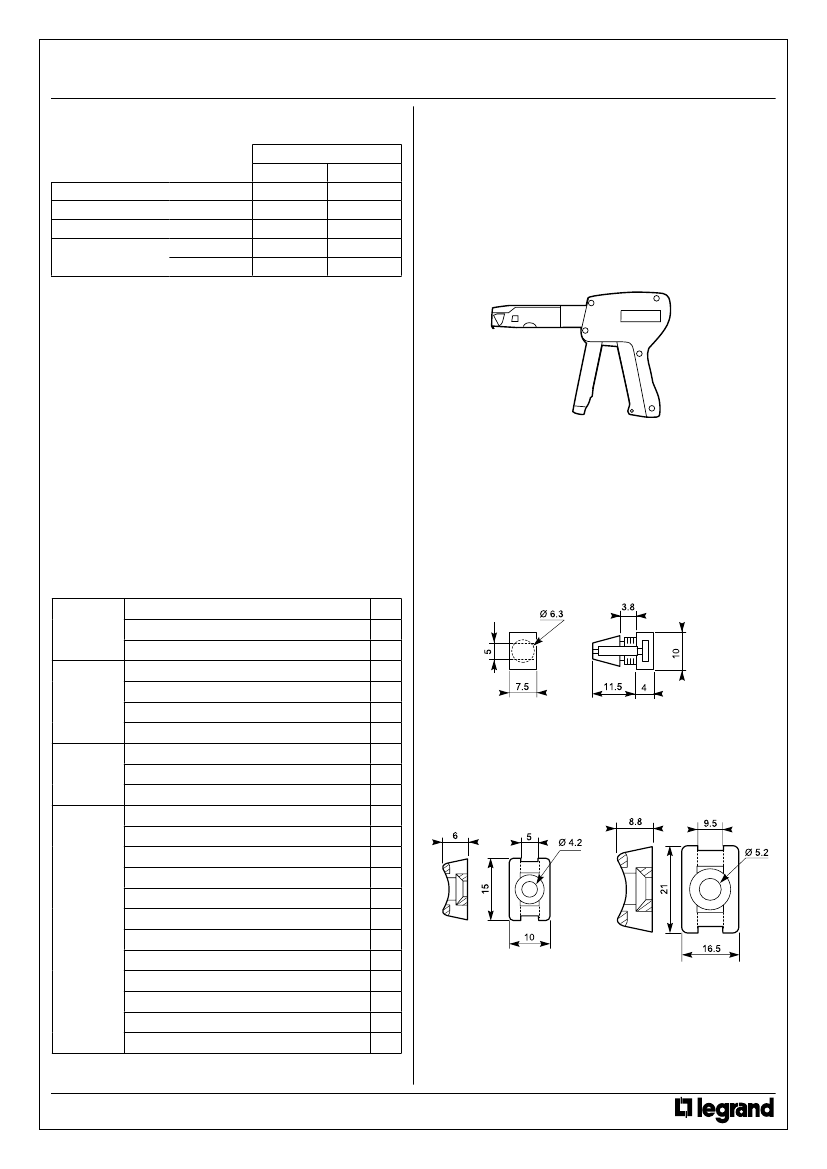

5.1 Legrand P46 tool
Cat. No. 320 88
- Direct adjustment of the tightening stress via the knurled knob located
at the base of the handle.
After tightening, a blade automatically cuts the excess length flush with
the head.
3.4 Material characteristics
Humidity absorption: 1.2% (24h water at 23°C in accordance with ISO 62)
Without halogens, sulphur, chlorine, silicone and asbestos.
3.5 Fire behaviour
- Resistance to glow wire in accordance with
IEC 60 695-2-11 ............................................................ 850°C on a
plastic chip 1.6 or 3 mm thick
- Flame application time according
to EN 50 146.................................................................. 5 to 20 secs
(depending on Cat. no.)
- Classification according to............................................. UL 94 V2
- Limiting oxygen index (LOI) EN/ISO 4589-1 / ASTM D 2863-00
Colourless: .................................................................... 28.5%
Black: ............................................................................ 26%
- Corrosiveness of smoke according
to NFC 20-453: .............................................................. < 5%
3.6 Ultra-Violet resistance
- Resistance to ultra-violet using the EDF test according to standard
HN 33 S62
Colourless: .................................................................... not protected
Black: ............................................................................ protected
3.7 Resistance to chemical agents
Hydrochloric
10%
Mineral
acids
Sulphuric
10%
Nitric all concentrations
Acetic
Organic
acids
Tartaric
Uric
Formic
Soda
10%
Bases
minérales
Potassium
10%
Ammoniac
10%
Anilines (pure)
Pyridine (pure)
Urea
Oils
Greases
Organic
bases
Petroleum products
Sea water
Chlorinated solvents
Phenols
Alcohol
Hydrocarbons
Mineral salts
++
++
-
+
++
++
-
++
++
++
+
-
++
++
++
++
++
-
-
++
++
++
- For cable ties 2.4 - 3.5 mm wide and 4.6 mm wide, tightening and
cutting of the excess length can be performed using the Legrand P46
tool.
Note that, for a width of 7.6 mm, the use of the Colson tool (Cat. no.
319 96) is.
5.2 Clip-on base
Cat. No. 320 76
Material: plastic (colourless)
For ties 4.6 mm wide max.
For sheet steel 0.5 to 3 mm thick
Drilling diameter: 6 to 6.35 mm
Overall dimensions:
5.3 Screw-on base
Cat. Nos:
- with central fixation
- 320 70 for tie 4.6 mm wide max. and screw Ø 4 mm
- 320 72 for tie 7.6 mm wide max. and screw Ø 5 mm
Material: plastic
Overall dimensions:
at a temperature of 23°C
++ : excellent
+ : moderate
Technical data sheet: F00280EN/06
CONTENTS
- : low
Updated:
Created: 03/05/2010
3/4
Colring cable ties for equipment
5. ACCESSORIES
(cont.)

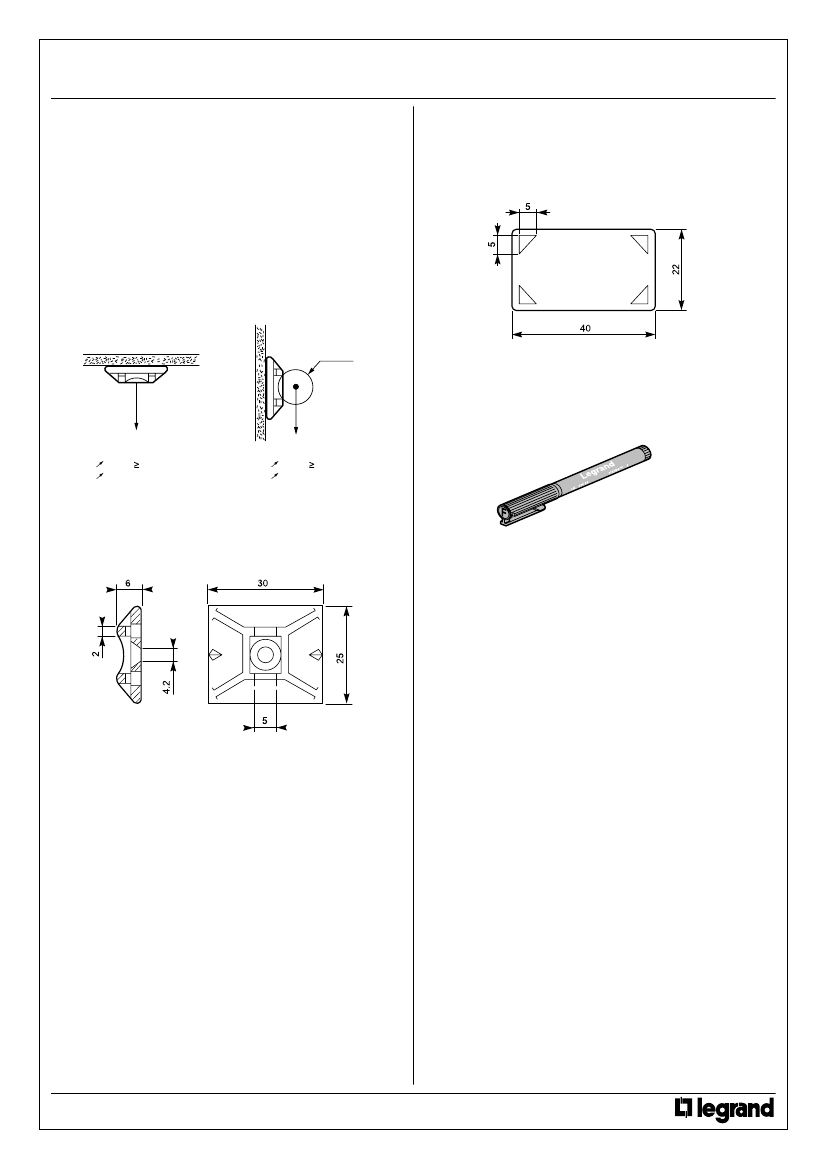

5.4 Self-adhesive bases
Cat. Nos: 320 65 (colourless) and 320 67 (black)
Material: plastic
For ties 4.6 mm wide max.
Rapid set adhesive:
- Maximum hold after polymerization for 48h; to be mounted on a
clean, degreased surface, applying a force of 5daN for 5 seconds
- Installation temperature: between 20°C and 40°C
Not recommended below 10°C
Tear-off resistance:
Cat. Nos: 318 00 to 318 18 / 318 20 to 318 38 / 318 40 to 318 45
/ 318 47 to 318 49 / 320 12 to 320 15 / 320 18 to 320 20 / 320 22 to
320 32 / 320 37 to 320 40 / 320 42 to 320 51
5. ACCESSORIES
(cont.)
5.5 Identification plate
Cat. No(s): 320 85
For ties 4.6 mm wide max.
Marking with black felt-tip pen with indelible ink Cat. No.: 395 98
Type A
Type B
Ø 19 mm
5.6 Black felt-tip pen
Cat. No(s): 395 98
Felt-tip pen with indelible ink.
Adheres to all clean dry surfaces.
F
Results:
F A vg.: 210 N
F B min.: 180 N
F
Results:
F A vg.: 100 N
F B min.: 80 N
180N axial tension and 80N perpendicular tension.
The static resistance is 240 hours minimum under a load of 20N.
Tests performed at ambient temperature.
Overall dimensions:
Technical data sheet: F00280EN/06
CONTENTS
Updated:
Created: 03/05/2010
4/4
