FAN3121CMX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> FAN3121CMX

FAN3121CMX: DescriptionBUF OR INV BASED PRPHL DRVR, PDSO8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，21 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FAN3121CMX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FAN3121CMX	-	-	View	Buy Now

FAN3121CMX Overview

BUF OR INV BASED PRPHL DRVR, PDSO8

FAN3121CMX Parametric

Parameter Name	Attribute value
Brand Name	Fairchild Semiconduc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	ROHS COMPLIANT, MS-012AA, SOIC-8
Contacts	8
Manufacturer packaging code	8LD, SOIC,JEDEC MS-012, .150" NARROW BODY
Reach Compliance Code	compli
ECCN code	EAR99
Built-in protection	UNDER VOLTAGE
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	5 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output current flow direction	SOURCE AND SINK
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	12 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	18 V
Minimum supply voltage	4.5 V
Nominal supply voltage	12 V
surface mount	YES
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	35 µs
connection time	35 µs
width	4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

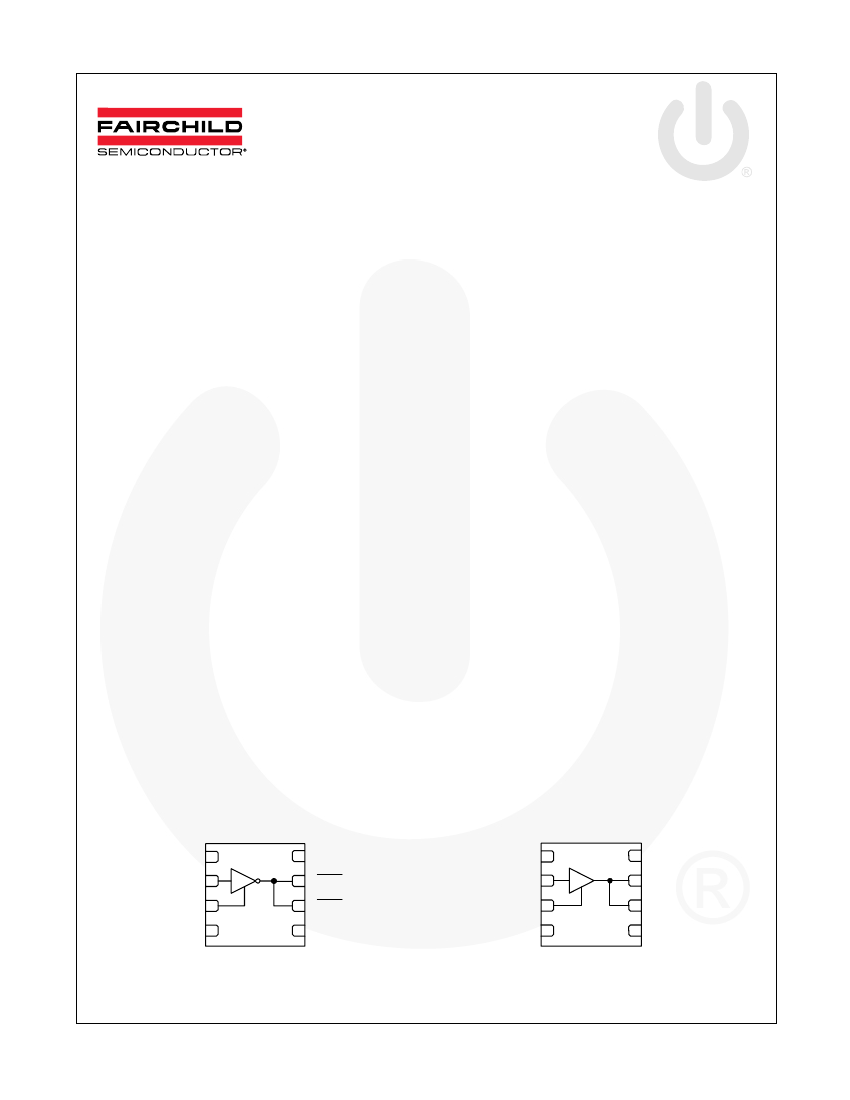

FAN3121 / FAN3122 — Single 9A High-Speed, Low-Side Gate Driver

September 2008

FAN3121 / FAN3122

Single 9A High-Speed, Low-Side Gate Driver

Features

Industry-Standard Pin-out with Enable Input

4.5 to 18V Operating Range

11.4A Peak Sink at V

= 12V

9.7A Sink / 7.1A Source at V

OUT

= 6V

Inverting Configuration (FAN3121) and

Non-Inverting Configuration (FAN3122)

Internal Resistors Turn Driver Off If No Inputs

23ns/19ns Typical Rise/Fall Times with 10nF Load

20ns Typical Propagation Delay Time

Choice of TTL or CMOS Input Thresholds

MillerDrive™ Technology

Available in Thermally Enhanced 3x3mm 8-Lead

MLP or 8-Lead SOIC Package (Pb-Free Finish)

Rated from –40°C to +125°C

Description

The FAN3121 and FAN3122 MOSFET drivers are

designed to drive N-channel enhancement MOSFETs in

low-side switching applications by providing high peak

current pulses. The drivers are available with either TTL

(FAN312xT) or CMOS (FAN312xC) input thresholds.

Internal circuitry provides an under-voltage lockout

function by holding the output low until the supply

voltage is within the operating range.

FAN312x drivers incorporate the MillerDrive™

architecture for the final output stage. This bipolar /

MOSFET combination provides the highest peak

current during the Miller plateau stage of the MOSFET

turn-on / turn-off process.

The FAN3121 and FAN3122 drivers implement an

enable function on pin 3 (EN), previously unused in the

industry-standard pin-out. The pin is internally pulled up

to V

for active HIGH logic and can be left open for

standard operation.

The FAN3121/22 is available in a 3x3mm 8-lead thermally-

enhanced MLP package or an 8-lead SOIC package.

Applications

Synchronous Rectifier Circuits

High-Efficiency MOSFET Switching

Switch-Mode Power Supplies

DC-to-DC Converters

Motor Control

VDD 1

VDD

OUT

GND

VDD 1

8 VDD

7 OUT

6 OUT

5 GND

GND 4

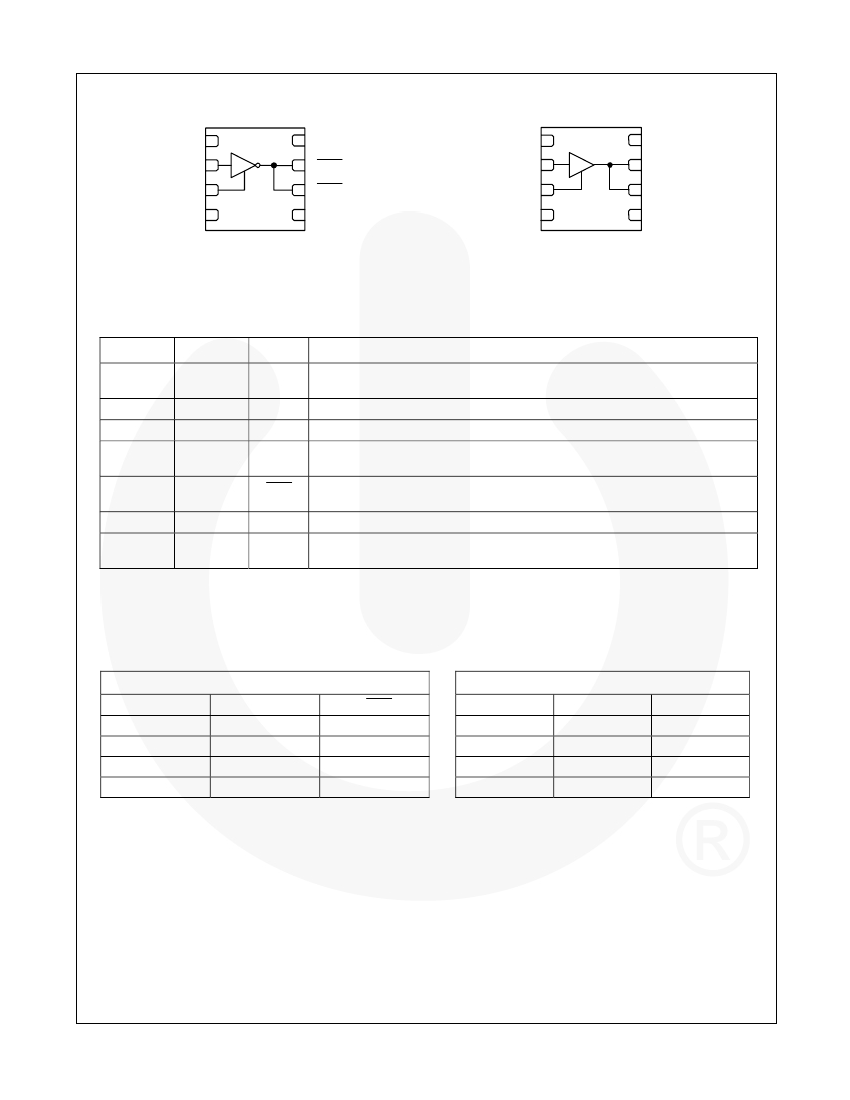

Figure 1.

FAN3121 Pin Configuration

Figure 2.

FAN3122 Pin Configuration

FAN3121 / FAN3122 • Rev. 1.0.0

www.fairchildsemi.com
