NCE0202Z
D
NCE N-Channel
Enhancement Mode Power MOSFET
Description
The NCE0202Z uses advanced trench technology and
design to provide excellent R
DS(ON)
with low gate charge. It
can be used in a wide variety of applications.
G
S
General Features
●
V
DS
= 200V,I
D
=2A
R
DS(ON)
< 580mΩ @ V
GS
=10V (Typ:520mΩ)
●
High density cell design for ultra low Rdson
●
Fully characterized avalanche voltage and current
●
Excellent package for good heat dissipation
Schematic diagram
Application
●
Power switching application
●
Hard switched and high frequency circuits
●
Uninterruptible power supply

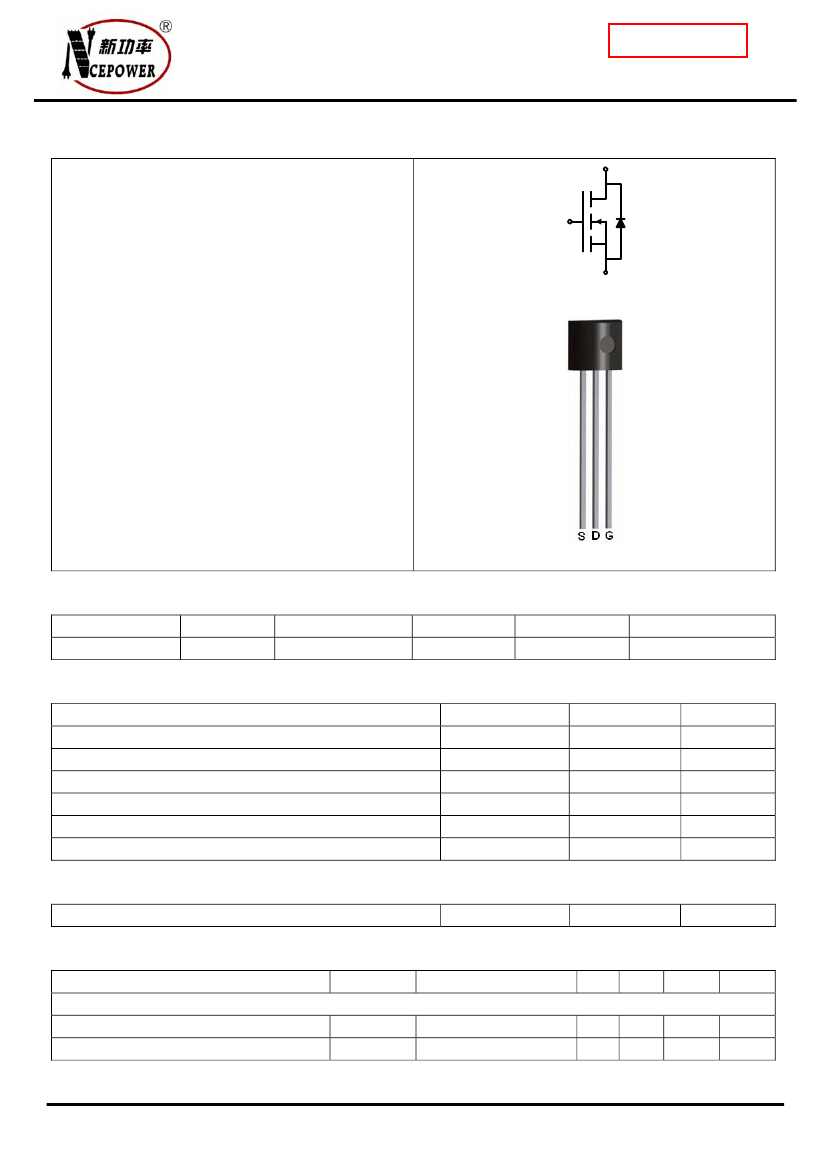

TO-92 view
Package Marking and Ordering Information
Device Marking
0202Z
Device
NCE0202Z
Device Package
TO-92
Reel Size
-
Tape width
-
Quantity
-
Absolute Maximum Ratings (T
A
=25℃unless otherwise noted)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous
Drain Current-Pulsed
(Note 1)
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
Symbol
V
DS
V
GS
I
D
I
DM
P
D
T
J
,T
STG
Limit
200
±20
2
8
3
-55 To 150
Unit
V
V
A
A
W
℃
Thermal Characteristic
Thermal Resistance,Junction-to-Ambient
(Note 2)
R
θJA
41.7
℃
/W
Electrical Characteristics (T
A
=25℃unless otherwise noted)
Parameter
Off Characteristics
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
BV
DSS
I
DSS
V
GS
=0V I
D
=250μA
V
DS
=200V,V
GS
=0V
200
-
-
-
-
1
V
μA
Symbol
Condition
Min
Typ
Max
Unit
Wuxi NCE Power Semiconductor Co., Ltd
Page 1
v1.0
Pb Free Product
http://www.ncepower.com
Gate-Body Leakage Current
On Characteristics
(Note 3)
Gate Threshold Voltage
Drain-Source On-State Resistance
Forward Transconductance
Dynamic Characteristics
(Note4)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Switching Characteristics
(Note 4)
Turn-on Delay Time
Turn-on Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Drain-Source Diode Characteristics
Diode Forward Voltage
(Note 3)
Diode Forward Current
(Note 2)
V
SD
I
S
V
GS
=0V,I
S
=2A
-
-
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
V
DS
=100V,I
D
=2A,
V
GS
=10V
V
DD
=100V, R
L
=15Ω
V
GS
=10V,R
G
=2.5Ω
-
-
-
-
-
-
-
C
lss
C
oss
C
rss
V
DS
=25V,V
GS
=0V,
F=1.0MHz
-
-
-
V
GS(th)
R
DS(ON)
g
FS
V
DS
=V
GS
,I
D
=250μA
V
GS
=10V, I
D
=2A
V
DS
=15V,I
D
=2A
2.5
-
-
I
GSS
V
GS
=±20V,V
DS
=0V
-
NCE0202Z
-
3.4
520
8
580
90
3
10
12
15
15
12
2.5
3.8
-
-
-
-
1.2
2
±100
4.5
580
-
-
-
-
-
-
-
-
nA
V
mΩ
S
PF
PF
PF
nS
nS
nS
nS
nC
nC
nC
V
A
Notes:
1.
Repetitive Rating: Pulse width limited by maximum junction temperature.
2.
Surface Mounted on FR4 Board, t
≤
10 sec.
3.
Pulse Test: Pulse Width
≤
300μs, Duty Cycle
≤
2%.
4.
Guaranteed by design, not subject to production
Wuxi NCE Power Semiconductor Co., Ltd
Page 2
v1.0
Pb Free Product
http://www.ncepower.com
NCE0202Z

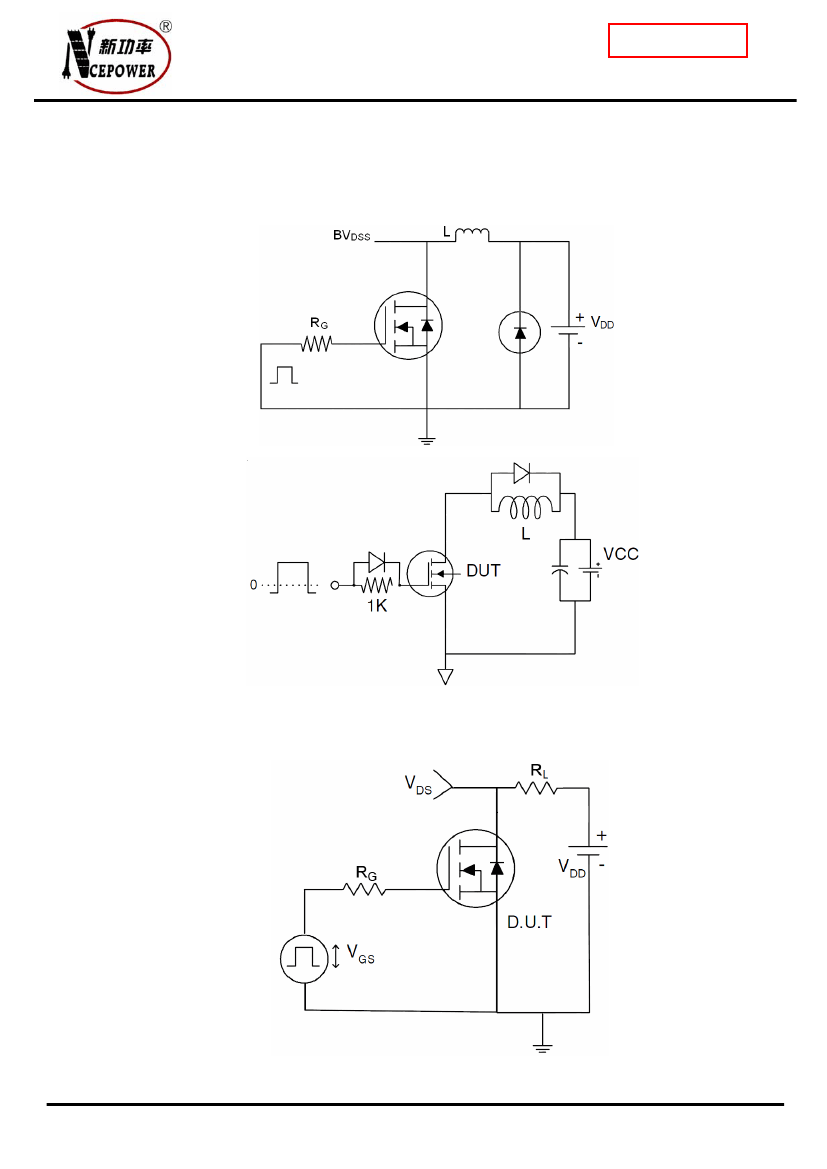

Test Circuit
1）E
AS
test circuit
2）Gate charge test circuit
3）Switch Time Test Circuit
Wuxi NCE Power Semiconductor Co., Ltd
Page 3
v1.0
NCE0202Z
http://www.ncepower.com
Pb-Free Product

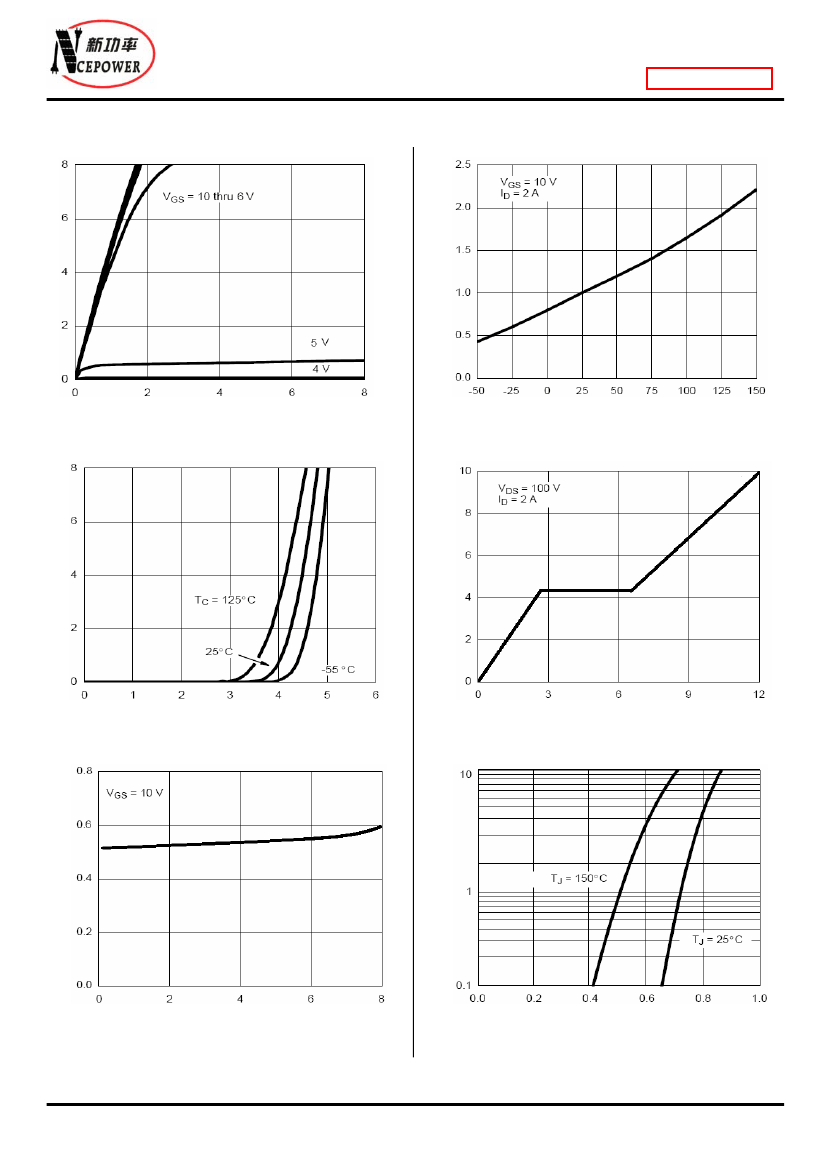

Typical Electrical and Thermal Characteristics (Curves)
Normalized On-Resistance
I
D
- Drain Current (A)
Vds Drain-Source Voltage (V)
T
J
-Junction Temperature(℃)
Figure 1 Output Characteristics
Figure 4 Rdson-JunctionTemperature
Vgs Gate-Source Voltage (V)
I
D
- Drain Current (A)
Vgs Gate-Source Voltage (V)
Qg Gate Charge (nC)
Figure 2 Transfer Characteristics
I
s
- Reverse Drain Current (A)
Figure 5 Gate Charge
Rdson On-Resistance(
Ω)
I
D
- Drain Current (A)
Vsd Source-Drain Voltage (V)
Figure 3 Rdson-
Drain Current
Figure 6 Source- Drain Diode Forward
Wuxi NCE Power Semiconductor Co., Ltd
Page 4
v1.0
NCE0202Z
http://www.ncepower.com
Pb-Free Product

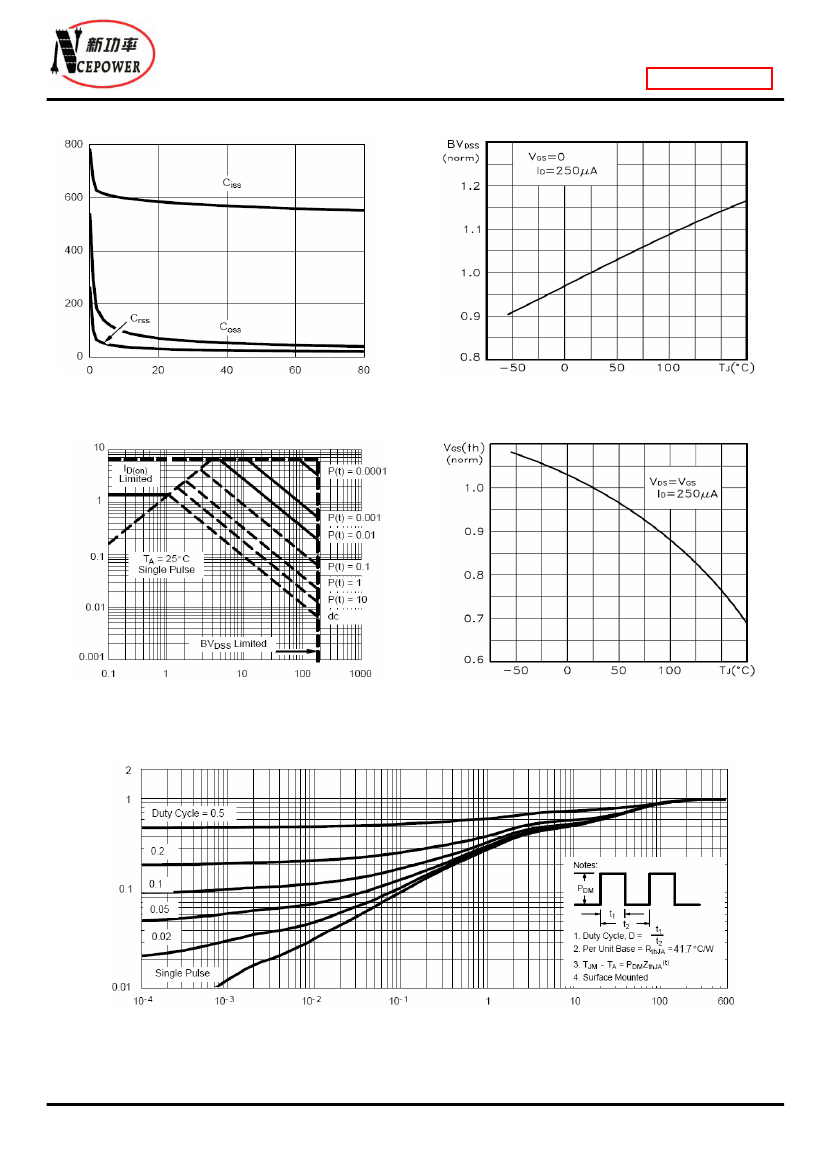

C Capacitance (pF)
