M80-4T214F2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-4T214F2

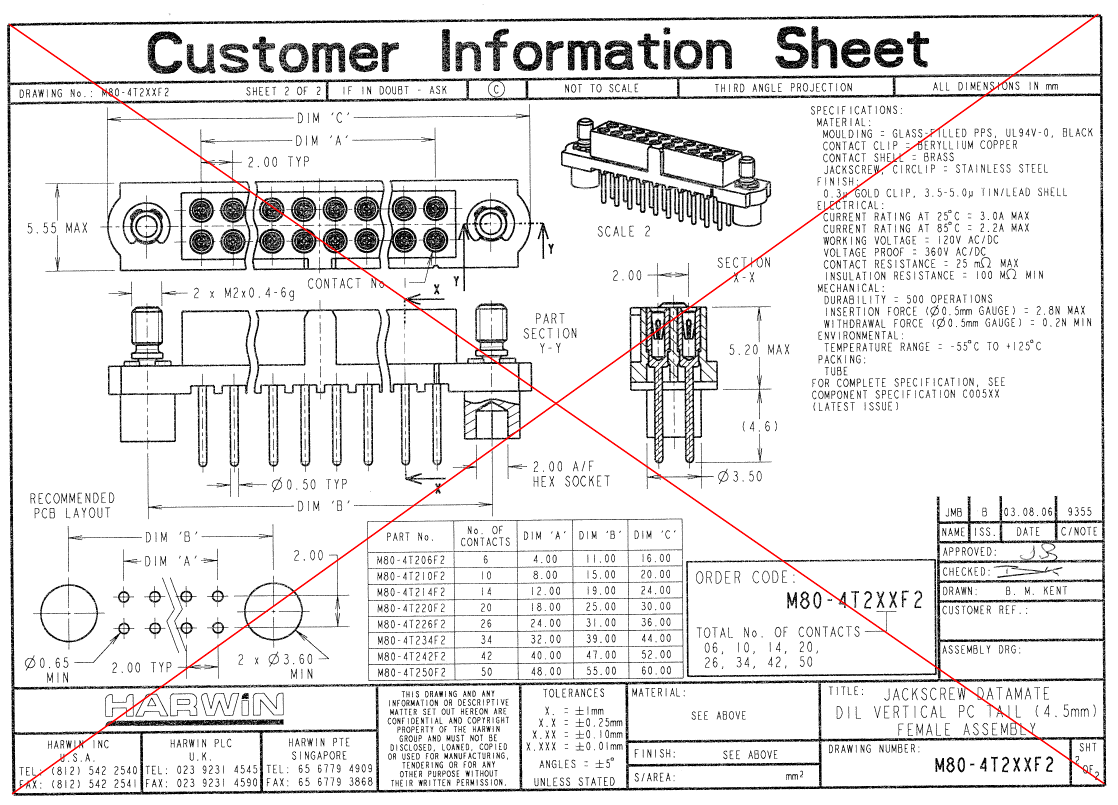

M80-4T214F2: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size407KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-4T214F2 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

M80-4T214F2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	TIN LEAD (197)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M80-4T2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

OBSOLETE

M80-4T214F2 Related Products

	M80-4T214F2	M80-4T242F2	M80-4T250F2	M80-4T210F2	M80-4T220F2	M80-4T226F2	M80-4T234F2
Description	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 42 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)
Contact completed and terminated	TIN LEAD (197)	TIN LEAD (197)	TIN LEAD (197)	TIN LEAD (197)	TIN LEAD (197)	TIN LEAD (197)	TIN LEAD (197)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M80-4T2	M80-4T2	M80-4T2	M80-4T2	M80-4T2	M80-4T2	M80-4T2
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	42	50	10	20	26	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Harwin	-	-	Harwin	Harwin	Harwin	Harwin
