S2M-107-01-S-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> S2M-107-01-S-D

S2M-107-01-S-D: Description14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET; Categorysemiconductor Other integrated circuit (IC); File Size289KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet View All

S2M-107-01-S-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S2M-107-01-S-D	-	-	View	Buy Now

S2M-107-01-S-D Overview

14 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET

Preview

Download Datasheet

View All

REVISION S

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

No OF POSITIONS

**-02,** -04, -05, -07, -10, -15, -20, -25, & -

30 (PER ROW) AVAILABLE AS STANDARD;

OTHER SIZES BETWEEN -05 THRU -50

AVAILABLE AS ASO

LEAD STYLE

-01: THROUGH HOLE

(USE C-56-01-X)

-02: SURFACE MOUNT

(USE C-56-05-X)

(31-50 POSITION, NOT RELEASED)

S2M-1XX-XX-X-D-XX-XX

PACKAGING

-TR: TAPE & REEL

(-02 LEAD ONLY)

OPTION

-K: POLYIMIDE FILM PAD

(USE K-DOT-.217-.313-.005)

(-02 LEAD ONLY)

-LC: LOCKING CLIP

(-02 LEAD STYLE ONLY)

(USE LC-07-TM)

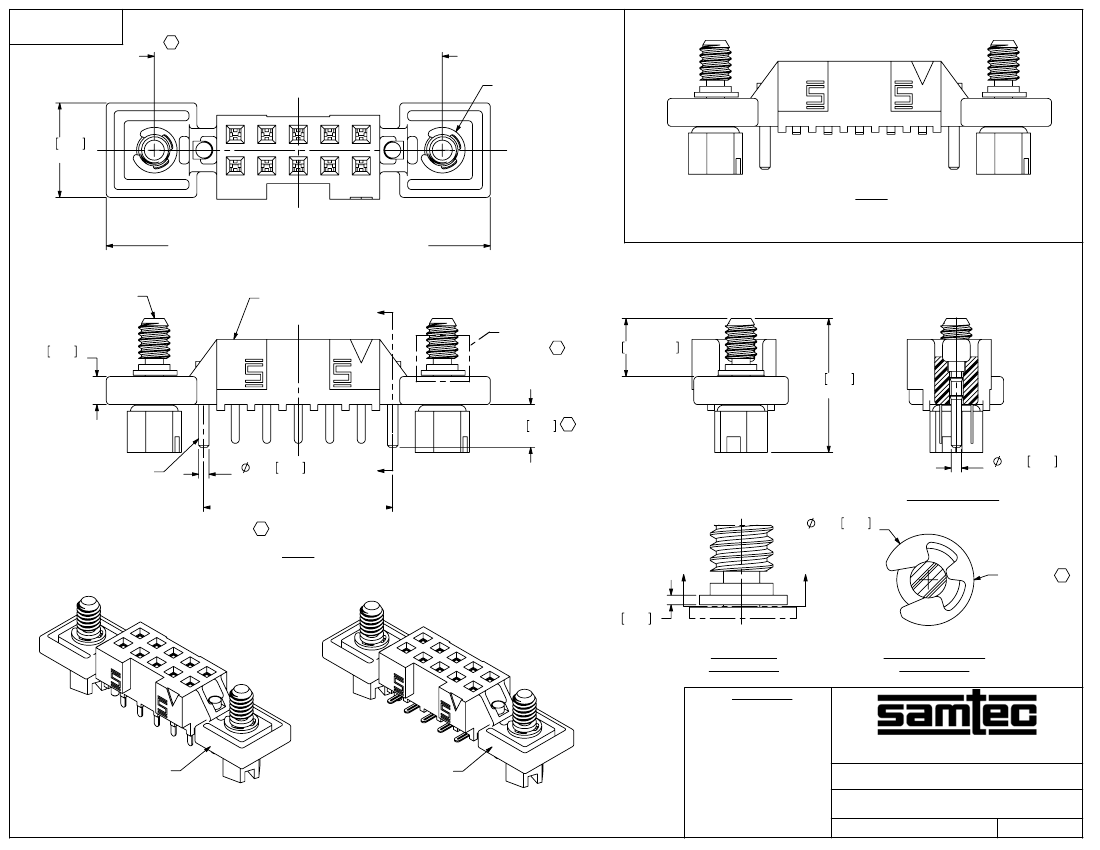

-DS: DUAL SCREW DOWN FOR

.062 BOARD

(SEE FIG 4 & 5 SHT 3)

(NOT AVAILABLE WITH

-LC OPTION) (ONLY AVAILABLE

2-30 POSITIONS)(USES S2M-XX-D-DS,

CPS-RR-XX-XX-X, ACCRT-01 AND

WT-27-02-T ALWAYS FILLED)

(No OF POS x 2.0000[.07874]) + 0.35[.014] REF

(No OF POS-1) X 2.00[.07874]

2.00 .079 (TYP)

"A"

PLATING SPECIFICATION

-F: 3µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL. (USE C-56-XX-F)

-S: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL. (USE C-56-XX-S)

-L: 10µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL. (USE C-56-XX-L)

5.33 .210

0.99 .039

3.18 .125

2.00 .079 REF

"A"

ROW SPECIFICATION

-D: DOUBLE ROW

(**= MUST CHOOSE -02 LEAD AND -TR PACKAGING)

2.03 .080

"B"

S2M-XX-D-XX

4.25 .167 REF

5.97 .235

REF

4.52 .178

REF

C-56-01-X

2.08 .082 C

2.00 .079 (TYP)

(No OF POS-1) X 2.00[.07874]

"B"

2 MAX SWAY

(EITHER DIRECTION)

0.51 .020 REF

2 MAX SWAY

(EITHER DIRECTION)

1.98 .078

SECTION "A"-"A"

SECTION "B"-"B"

S2M-110-01-XX-D SHOWN

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

FIG 1

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM CONTACT RETENTION FORCE: 4.45 N[1.000 LB.].

3. "-LC" OPTION FOR A -02 POSITION WILL HAVE ONLY ONE

LOCKING CLIP (LC-07-X).

4. MINIMUM RETENTION FOR LOCKING CLIP, WELD TAB & ACCRT: 3.3 N [.75 LB.].

X.X: 0.3[.01]

X.XX: 0.13[.005]

X.XXX: 0.051[.0020]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

PROPRIETARY NOTE

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

LCP COLOR: BLACK

CONTACT: BeCu

DO NOT SCALE DRAWING

SHEET SCALE: 4:1

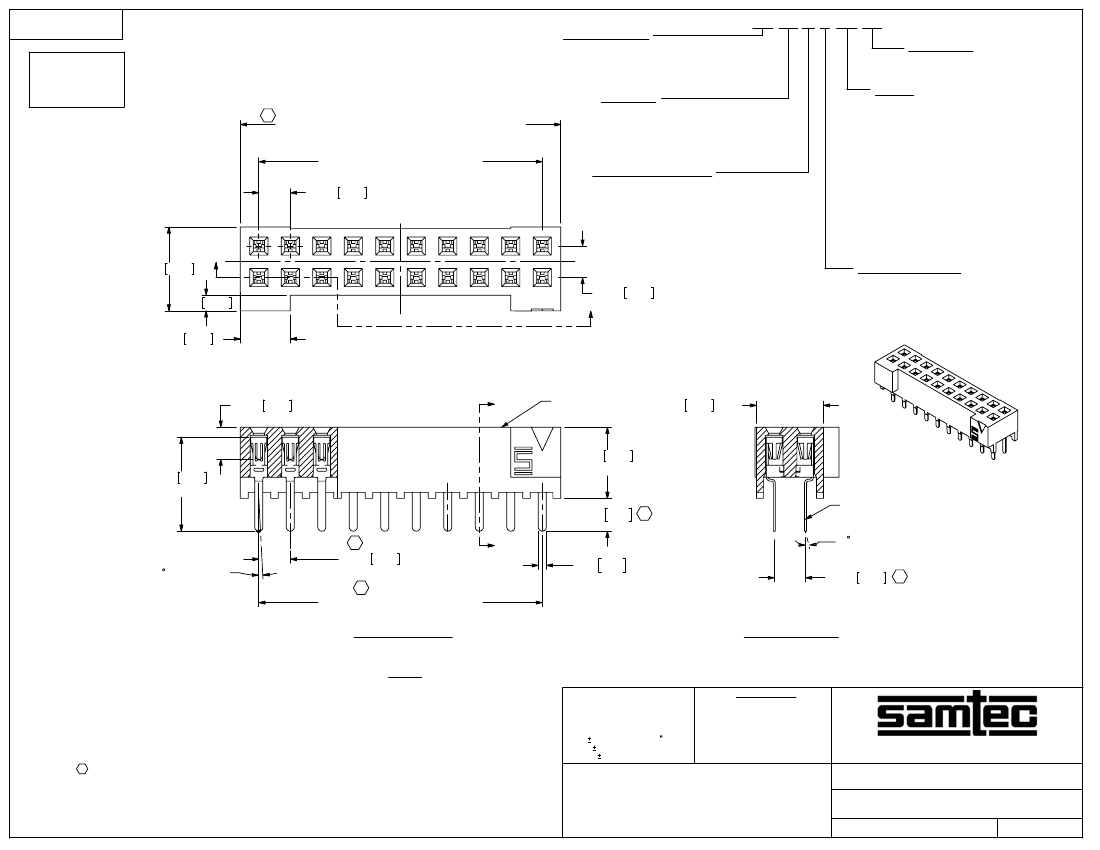

2mm DOUBLE ROW SOCKET STRIP

S2M-1XX-XX-X-D-XX-XX

SHEET

F:\DWG\MISC\MKTG\S2M-1XX-XX-X-D-XX-XX-MKT.SLDDRW

BY:

T NEWTON 09-16-2010
