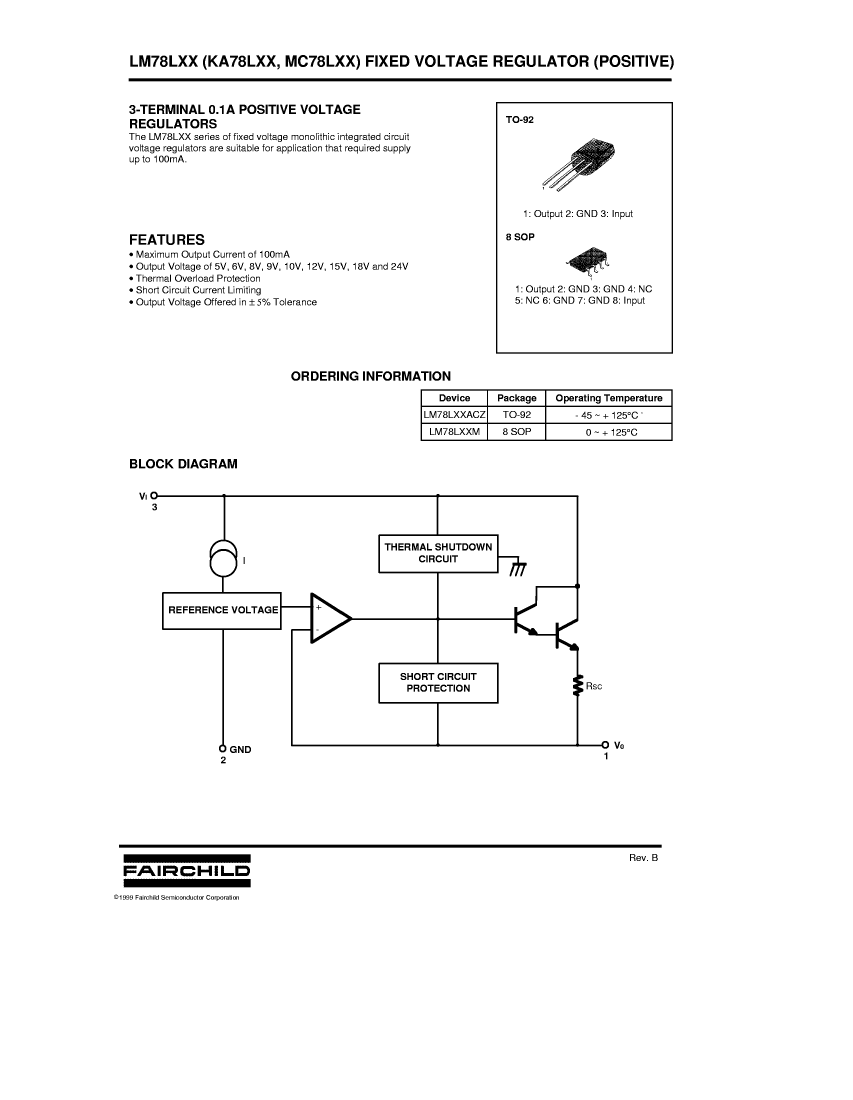

LM78L18M datasheet, PDF - EEWORLD Datasheet

LM78L18M: DescriptionFixed Positive Standard Regulator, 18VBIPolar, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size339KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

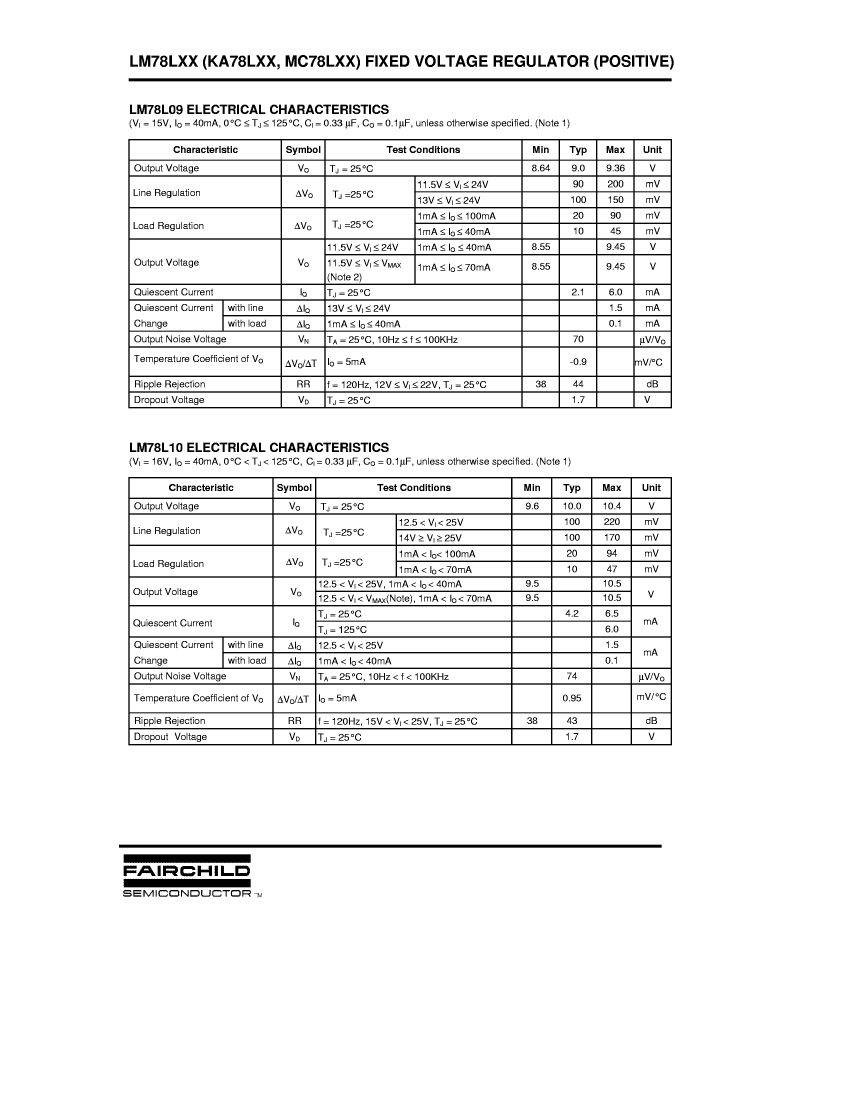

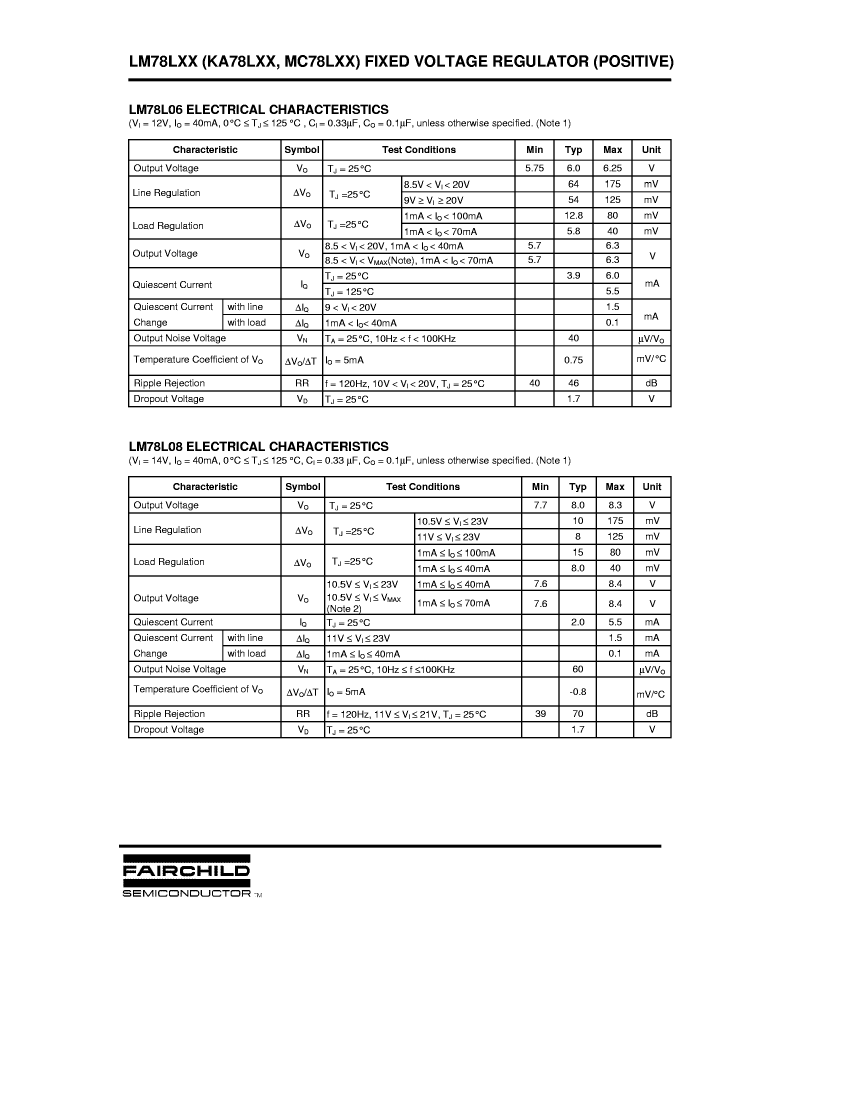

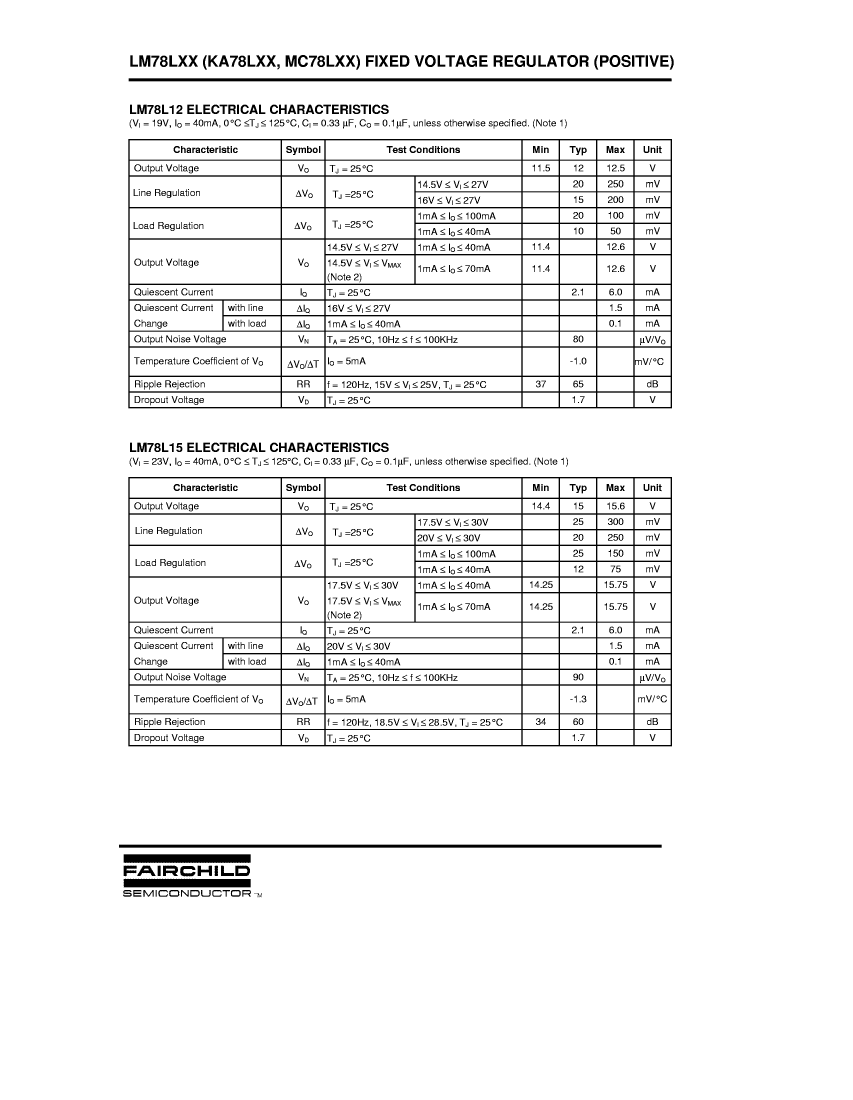

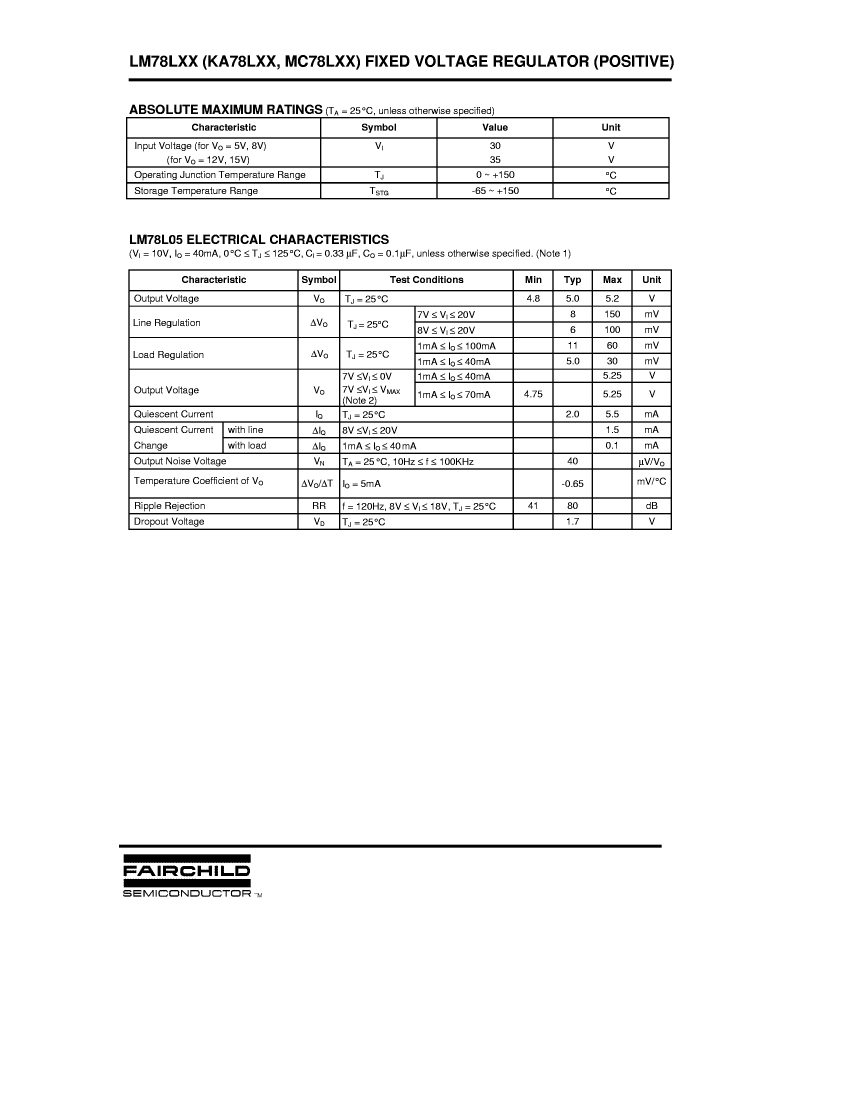

LM78L18M Overview

Fixed Positive Standard Regulator, 18VBIPolar, PDSO8, SOP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	1.7 V
Maximum absolute input voltage	35 V
Maximum input voltage	33 V
Minimum input voltage	21 V
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.92 mm
Maximum grid adjustment rate	0.3%
Maximum load regulation	0.17%
Number of functions	1
Output times	1
Number of terminals	8
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min
Maximum output current 1	0.1 A
Maximum output voltage 1	18.9 V
Minimum output voltage 1	17.1 V
Nominal output voltage 1	18 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	1.8 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
width	3.95 mm
