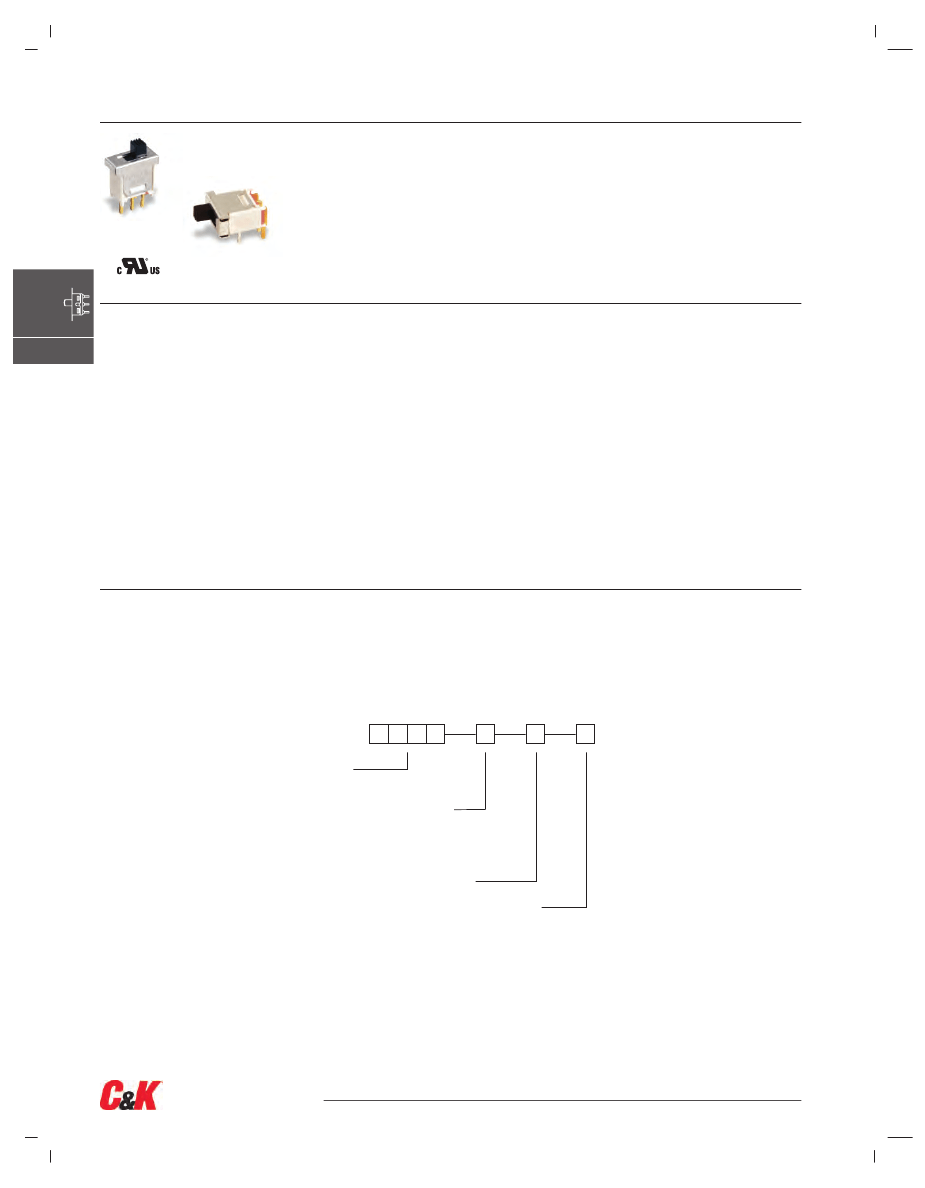

TS Series
Tiny Slide Switches
Features/Benefits
•
Reliable contact design ensures
•
Ratings up to 3 AMPS
•
Epoxy terminal-seal compatible
•
RoHS compliant
Models Available
long electrical life
Typical Applications
•
Test & measurement equipment
•
Computers & peripherals
•
Telecommunications &
networking equipment
with bottom wash cleaning
Specifications
Materials
CASE: Glass filled nylon 4/6, flame retardant, heat stabilized.
ACTUATOR: Nylon, black standard.
HOUSING: Stainless steel or stainless steel, nickel plated.
END CONTACTS: B contact material: Copper alloy, with gold plate over
nickel plate. Q contact material: Coin silver, silver plated. See
page I-10 for additional contact materials.
CENTER CONTACT & ALL TERMINALS: B contact material: Copper
alloy, with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See page I-10 for additional contact materials.
TERMINAL SEAL: Epoxy. Refer to Soldering and Cleaning in Technical
Data chapter.
NOTE:
Any models supplied with Q, B, G, P, S or R contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
I
Slide
CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or
DC max. Q contact material (TS01 Model): 3 AMPS @ 120 V AC
or 28 V DC; (TS02, TS03 Models): 1 AMP @ 120 V AC or 28 V
DC. See page I-10 for additional ratings.
ELECTRICAL LIFE:
TS01 MODELS: 60,000 make-and-break cycles at full load.
TS02, TS03 MODELS: 30,000 cycles.
CONTACT RESISTANCE: Below 20 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I–9 and I–10. For additional options not shown in catalog, consult Customer Service Center. All models
have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.
Switch Function
TS01
SPDT On-None-On
TS02
SPST Off-None-On
TS03
SPDT On-Off-On
Terminations
A
Right angle, PC thru-hole
(TS01 & TS03 models only)
C
PC Thru-hole
W
Wire wrap
Contact Material
B
Gold
Q
Silver
G
Gold over silver
P
Gold, matte-tin
S
Silver, matte-tin
R
Gold over silver, matte-tin
Seal
E
Epoxy
F
Epoxy seal and splashproof RTV latex rubber seal
Dimensions
are shown:
Inch
(mm)
Specifications and dimensions subject to
change
I–8
www.ck-components.com
TS Series
Tiny Slide Switches

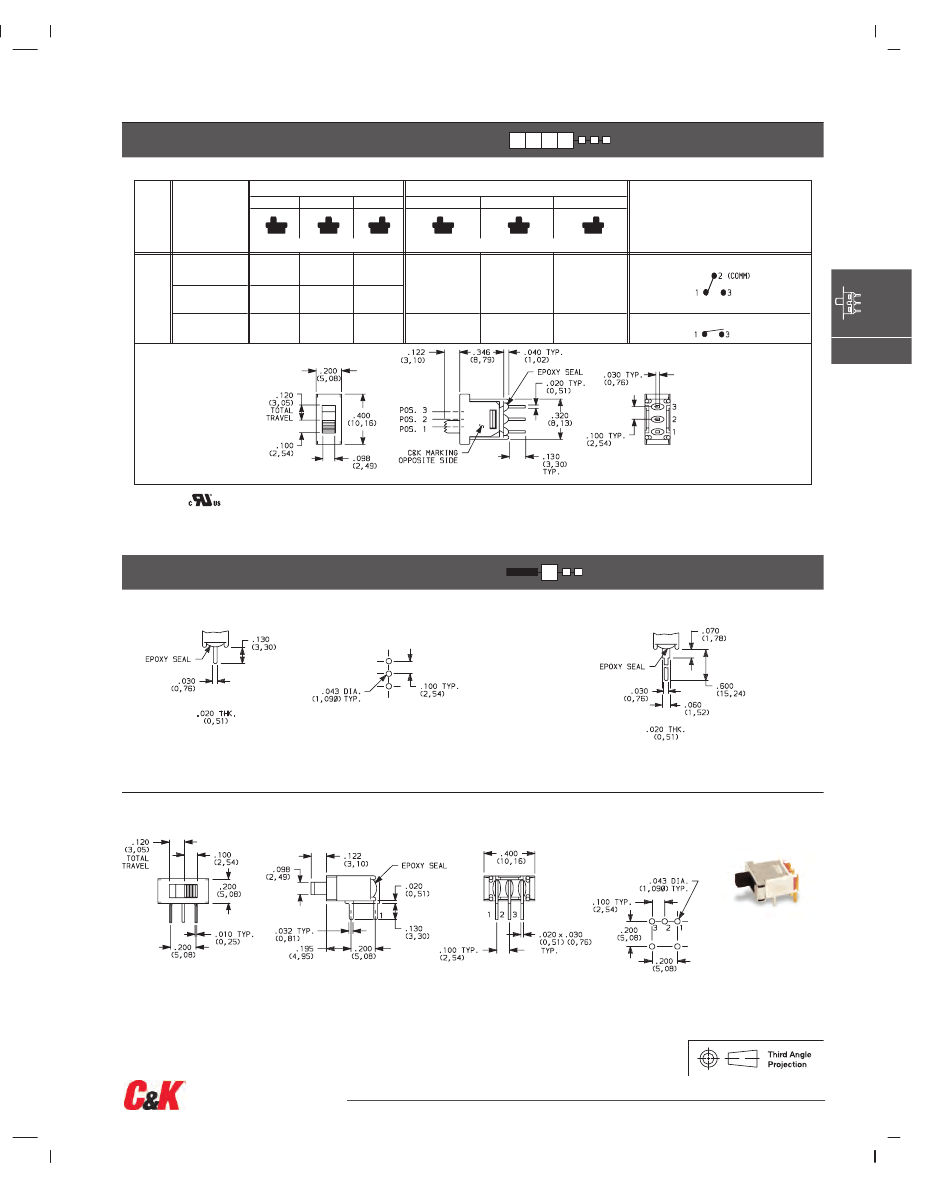

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
CONNECTED TERMINALS
POS. 2
POS. 1
POS. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
TS01
SP
ON
ON
OFF
NONE
OFF
NONE
ON
1-2
OPEN
2-3
SPDT
OPEN
N/A
3-1
ON
ON
TS03
TS02
SPST
SPDT
I
Slide
TS02 models:
Omit center terminal
Part number shown: TS01CBE
Terminal Nos.
For Reference Only
All models
with all options when ordered with G, Q, R or S contact material.
TS02 model not available with A terminations.
TERMINATIONS
C
PC THRU-HOLE
PC MOUNTING
W
WIRE WRAP
TS02 models:
Omit center hole
SPDT and SPST
SPDT and SPST
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
TS01ABE
Horizontal Actuation
Actuator shown in pos. 1
SPDT
Not available with TS02 model.
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
I–9
www.ck-components.com
TS Series
Tiny Slide Switches
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
TERMINAL
PLATING
RATINGS
B
GOLD
1
GOLD
3
MATTE-TIN
6
LOW LEVEL/DRY
CIRCUIT
0.4 VA MAX. @ 20 V AC OR DC MAX.
P
Q
S
G
SILVER
4,5
SILVER
5
MATTE-TIN
6
POWER
TS01 MODELS: 3 AMPS @ 120 V AC OR 28 V DC.
TS02, TS03 MODELS: 1 AMP @ 120 V AC OR 28 V DC.
I
Slide
GOLD OVER
SILVER
2,3
GOLD
3
MATTE-TIN
6
LOW LEVEL/DRY
CIRCUIT OR POWER
R
TS01 MODELS: 0.4 VA MAX @20 V AC OR DC MAX. OR
3 AMPS @ 120 V AC OR 28 V DC.
TS02, TS03 MODELS: 0.4 VA MAX @ 20 V AC OR DC MAX. OR
1 AMP @ 120 V AC OR 28 V DC.
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
2
3
4
5
6
CONTACTS & TERMINALS: Copper alloy, with gold plate over nickel plate.
END CONTACTS: Coin silver, with gold plate over nickel plate.
CENTER CONTACTS & ALL TERMINALS: Copper alloy, with gold plate
over nickel plate.
END CONTACTS: Coin silver, silver plated.
CENTER CONTACT & ALL TERMINALS: Copper alloy, silver plated.
TERMINALS: Copper alloy, with matte-tin over nickel plate
All models
with all options when ordered with G, S or R contact material.
B contact material standard with A and W terminations.
Q contact material standard with C terminations.
NOTE:
Any models supplied with Q, B, G, P, S or R contact material are RoHS compliant.
SEAL
E
EPOXY SEAL
F
EPOXY SEAL AND SPLASHPROOF RTV LATEX RUBBER SEAL
NOTE:
RTV latex rubber seal peels off easily after installation.
Epoxy terminal seal standard. Not available with A termination.
Dimensions
are shown:
Inch
(mm)
Specifications and dimensions subject to
change
I–10
www.ck-components.com
