8P-SGN: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Crimp Terminal; CategoryThe connector The connector; File Size167KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

8P-SGN Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Crimp Terminal

8P-SGN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACT: SGN-002T-0.8S
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SGN
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

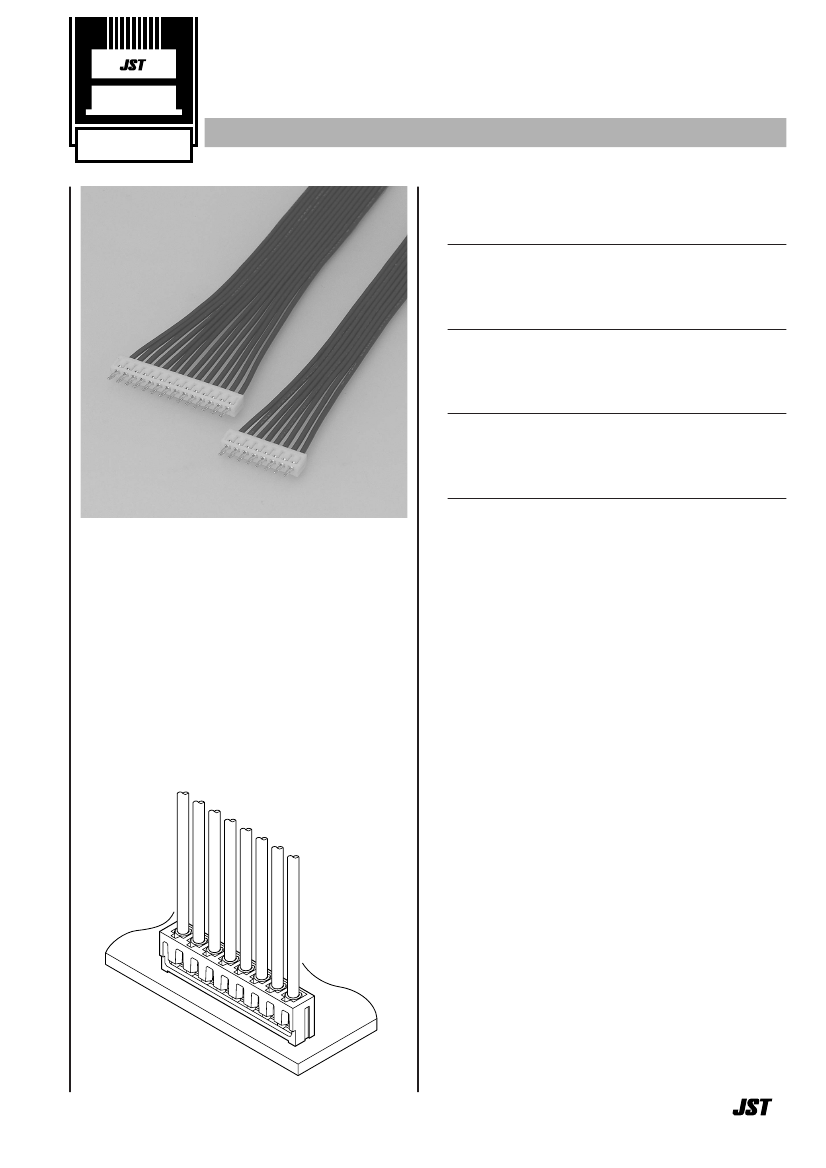

Crimp

SGN

CONNECTOR

Board-in Crimp style connectors

Features ––––––––––––––––––––––––

• Low profile design

Despite its top entry style, as a result of restraining the

connector height, equipment can be designed without wasting

internal space.

2.0mm

pitch

• Surface usage on the PC board is reduced

SGN connector is much smaller in width than existing product.

This will help to reduce surface usage without changing the

cable.

• Reliable mounting

The spring feature of the contact part to the PC board will

contribute to accommodate the connector securely even before

soldering.

• One touch connection

A dimension of 2.0mm pitch, 4.0mm

mounting height and 2.9mm depth.

This board-in type connector will enhance

the mounting density of the PC board even

further as well as improve rationalization

and reduce the total cost of production.

This product will be suitable for the internal

connector of low profile equipment, such

as audio equipment (including car audio)

and the STB.

A one-touch operation to make multiple circuit jumper

connection will realize rationalization of production.

Specifications –––––––––––––––––––

• Current rating: 2A AC, DC (AWG #24)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Insulation resistance: 1,000M

Ω

min.

• Withstanding voltage: 650V AC/minute

• Applicable wire: AWG #28 to #24

• Applicable PC board thickness: 1.2 to1.6mm

* Compliant with RoHS.

* Refer to “General Instruction and Notice when using

Terminals and Connectors” at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

0

Recognized E60389

1

8P-SGN Related Products

	8P-SGN	13P-SGN	14P-SGN
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Crimp Terminal	Board Connector, 13 Contact(s), 1 Row(s), Male, Crimp Terminal	Board Connector, 14 Contact(s), 1 Row(s), Male, Crimp Terminal
Reach Compliance Code	unknown	unknow	unknow
Other features	COMPATIBLE CONTACT: SGN-002T-0.8S	COMPATIBLE CONTACT: SGN-002T-0.8S	COMPATIBLE CONTACT: SGN-002T-0.8S
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	8	13	14
UL Flammability Code	94V-0	94V-0	94V-0
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
Manufacturer's serial number	SGN	SGN	-
Base Number Matches	-	1	1
