REVISION J
DO NOT
SCALE FROM
THIS PRINT
ASO ONLY (APPLICATION SPECIFIC ORDER)
1.8525 47.054 REF
(No OF POSITIONS x .0250[.635])
+ .1725[4.382] REF
.0988 2.508 REF
02
BSS-XXX-01-X-D-DP-EMX
No OF POSITIONS (PER ROW)
-016, -034, -050,
*-066, *-084, *-100
* SEE NOTE 8
LEAD STYLE
-01
PLATING SPECIFICATION
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAILS
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAILS
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
EDGE MOUNT THICKNESS
-EM2: .064[1.63] .004 PCB (USE
BSS-XXX-01-D-EM2 & C-162-01-X)
-EM3: (USE BSS-XXX-01-D-EM3
& C-162-02-X)
SEE NOTE 7
DIFFERENTIAL PAIRS
.285 7.24
REF
01
.245 6.223
REF
ROW SPECIFICATION
-D: DOUBLE (USE BSS-XXX-01-D-EMX)
BSS-XXX-01-D-EM2
BSS-XXX-01-D-EM3
C-162-02-X
C
"A"
.175 4.45 REF
.135 3.43
REF
.120 3.05 REF
C-162-01-X
.2530 6.426
"A"
.1538 3.905
C
C
C
C
.0060 0.152 REF
1.2250 31.115
.0660±.0030 1.676±0.076
.0920±.0030 2.337±0.076
.0250 0.635
2 MAX SWAY
(TYP)
SECTION "A-A"
EDGE MOUNT THICKNESS
-EM2: .064[1.63] .004 PCB
SECTION "A-A"
EDGE MOUNT THICKNESS
-EM3:
SEE NOTE 7
(DIFFERENT AS SHOWN, OTHERWISE
SAME AS -EM2 PCB THICKNESS)
.040 1.02 REF
.100 2.54
REF
BSS-034-01-X-D-DP-EM2 SHOWN
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CONTACT RETENTION: 4 OZ MIN.
3. PARTS ARE "MOLD TO POSITION".
4. MAX VARIANCE OF .002.
5. ALL PIN TO PIN DIMENSIONS TO BE MEASURED FROM
TIP TO TIP.
6. NOTE DELETED.
7. -EM3 IS NOT A STANDARD OFFERING; AVAILABLE AS AN ASP ONLY.
PLEASE CONTACT SAMTEC INTERCONNECT PROCESSING GROUP
WITH ORDER INQUIRIES
8. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS. PLEASE
CONTACT SAMTEC INTERCONNECT GROUP.
.140 3.56 REF
PACKAGING VIEW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
TUBE: PT-1-24-02-38
PLUG: TP-03
INSULATOR: VECTRA E130i, COLOR: BLACK
CONTACT: PHOS BRONZE, 510 SPRING TEMPER
THICKNESS: .0060
F:\DWG\MISC\MKTG\BSS-XXX-01-X-D-DP-EMX-MKT.SLDDRW

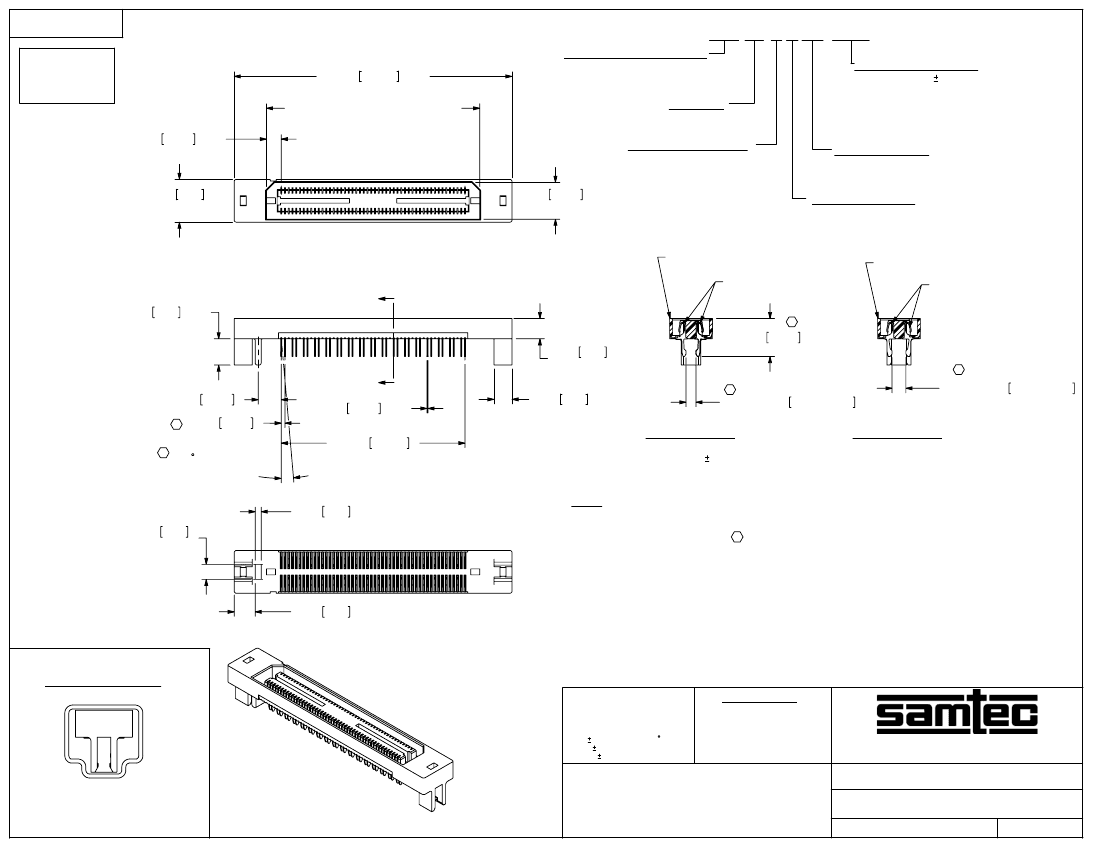

.635mm EDGE MOUNT DP SOCKET ASSEMBLY
DWG. NO.
BSS-XXX-01-X-D-DP-EMX
10/4/2001
SHEET
1
OF
2
BY:
CHAD F
REVISION J
4.3525 110.554
C
BSS-150-01-EMX
BSS-100-01-X-D-DP-EMX
3.7275 94.679
3.7000 93.980
C
BSS-125-01-EMX
BSS-084-01-X-D-DP-EMX
3.1025 78.804
3.1030 78.816
C
BSS-100-01-EMX
BSS-066-01-X-D-DP-EMX
FIG 2
2.4775 62.929
FRONT VIEW OF ALL POSITIONS (EXCEPT -034)
TO SHOW POSITION LOCATIONS
(DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 1)
2.4280 61.671
C
1.8280 46.431
BSS-075-01-EMX
BSS-050-01-X-D-DP-EMX
1.2275 31.179
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.5500 13.970
BSS-025-01-EMX
C
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
BSS-016-01-X-D-DP-EMX
F:\DWG\MISC\MKTG\BSS-XXX-01-X-D-DP-EMX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.635mm EDGE MOUNT DP SOCKET ASSEMBLY
BSS-XXX-01-X-D-DP-EMX
10/4/2001
SHEET
2
OF
2
BY:
CHAD F
