ATT-0549-01-NNN-07 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0549-01-NNN-07

ATT-0549-01-NNN-07: DescriptionRF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size58KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ATT-0549-01-NNN-07 Overview

RF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL

ATT-0549-01-NNN-07 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	1 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

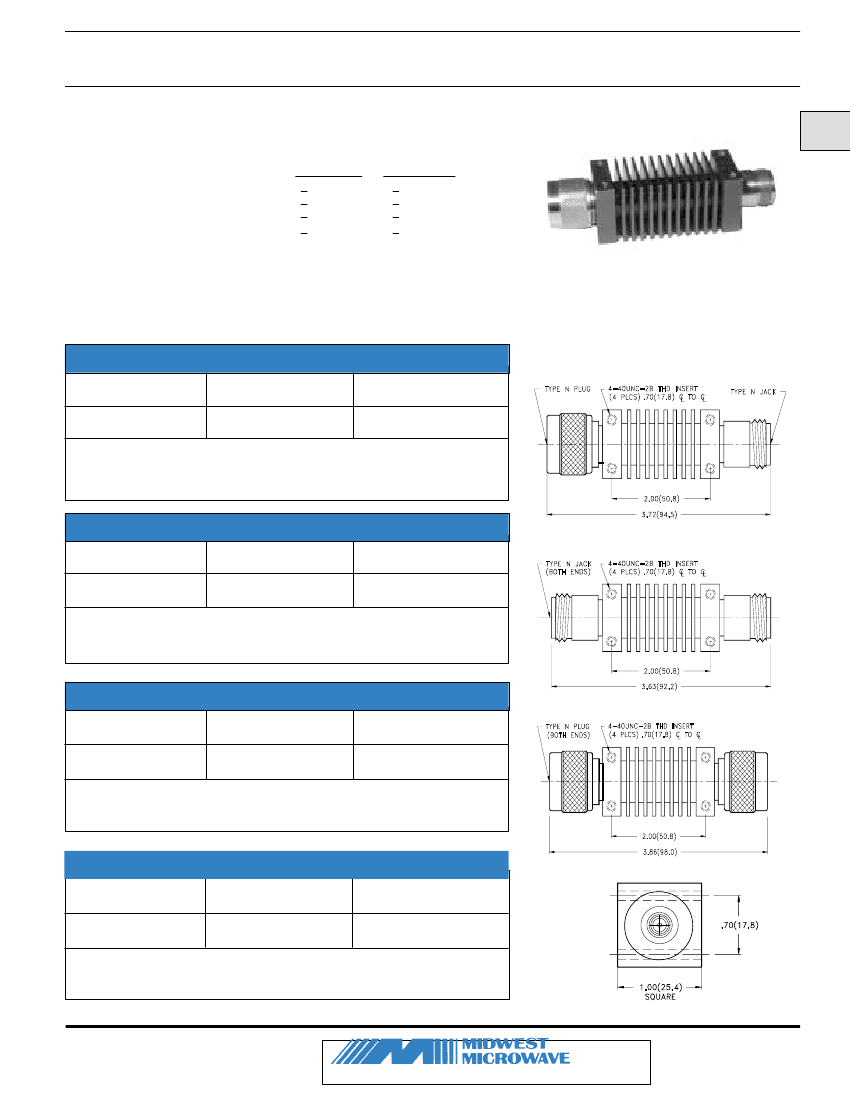

Preview

Download Datasheet

View All

Wireless - Cellular Products

20 Watts Power - Wireless System Performance

Frequency:

DC - 2.0 , DC - 8.0, DC - 12.4, and DC - 18.0 GHz units available

Attenuation Values:

1 - 40 dB as noted

Attenuation Accuracy:

DC-12.4 GHz

12.4-18.0 GHz

1 - 6 dB

7 - 10 dB

11 - 20 dB

21 - 40 dB

+ 0.3 dB

+ 0.5 dB

+ 0.75 dB

+ 1.0 dB

0.5 dB

0.75 dB

1.0 dB

1.5 dB

Attenuators

Impedance:

50 Ohms

VSWR:

1.25 max @ DC - 12.4 GHz, 1.50 max @ 12.4 - 18.0 GHz

Power:

20 Watts average @ +40

C derated linearly to 5 Watts @ +125

Peak Power:

500 Watts

Operating Temperature Range:

-54C to +125C

Finish:

Stainless Steel

DC - 2.0 GHz

Male/Female

ATT-0549-XX-NNN-07

549 Series

Female/Female

ATT-549F-XX-NNN-07

Model Number

Male/Male

ATT-549M-XX-NNN-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

20 Watts - Wireless System Performance

DC - 8.0 GHz

Male/Female

559 Series

Female/Female

Model Number

Male/Male

ATT-559M-XX-NNN-07

ATT-0559-XX-NNN-07 ATT-559F-XX-NNN-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

20 Watts - Wireless System Performance

DC - 12.4 GHz

Male/Female

ATT-0528-XX-NNN-07

528 Series

Female/Female

ATT-528F-XX-NNN-07

Model Number

Male/Male

ATT-528M-XX-NNN-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

20 Watts - Wireless System Performance

DC - 18.0 GHz

Male / Female

547 Series

Female / Female

Model Number

Male / Male

ATT-547M-XX-NNN-07

ATT-0547-XX-NNN-07 ATT-547F-XX-NNN-07

Attenuation Value = XX, Select 01 - 40 dB in 1 dB increments

20 Watts - Wireless System Performance
