BAV16W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > BAV16W

Preview

BAV16W: Description0.15A,75V,Surface Mount Small Signal Switching Diodes, Single, 75V, 0.15A, 1.25V, 0.15A, 2A, 1uA; File Size173KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BAV16W Overview

0.15A,75V,Surface Mount Small Signal Switching Diodes, Single, 75V, 0.15A, 1.25V, 0.15A, 2A, 1uA

BAV16W Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOD-123
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.35 W
Maximum repetitive peak reverse voltage	75 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
VRRM (V) max	75
IF (A) max	0.15
VF (V) max	1.25
Condition1_IF (A)	0.15
IFSM (A) max	2
IR (uA) max	1
Condition2_VR (V)	75
trr (ns) max	4
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOD-123

BAV16W Preview

Production specification

Silicon Epitaxial Planar Diode

FEATURES



Fast Switching Speed:trr=4ns(Typ)

Surface Mount Package Ideally Suited For

Automatic Insertion



For General Purpose Switching Applications

High Conductance

Available in Lead Free Version

BAV16W

Pb

Lead-free

APPLICATIONS



Surface mount fast switching diode

SOD-123

ORDERING INFORMATION

Type No.

BAV16W

Marking

T6

Package Code

SOD-123

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Non-Repetitive Peak Reverse Voltage

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse Voltage

Average Rectified Output Current

Non-Repetitive Peak Forward Surge Current @t=1.0 μs

@t=1.0 s

Power Dissipation

Thermal Resistance Junction to Ambient Air

Operating and Storage Temperature Rage

Symbol

V

RM

V

RRM

V

RWM

V

R

V

R(RMS)

I

o

I

FSM

P

d

R

θJA

T

j

,T

STG

Value

100

75

53

150

2.0

1.0

350

375

-65 to +150

Unit

V

mA

A

mW

℃

/W

℃

A009

Rev.A

www.gmesemi.com

1

Production specification

Silicon Epitaxial Planar Diode

BAV16W

ELECTRICAL CHARACTERISTICS

@ Ta=25℃ unless otherwise specified

Characteristic

Reverse Breakdown Voltage

Symbol

V

(BR)R

Min

75

Max

-

0.715

0.855

1.0

1.25

-

1.0

25

2.0

4.0

Unit

V

Test Condition

I

R

=1.0μA

I

F

=1mA

I

F

=10mA

I

F

=50mA

I

F

=150mA

V

R

=75V

V

R

=20V

V

R

=0,f=1.0MHz

I

F

=I

R

=10mA,

I

rr

=0.1×I

R

,R

L

=100Ω

Forward Voltage

V

F

V

Reverse Current

Capacitance between

terminals

Reverse Recovery Time

I

R

C

T

t

rr

μA

nA

pF

ns

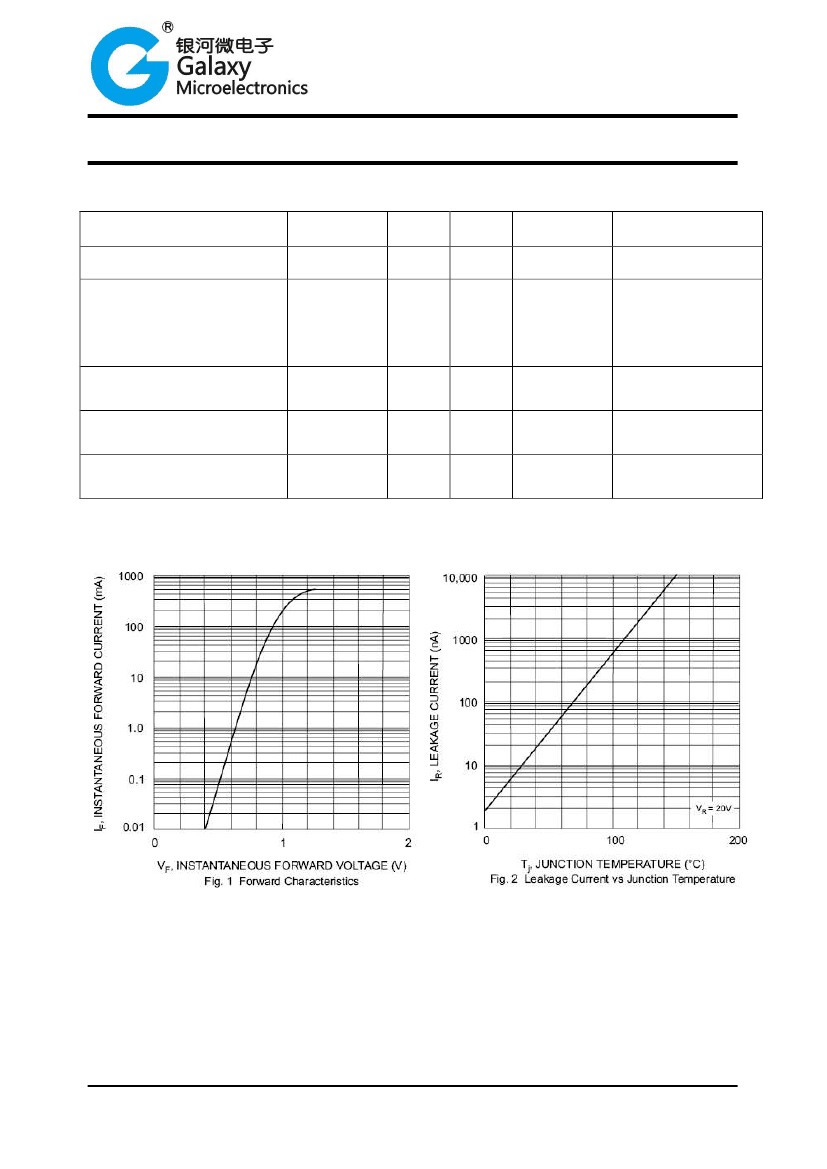

TYPICAL CHARACTERISTICS

@ Ta=25℃ unless otherwise specified

A009

Rev.A

www.gmesemi.com

2

Production specification

Silicon Epitaxial Planar Diode

PACKAGE OUTLINE

Plastic surface mounted package

BAV16W

SOD-123

K

B

C

SOD-123

Dim

A

Min

1.45

2.55

1

0.5

0.25

0.02

0.05

3.55

Max

1.75

2.85

1.3

0.6

0.45

0.10

0.15

3.85

B

C

H

D

E

H

E

J

K

All Dimensions in mm

SOLDERING FOOTPRINT

0.91

1.22

2.36

4.19

Unit：mm

PACKAGE INFORMATION

Device

BAV16W

Package

SOD-123

Shipping

3000/Tape&Reel

A009

Rev.A

www.gmesemi.com

3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
