PCMC063T- Power Choke Coil
Features
• Low loss realized with low DCR
• 100% lead (Pb) free, RoHS compliant
• High performance (Isat) realized by
metal dust core
• Low profile: 12.6mm x 13.8mm x 5.0mm
• Capable of high frequency (3MHz)
Electrical Specifications
Part Number
L0 Inductance
(uH) @ (0A)
Typical
PCMC063T-R33MN
PCMC063T-R47MN
PCMC063T-1R0MN
PCMC063T-1R2MN
PCMC063T-1R5MN
PCMC063T-2R2MN
PCMC063T-3R3MN
PCMC063T-4R7MN
0.33
0.47
1.0
1.20
1.5
2.2
3.3
4.7
3.5
4.0
9.0
10.0
14.0
18.0
28
37
Rdc (mΩ)
Maximum
3.9
4.2
10.0
12.0
15.0
20.0
30
40
Heat Rating Current
DC Amps. Idc (A)
Typical
20
17.5
11
10
9
8
6
5.5
Saturation Current
DC Amps. Isat (A)
Typical
30
26
22
20
18
14
13.5
10
Mechanical Specifications
Code
L
W
T
A
A’
B
B’
R36
14.0 max
12.6 ± 0.2
5.2 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ±0.2
R47
13.8 max
12.6 ± 0.2
5.0 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ± 0.2
R50
13.8 max
12.6 ± 0.2
5.0 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ± 0.2
R56
13.8 max
12.6 ± 0.2
5.0 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ± 0.2
R68
13.8 max
12.6 ± 0.2
5.0 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ± 0.2
1R5
13.8 max
12.6 ± 0.2
5.0 max
2.0 ± 0.5
2.5 ± 0.1
4.0 ± 0.5
6.0 ± 0.2
How to Order
PCMC
Series Number
Size
063T = 6.5mm x 6.9mm x 3.0mm
063T
Size
R33
Inductance Value
Inductance Value
R33 = 0.33uH
R47 = 0.47uH
1R0 = 1.0.uH
1R2 = 1.2uH
1R5 = 1.5uH
2R2 = 2.2uH
3R3 = 3.3uH
4R7 = 4.7uH
M
Tolerance
Tolerance
M = ± 20%
N
Materials
Materials
N type
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
21
email: marketing@seielect.com
PCMC063T- Power Choke Coil
Marking and Date Code
•
Marking
•
•
The inductor is marked with a 3-digit code
Example -- 0.33uH
Date Code
R33
•
•
•
•
X: Year (Ex: 2004 = 4)
XX: Week (Serial Number: 01 - 52)
XXX: Taping No. (Serial number: 001 - 999)
Recommended Land Pattern Dimensions (mm)
A
B
C
3.5
3.7
7.4

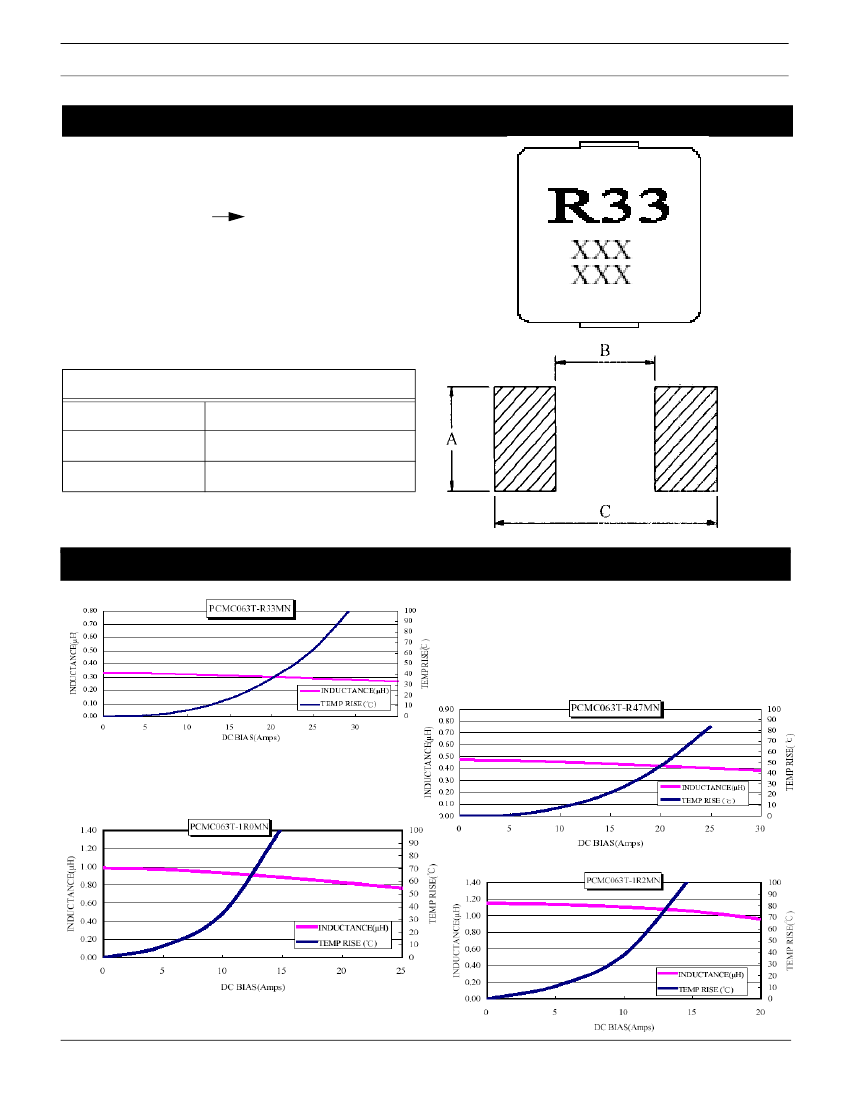

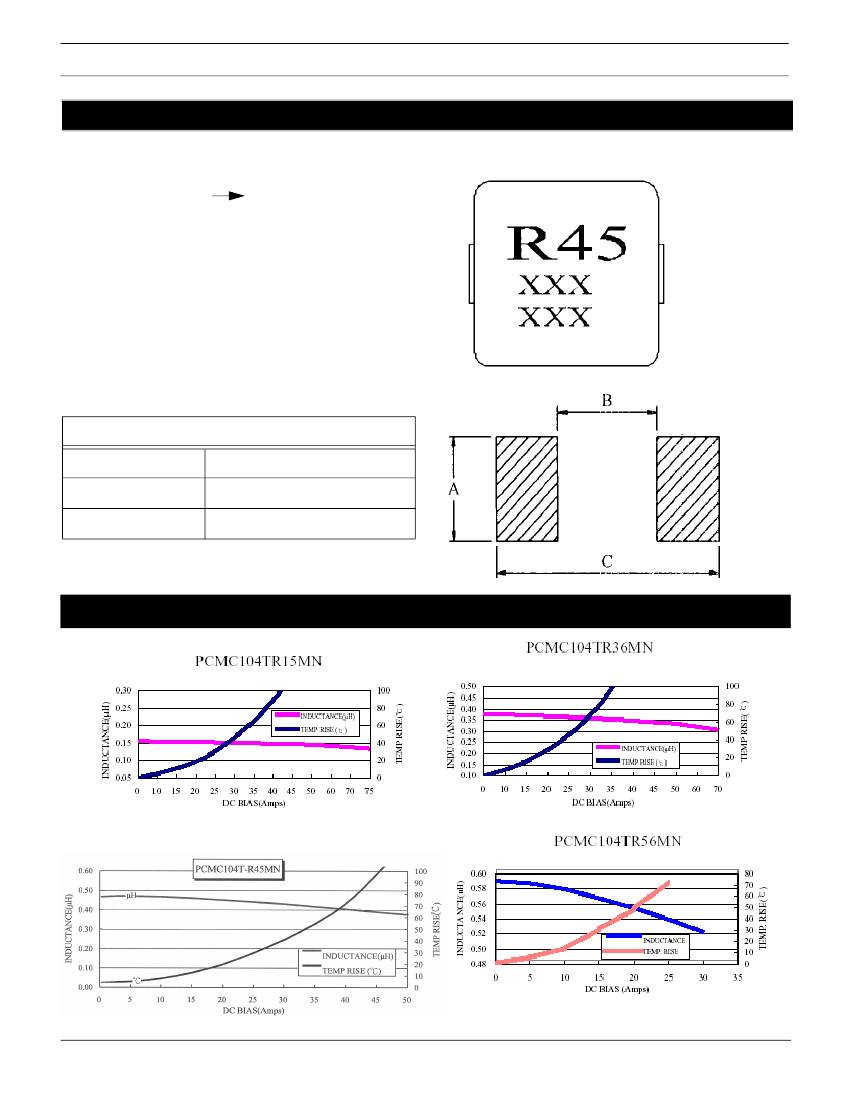

Current Characteristic
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
22
email: marketing@seielect.com
PCMC063T- Power Choke Coil

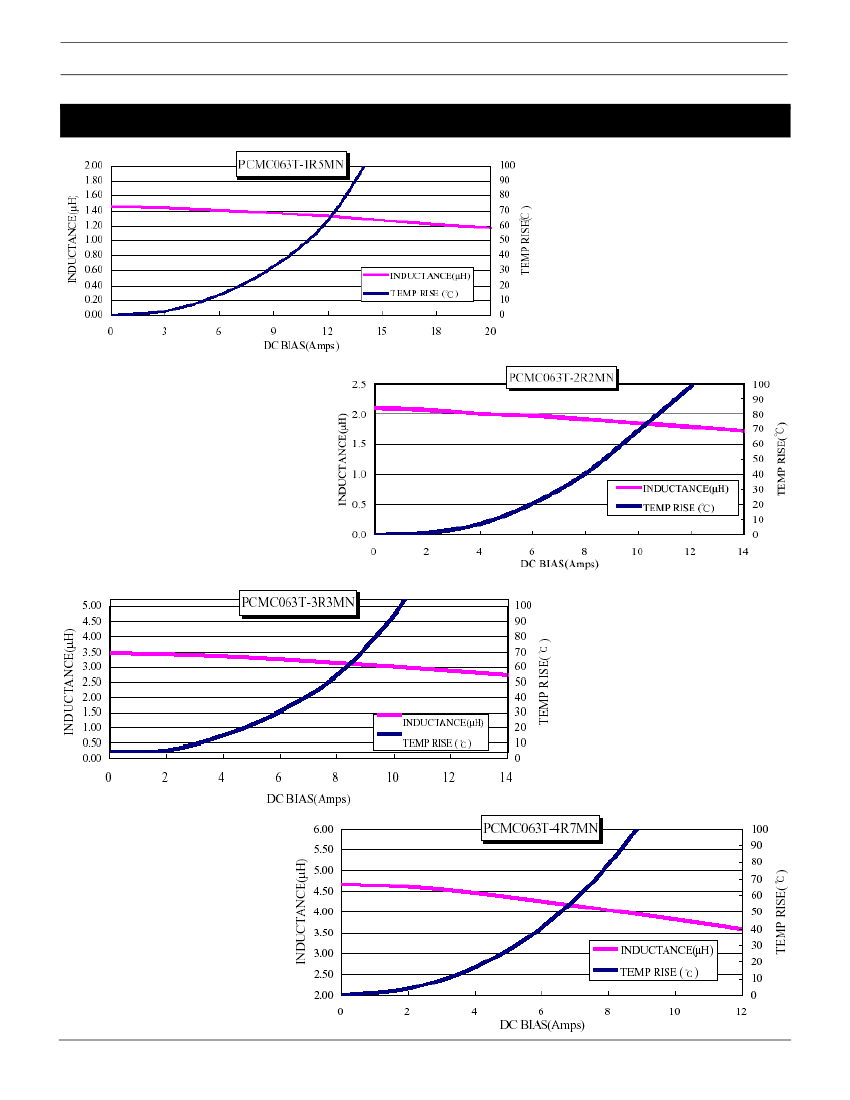

Current Characteristic
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
23
email: marketing@seielect.com
PCMC104T- Power Choke Coil
Features
• High saturation current
• Low DCR
• 100% lead (Pb) free, RoHS compliant
• Low profile: 10.0mm x 11.5mm x 4.0mm
• Capable of high frequency (1MHz)
Electrical Specifications
Part Number
L0 Inductance
(uH) @ (0A)
Typical
PCMC104T-R15MN
PCMC104T-R36MN
PCMC104T-R45MN
PCMC104T-R56MN
0.15
0.36
0.45
0.56
0.50
1.10
1.30
1.60
Rdc (mΩ)
Maximum
0.80
1.30
1.60
1.80
Heat Rating Current
DC Amps. Idc (A)
Typical
25
20
29
15
Saturation Current
DC Amps. Isat (A)
Typical
75
60
45
25
Mechanical Specifications
Code
L
W
T
A
A’
B
B’
R15
11.5 max
10 ± 0.2
4.1 max
2.0 ± 0.5
2.5 ± 0.1
3.0 ± 0.5
5.0 ± 0.2
R36
11.5 max
10 ± 0.2
4.0 max
2.0 ± 0.5
2.5 ± 0.1
3.0 ± 0.5
5.0 ± 0.2
R45
11.5 max
10 ± 0.2
4.0 max
2.0 ± 0.5
2.5 ± 0.1
3.0 ± 0.5
5.0 ± 0.2
R56
11.5 max
10 ± 0.2
4.0 max
2.0 ± 0.5
2.5 ± 0.1
3.0 ± 0.5
5.0 ± 0.2
How to Order
PCMC
Series Number
104T
Size
R45
Inductance Value
M
Tolerance
N
Materials
Size
104T = 10.0mm x 11.5mm x 4.0mm
Inductance Value
R15 - 0.15uH
R36 = 0.15uH
R45 = 0.45uH
R56 = 0.56uH
Tolerance
M = ± 20%
Materials
N type
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
21
email: marketing@seielect.com
PCMC104T- Power Choke Coil
Marking and Date Code
•
Marking
•
•
The inductor is marked with a 3-digit code
Example -- 0.45uH
Date Code
R45
•
•
•
•
X: Year (Ex: 2004 = 4)
XX: Week (Serial Number: 01 - 52)
XXX: Taping No. (Serial number: 001 - 999)
Recommended Land Pattern Dimensions (mm)
A
B
C
4.0
4.5
11.5
Current Characteristic
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
22
email: marketing@seielect.com
