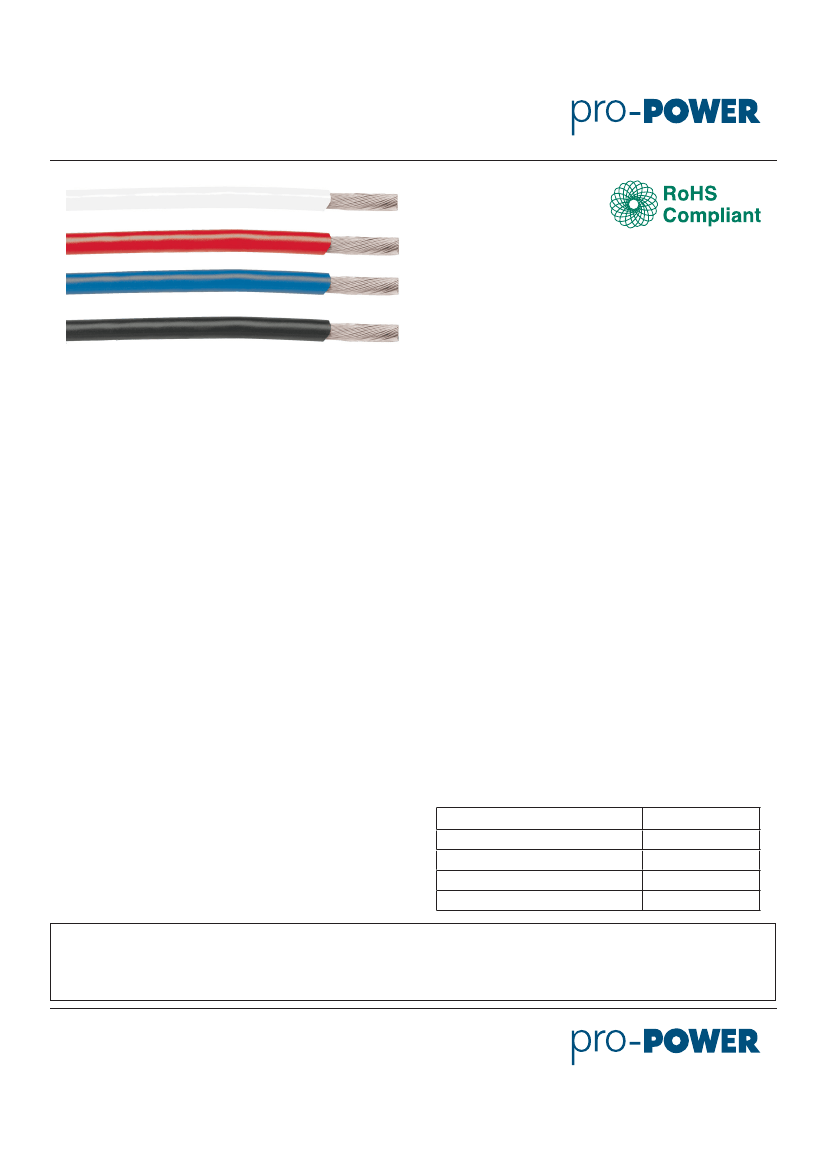

Hook-Up Wire
Specifications
Physical & Mechanical Properties
Temperature Range : -40°C to 105°C
Bend Radius
: 10X Cable Diameter
Pull Tension
: 12.6 Lbs, Max.
Electrical Properties
Voltage Rating
Wire Gauge
Inductance
Conductor DCR
UL
: 300 V
rms
: 18 (16/30) AWG
: 0.05 µH/ft, Nominal
: 7.1 Ω / 1,000ft @ 20°C, Nominal
: AWM/STYLE 1007
AWM/STYLE 1569
VW-1
: FT1
C(RU) TR-64
80°C / 300 V
rms
105°C / 300 V
rms
Applicable Specifications
CSA International
Other
Packaging
500 FT
Jacket Material
Jacket Color
90°C
: Flange × Traverse × Barrel (inches)
: 6.5 × 2 × 1.9 Continuous length
: PVC
: White, Red, Blue and Black
Part Number Table
Description
18AWG 16/30 UL/CSA, White
18AWG 16/30 UL/CSA, Red
18AWG 16/30 UL/CSA, Blue
18AWG 16/30 UL/CSA, Black
Part Number
PPWH1816-WH
PPWH1816-RD
PPWH1816-BL
PPWH1816-BK
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
pro - POWER is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
Page <1>
02/04/12
V1.0
