AY-5-3600CERAMIC datasheet, PDF

AY-5-3600CERAMIC: DescriptionEncoder, MOS, CDIP40; Categorylogic logic; File Size397KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

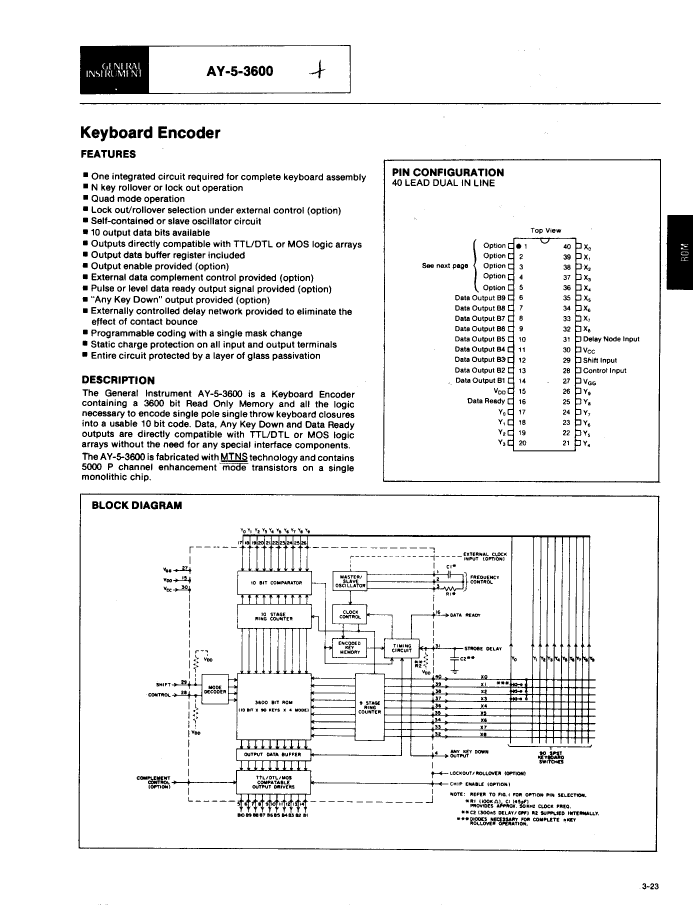

AY-5-3600CERAMIC Overview

Encoder, MOS, CDIP40

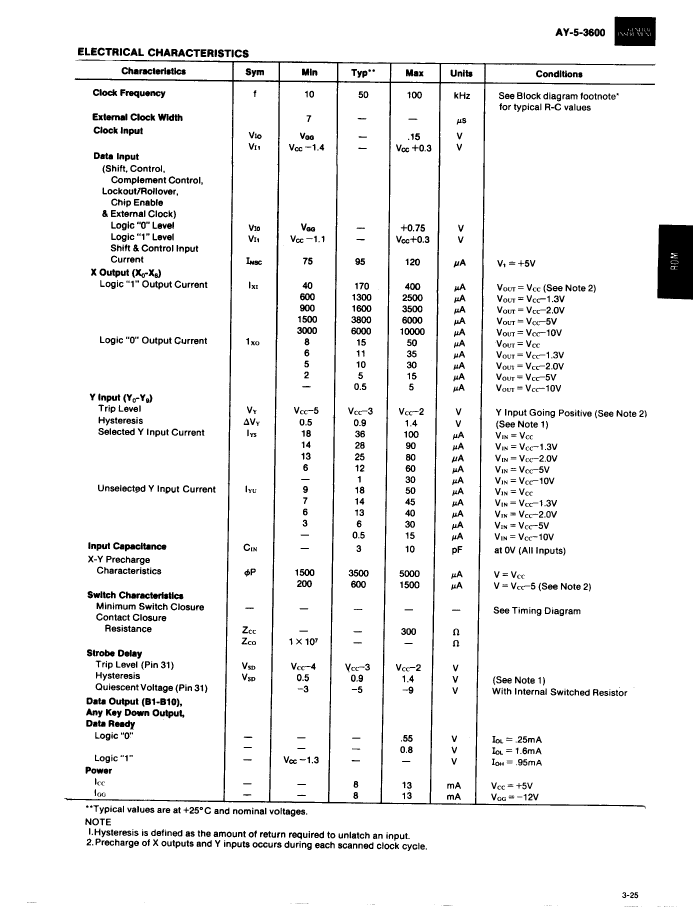

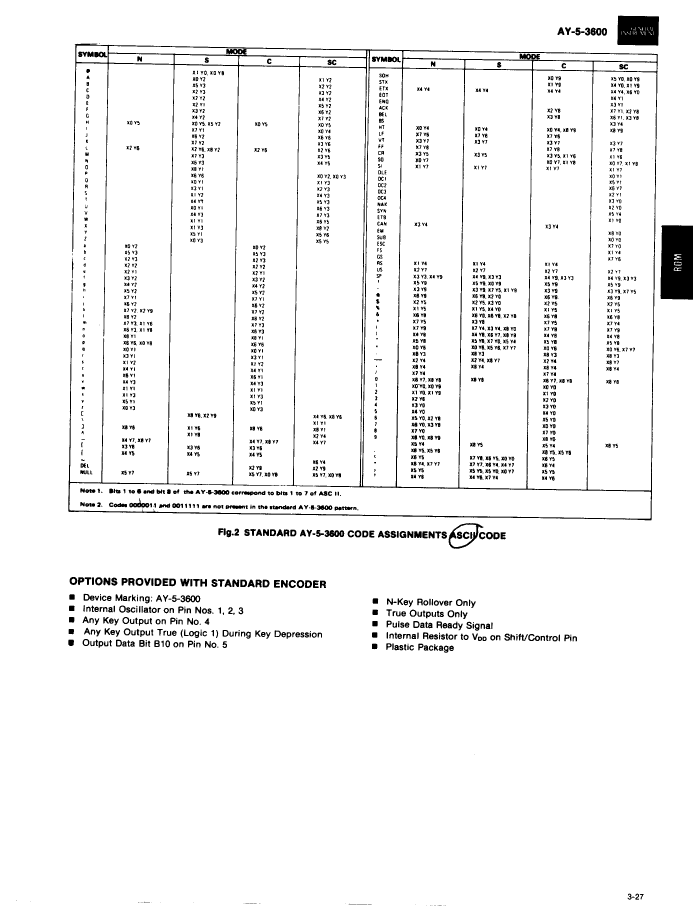

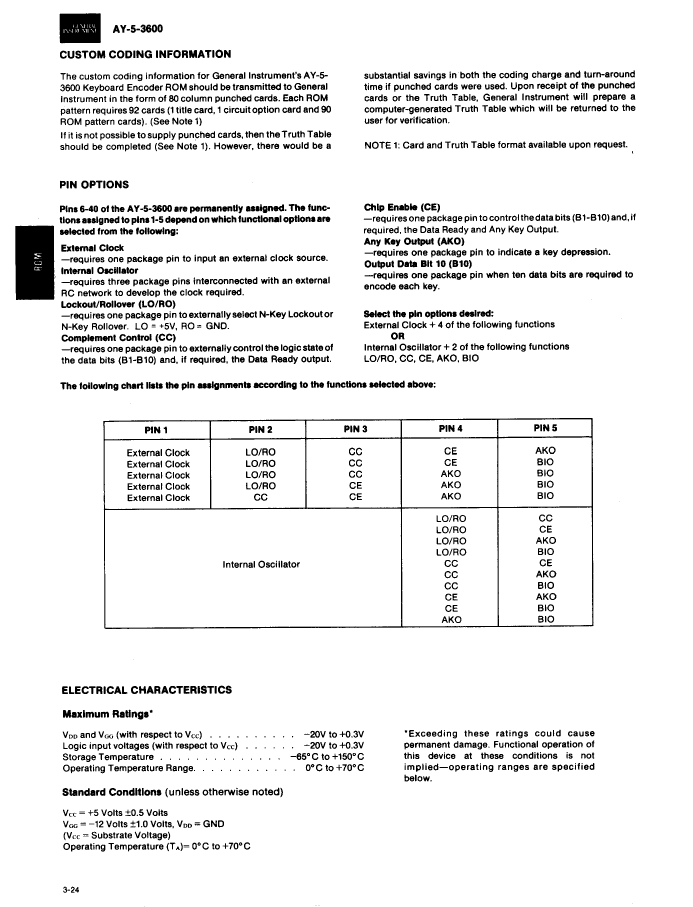

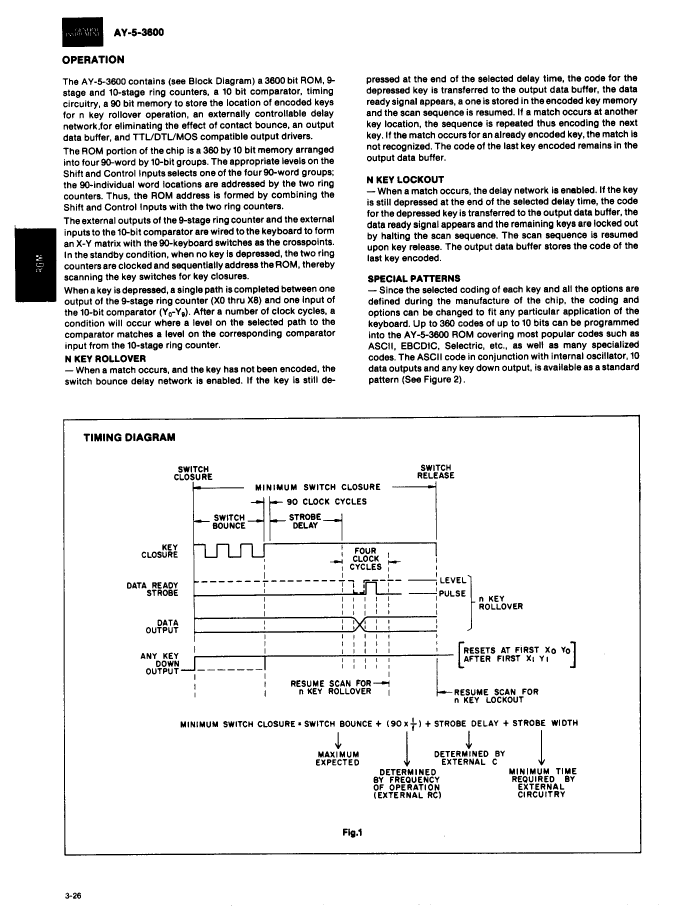

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T40
JESD-609 code	e0
Logic integrated circuit type	ENCODER
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	AY-5-3600CERAMIC	AY-5-3600	AY-5-3600-PROPLASTIC	AY-5-3600-P	AY-5-3600PLASTIC
Description	Encoder, MOS, CDIP40	Encoder, MOS, PDIP40	Encoder, MOS, PDIP40	Encoder, MOS, PDIP40	Encoder, MOS, PDIP40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	ENCODER	ENCODER	ENCODER	ENCODER	ENCODER
Number of terminals	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
