MCTEA - Series
-
Features:
•
•
85°C, 1,000 hours assured
For general purpose application

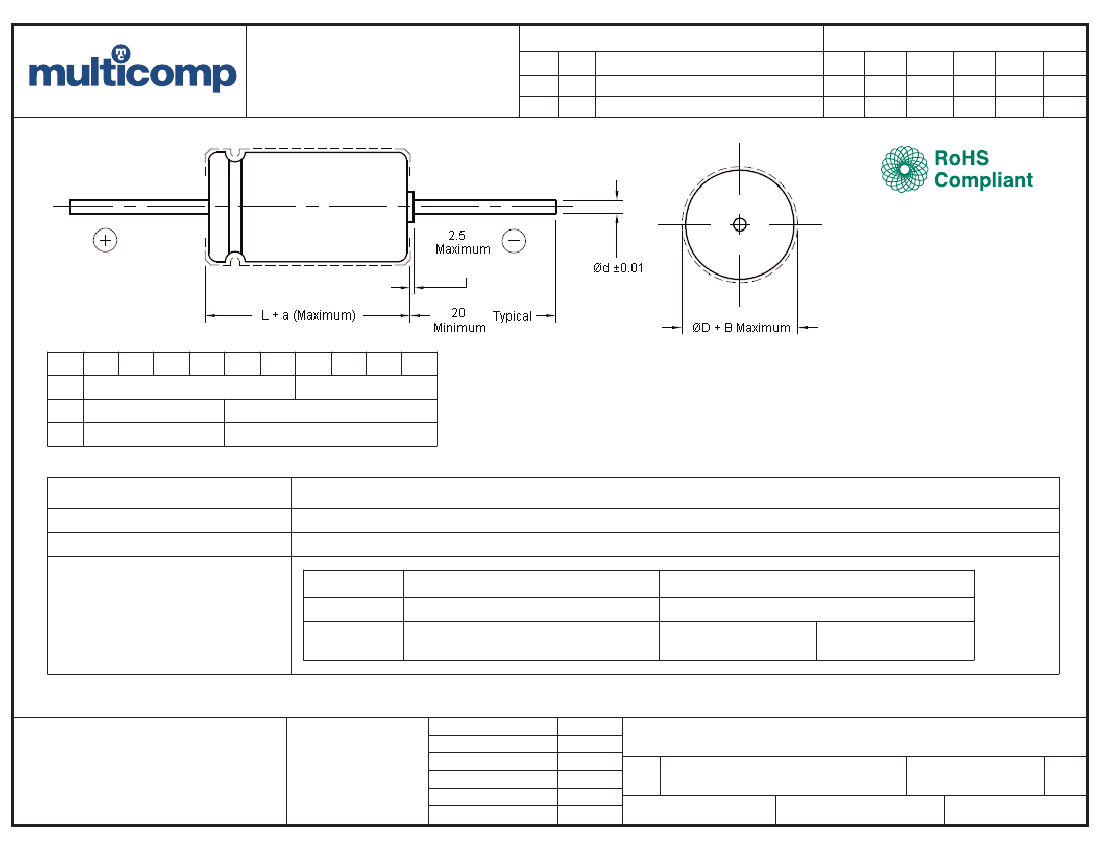

ØD
Ød
a
B
5
6
6.3
0.6
1.5
0.5
8
10
12.5
16
18
0.8
2
1
22
25
Dimensions : Milimetres
Item
Operating Temperature Range
Capacitance Tolerance
-40°C to +85°C
±20% (at 20°C, 120 Hz)
Rated Voltage
Leakage Current
Time
Leakage
Current
≤100
V
After 2 minutes
Characteristic
>100 V
After 5 minutes
CV
≤1,000
I = 0.03 CV + 15 (µA)
CV >1,000
I = 0.02 CV + 25 (µA)
I = 0.02 CV or 3 (µA) whichever is greater
