UHF/Mini UHF
Low Frequency RF Connectors
Materials
Body/Metal parts
Contacts
Centre MALE
Centre FEMALE
Under-plate
Plating
Insulator
Crimp Ferrules
– Brass
– Brass
– Brass
– Nickel
– Tinned or Silver or Gold
– Teflon or Phenolic
– Annealed Copper
Electrical
UHF
Impedance
Frequency Range
Voltage
Mini UHF
Impedance
Frequency Range
Voltage
– Non Constant
– 0-200 MHz
– 500 VRMS max
– 50 Ohm
– 0-2 GHz
– 335 VRMS max
Environmental
Temp. range
Hand Tools
Termination Instr.
Terminology
– -65°C thru 85°C
– Page
W-1
– Page
U-35~U-38
– Page
U-38
Related Information

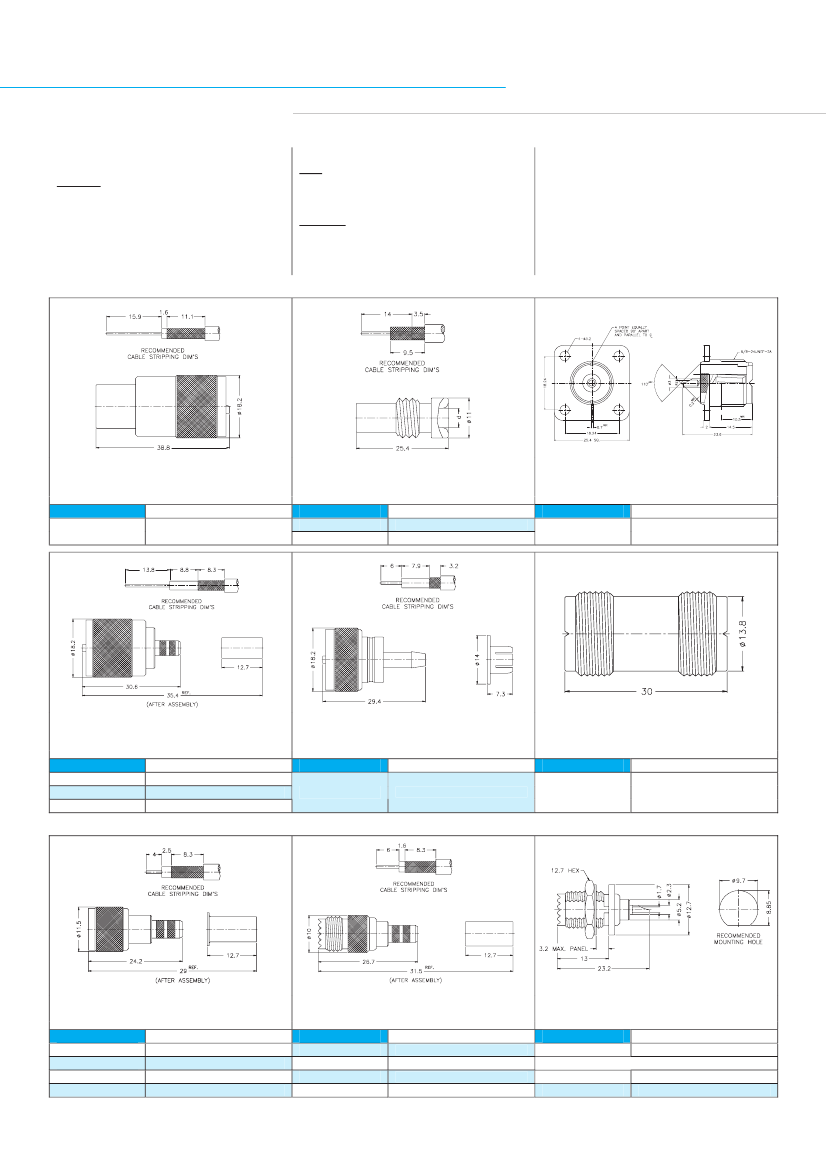

UHF
Cost Effective Threaded RF Interconnection System
Solder/Solder Straight Plug AKA
PL-259
Yellow Phenolic Ins. Silver Contact
Termination Instruction
N
U1181C1NPHS850
Reducing Adapters for use on 83-1SP-15RFX
UG-175 Dimension d: 5.3mm
UG-176 Dimension d: 6.5mm
U0181AxNxx50
Straight Panel Mount Jack AKA
SO239
Teflon Insulator. Tinned Contact
U6551A1NTT50
Part Number:
83-1SP-15RFX
Cable/Description
RG/U 8/9/213/214/225
Includes Reducing Adapter
Part Number:
83-185-RFX
83-168-RFX
Cable/Description
RG/U 58/141/142 (UG-175)
RG/U 59/62/71 (UG-176)
Part Number:
83-1R-RFX
Description
4-Hole Flange
Crimp/Crimp Straight Plug
Yellow Phenolic Insulator/Silver Contact
Termination Instruction
E
U1121A1NPHSxx50
Friction-Lock Ferrule/Solder Straight Plug
Yellow Phenolic Insulator/Silver Contact
Termination Instruction
O
U1161A1NPHS5850
Jack-to-Jack Straight Adapter
Nickel Finish/Gold Finished Contacts
U7071A1NT3G50
Part Number:
83-8SP-RFX
83-58SCP-RFX
83-59DCP-RFX
Cable
RG/U 8
RG/U 58/141
RG/U 59/62
Part Number:
83-58FCP-RFX
Cable
RG/U 58/141
Part Number:
83-1J-RFX
Description
30mm Long
Mini UHF
Cost Effective Threaded RF Interconnection System
Crimp/Crimp Straight Plug Captive Contact
Termination Instruction
P
MU1121x1NT3Gxx50
Crimp/Crimp Straight Jack
Termination Instruction
E
MU6121x1Nx3Gxx50
Solder-Cup Straight Bulkhead Jack
Rear Mount
MU6451B1NT3G50
Part Number:
81-115-RFX
81-180-RFX
81-196-RFX
81-181-RFX
ARFA /RF
Cable/Description
RG/U 58/141 Captive Contact
RG/U 59 Captive Contact
RG/U 58/141
Preassembled Pin
RG/U 59
Preassembled Pin
Part Number:
81-116-RFX
81-182-RFX
81-183-RFX
81-184-RFX
Cable/Description
RG/U 58/141
Non-Captive Cont.
RG/U 59
Non-Captive Contact
RG/U 58/141 Diecast Version
RG/U 174/188/316
Like Diagram
Part Number:
81-120-RFX
81-118-1001
81-119-1007
Description:
Other Interesting Mini UHF Connectors
4-Hole Flange Panel Mount Jack
PCB R/A Bulkhead Jack
U-23
