P74FCT3373DSO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> P74FCT3373DSO

P74FCT3373DSO: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24; Categorylogic logic; File Size157KB，4 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P74FCT3373DSO Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24

P74FCT3373DSO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP24,.4
Contacts	24
Reach Compliance Code	unknown
Other features	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V
series	FCT
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.7 ns
propagation delay (tpd)	4.7 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

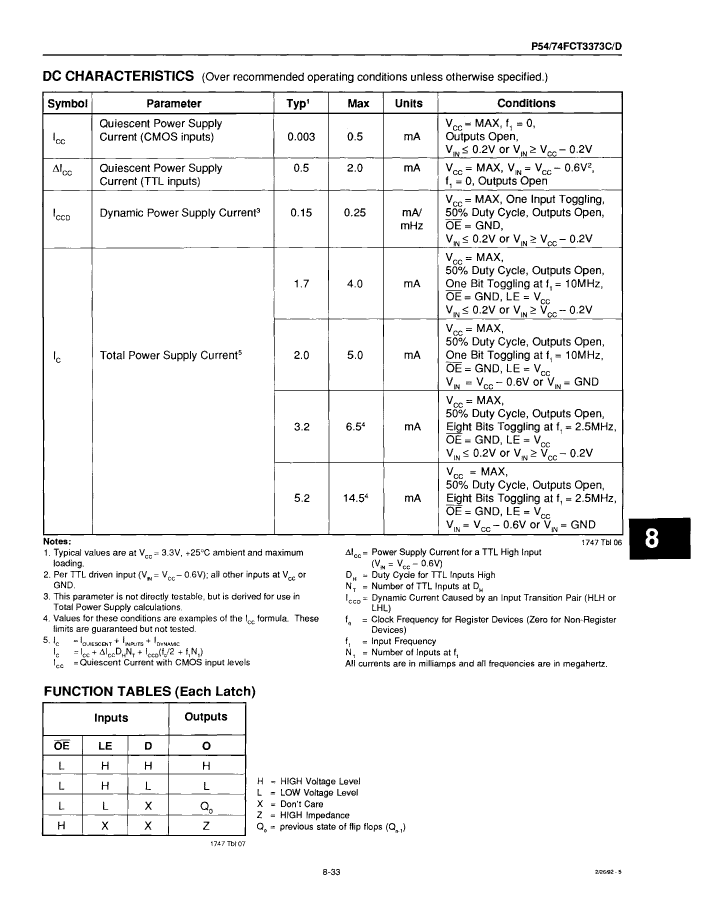

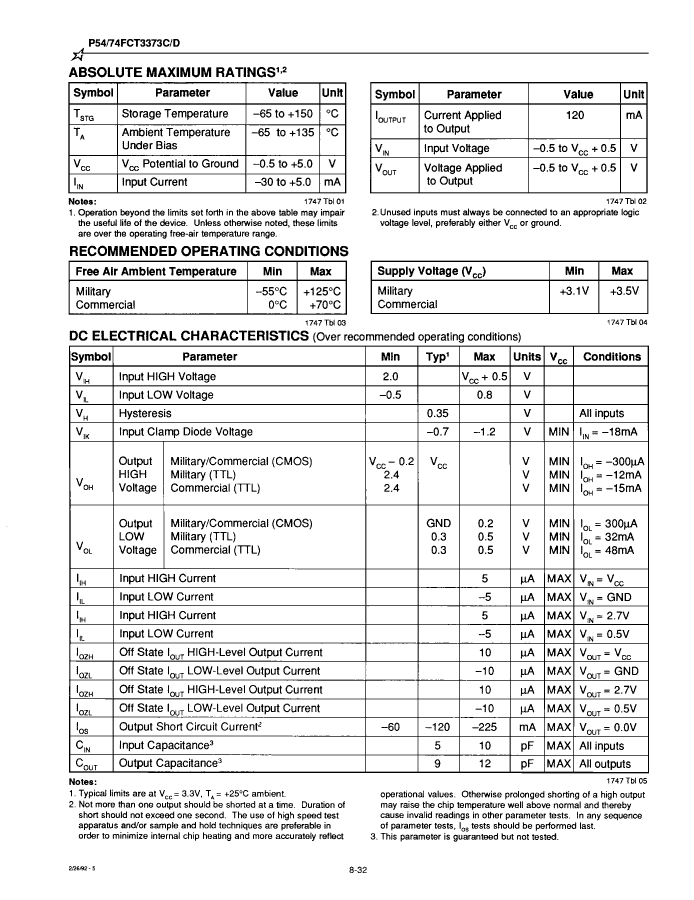

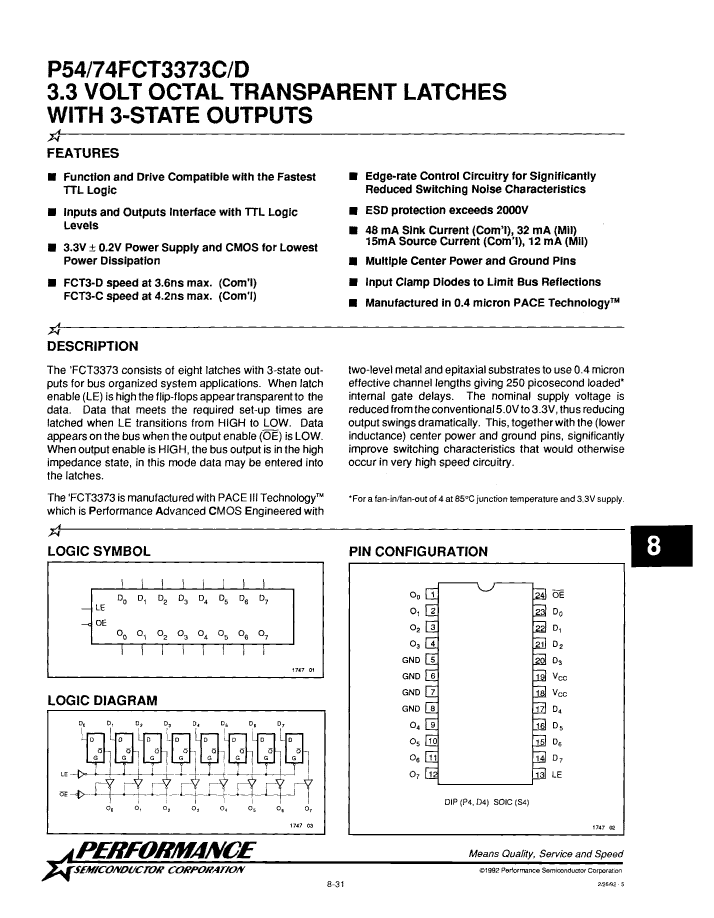

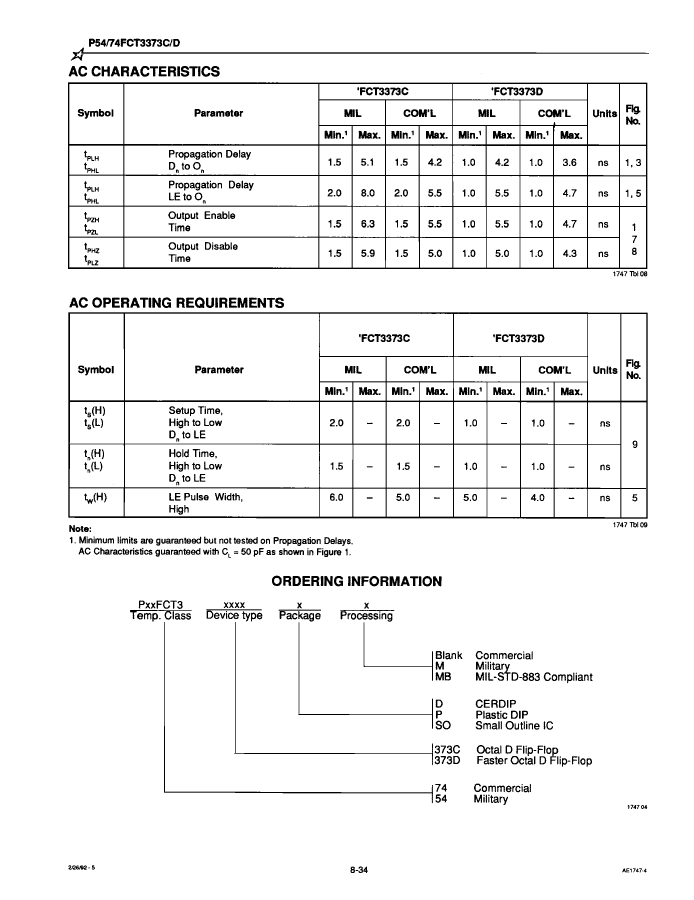

Preview

Download Datasheet

View All

P74FCT3373DSO Related Products

	P74FCT3373DSO	P54FCT3373CDM	P54FCT3373DDM	P74FCT3373DP	P74FCT3373DD	P74FCT3373CD	P74FCT3373CP	P74FCT3373CSO
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, HERMETIC SEALED, CERDIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOIC-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
Parts packaging code	SOIC	DIP	DIP	DIP	DIP	DIP	DIP	SOIC
package instruction	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	SOP, SOP24,.4
Contacts	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V	MULTIPLE CENTER PIN VCC AND GND; IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G24	R-GDIP-T24	R-GDIP-T24	R-PDIP-T24	R-GDIP-T24	R-GDIP-T24	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	15.4 mm	31.75 mm	31.75 mm	31.9405 mm	31.75 mm	31.75 mm	31.9405 mm	15.4 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.032 A	0.032 A	0.048 A	0.048 A	0.048 A	0.048 A	0.048 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	DIP	DIP	SOP
Encapsulate equivalent code	SOP24,.4	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	4.7 ns	8 ns	5.5 ns	4.7 ns	4.7 ns	5.5 ns	5.5 ns	5.5 ns
propagation delay (tpd)	4.7 ns	8 ns	5.5 ns	4.7 ns	4.7 ns	5.5 ns	5.5 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.08 mm	5.08 mm	4.318 mm	5.08 mm	5.08 mm	4.318 mm	2.65 mm
Maximum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Minimum supply voltage (Vsup)	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V	3.1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	NO	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm
Base Number Matches	-	1	1	1	1	1	-	-
