9-2040451-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9-2040451-1

9-2040451-1: DescriptionTELECOM AND DATACOM CONNECTOR; CategoryThe connector The connector; File Size139KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

9-2040451-1 Overview

TELECOM AND DATACOM CONNECTOR

9-2040451-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.27 inch
subject depth	0.497 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Dielectric withstand voltage	400VAC V
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2040451
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	.9906 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	COPPER ALLOY
Terminal length	0.082 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

This browser does not have Java enabled.

TE Connectivity

My Cart |

My Part Lists | Sign In/Register

English

(Change)

Have a Question?

Chat with a Product

Information Specialist

What can we help you find?

Products

Industries

Resources

About TE

My Account

Innovation

Support Center

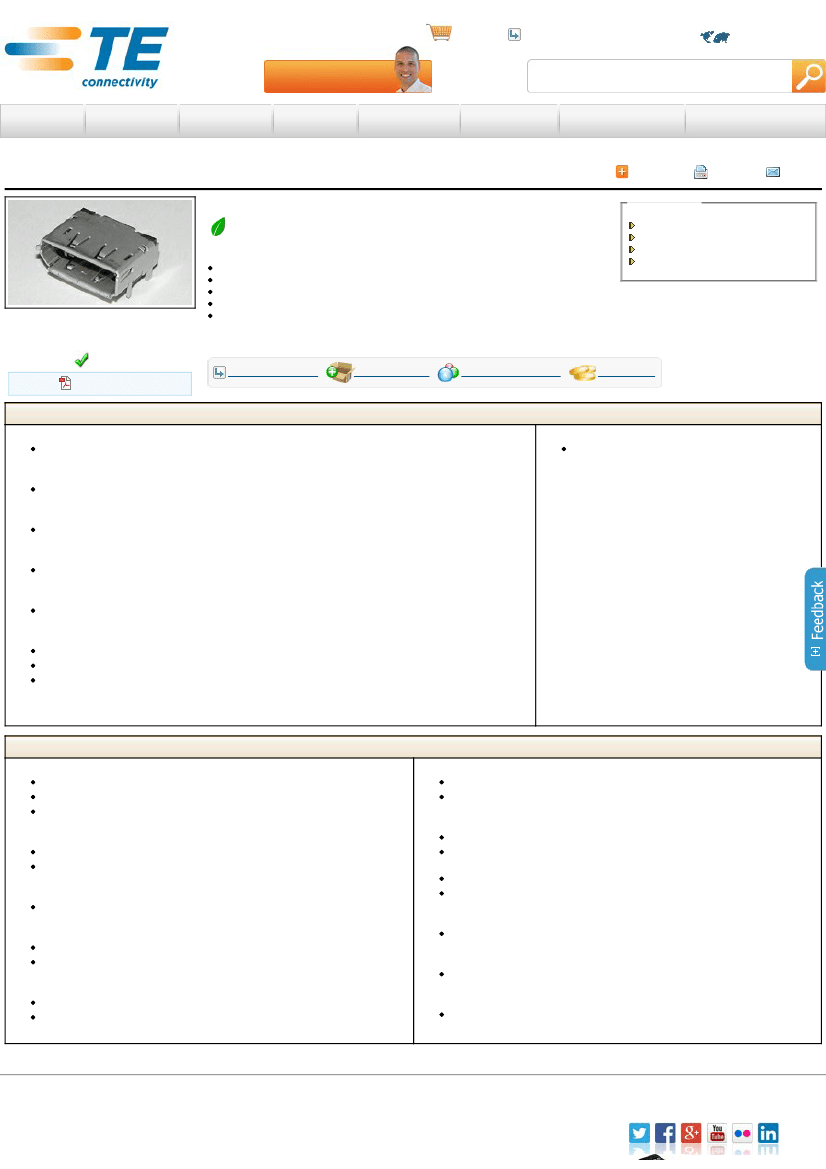

Home > Products > Audio/Video Interconnect > Product Feature Selector > Product Details
