LAS-723B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LAS-723B

LAS-723B: DescriptionAdjustable Positive Standard Regulator, 2.63V Min, 48V Max, BIPolar, MBCY10, METAL CAN-10; CategoryPower/power management The power supply circuit; File Size47KB，1 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

LAS-723B Overview

Adjustable Positive Standard Regulator, 2.63V Min, 48V Max, BIPolar, MBCY10, METAL CAN-10

LAS-723B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMTECH
Parts packaging code	BCY
package instruction	, CAN10,.23
Contacts	10
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	ADJUSTABLE
Nominal dropback voltage 1	2 V
JESD-30 code	O-MBCY-W10
Number of functions	1
Output times	1
Number of terminals	10
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min
Maximum output current 1	0.15 A
Maximum output voltage 1	48 V
Minimum output voltage 1	2.63 V
Package body material	METAL
Encapsulate equivalent code	CAN10,.23
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	WIRE
Terminal location	BOTTOM

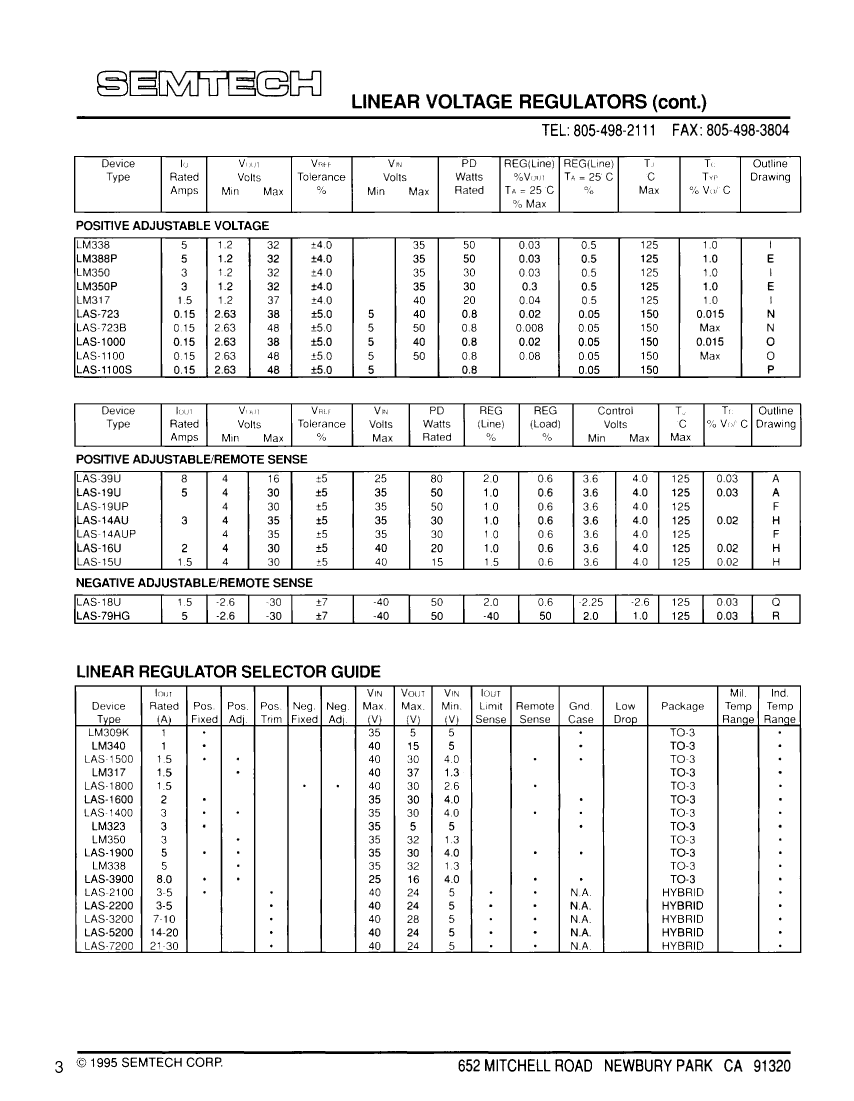

Preview

Download Datasheet

View All

LAS-723B Related Products

	LAS-723B	LAS-723	LM350	LAS-1100	LAS-1100S	LM317
Description	Adjustable Positive Standard Regulator, 2.63V Min, 48V Max, BIPolar, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 2.63V Min, 38V Max, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 1.2V Min, 32V Max, MBFM2, TO-3, 2 PIN	Adjustable Positive Standard Regulator, 2.63V Min, 48V Max, MBCY10, METAL CAN-10	Adjustable Positive Standard Regulator, 2.63V Min, 48V Max, PDSO14, SO-14	Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, MBFM2, TO-3, 2 PIN
Parts packaging code	BCY	BCY	TO-204AA	BCY	SOIC	TO-204AA
package instruction	, CAN10,.23	,	TO-3,	,	SOP,	TO-3,
Contacts	10	10	2	10	14	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	O-MBCY-W10	O-MBCY-W10	O-MBFM-P2	O-MBCY-W10	R-PDSO-G14	O-MBFM-P2
Number of functions	1	1	1	1	1	1
Number of terminals	10	10	2	10	14	2
Maximum output current 1	0.15 A	0.15 A	3 A	0.15 A	0.15 A	1.5 A
Maximum output voltage 1	48 V	38 V	32 V	48 V	48 V	37 V
Minimum output voltage 1	2.63 V	2.63 V	1.2 V	2.63 V	2.63 V	1.2 V
Package body material	METAL	METAL	METAL	METAL	PLASTIC/EPOXY	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	RECTANGULAR	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	FLANGE MOUNT	CYLINDRICAL	SMALL OUTLINE	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	YES	NO
Terminal form	WIRE	WIRE	PIN/PEG	WIRE	GULL WING	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	DUAL	BOTTOM
Maker	SEMTECH	-	SEMTECH	SEMTECH	SEMTECH	SEMTECH
