REVISION A
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
BDRA-XXXXX-XX-XX-XXXX
PATENT NUMBER
7,544,093
END 2 CONNECTOR
-SCC3: PRB3-P-C-XX-ST-CS3(SEE SHEET 3)
-92SJ: 292XX-J-C-XX-ST-CS3 (SEE SHEET 3)
-92SP: 292XX-P-C-XX-ST-CS3 (SEE SHEET 3)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
6. ALTERNATE H GOLD / H GOLD / NICKEL
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
P: HEAVY GOLD / PASSIVATED STAINLESS STEEL
(SEE SHEET 2 FOR PLATING SPECIFICS)
OVERALL CABLE LENGTH (MILLIMETERS)
0100-9999 [3.9 - 393.7]
(SEE NOTE 9 & 10)
PHASE MATCHED PAIRS
-12
(SEE SHEET 2, TABLE 3)
PHASE MATCHING SPEC
-02: 2.0 PICO-SECOND
-05: 5.0 PICO-SECONDS
-10: 10.0 PICO-SECONDS
LENGTH: XXXX
(SEE TABLE 1 FOR TOLERANCE)
C
1
2 (SEE NOTE 2)
12.65 .498 REF
A01
B01
1.28 .050
REF
4.80 .189
REF
4.00 .157
REF (TYP)
49.79 1.960
REF
A12
1.93 .076
REF
52.50±5.00 2.067±.197
15.27 .601 REF
9.5±0.6 .38±.02
(LABEL CUT LENGTH)
3
B12
CABLE ASSEMBLIES NOT
SHOWN FOR CLARITY

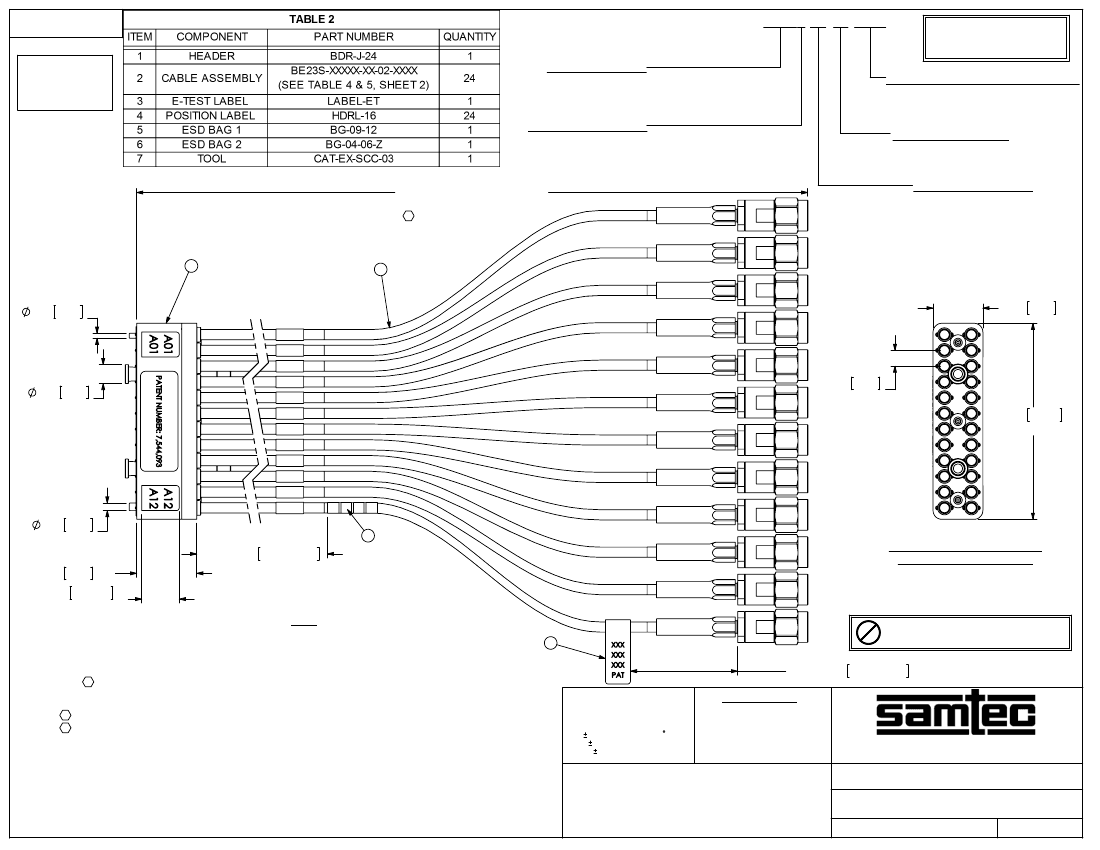

FIG 1
BDRA-92SP-XX-XX-XXXX SHOWN
(SEE NOTE 7) 4
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. USE DRAWING No. BE23S-XXXXX-XX-XX-XXXX FOR CABLE ASSEMBLY INSTRUCTIONS.
3. PARTS TO BE PROCESSED PER SAMTEC WORKMANSHIP GUIDELINES.
C
4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED.
C
5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 300V.
6. FOR SUB-ASSEMBLY AND FINISHED GOOD PACKAGING REQUIREMENTS, REFERENCE
SAMTEC PACKAGING STANDARD, LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED.
7. PRINT CABLE POSITION AND "PAT" (3 LINES FOR POSITION, 1 LINE FOR "PAT")
AND APPLY TO CABLES (TAG STYLE) AS SHOWN.
8. SEE SHEET 2, TABLE 2 FOR PHASE MATCHING REQUIREMENTS.
9. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS.
10. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA.
c:\enterprisevault\DWG\MISC\MKTG\BDRA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
25.40±10.00 1.000±.394
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: .3[.01]
.XX: .13[.005]
.XXX: .051[.0020]
ANGLES
5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
BULLSEYE DOUBLE ROW, 24 POSITION, ASSEMBLY
BY:
EMMA CHEN
BDRA-XXXXX-XX-XX-XXXX
3/14/2014
SHEET
1
OF
5
REVISION A

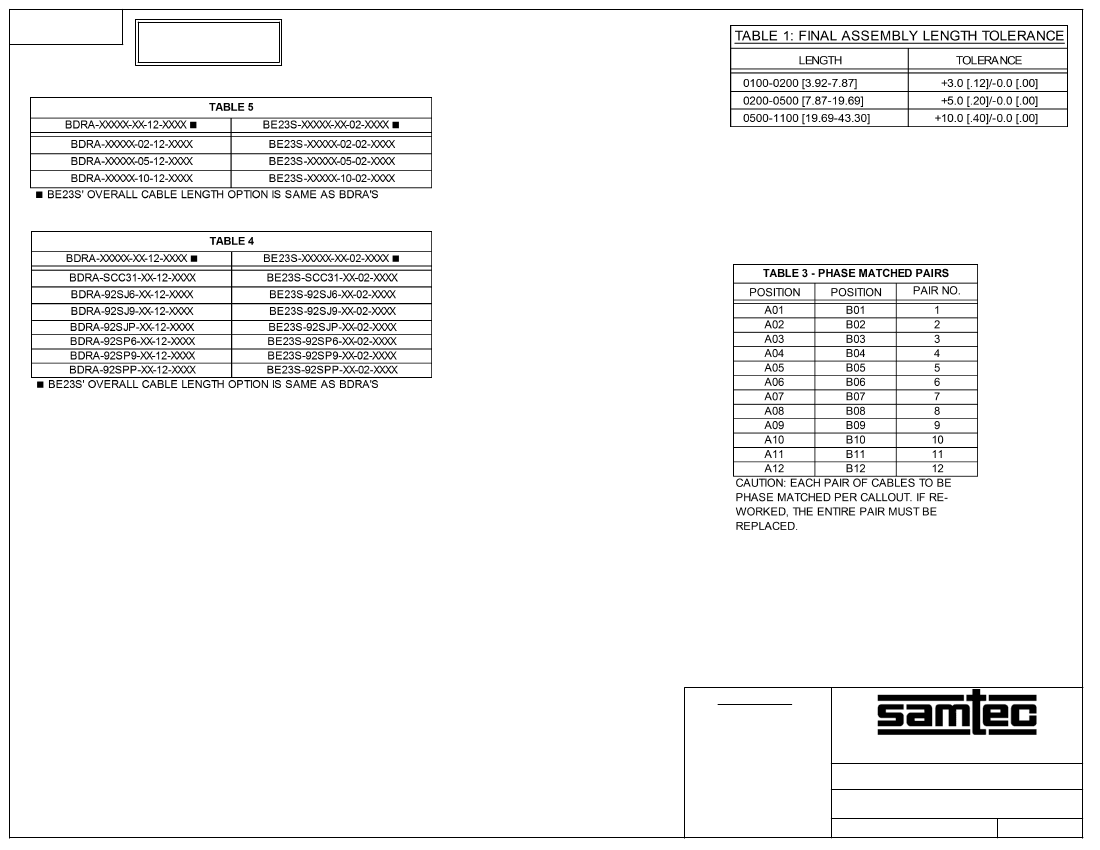

PATENT NUMBER
7,544,093
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
BULLSEYE DOUBLE ROW, 24 POSITION, ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\BDRA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN 3/14/2014
SHEET
2
OF
5
BDRA-XXXXX-XX-XX-XXXX
REVISION A
PATENT NUMBER
7,544,093
(STRAIGHT JACK)
(USE DRAWING No. 292XX-J-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
-92SJ
(STRAIGHT PLUG)
(USE DRAWING No. 292XX-P-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
-92SP
(ROUND TIP/STD. FERRULE)
(USE DRAWING No.
PRB3-P-C-XX-ST-CS3
FOR ASSEMBLY INSTRUCTIONS)
-SCC3
PLATING OPTIONS
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: PRB3-P-C-HF-ST-CS3)
NOTE:
ALL CRITICAL DIMENSIONS ON PRB3-P-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HH-ST-CS3)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HG-ST-CS3)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-J-C-HP-ST-CS3)
NOTE:
ALL CRITICAL DIMENSIONS ON 292XX-J-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
PLATING OPTIONS
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HH-ST-CS3)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HG-ST-CS3)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-P-C-HP-ST-CS3)
NOTE:
ALL CRITICAL DIMENSIONS ON 292XX-P-C-XX-ST-CS3
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
BULLSEYE DOUBLE ROW, 24 POSITION, ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\BDRA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN 3/14/2014
SHEET
3
OF
5
BDRA-XXXXX-XX-XX-XXXX
REVISION A
PATENT NUMBER
7,544,093
INSERTION TOOL
LOCKING COVER
KEYWAYS
POSITION 1 INDICATOR
APPLY A01 LABEL WITH RESPECT TO
POSITION 1 INDICATOR AS SHOWN
LOCKING FERRULE
KEYS (2)
DETAIL 'D'
SCALE 3 : 1
COMPRESSION SPRING
DETAIL 'B'
SCALE 6 : 1
7 (INSERTION TOOL)
BE23S CABLE ASSEMBLY
GROUND FERRULE
DETAIL 'C'
SCALE 4 : 1
TIGHTEN TO 0.5 IN-LBS
'C'
1

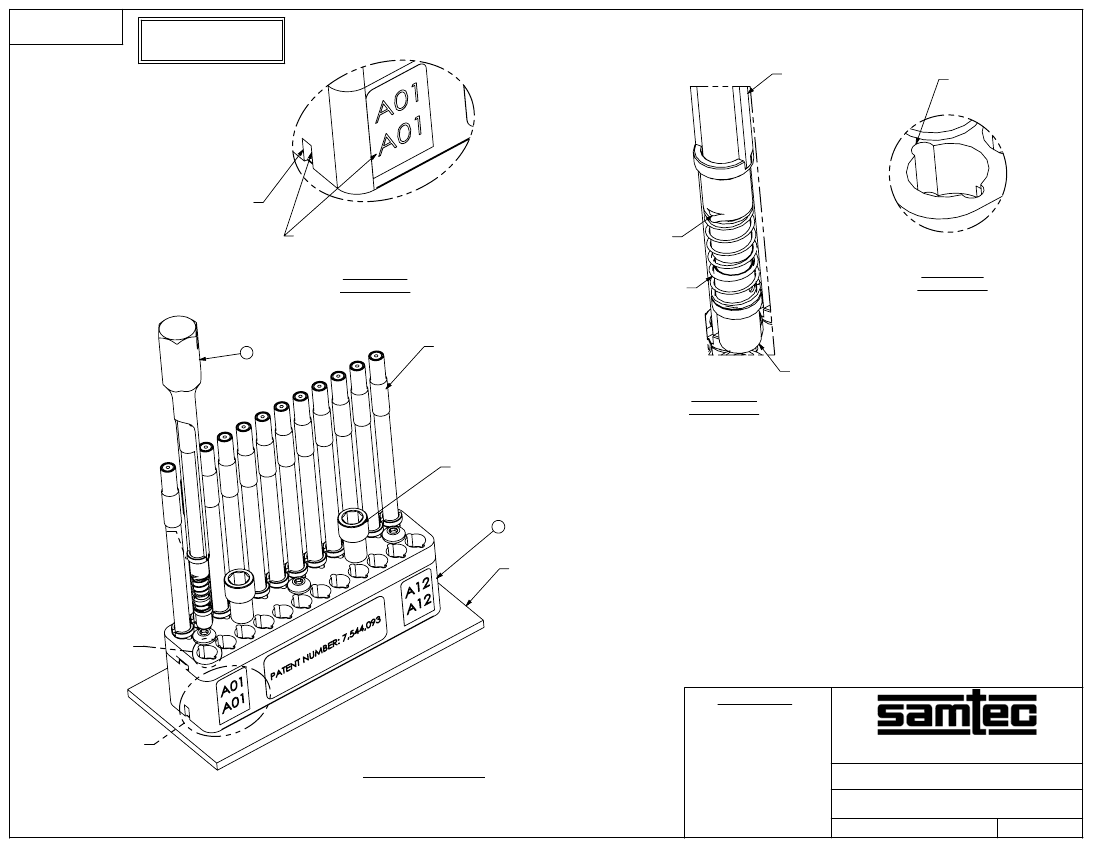

CABLE INSTALLATION PROCEDURE:
TARGET PCB
(NOT SUPPLIED)
'B'
INSURE LOCKING FERRULE KEYS (SEE DETAIL A) ALIGN WITH KEYWAY
FEATURES IN THE CONNECTOR BODY (SEE DETAIL B). PUSH DOWN
ON THE LOCKING FERRULE (WITH MINIMAL FORCE) USING THE INSERTION
TOOL. TWIST THE INSERTION TOOL CLOCKWISE (IT SHOULD TURN FREELY)
90∶-95∶ STOP AND RELEASE. THE LOCKING FERRULE WILL LIFT INTO THE
LOCK CHAMBER, LOCATED INSIDE THE CONNECTOR BODY, BY WAY OF
THE COMPRESSION SPRING. REPEAT THIS PROCESS WITH REMAINING
CABLE ASSEMBLIES .
REVERSE ABOVE PROCEDURE TO DISASSEMBLE.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
'D'
APPLICATION VIEW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
BULLSEYE DOUBLE ROW, 24 POSITION, ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\BDRA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN
BDRA-XXXXX-XX-XX-XXXX
3/14/2014
SHEET
4
OF
5
REVISION A
PATENT NUMBER
7,544,093

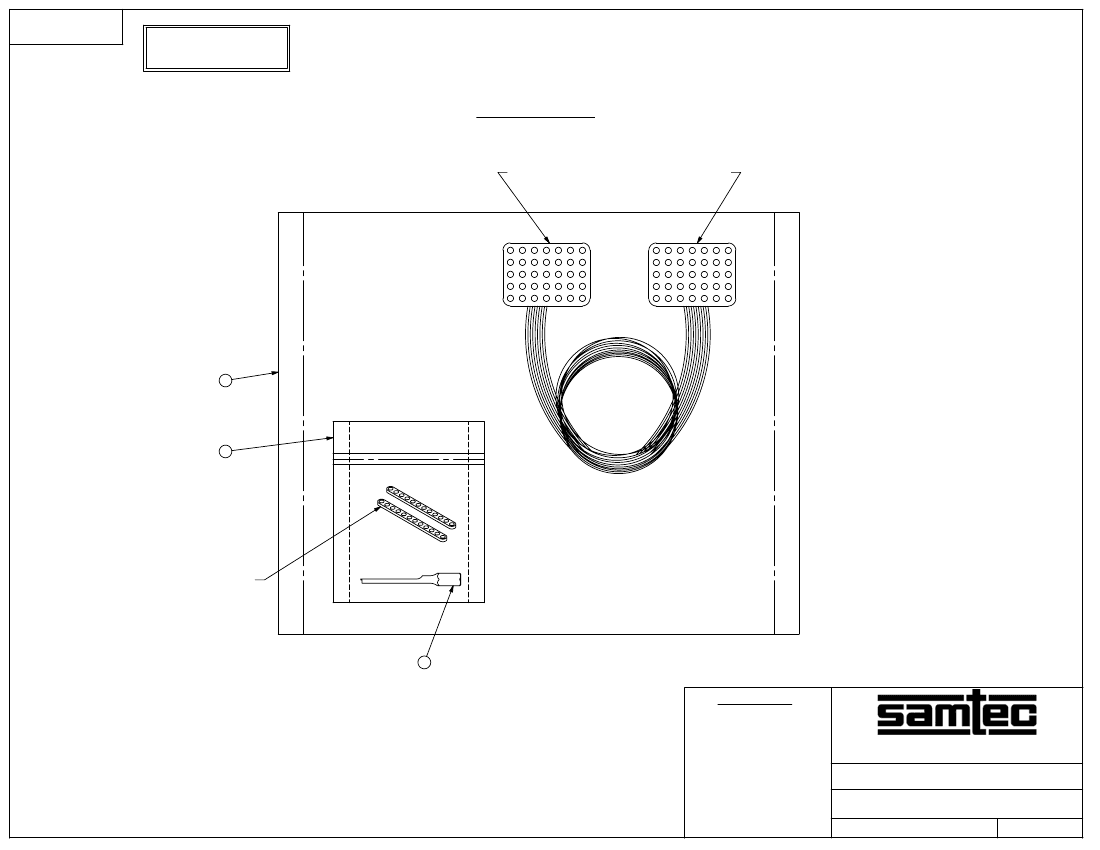

PACKAGING VIEW
ENDS OF CABLE ASSEMBLY TO BE WRAPPED
IN ANTI-STATIC BUBBLE WRAP
5
6
BDR-GKT-12
(2 PLCS)
(COMPONENTS FROM ITEM 1 / BDR-J-24)
7 (INSERTION/REMOVAL TOOL)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BULLSEYE DOUBLE ROW, 24 POSITION, ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\BDRA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
EMMA CHEN
BDRA-XXXXX-XX-XX-XXXX
3/14/2014
SHEET
5
OF
5
