SBP8106: DescriptionPiano Dip Switch, 6 Switches, Vertical, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size294KB，2 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

SBP8106 Overview

Piano Dip Switch, 6 Switches, Vertical, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight

SBP8106 Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compliant
Actuator angle	20 deg
Actuator color	WHITE
Actuator length	0.039 inch
Actuator type	PIANO
body width	5.9944 mm
Body color	BLACK
body height	5.0038 mm
Body length or diameter	16.637 mm
center contact material	COPPER
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	100VAC V
End contact material	COPPER
End contact plating	GOLD OVER NICKEL
Insulation resistance	100000000 Ω
Manufacturer's serial number	SBP
Installation features	SURFACE MOUNT-STRAIGHT
Number of switching segments	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	VERTICAL
Switch type	PIANO DIP SWITCH
Terminal material	BRASS
Termination type	SOLDER

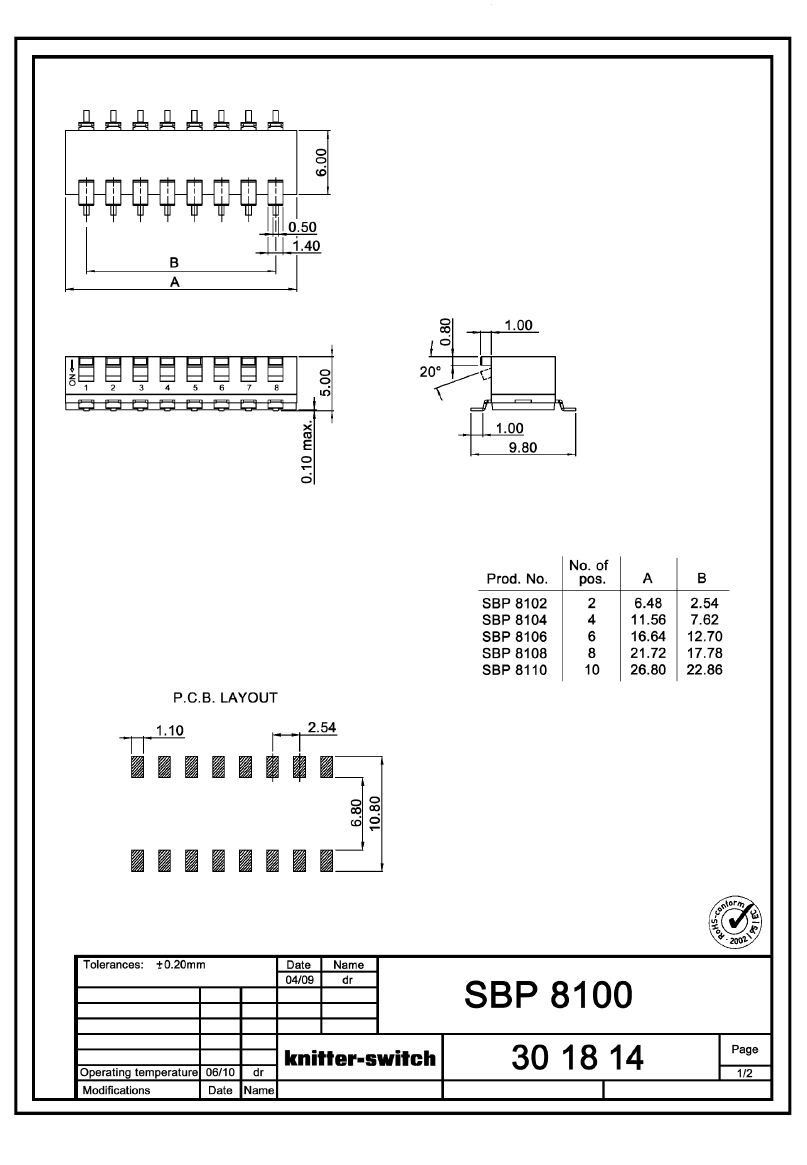

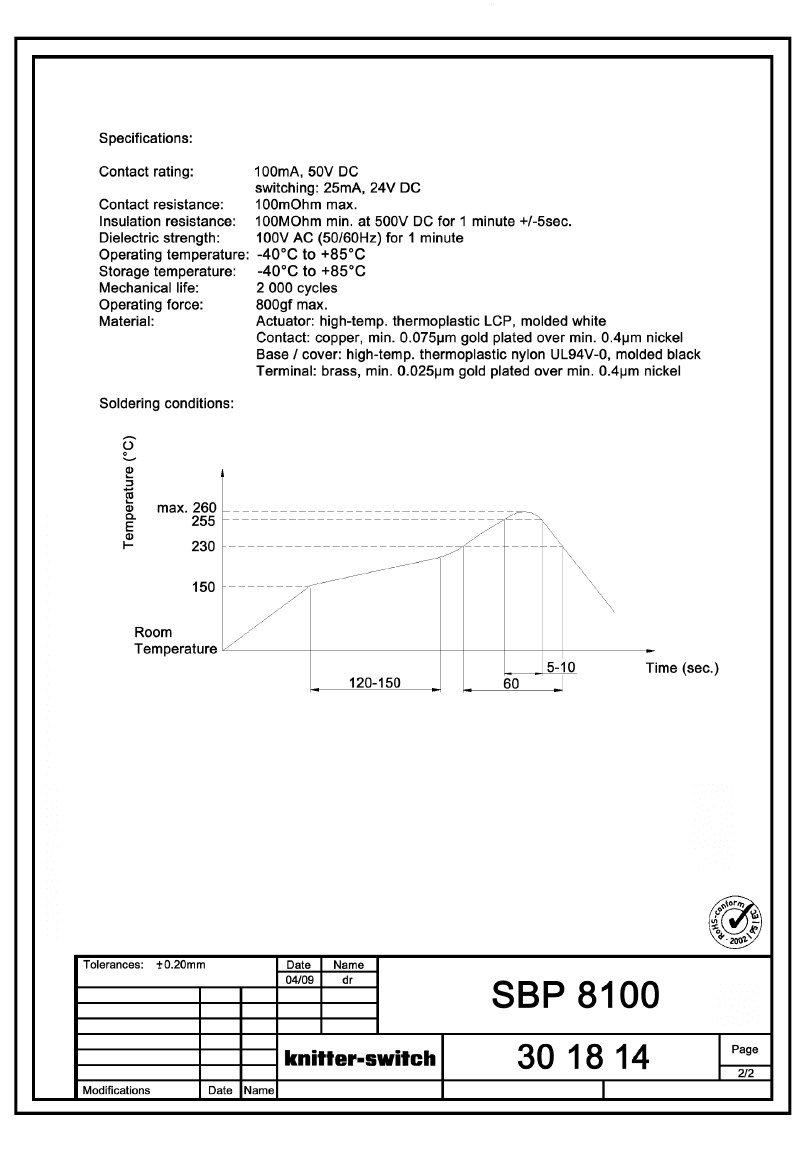

SBP8106 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SBP8106 Related Products

	SBP8106	SBP8104	SBP8110
Description	Piano Dip Switch, 6 Switches, Vertical, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight	Piano Dip Switch, 4 Switches, Vertical, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight	Piano Dip Switch, 10 Switches, Vertical, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight
Reach Compliance Code	compliant	compliant	compliant
Actuator angle	20 deg	20 deg	20 deg
Actuator color	WHITE	WHITE	WHITE
Actuator length	0.039 inch	0.039 inch	0.039 inch
Actuator type	PIANO	PIANO	PIANO
body width	5.9944 mm	5.9944 mm	5.9944 mm
Body color	BLACK	BLACK	BLACK
body height	5.0038 mm	5.0038 mm	5.0038 mm
Body length or diameter	16.637 mm	11.557 mm	26.797 mm
center contact material	COPPER	COPPER	COPPER
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V
Dielectric withstand voltage	100VAC V	100VAC V	100VAC V
End contact material	COPPER	COPPER	COPPER
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	SBP	SBP	SBP
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switching segments	6	4	10
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
surface mount	NO	NO	NO
Switch action	VERTICAL	VERTICAL	VERTICAL
Switch type	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Terminal material	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER
Maker	Knitter-switch	Knitter-switch	-
Is it Rohs certified?	-	conform to	conform to
ECCN code	-	EAR99	EAR99
