8.06.05 Overview

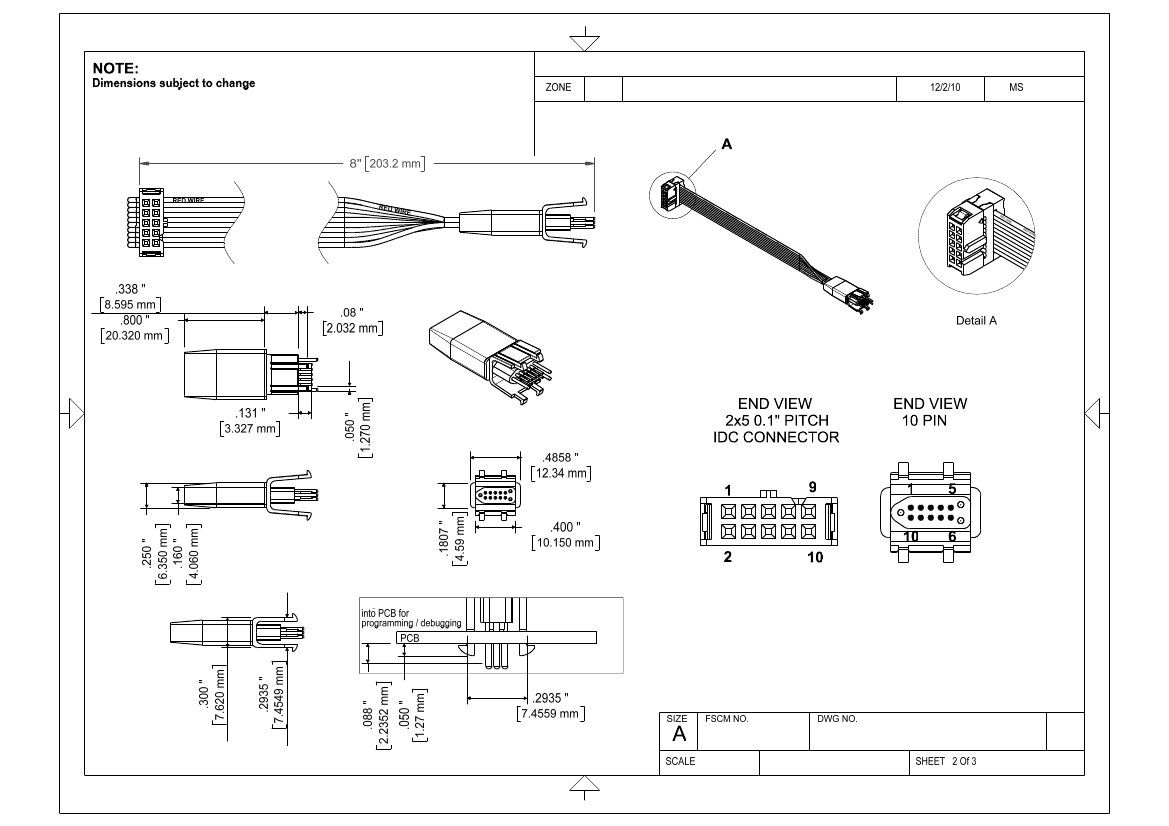

ADAPTER 10-PIN NEEDLE

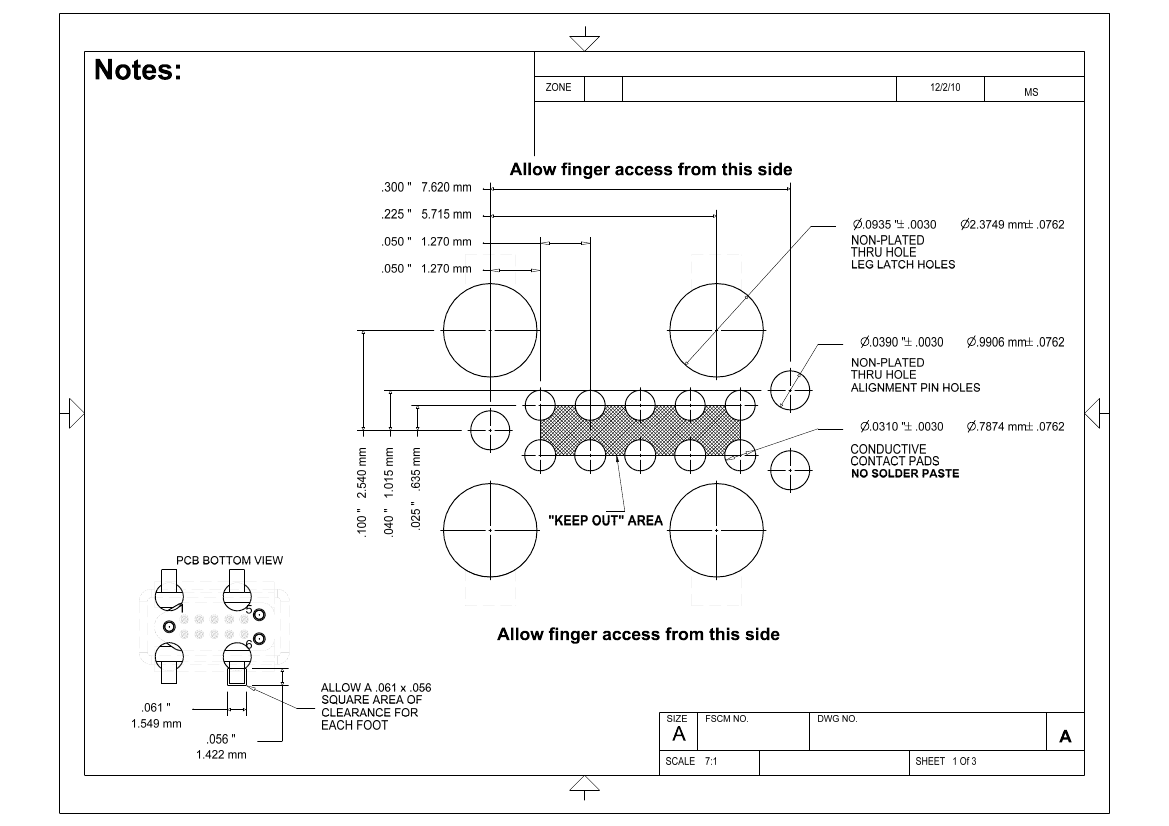

PCB Footprint for J-LINK Needle Adapter

1. Allow clearance for finger squeeze access

from the two sides shown.

2. No tracks or vias in the shaded "KEEP OUT" AREA.

3. No other track or signal within

.02" of any contact pad.

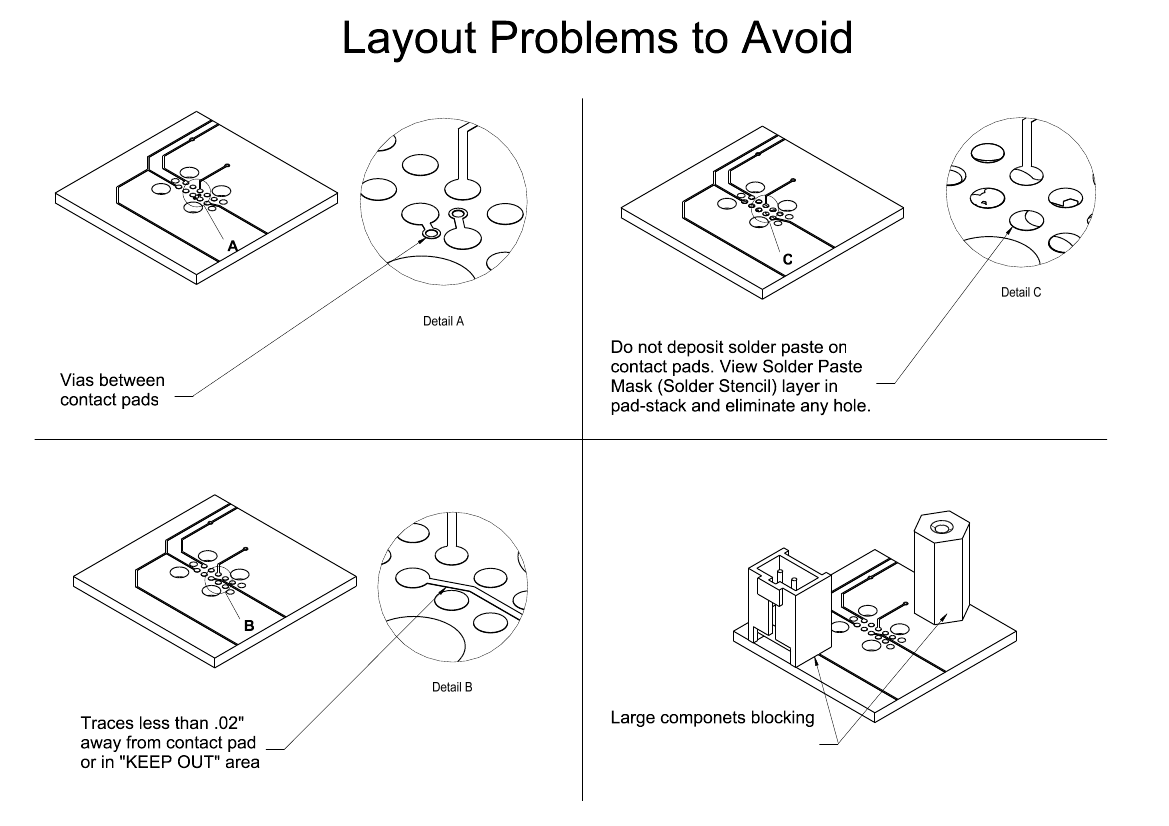

4. Do not allow solder paste on the

contact pads.It is essential to

eliminate any hole in the solder

paste-mask (solder stencil) layer.

If this is not possible make the

contact pads thru-hole with a

finished hole size of .008" or less.

5. Leg and alignment holes may be

plated and used as vias but ensure

minimum finshed hole size meets

specified tolerances.

6. To prevent purchasing confusion,

please specify DNL in your BOM.

REV

Protected by U.S. Patent Nos. 7,878,834, 8,057,248, International Patent Pending.
