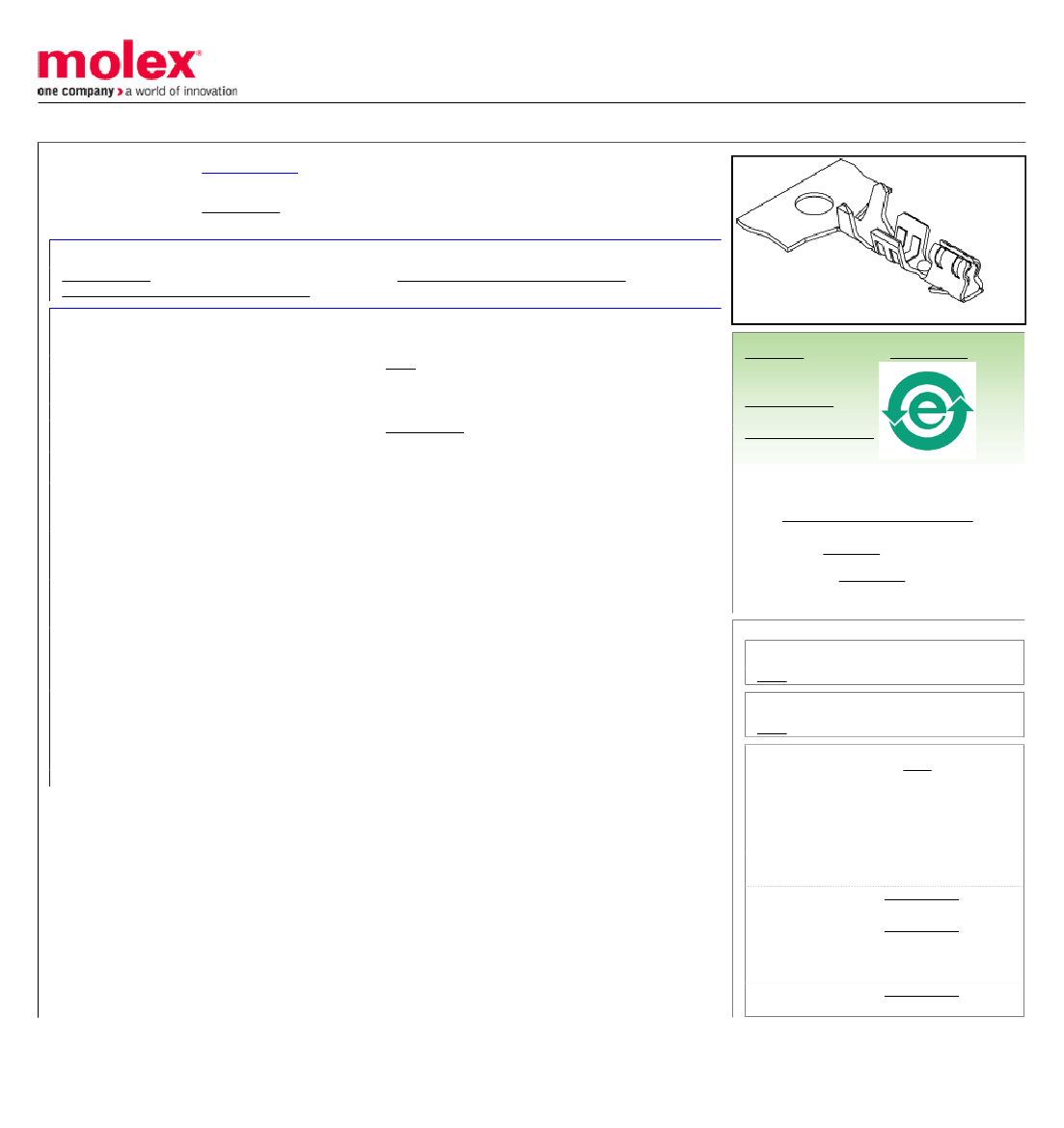

08-70-1040..: DescriptionCONTACT; CRIMP SOCKET 28-22AWG; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

08-70-1040.. Overview

CONTACT; CRIMP SOCKET 28-22AWG

Preview

Download Datasheet

View All

This document was generated on 03/30/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

08-70-1040

Active

SPOX™ BMI

2.50mm Pitch SPOX™ Crimp Terminal, 22-28 AWG, Bag

Documents:

Drawing (PDF)

Product Specification PS-5264-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

General

Product Family

Series

Application

Crimp Quality Equipment

MolexKits

Overview

Product Name

Crimp Terminals

5263

Signal

Yes

SPOX™ BMI

SPOX™

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Tin

Bag

0.889µm

0.914µm

Crimp or Compression

1.90mm max.

22, 24, 26, 28

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Old Part Number

5263PBTL

Search Parts in this Series

5263Series

Use With

5264

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-5264-001, RPS-5263-001, RPS-5264-002,

RPS-5264-004, RPS-5264-005

SD-5263-003

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool for 0638115200

Crimp Terminals

Manual Extraction

0638131400

Tool

Japan

Description

Product #

Hand Crimp Tool

0011260167

JHTR5974
