TCO-570-15.36MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TCO-570-15.36MHZ

TCO-570-15.36MHZ: DescriptionSine Output Oscillator, 15.36MHz Nom; CategoryPassive components oscillator; File Size57KB，2 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

TCO-570-15.36MHZ Overview

Sine Output Oscillator, 15.36MHz Nom

TCO-570-15.36MHZ Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Manufacturer's serial number	TCO-570
Installation features	SURFACE MOUNT
Nominal operating frequency	15.36 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 2.5mm
Nominal supply voltage	3 V
surface mount	YES

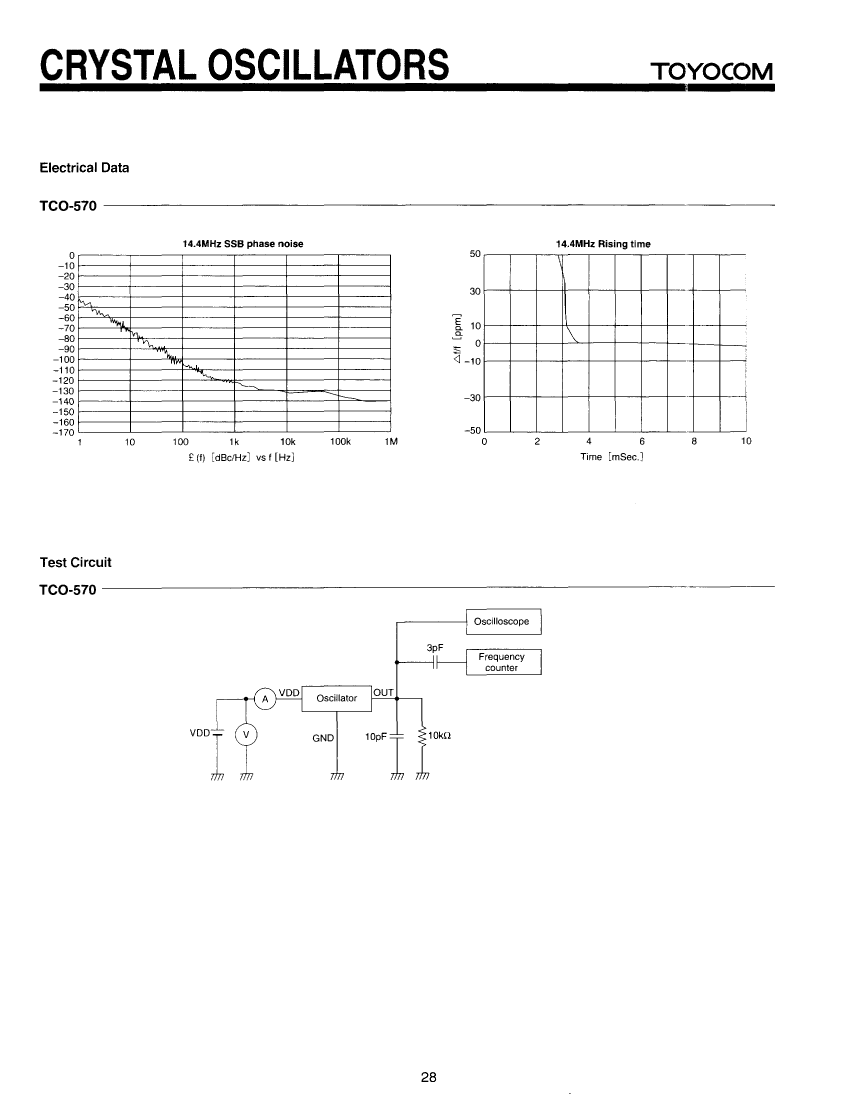

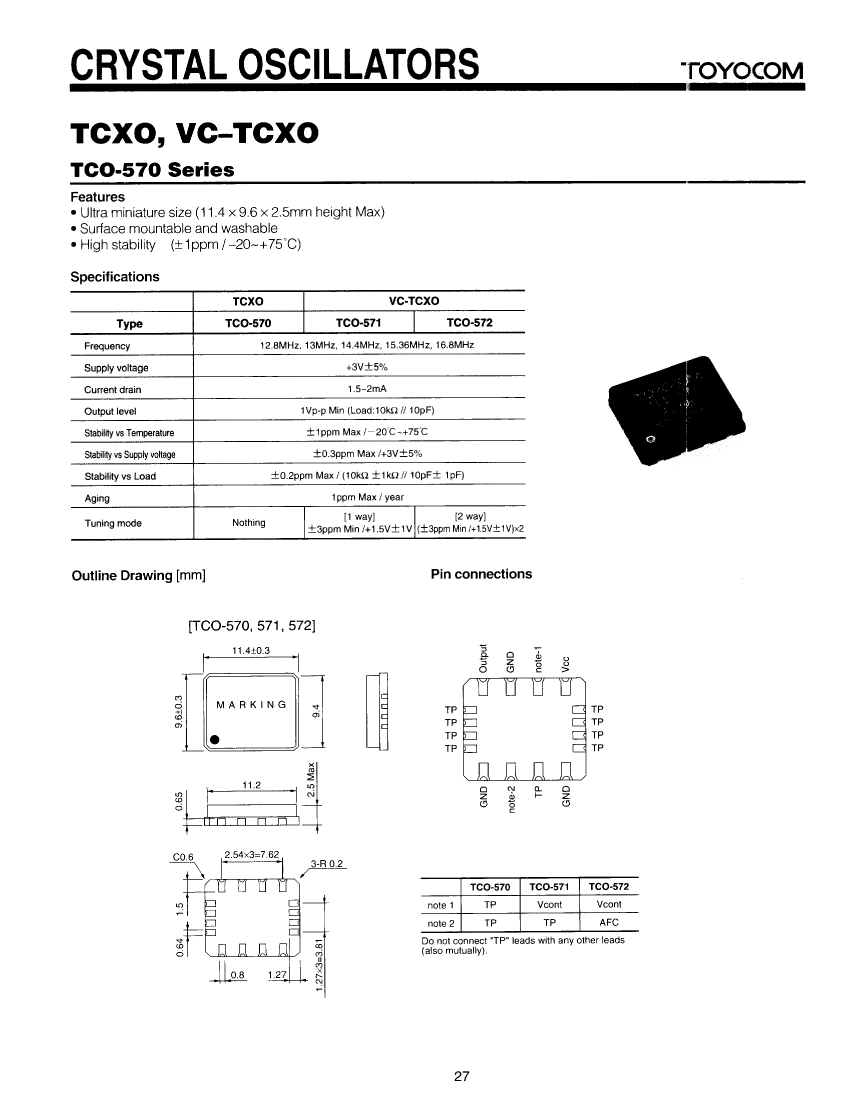

Preview

Download Datasheet

View All

TCO-570-15.36MHZ Related Products

	TCO-570-15.36MHZ	TCO-570-14.4MHZ	TCO-572-14.4MHZ	TCO-570-16.8MHZ	TCO-571-12.8MHZ	TCO-571-14.4MHZ	TCO-570-12.8MHZ	TCO-572-15.36MHZ	TCO-570-13MHZ	TCO-572-16.8MHZ
Description	Sine Output Oscillator, 15.36MHz Nom	Sine Output Oscillator, 14.4MHz Nom	Sine Output Oscillator, 14.4MHz Nom	Sine Output Oscillator, 16.8MHz Nom	Sine Output Oscillator, 12.8MHz Nom	Sine Output Oscillator, 14.4MHz Nom	Sine Output Oscillator, 12.8MHz Nom	Sine Output Oscillator, 15.36MHz Nom	Sine Output Oscillator, 13MHz Nom	Sine Output Oscillator, 16.8MHz Nom
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	1%	1%	1%	1%	1%	1%	1%	1%	1%	1%
Manufacturer's serial number	TCO-570	TCO-570	TCO-572	TCO-570	TCO-571	TCO-571	TCO-570	TCO-572	TCO-570	TCO-572
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	15.36 MHz	14.4 MHz	14.4 MHz	16.8 MHz	12.8 MHz	14.4 MHz	12.8 MHz	15.36 MHz	13 MHz	16.8 MHz
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
physical size	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm	11.4mm x 9.6mm x 2.5mm
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maker	Seiko Epson Corporation	-	-	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation
