DAMQ-7W2S-OL4-A191-A197 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DAMQ-7W2S-OL4-A191-A197

DAMQ-7W2S-OL4-A191-A197: DescriptionD Subminiature Connector, 7 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMQ-7W2S-OL4-A191-A197 Overview

D Subminiature Connector, 7 Contact(s), Female, Solder Terminal,

DAMQ-7W2S-OL4-A191-A197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

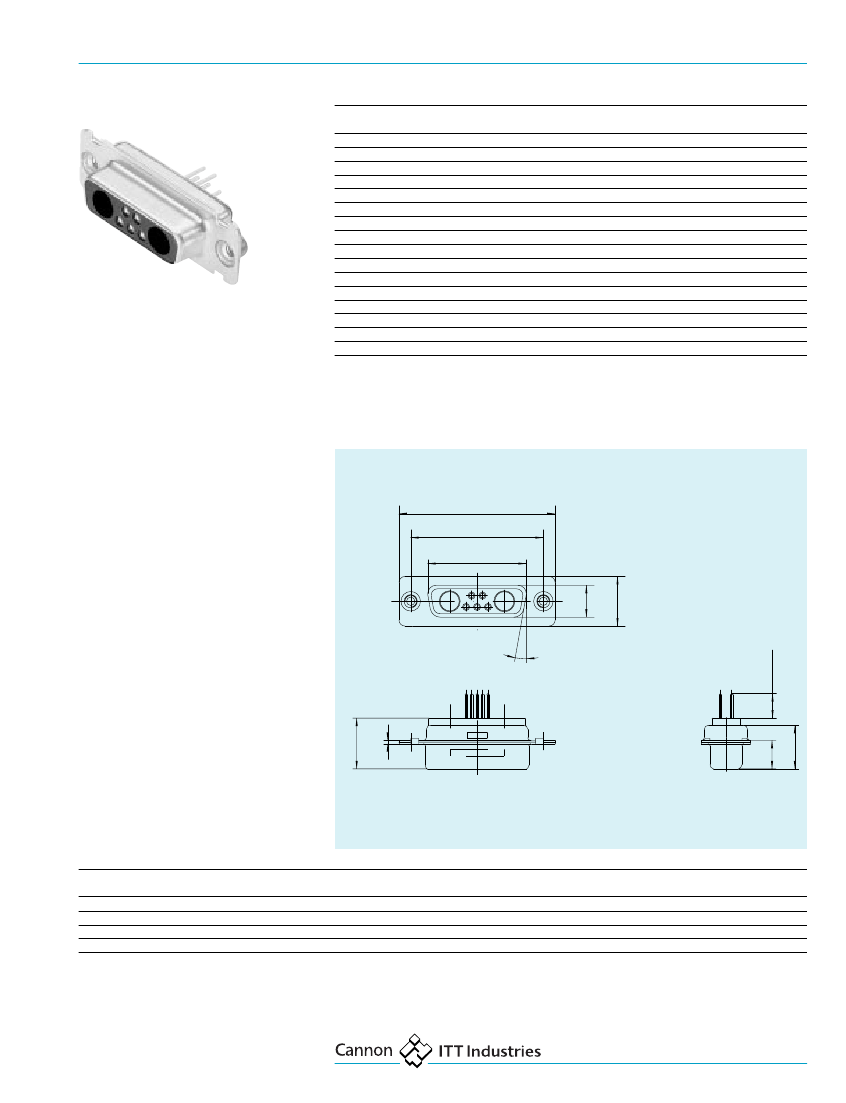

D Subminiature

Socket

Shell

size

Layout

P/N with through hole

3,05 mm

Combo D

/European Version

Straight European solder pins, sizes DE – DC, with empty size 8 cavities

P/N with M3 clinch nut

P/N with M3 standoff post P/N with M3 standoff

and pushfit

with pushfit

For contact cavity arrangements, see page 53.

For pcb hole pattern, see page 64 – 67.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

DEM-5W1S-OL4-A191-A197

DAM-7W2S-OL4-A191-A197

DAM-11W1S-OL4-A191-A197

DAM-3W3S-A197

DAM-3WK3S-A197

DBM-5W5S-A197

DBM-9W4S-OL4-A191-A197

DBM-13W3S-OL4-A191-A197

DBM-17W2S-OL4-A191-A197

DBM-21W1S-OL4-A191-A197

DCM-8W8S-A197

DCM-13W6S-OL4-A191-A197

DCM-17W5S-OL4-A191-A197

DCM-21WA4S-OL4-A191-A197

DCM-25W3S-OL4-A191-A197

DCM-27W2S-OL4-A191-A197

DEMX-5W1S-OL4-A191-A197

DAMX-7W2S-OL4-A191-A197

DAMX-11W1S-OL4-A191-A197

DAMX-3W3S-A197

DAMX-3WK3S-A197

DBMX-5W5S-A197

DBMX-9W4S-OL4-A191-A197

DBMX-13W3S-OL4-A191-A197

DBMX-17W2S-OL4-A191-A197

DBMX-21W1S-OL4-A191-A197

DCMX-8W8S-A197

DCMX-13W6S-OL4-A191-A197

DCMX-17W5S-OL4-A191-A197

DCMX-21WA4S-OL4-A191-A197

DCMX-25W3S-OL4-A191-A197

DCMX-27W2S-OL4-A191-A197

DEMU-5W1S-OL4-A191-A197

DAMU-7W2S-OL4-A191-A197

DAMU-11W1S-OL4-A191-A197

DAMU-3W3S-A197

DAMU-3WK3S-A197

DBMU-5W5S-A197

DBMU-9W4S-OL4-A191-A197

DBMU-13W3S-OL4-A191-A197

DBMU-17W2S-OL4-A191-A197

DBMU-21W1S-OL4-A191-A197

DCMU-8W8S-A197

DCMU-13W6S-OL4-A191-A197

DCMU-17W5S-OL4-A191-A197

DCMU-21WA4S-OL4-A191-A197

DCMU-25W3S-OL4-A191-A197

DCMU-27W2S-OL4-A191-A197

DEMQ-5W1S-OL4-A191-A197

DAMQ-7W2S-OL4-A191-A197

DAMQ-11W1S-OL4-A191-A197

DAMQ-3W3S-A197

DAMQ-3WK3S-A197

DBMQ-5W5S-A197

DBMQ-9W4S-OL4-A191-A197

DBMQ-13W3S-OL4-A191-A197

DBMQ-17W2S-OL4-A191-A197

DBMQ-21W1S-OL4-A191-A197

DCMQ-8W8S-A197

DCMQ-13W6S-OL4-A191-A197

DCMQ-17W5S-OL4-A191-A197

DCMQ-21WA4S-OL4-A191-A197

DCMQ-25W3S-OL4-A191-A197

DCMQ-27W2S-OL4-A191-A197

For performance class 1 replace A191 with A190.

For performance class 3 delete A191.

For clinch nut 4-40 UNC thread replace X with E.

For standoff, 4-40 UNC thread post and pushfit replace U

with N.

For 4-40 UNC thread standoff with pushfit replace Q

with Z.

For captive nut 4-40 UNC replace X with E.

7W2S

ITT

CANNON

6,15

±0,3

12,7 max.

Dimensions

Shell

size

0,38

0,13

0,25

10,9

0,2

0,4

30,8

39,15

53,05

69,3

16,35

24,65

38,4

54,85

33,3

47.05

63,5

7,9

12,55

0,8

6,95
