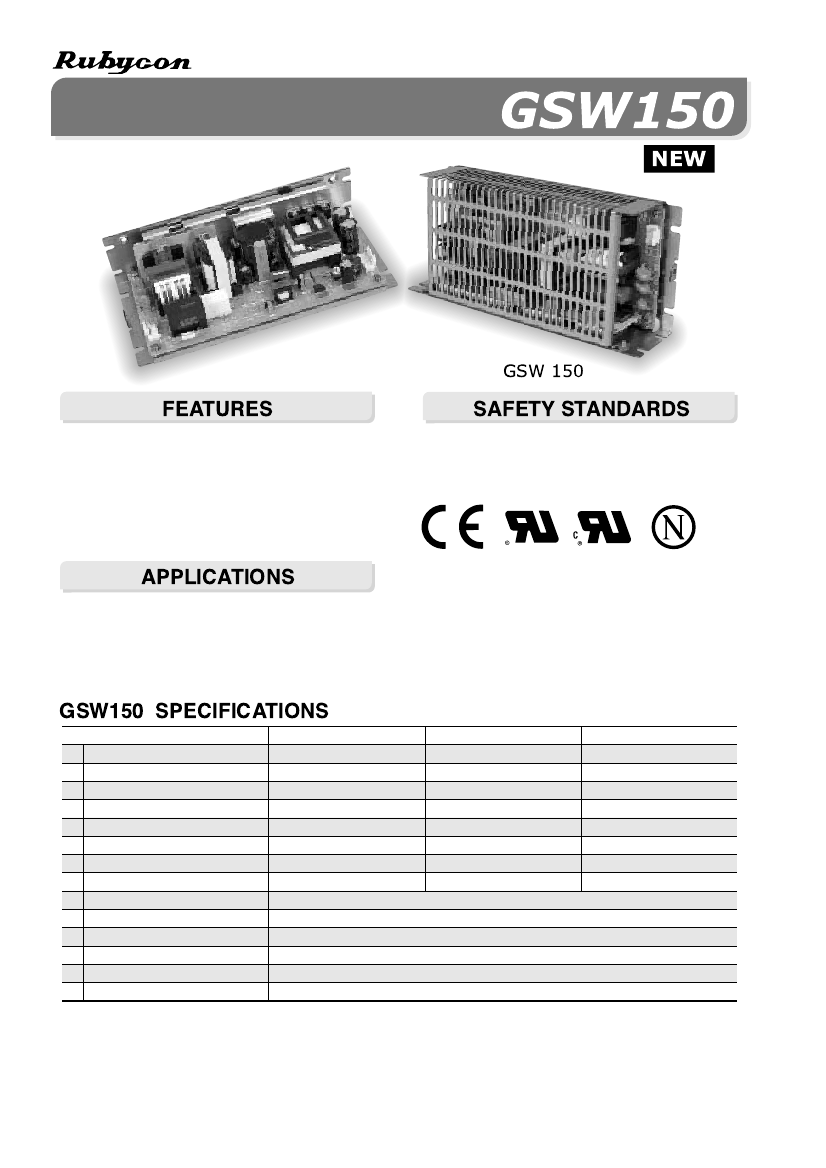

FEATURES
* Resonant switchers, power factor correction and main
converter
* Power factor correction up to 0.99, meeting IEC61000
-3-2(EN61000-3-2)
* 85 to 264VAC universal input
* High efficiency up to 90%
* Low EMI, meeting FCC B, CISPR B
* Over temperature Protection
SAFETY STANDARDS
UL1950 Recognized
CSA22.2 No.950 Certified (cUL)
EN60950 (NEMKO Certified)
CE mark (LVD only)
APPLICATIONS
*Data/information processing equipment
*FA control equipment
*Measuring, inspection and testing equipment
*Communication equipment
*Optical equipment
*Peak loads (for Motor Drive, Lamp) *6
GSW150 SPECIFICATIONS
ITEM
1
2
3
4
5
6
7
8
9
Rated output DC voltage
Rated output DC current (Peak *6)
Maximum output power (Peak *6)
Adjustable voltage range
Efficiency(120/230V AC, TYP)
Maximum ripple noise
Over current protection
Over voltage protection
Input voltage range
GSW150-12
12V
12.5A (18.7A)
150W (224.4W)
*1 11.7∼12.6V
*1 87%/88%
80mVpp
*3 19A ∼
*4 13.8V ∼
85V ∼ 264VAC
47Hz ∼ 63Hz
*1 1.7A (100VAC) , 0.8A (230VAC)
*1 0.99TYP (100VAC), 0.95TYP (230VAC)
*2 20Apk MAX (120VAC), 40Apk MAX (240VAC)
*5 20msMIN
GSW150-15
15V
10A (15A)
150W (225W)
14.7∼15.7V
88%/89%
100mVpp
15.5A ∼
17.3V ∼
GSW150-24
24V
6.3A (9.4A)
151.2W (225.6W)
23.5∼25.2V
89%/90%
150mVpp
9.5A ∼
27.6V ∼
10 Input frequency range
11 Input current
12 Power factor
13 Inrush current
14 Hold-up time
NOTES
*1 When maximum output is worked
*2 When cold start works with rated voltage at 25℃ ambient temperature
*3 Recovers automatically
*4 Recovers on input again
*5 When maximum output is worked, after last AC line peak
*6 (Peak) : Peak Loads for 10 seconds or less are acceptable. Input voltage range AC170V ~ AC264V only.
/59 #

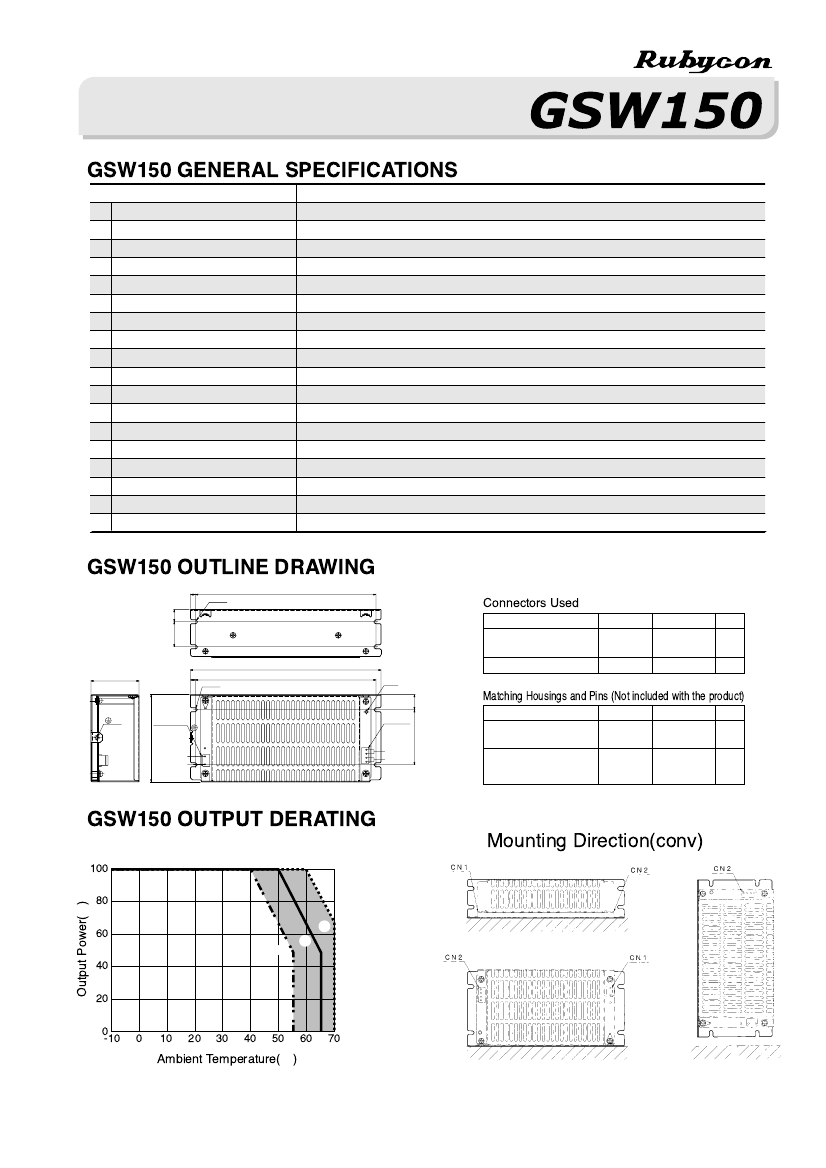

GSW150 GENERAL SPECIFICATIONS
ITEM
1
2
3
4
5
6
7
8
9
Maximum line / load regulation
Voltage tolerance ratio
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Cooling
Electric strength voltages
Insulation resistance
±0.5%
±3% at line, load, time, temperature
-10 ∼ 60℃ (Refer to Output derating)
30 ∼ 90%RH (Non condensing)
-30 ∼ 85℃
10 ∼ 95%RH (Non condensing)
Convection or forced air cooling (Refer to Output derating)
Input - Output 3000VAC 1 minute , Input - FG 1500VAC 1 minute , Output - FG 500VAC 1 minute
100MΩ MIN DC500V 25℃ 70%RH
0.5mA MAX (240VAC, 50Hz)
10∼55Hz 2G (3 directions each 1 hour)
20ms 20G (3 directions each 3 times)
UL1950, CSA950(cUL), EN60950(NEMKO) Approvals
Meeting FCC Class B, EN55022 Class B, VCCI Class B
Meeting EN61000-3-2
Meeting EN61000-3-5 Level 3/4KV(CM),2KV(DM)
87(W) 190(D) 48(H) mm / 3.43"(W) 7.48"(D) 1.89"(H)
730g / 1.61lb. TYP
Input - Output, Input - FG, Output - FG
10 Leakage current
11 Vibration
12 Shock
13 Safety standards
14 Conduction noise
15 Harmonic distortion
16 Mains surge
17 Dimensions
18 Weight
GSW150 OUTLINE DRAWING
５
４−φ４
１２
１８０
Connectors Used
Part Description
CN1 Pin Header (Input side)
１９０
Part Name
Manufacturer Q.T.Y
1
1
２５
B2P3-VH
JST
or B3P5-VH
JST
CN2 Pin Header (Output side) B4P-VH
ＬＥＤ
４８
５
４−φ４
１８０
１５
Matching Housings and Pins (Not included with the product)
Part Description
ＦＧ
Ｍ４
８７
ＡＣ ＩＮＰＵＴ
ＣＮ１
ＯＵＴＰＵＴ
ＣＮ２
５５
Part Name
VHR-3N
or VHR-5N
VHR-4N
Manufacturer Q.T.Y
JST
JST
1
1
6 or 7
CN1 Socket Housing
CN2 Socket Housing
（Ｎ）
（Ｌ）
（＋）
（−）
(CN1, CN2) Terminal Pins BVH-21T-P1.1 JST
GSW150 OUTPUT DERATING
Mounting Direction(conv)
100
Output Power(
%
)
80
60
C
○
A
○
B
○
40
20
0
-10
0
10
20
30
40
50
60
70
A
○
Conv. With Cover
B
○
Conv. Open Frame
C
○
F／Air
Ambient Temperature(
℃
)
