AMP Precision Pin and Socket Contacts
Power Contacts
Type I, Crimp, Snap-In
.953
[24.21]
Ref.
.150
Dia.
[3.81]
.663
Max.
[16.84]
.449
[11.40]
Pin
.094
±.001
Dia.
[2.39
±.025
]
.222
Dia. Max.
[5.64]
Pin
.150
Dia.
[3.81]
.560
Max.
[14.25]
Socket
Accommodates
.094
±.001
[2.39
±.025
]
Dia. Pin
.222
Dia. Max.
[5.64]
.843
Ref.
[21.41]
Socket
Material
Contact Body—Bronze
Retention Spring—Beryllium
copper
Size 12—Pin Diameter .094 [2.39] (Test Current, 23 Ampere)‡
Wire Size
Range
AWG
[mm
2
]
18-16
14-12
0.8-1.4
2-3
Loose Piece
Contact No.
Pin
Socket
202421-1
202422-1
202418-1
202417-1
Tooling Part No.
Dies for
Hand
Pneumatic
Tool
Tool*
90122
90121
90122
90121
Finish
Contact Body—.000030
[0.00076]
gold over .000050 [0.00127] nickel.
Gold thickness controlled on socket O.D.
Retention Spring—Nickel
plated
Related Product Data
Application Tooling—Pages
29, 30
Technical Documents
108-10108 Product Specification
114-10037 Application Specification
* Use hand actuated Power Unit
Part No. 189721-2
or foot actuated Power
Unit
Part No. 189722-2.
Both units require “C” Head Die Set Adapter
Part No. 318161-1
and an Adapter Holder
Part No. 356304-1
(with ratchet)
or
Part No. 189928-1
(without ratchet). Request Catalog 124208 for more
information on the 626 Pneumatic Tool System.
‡Single contact, free-air test current; not to be construed as contact rating
current. Use only for testing. Refer to contact current carrying capability
information, page 3.
Extraction Tool
Part No. 305183-8
(Instruction Sheet 408-1216)
Note:
All part numbers are RoHS compliant.
18
Catalog 65910
Revised 7-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
Central America: 52-55-5-729-0425
South America: 55-11-3611-1514
www.tycoelectronics.com
AMP Precision Pin and Socket Contacts
Power Contacts—High Current Upgrade
(Continued)
Type II and Type III+,
Size 16
The features of the High Current Size 16
contact have been designed to fit into the
existing AMP Multimate Connectors such
as CPC (Circular Plastic Connector),
CMC (Circular Metal Connector),
G Series, M Series, Econoseal Metrimate
Square Grid and Drawer Connector hous-
ings. An initial T-Rise test in free air has
shown a 23 amp capability with a 30°C
T-Rise. The contact may be crimped onto
14 AWG wire with a Tyco Electronics
hand tool P/N 601967-1. Use turret
TH502 (1-601967-6) for the pin and tur-
ret TH501 (1-601967-5) for the socket.
Standard
Type II Socket
Standard
Type III+ Socket
Standard
Type II Pin
Wire Size
AWG
14
18-16
High Current Size 16
Socket Part No.
Loose Piece Tape
193846-1 193846-2
796966-1 796966-2
Standard
Type III+ Pin
Wire Size
AWG
High Current
Size 16 Pin
(Board Mount)
Part No. 194264-1
14
18-16
High Current Size 16
Pin Part No.
Loose Piece Tape
193844-1 193844-2
796964-1 796964-2
Material
Pin Body
— Leaded Brass;
Copper Alloy (Board Mount)
Socket Body
— Copper Alloy
Louvertac Band
— Beryllium Copper
Retention Spring
— Stainless Steel
Finish
Body
— Silver
Louvertac Band
— Gold
4 Pos. CPC Posted Square Flange Receptacle
Part No. 796764-1
Mates with CPC Plug (Part No. 206060-1) with either
Type II or High Current Socket contact
Extraction Tool Part No. 305183
TEMPERATURE RISE VS. CURRENT
40
Current Rating for
30°C Temperature Rise
100% Energized
6 Circuit Metrimate
Connector (Wire-to-Wire)
TEMPERATURE RISE
(DEGREES C)
Current-Carrying Capacity. The
graph shows current-carrying capacity
versus temperature rise for a fully ener-
gized 6 position Metrimate Square Grid
plug P/N 207152-1 and receptacle P/N
207153-1. These initial representative
amperage ratings were conducted with
14 AWG wires that were 2 feet long.
s
30
20
10
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
R
0
0
10
20
30
CURRENT (AMPS)
CRIMPED CONTACTS
Plug
(for Sockets)
Receptacle
(for Pins)
Notes:
1. High Current contacts with Louvertac bands are NOT intermateable with any other contact.
2. Additional information on CPC and CMC connectors is available in Catalog 82021.
3. Additional information on G Series connectors is available in Catalog 82046.
4. Additional information on M Series connectors is available in Catalog 82003.
5. Additional information on Metrimate connectors is available in Catalog 82045.
6. Additional information on Econoseal connectors is available in Catalog 82057.
7. Additional information on LGH connectors is available in Catalog 82024.
Note:
All part numbers are RoHS compliant.
19
Catalog 65910
Revised 7-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
Central America: 52-55-5-729-0425
South America: 55-11-3611-1514
www.tycoelectronics.com
AMP Precision Pin and Socket Contacts
Power Contacts
(Continued)
.125 POWERBAND Contacts
Pin Diameter—.125
[3.175]
Test Current—50 Amperes‡
Material and Finish
Contact
— Copper
Spring
— Beryllium copper
Plating Code
A.
0.00508 [.000200] min. silver on
contact area, 0.00127 [.000050] min. on
remainder, all over 0.00127 [.000050]
min. nickel underplate
B.
0.00076 [.000030] min. gold on
contact area, gold flash on remainder, all
over 0.00127 [.000050] min. nickel
underplate
5.23
Dia.
[.206]
3.18
[.125]
Dia.
Serrations
Extended
12.32
[.485]
Standard
10.16
[.400]
Contact
Strip
5.23
[.206]
Dia.
Related Product Data
Application Tooling—Pages
29, 30
Technical Document—Page
4
Extraction Tool
Part No. 318813-1
(Instruction Sheet 408-4374)
Contact Part No.
Wire Size
AWG /mm
2
Contact
Finish
A
B
A
B
A
B
A
B
Pin
Length
Pin
14-12
2-3
Standard
Standard
Extended
1
Extended
1
Standard
Standard
Extended
1
Extended
1
213845-1
213845-2
213845-5
213845-6
213841-1
213841-2
213841-5
213841-6
Strip
Socket
213847-1
213847-2
—
—
213843-1
213843-2
—
—
Loose Piece
Pin
213845-3
213845-4
213845-7
213845-8
213841-3
213841-4
213841-7
213841-8
Socket
213847-3
213847-4
—
—
213843-3
213843-4
—
—
Tooling Part No.**
Heavy Duty Miniature (HDM)
Die Sets for
Applicators (for AMP-O-LECTRIC Hand Tool 69710-1
Model G Machine,
or 626 Pneumatic Tool
Base Part No. 354500)
System*
.125 POWERBAND Pin Contact
.125 POWERBAND Socket Contact
680195-3
356612-1
10-8
5-8
356611-1 (8 AWG)
680197-3
356611-2 (10 AWG)
use in Metrimate Drawer Connectors listed in chart below and Two-Piece Sealed Circular Plastic Connectors (CPC), Series 5 and 6.
‡Single contact, free-air test current; not to be construed as contact rating current. Use only for testing.
Refer to contact current carrying capability information, page 3.
Note:
Standard Size 8, High Current Size 8 upgrade, and .125 POWERBAND contacts are
not
intermateable.
*A typical 626 Pneumatic Tool System requires: a power unit (Part
No. 189721-2,
hand actuated or
189722-2,
foot actuated), an adapter
holder (Part
No. 356304-1,
with ratchet), and “C” Head adapter
Part No. 318161-1.
**There are power options available for these tools/dies. See Battery Powered Crimp tool Kit and SDE Electric Terminator on page 30.
Note:
All part numbers are RoHS compliant.
1
For
.125 POWERBAND Metrimate Drawer Connectors
No. of
Pos.
8
Housing Part No.
Receptacle
Plug
213886-1**
213500-3**
Color: blue
**
For use with .125 POWERBAND contacts (Extended Pin Length),
listed above.
Note:
All part numbers are RoHS compliant.
20
Catalog 65910
Revised 7-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
Central America: 52-55-5-729-0425
South America: 55-11-3611-1514
www.tycoelectronics.com
AMP Precision Pin and Socket Contacts
Power Contacts
(Continued)
Standard, Size 8,
4/8 Indent Crimp
.910
[23.11]
.206
Dia.
[5.23]
Pin
Pin
.890
[22.61]
.206
Dia.
[5.23]
Socket
Socket
Note:
Standard Size 8, High
Current Upgrade Size 8 and
.125 POWERBAND contacts
are
not
intermateable.
Material
Contact Body—Copper
alloy
Retention Clip—Phosphor
bronze
Power Contacts, Standard, Size 8 (Test Current 50 Amperes)‡
Wire Range
[mm
2
]
AWG
18-16
14-12
10
8
0.8-1.4
2-3
5
8
Contacts
Pin
Socket
213567-1
213662-1
213740-1
213552-2
212014-1
212008-1
213737-1
213750-1
Crimping Tools
Positioner
Tool No.
(P) SP867
608668-1 (S) 608668-2
SP867
608651-1 (P) 608651-2
(S)
608651-1 (P) 608651-3
(S) 608651-2
(P) 608651-3
608651-1 (S) 608651-2
Finish
Contact Body—.000050
[0.00127]
gold over .000050 [0.00127] nickel
Retention Spring—Nickel
plated
Related Product Data
Technical Documents
108-10045 Product Specification
114-10014 Application Specification
‡Single contact, free-air test current; not to be construed as contact rating
current. Use only for testing. Refer to contact current carrying capability
information, page 3.
Note:
All part numbers are RoHS compliant.
21
Catalog 65910
Revised 7-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
Central America: 52-55-5-729-0425
South America: 55-11-3611-1514
www.tycoelectronics.com
AMP Precision Pin and Socket Contacts
Power Contacts—High Current Upgrade
(Continued)
Metrimate Drawer
Connector, Size 8
The Louvertac bands have the versatility
of being designed into contact dimen-
sions used in existing Tyco Electronics
connectors.
Metrimate High Current contacts
have been designed to fit into the exist-
ing Drawer Connector housings. A fully
energized 8 position connector with
8 gage wires can handle 30 amps per
line with a 30°C T-rise on either the
cable-to-cable or cable-to-board.
Standard
Size 8 Socket
Receptacle
Standard
Size 8 Pin
Plug
Cable-to-Cable
Material
Contact Body
— Copper Alloys
Louvertac Band
— Beryllium Copper
Retention Spring
— Stainless Steel
Finish
— Gold

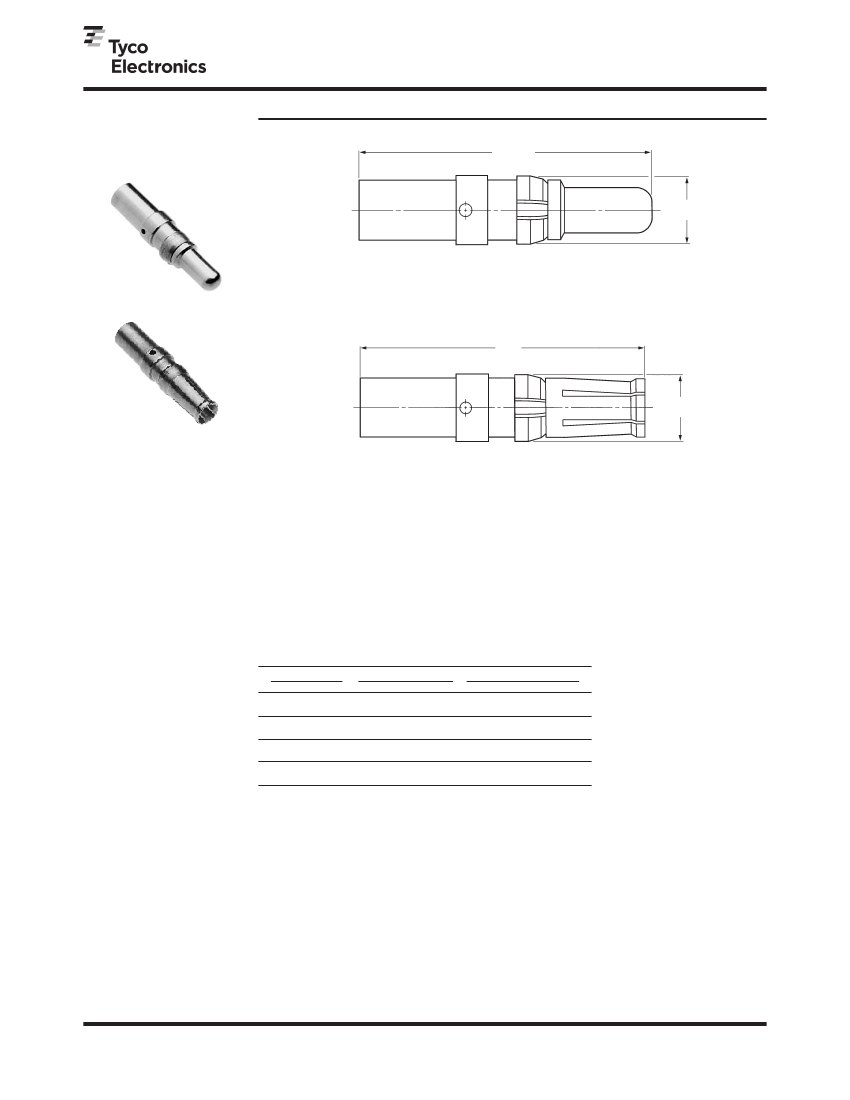

High Current
Size 8 Socket
High Current
Size 8 Pin

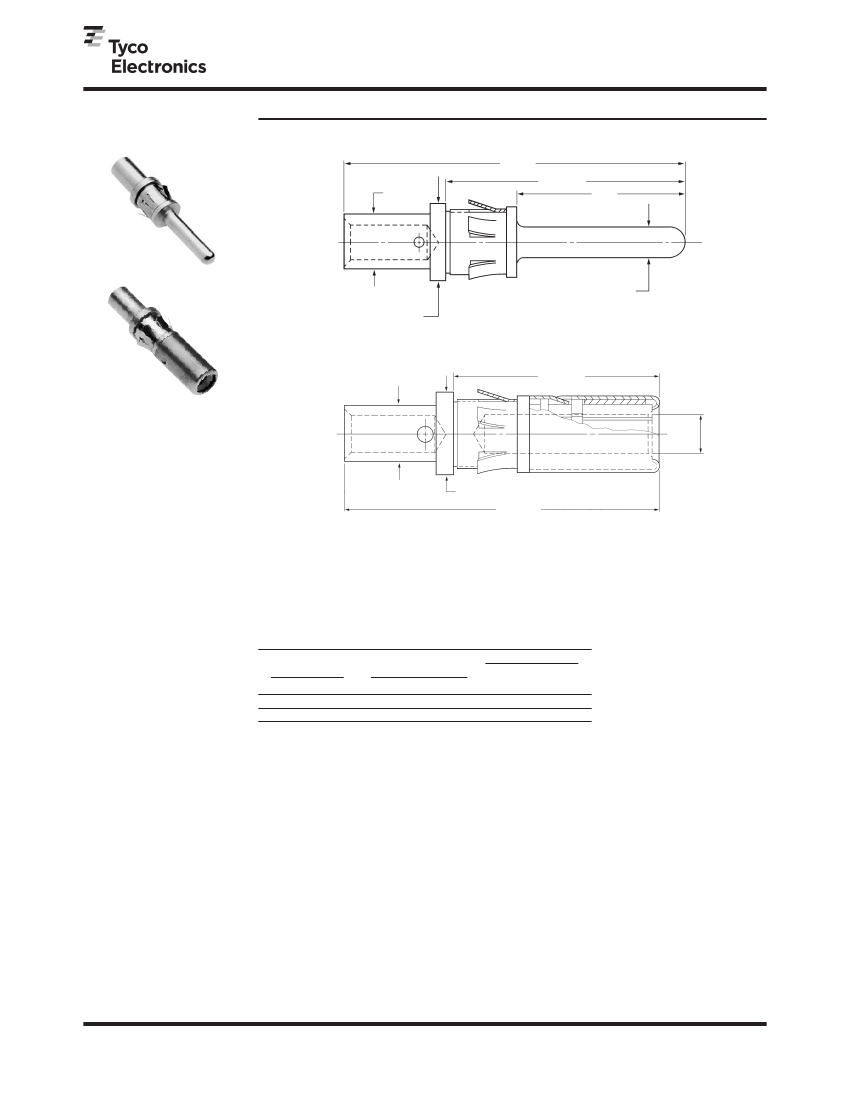

Product Specification
108-1449 Metrimate Pin and Socket
with Louvertac High Current Contact
Connector Voltage Rating
—
600 VAC
s
High Current Contacts
Wire Size
AWG
8
10
12-14

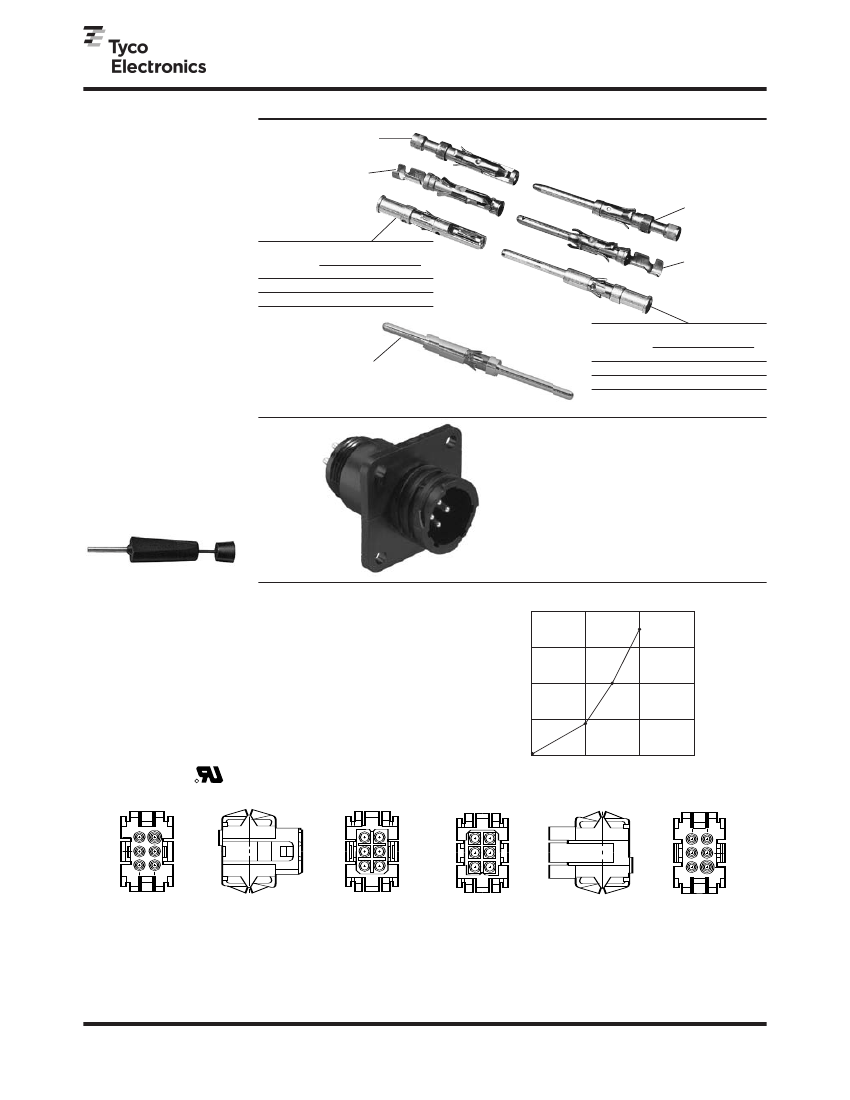

Contact Part Numbers
Pin
Socket
193457-1
193458-1
193642-1
193643-1
193534-1
193535-1
Crimp Tools
Daniels
†
Hand Tool #M310 or AMP P/N 356114-1
Positioner #TP944 or AMP P/N 356336-1
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
R
Extraction Tool Part No. 318813-1 or 305183-6
†
Daniels Manufacturing Corp., Orlando, FL
Note:
All part numbers are RoHS compliant.
s
Certified by Canadian
Standards
Association,
File No. LR7189A
R
.12 Diameter
Solder Tail Pins
Part No. 193814-1
Receptacle
.50
[12.7]
Cable-to-Board
Material
Contact Body
— Copper Alloys
Louvertac Band
— Beryllium Copper
Retention Spring
— Stainless Steel
Finish
— Gold
A typical application would have solder
tail pins mounted into the receptacle and
crimp sockets mounted into the plug.
Plug
Cable Sockets

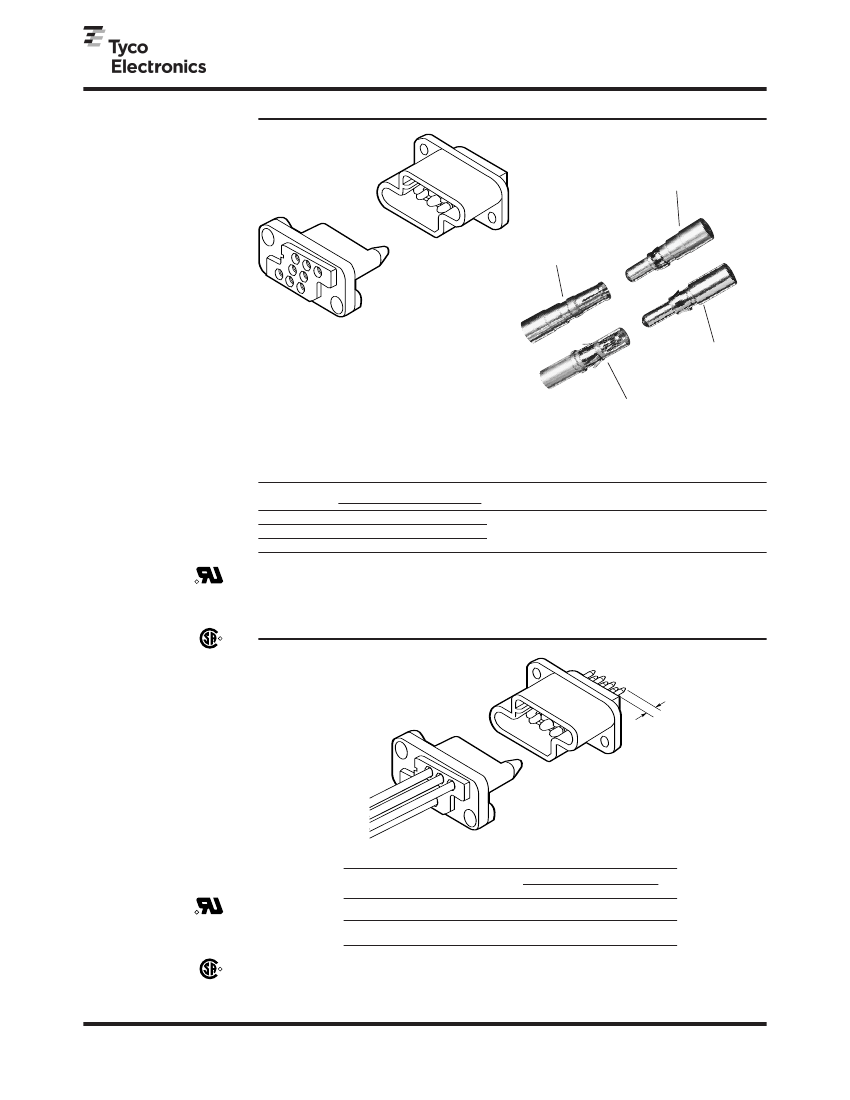

Drawer Connector Housings
s
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
R
Size
Configuration
8 Positions
(8 Size 8 Cavities)
Housing Part Numbers
Plug
213499-1
213426-1
Receptacle
213500-1
213427-1
15 Positions
(3 Size 8 Cavities & 12 Size 16 Cavities)
s
Certified by Canadian
Standards
Association,
File No. LR7189A
R
Extraction Tool Part No. 318813-1
Note:
All part numbers are RoHS compliant.
Notes:
1. High Current contacts with Louvertac bands are NOT intermateable with any other contact.
2. Additional information on connectors is available in Catalog 82045.
22
Catalog 65910
Revised 7-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject to change.
Technical Support
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 01-800-733-8926
Central America: 52-55-5-729-0425
South America: 55-11-3611-1514
www.tycoelectronics.com
京公网安备 11010802033920号
EEWORLD
