F215-0722-300-Z: DescriptionCard Edge Connector, 7 Contact(s), 1 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size323KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

F215-0722-300-Z Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking

F215-0722-300-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
subject depth	0.22 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
insulator material	NYLON
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

HOW TO ORDER:

F

2

1

5

-

X

2

-

3

0

-

Z

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

20 mΩ Max.

INSULATION RESISTANCE:

500 MΩ Min.

VOLTAGE RATING: 200 V

OPERATING TEMPERATURE: -40° C ~ +105° C

Rev

0

Issued

PITCH:

5 - 0.80mm (ZIF)

DEFINITION:

2 - SMT

CONTACT POINT:

3 - Upper Contact

INSERT DIRECTION:

2 - Side Entry (ZIF)

PACKAGING: RoHS

COMPLIANT:

0 - Tube

CONTACT PLATING OPTION:

0 - Tin Plating

MATERIAL:

INSULATOR: Nylon UL94V-0

CONTACT: PHOSPHOR BRONZE

FINISH: TIN PLATED

Apv.

WHS

NUMBER OF CONTACTS:

03 Thru 30

Date

06/28/06

SMP TECHNOLOGY, INC.

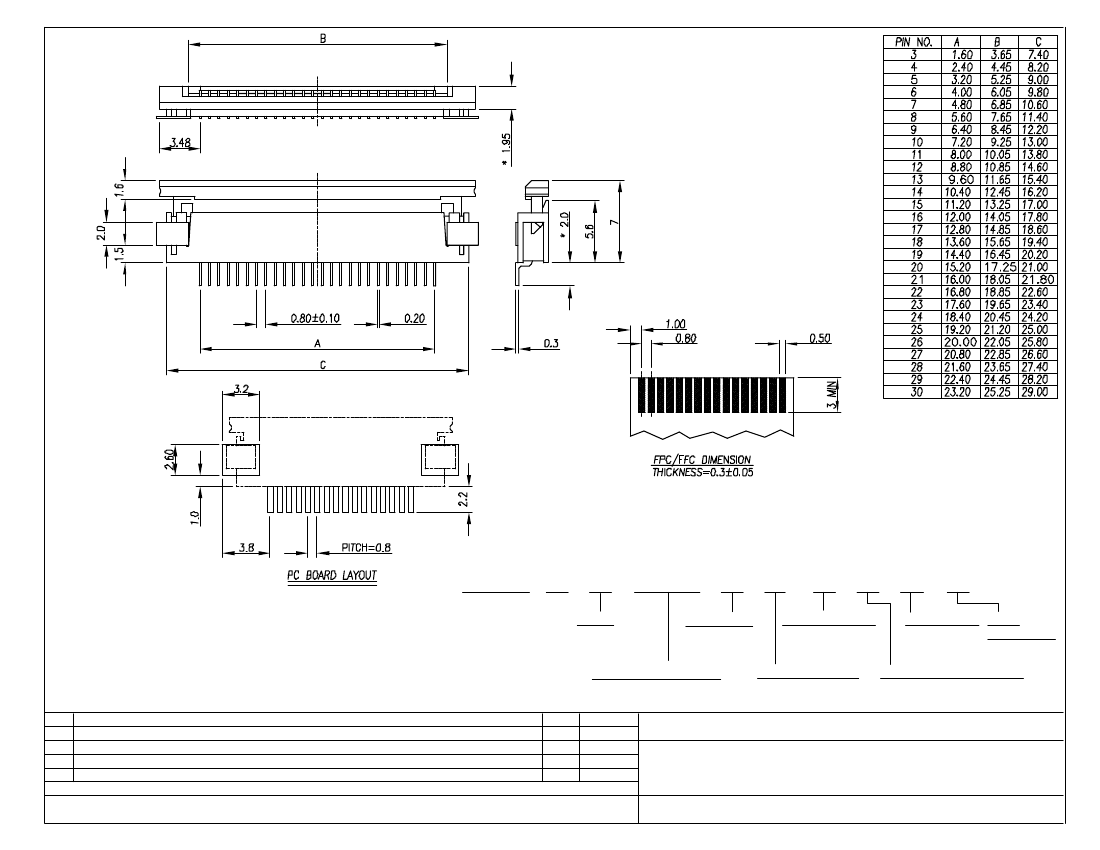

FFC Connector - ZIF Type, 0.80mm Pitch, SMT, Side Entry,

Surface Mount, Top Contact

SCALE: n/a

TOL. DEC.

.X +/- 0.25

.XX +/- 0.13

.XXX +/-

ANGLE +/-

UNIT: mm

P/N: F 2 1 5 - X X 2 2 - 3 0 0 - Z

F215-0722-300-Z Related Products

	F215-0722-300-Z	F215-0322-300-Z	F215-0822-300-Z	E1SPA20-6.53125MTR
Description	Card Edge Connector, 7 Contact(s), 1 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 3 Contact(s), 1 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 8 Contact(s), 1 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking	QUARTZ CRYSTAL RESONATOR, 6.53125 MHz
Reach Compliance Code	unknow	unknown	unknown	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	AT-CUT; TAPE AND REEL
Maximum operating temperature	105 °C	105 °C	105 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-20 °C
subject depth	0.22 inch	0.22 inch	0.22 inch	-
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	-
Contact to complete cooperation	SN	SN	SN	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-
maximum insertion force	ZIF N	ZIF N	ZIF N	-
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	-
insulator material	NYLON	NYLON	NYLON	-
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	-
Installation option 1	LOCKING	LOCKING	LOCKING	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	-
PCB row number	1	1	1	-
Number of rows loaded	1	1	1	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Rated current (signal)	1 A	1 A	1 A	-
Guideline	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	7	3	8	-
Base Number Matches	1	1	1	-

Recommended Resources

Multifunctional high-precision sample and hold circuit diagram

square wave signal generator

Autotransformer voltage reduction control circuit

Qindao-Li Bohaier brand BC-230 refrigerator circuit

Rotary encoder circuit

Single wire remote control water pump circuit
