High Density
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
Size 22 Contacts,
Two Connectors Vertically
Stacked and Assembled
As a Single Connector Unit
Professional Quality
Connectors
U.L. Recognized
File #E49351
CSA Recognized
File #LR54219
Telecommunication
U.L. File #14098

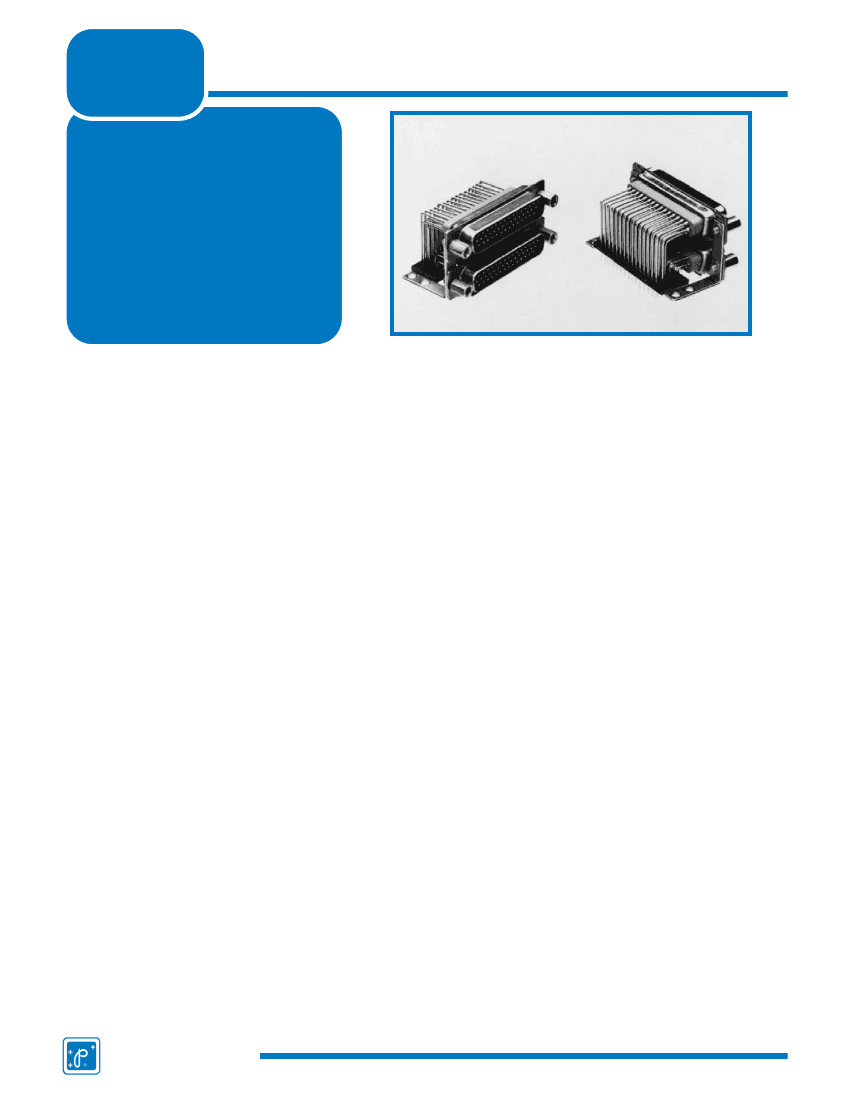

High Density Dual Port Series connectors utilize two high density
connectors vertically stacked and assembled into a single connector
unit, which permits saving of panel and printed board space, and
decreases final assembly costs.
High Density Dual Port Series connectors are professional quality
connectors
recommended
for
use
in
sheltered,
non-
corrosive indoor and outdoor environments having normal ventilation.
Connector contact variants are 15, 26, 44 and 62. Connector gen-
ders can be mixed, i.e., one male and one female connector within one
High Density Dual Port assembly. The two connectors may be spaced
apart to three standard dimensional spacings. The connector may also
be partially populated with contacts which are installed in the connec-
tor body to customer selected contact positions.
Mounting angle brackets can be ordered riveted to the connector by
specifying R2, R6, R7 or R8 options. Locking systems are available uti-
lizing 4-40 threaded jackscrew systems, polarized or non-polarized, or
with a quick release Vibration Lock System for either front or rear panel
mounted connectors.
High Density Dual Port Series connectors comply with the dimen-
sional requirements of MIL-DTL-24308.
HIGH DENSITY DUAL PORT SERIES TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Insulator:
Contacts:
Contact Plating:
Shells:
Mounting Spacers
and Brackets:
Cross Bar:
Push-On Fasteners:
Jackscrew Systems:
Vibration Lock Systems:
Glass-filled polyester per MIL-M-24519,
UL 94V-0. Black color.
Male and female contacts – precision
machined high tensile phosphor bronze.
Gold flash over nickel plate. Other finishes
available upon request.
Steel with tin plate, or zinc plate with
dichromate seal. Other materials and
finishes available upon request.
Steel or brass with tin plate, or zinc with
dichromate seal.
Nylon resin, UL 94V-0, black color.
Beryllium copper with tin plate.
Steel with zinc plate and dichromate
seal, or clear zinc plate.
Lock tabs, steel with nickel plate.
MECHANICAL CHARACTERISTICS:
Fixed Contacts:
Size 22 contact, male contact – 0.030 inch
[0.76 mm] diameter. Female contact –
rugged open entry design.
Contact Retention in Insulator:
7 lbs. [31 N].
Contact Terminations:
Printed board mount with 90° termina-
tions supported in footprint pattern by a
plastic cross bar. Termination diameter
0.020 inch [0.51 mm].
Shells:
Polarization:
Mounting Bracket
Riveted to Connector:
Male shells may be dimpled for EMI/ESD
ground paths.
Trapezoidally shaped shells and polar-
ized jackscrews.
Riveted fasteners with 0.120 inch [3.05
mm] diameter clearance hole, 4-40
threads, or 4-40 threads with nylon lock
insert.
Rapid installation push-on fasteners.
Jackscrews and vibration locking sys-
tems for either front or rear panel mount-
ed connectors.
500 operations minimum per IEC 512-5.
-55°C to +125°C.
ELECTRICAL CHARACTERISTICS:
Contact Current Rating:
3 amperes.
Initial Contact Resistance:
0.010 ohms maximum.
Proof Voltage:
1,000 V r.m.s.
Insulator Resistance:
Clearance and Creepage
Distance [minimum]:
Working Voltage:
5 G ohms.
0.039 inch [1.0 mm].
300 V r.m.s.
Mounting to Printed Board:
Locking Systems:
Mechanical Operations:
Temperature Range:
CLIMATIC CHARACTERISTICS:
9
Positronic
Industries, Inc.
High Density
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS

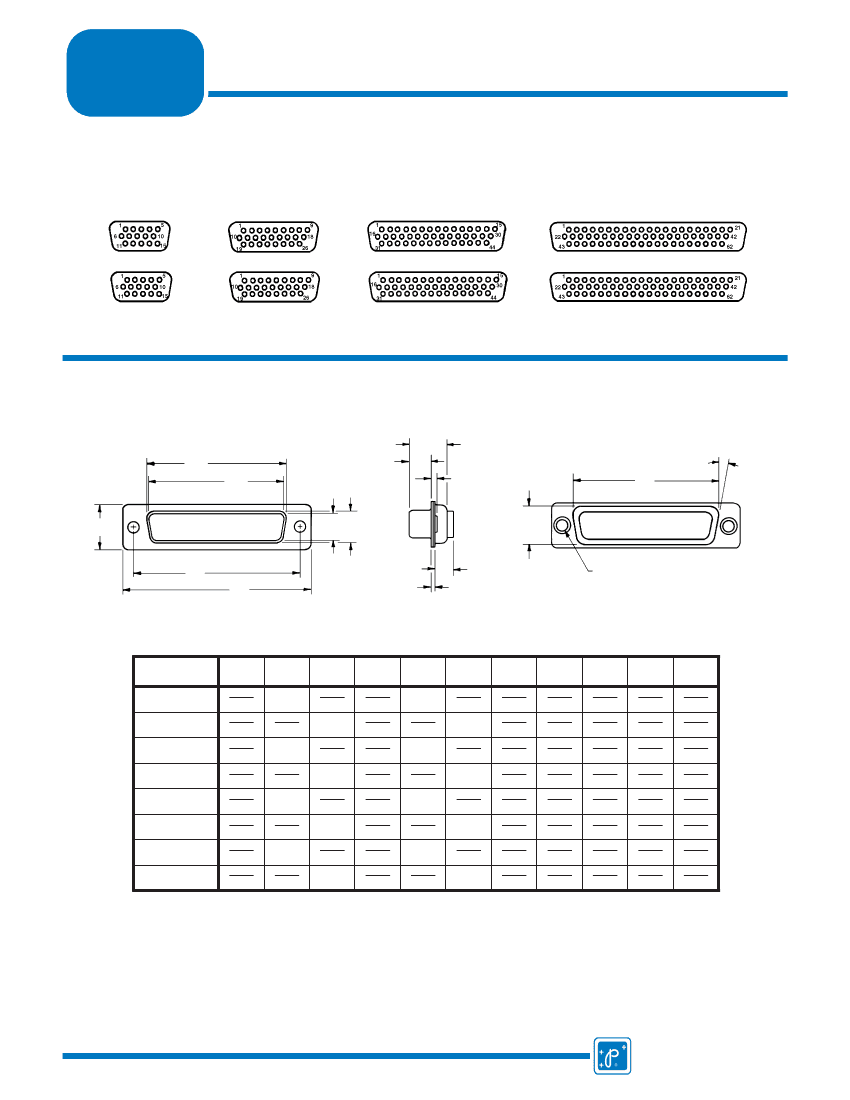

CONTACT VARIANTS
FACE VIEW OF MALE OR REAR VIEW OF FEMALE
DD*15/15
DD*26/26
DD*44/44
DD*62/62
STANDARD SHELL ASSEMBLY
M
B
B1
K
0.050 [1.27] ±0.010
G
10° Typ.
E
D
D1
H
C
A
0.036 [0.91] ±0.008
0.220 [5.59]
Max.
0.120 [3.05] ±0.005 Ø Mounting hole,
two places
CONNECTOR
VARIANT SIZES
15M/15M
15F/15F
26M/26M
26F/26F
44M/44M
44F/44F
62M/62M
62F/62F
A
±0.015
1.213
[30.81]
1.213
[30.81]
1.541
[39.14]
1.541
[39.14]
2.088
[53.04]
2.088
[53.04]
2.729
[69.32]
2.729
[69.32]
B
±0.005
B1
±0.005
0.666
[16.92]
C
±0.005
0.984
[24.99]
0.984
[24.99]
1.312
[33.32]
1.312
[33.32]
1.852
[47.04]
1.852
[47.04]
2.500
[63.50]
2.500
[63.50]
D
±0.005
D1
±0.005
0.329
[8.36]
E
±0.015
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
0.494
[12.55]
G
±0.010
0.759
[19.28]
0.759
[19.28]
1.083
[27.51]
1.083
[27.51]
1.625
[41.28]
1.625
[41.28]
2.272
[57.71]
2.272
[57.71]
H
±0.010
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
0.422
[10.72]
K
±0.005
0.233
[5.92]
0.243
[6.17]
0.233
[5.92]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
0.230
[5.84]
0.243
[6.17]
M
±0.010
0.422
[10.72]
0.429
[10.90]
0.422
[10.72]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.426
[10.82]
0.429
[10.90]
0.643
[16.33]
0.994
[25.25]
0.971
[24.66]
1.534
[38.96]
1.511
[38.38]
2.182
[55.42]
2.159
[54.84]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
0.329
[8.36]
0.311
[7.90]
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Positronic
10
Industries, Inc.
High Density
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS

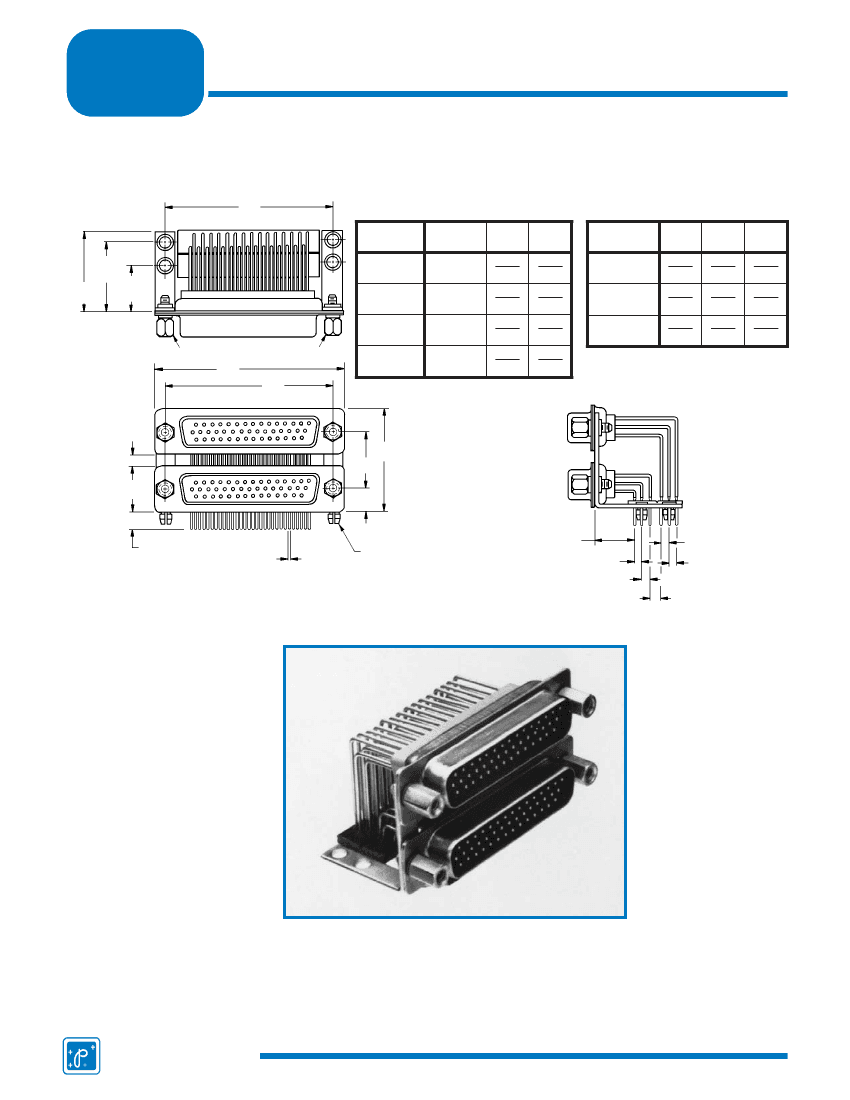

90° PRINTED BOARD MOUNT CONNECTOR
6 ROW CONNECTOR UNIT, 0.450 [11.43] CONTACT EXTENSION
±0.008
B
CONNECTOR
NO. OF
VARIANT
CONTACTS
±0.010
0.784
[19.91]
±0.010
0.901
0.528
[22.89]
[13.41]
15
26
44
Fixed female jackscrews
A
B
62
124
30
52
88
A
1.213
[30.81]
1.541
[39.14]
2.088
[53.04]
2.729
[69.32]
B
0.984
[24.99]
1.312
[33.32]
1.852
[47.04]
2.500
[63.50]
CONNECTOR
DESIGNATION
DDA
DDB
DDC
C
0.625
[15.88]
0.750
[19.05]
0.900
[22.86]
D
1.119
[28.42]
1.244
[31.60]
1.394
[35.41]
E
0.131
[3.33]
0.256
[6.50]
0.406
[10.31]
D
E
±0.010
C
0.247
[6.27]
±0.010
0.125 [3.18] Nominal
0.020
Ø Typ.
[0.51]
Push-on fastener
beryllium copper
0.450 [11.43] Typ.
0.078 [1.98] Typ.
0.078 [1.98] Typ.
0.078 [1.98] Typ.
0.078 [1.98] Typ.
Typical Part Number: DDA44MN7T2/44MN7T2X
0.100 [2.54] Typ.
DDA44MR7T/44MR7T0
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
11
Positronic
Industries, Inc.
High Density
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS

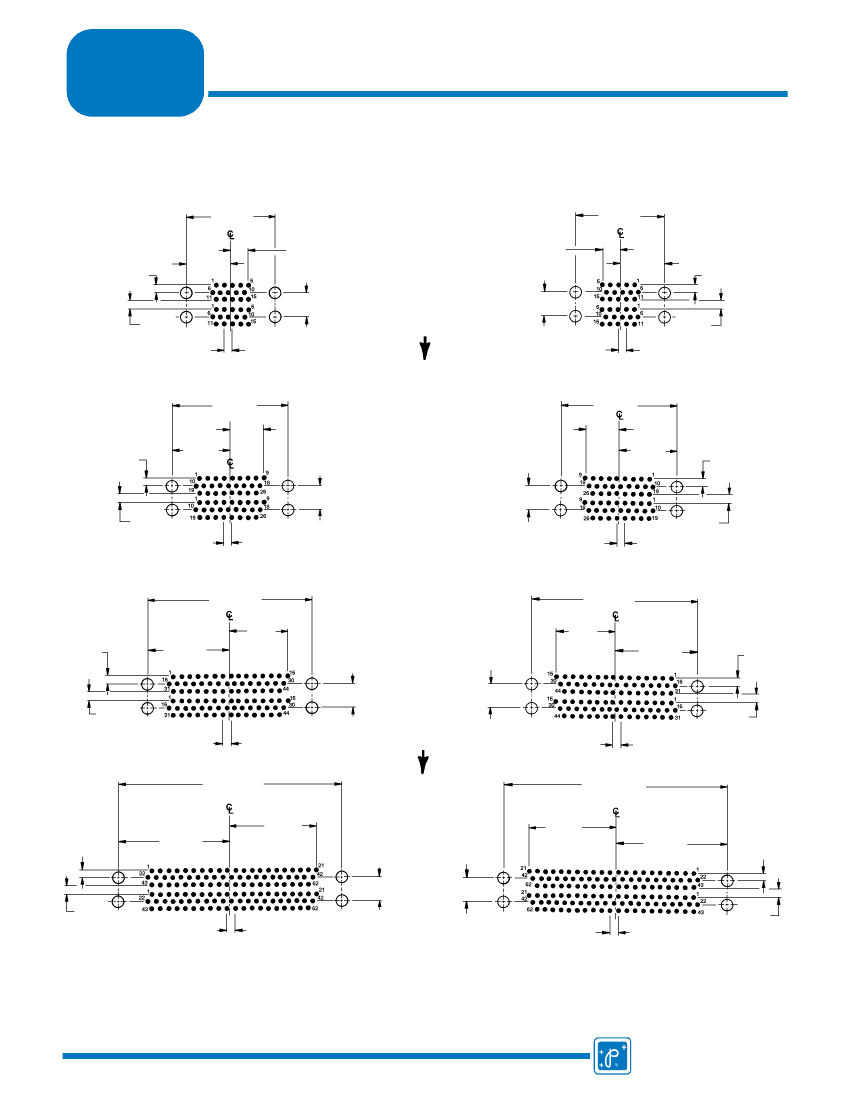

PRINTED BOARD CONTACT HOLE PATTERN
Mount connector with mating face positioned to follow direction of arrows.
DD*15 MALE OVER MALE CONNECTOR
0.984
[24.99]
0.190 [4.83]
DD*15 FEMALE OVER FEMALE CONNECTOR
0.984
[24.99]
0.190 [4.83]
0.492
[12.50]
0.256
[6.50]
0.256
[6.50]
0.100
[2.54]
0.078 [1.98] Typ.
0.078 [1.98] Typ.
0.492
[12.50]
0.100
[2.54]
0.090 [2.29] Typ.
0.090 [2.29] Typ.
DD*26 MALE OVER MALE CONNECTOR
1.312
[33.32]
0.380
[9.65]
DD*26 FEMALE OVER FEMALE CONNECTOR
1.312
[33.32]
0.380
[9.65]
0.656
[16.66]
0.078 [1.98] Typ.
0.078 [1.98] Typ.
0.656
[16.66]
0.256
[6.50]
0.100 [2.54]
0.090 [2.29] Typ.
0.256
[6.50]
0.100 [2.54]
0.090 [2.29] Typ.
DD*44 MALE OVER MALE CONNECTOR
1.852
[47.04]
0.078
[1.98]
Typ.
0.650
[16.51]
DD*44 FEMALE OVER FEMALE CONNECTOR
1.852
[47.04]
0.650
[16.51]
0.926
[23.52]
0.256
[6.50]
0.256
[6.50]
0.100
[2.54]
0.078
[1.98]
Typ.
0.926
[23.52]
0.100
[2.54]
0.090 [2.29] Typ.
0.090 [2.29] Typ.
DD*62 MALE OVER MALE CONNECTOR
2.500
[63.50]
0.973
[24.71]
DD*62 FEMALE OVER FEMALE CONNECTOR
2.500
[63.50]
0.973
[24.71]
0.078
[1.98]
Typ.
1.250
[31.75]
1.250
[31.75]
0.078
[1.98]
Typ.
0.256
[6.50]
0.100
[2.54]
0.256
[6.50]
0.100
[2.54]
0.095 [2.41] Typ.
0.095 [2.41] Typ.
Mounting hole must move 0.020 [0.51] opposite direction of the arrow for use of unriveted
mounting brackets with connectors.
Suggest 0.035 ±0.002 [0.89] Ø hole for contact termination positions.
Suggest 0.123 ±0.003 [3.12] Ø hole for mounting connector with push-on fasteners.
The * signifies either a DDA, DDB or DDC connector type.
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Positronic
12
Industries, Inc.
High Density
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
ORDERING INFORMATION – CODE NUMBERING SYSTEM
Specify Complete Connector By Following Steps 1 Through 9
Insert “0” When Step Is Not Used
STEP
Upper Connector
STEP 1 - Basic Series
DDA Series
DDB Series
DDC Series
1
DDA
2
44
3
F
4
N6T
5
6
F
7
N6T
8
X
9
/
44
Lower Connector
STEP 9 - Special Options
Consult Sales Department.
STEP 2 - DD Series Connector Variants
15, 26, 44, 62
Options are the
same as for
Upper
Connector
Steps 2, 3
and 4.
STEP 8 - Shell Options
0 - Zinc Plated with Dichromate Seal.
X - Tin Plated.
Z – Tin Plated and Dimpled - male
connector only
STEP 3 - Connector Gender
M - Male
F - Female
STEP 4 - Locking, Polarizing, Mounting and
Push-On Fastener Systems
0 - None.
R2 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Thread Fixed Female Jackscrews with
Cross Bar.
R6 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 0.120 [3.05] Ø Mounting Hole with Cross Bar.
R7 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Threads with Cross Bar.
R8 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Locknut with Cross Bar.
N2 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Thread Fixed Female Jackscrews with
Cross Bar and Push-on Fastener.
N6 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 0.120 [3.05] Ø Mounting Hole with Cross Bar
with Push-on Fastener.
N7 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Threads with Cross Bar and with Push-on
Fastener.
N8 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Locknut with Cross Bar and with Push-on
Fastener.
V3 - Lock Tab, connector front panel mounted.
V5 - Lock Tab, connector rear panel mounted.
T - Fixed Female Jackscrews.
T2 - Fixed Female Jackscrews.
T6 - Fixed Male and Female Polarized.
13
Positronic
Industries, Inc.
Embedded System
京公网安备 11010802033920号
EEWORLD
