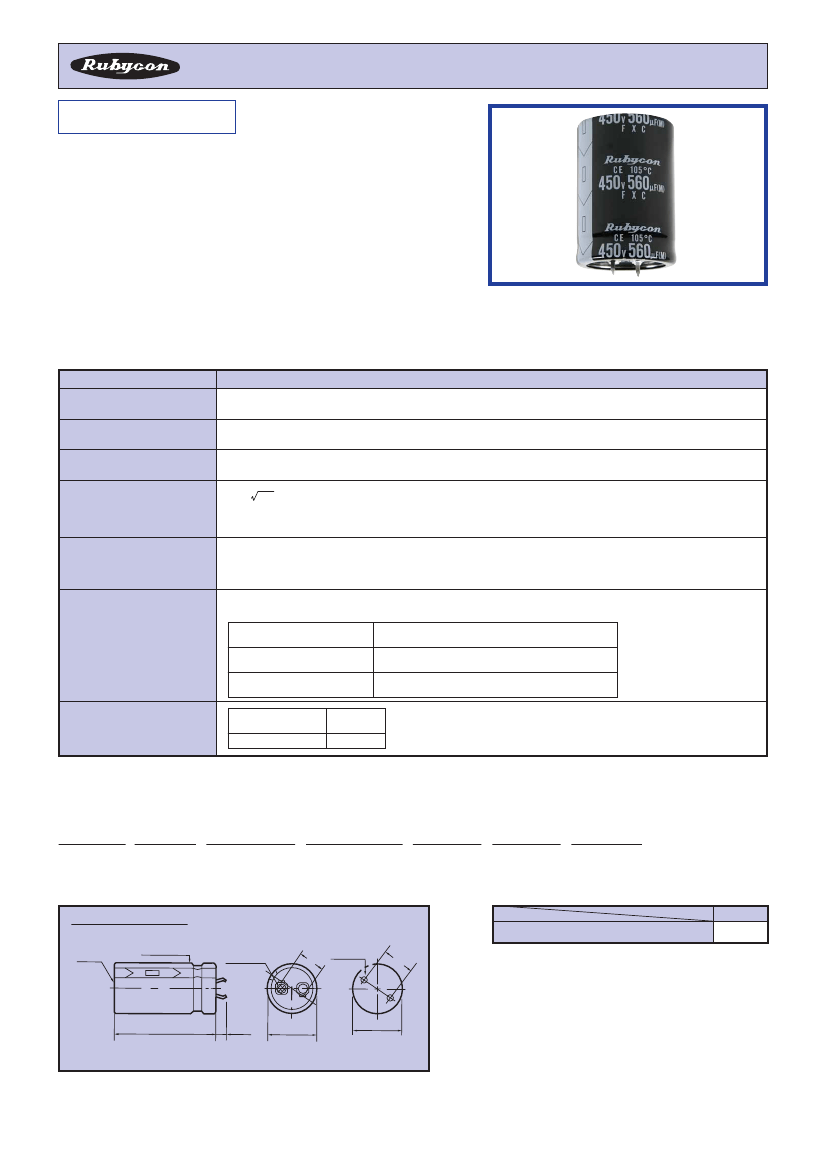

SNAP-IN ALUMINUM ELECTROLYTIC CAPACITORS
FXC
FXC
SERIES
105℃, Flame Retardant, Overvoltage Venting Specification, Snap-in Terminal Type
◆FEATURES
・
Load Life : 105℃ 2000 hours
・
This series adopts the electrolyte which was excellent in fire retardancy compared
with the conventional series.
・
This series has specification of vent operation in overvoltage situation.
・
RoHS compliance.
◆SPECIFICATIONS
Items
Category Temperature Range
Rated Voltage Range
Capacitance Tolerance
Characteristics
−25∼＋105℃
400∼450Vdc
±20％
（20℃，
120Hz）
I＝3
CV (After 5 minutes application of rated voltage)
Leakage Current(MAX)
I＝
Leakage Current
(μA)
C＝
Capacitance
(μF)
V＝
Rated Voltage
(Vdc)
(tanδ)
Dissipation Factor(MAX)
0.2（20℃，
120Hz）
After applying rated voltage with rated ripple current for 2000 hours at 105℃,
the capacitors shall meet the following requirements.
Endurance
Capacitance Change
Dissipation Factor
Leakage Current
Within ±20％ of the initial value.
Not more than 200％ of the specified value.
Not more than the specified value.
Low Temperature Stability
Impedance Ratio(MAX)
Rated Voltage
400∼450
（120Hz）
（Vdc）
Z
（−25℃） （20℃）
/Z
15
●
The specifications and the size depend on the safety requirement.
（flame retardant, overvoltage vent operation）
Please consult us for any further details.
◆PART NUMBER
□□□
Rated Voltage
FXC
Series
□□□□□
Capacitance
M
Capacitance Tolerance
□□□
Option
SN
Terminal Code
D×L
Case Size
◆DIMENSIONS
●
SN
［4(3.5)mm½
terminal type
SLEEVE
（PVC）
VENT
NEGATIVE
10
（mm）
Terminal code : SN(Tin plating)
◆OPTION
Code
PVC Sleeve without plate
OOE
2-φ2
10
±0.1
L±2
※
4±0.5
φD±1
φD±1
MOUNTING HOLES
※For φ35, 3.5±0.5
